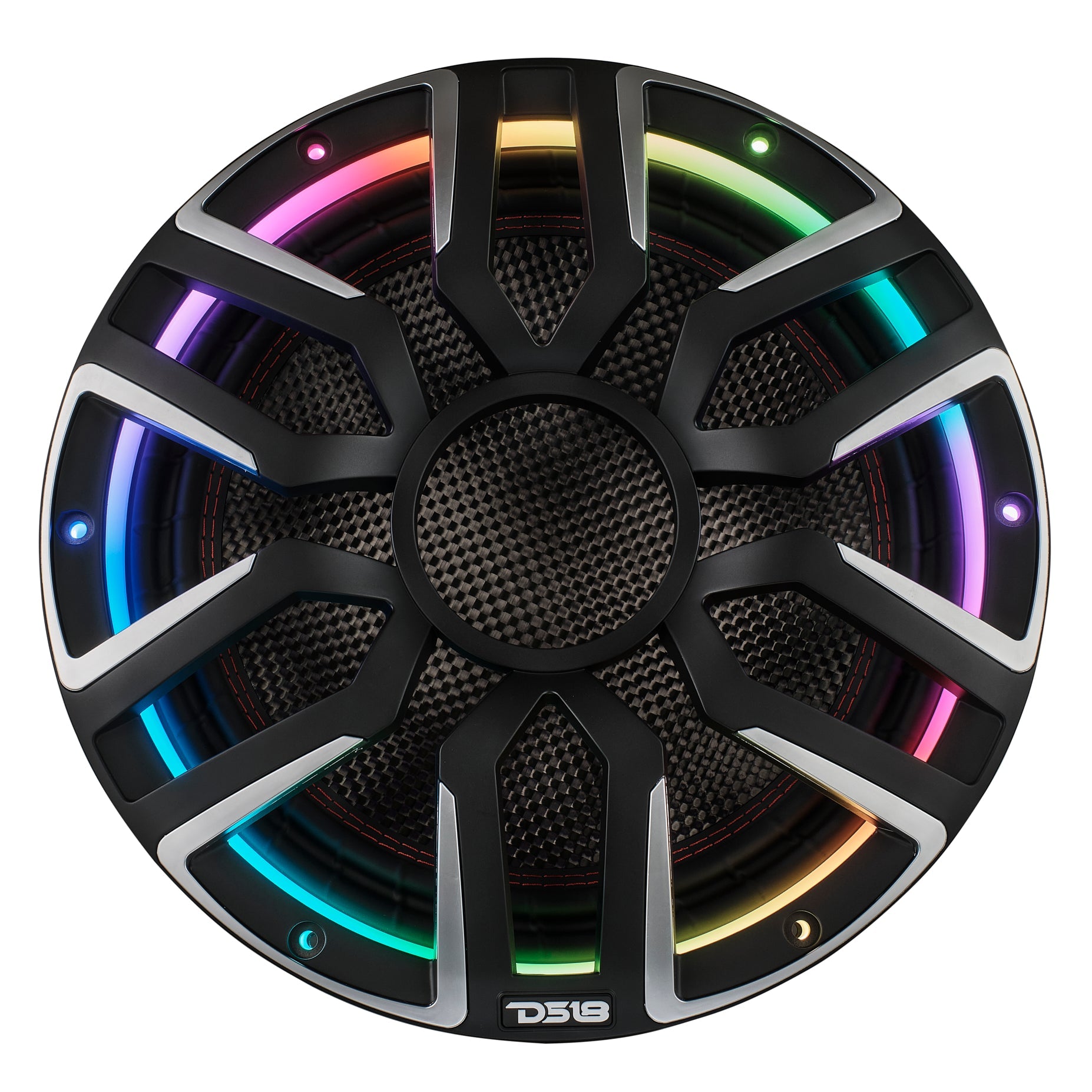

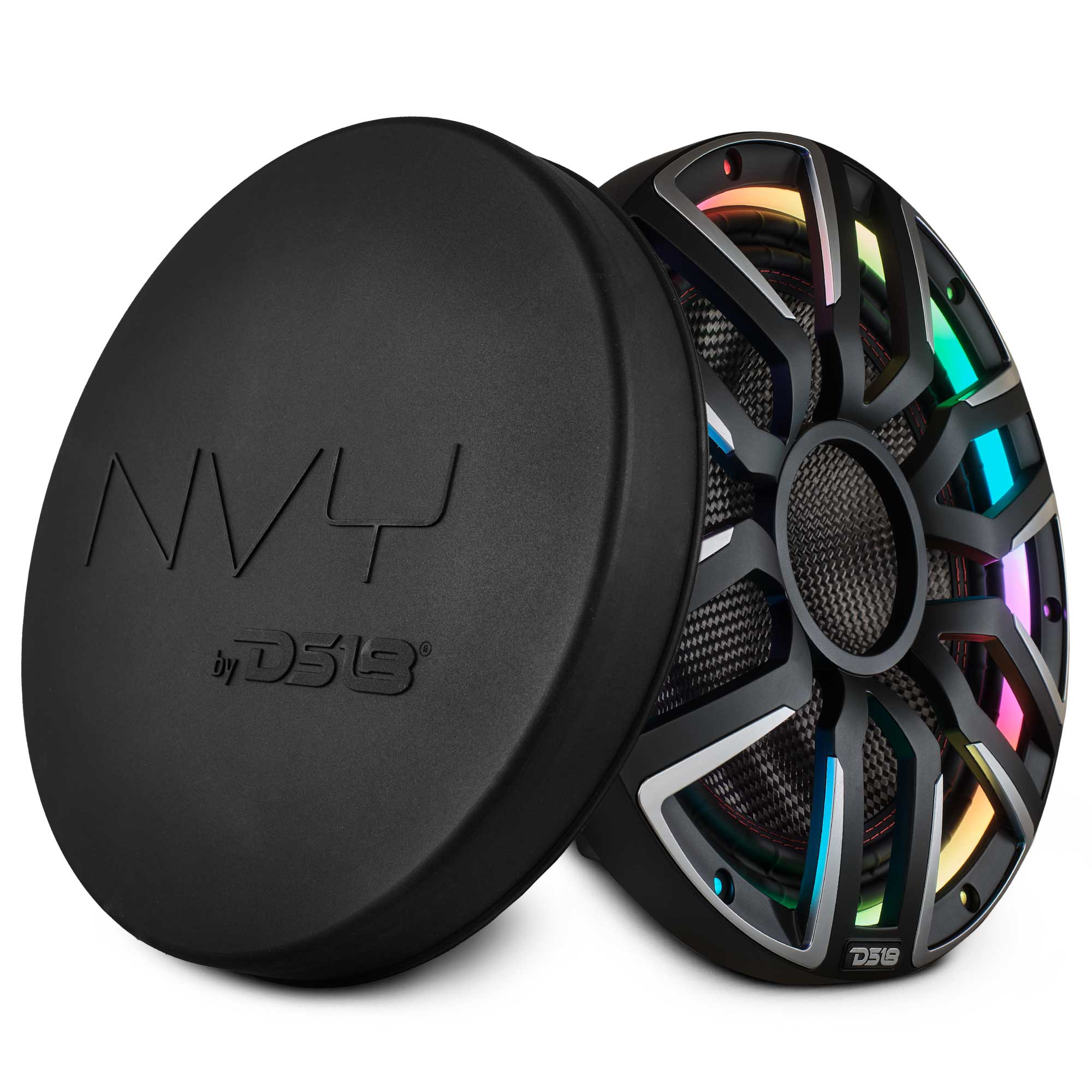

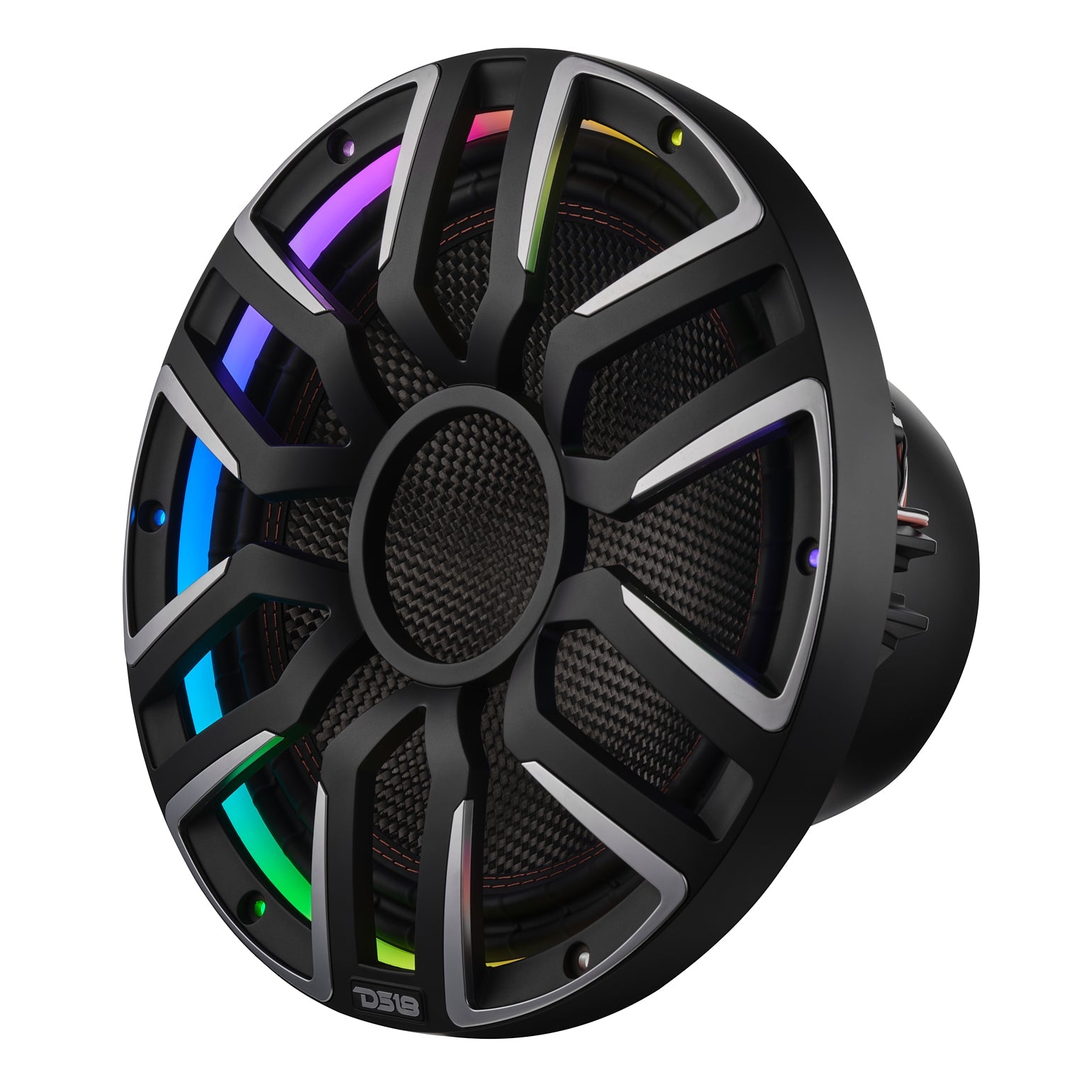

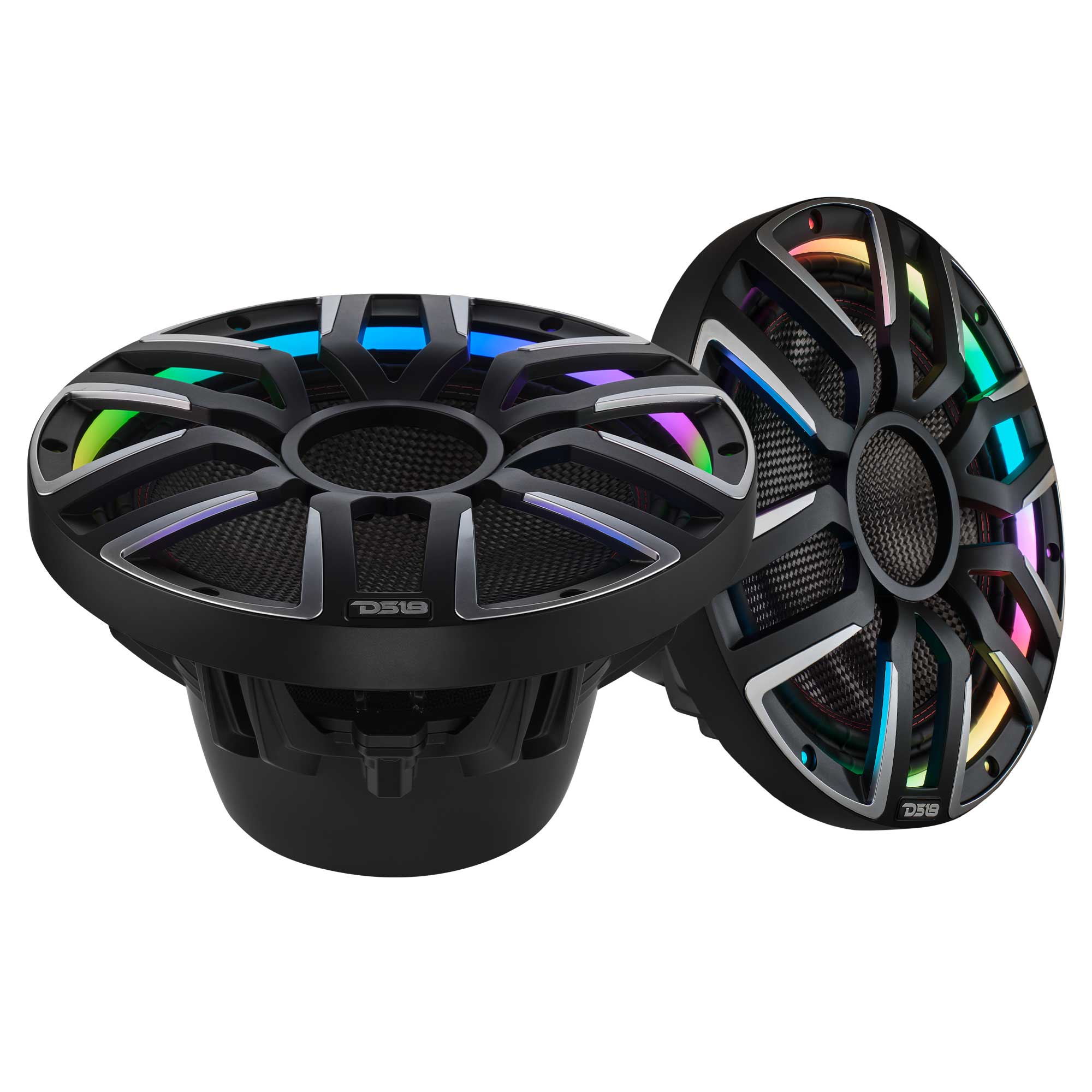

DS18 NVY-M12SUB/BK 12" Neodymium Marine & Powersport Subwoofer | 800W RMS, LED Lights, Carbon Fiber Cone, 4-Ohm
The NVY-M12SUB delivers up to 1600 watts of peak power with a carbon fiber cone and neodymium motor for tight, accurate low-end performance. Whether you're upgrading a marine system or customizing a show build, this 12" subwoofer brings deep, clean bass and a sleek look that fits right in.
Features:
-
Powerful Output: Up to 1600W peak power for deep, punchy bass that fills any space.
-
Premium Build: Carbon fiber cone and neodymium motor for precise, high-performance sound.
-

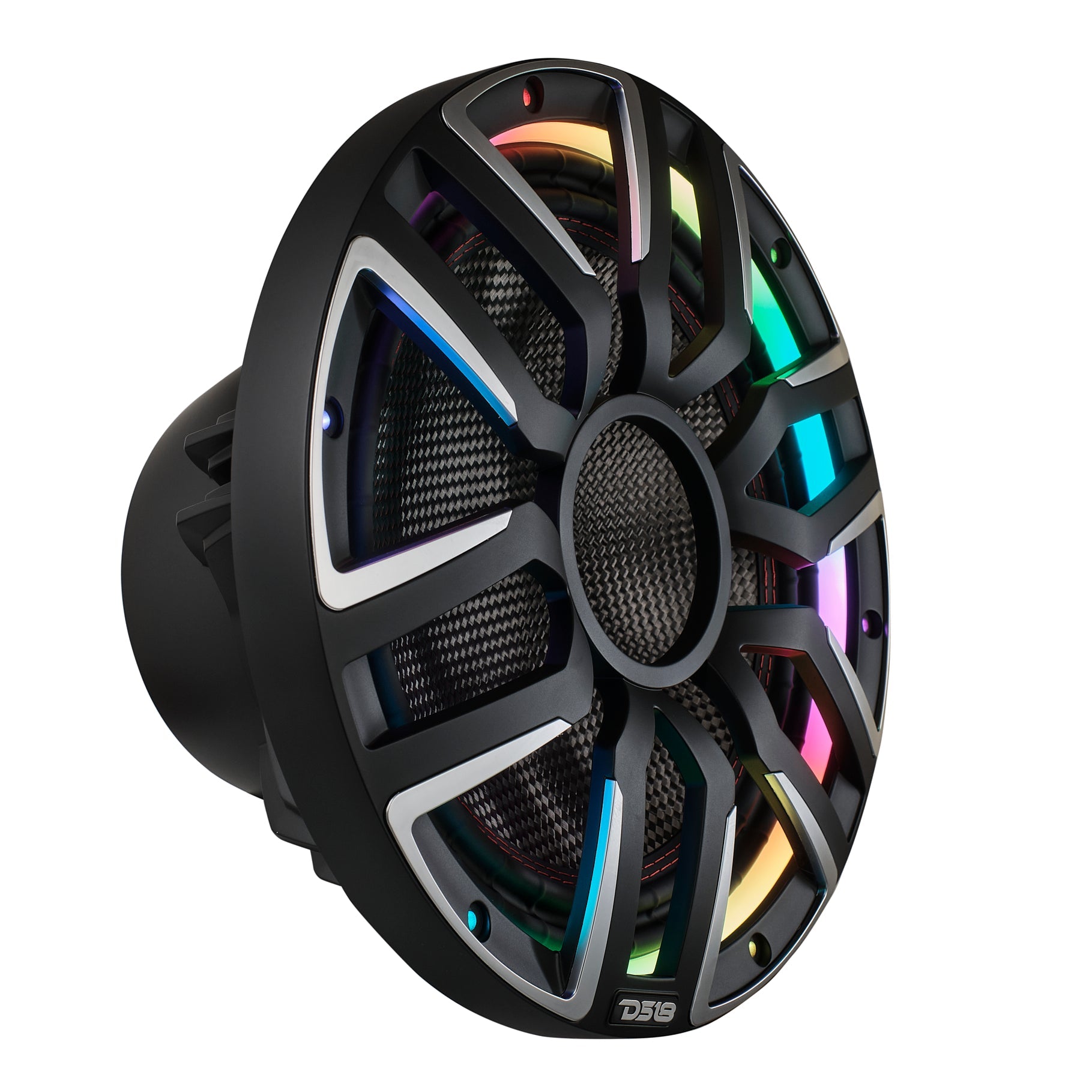

Custom Lighting Control: App-controlled digital LED lighting via the DS18 LC-DRM module (sold separately). Compatible with Android & iPhone using the DS18 LC App.
-
Smart Lighting System: Requires a digital signal from a compatible module—do not power with direct current (DC).
-
Easy Setup: Waterproof connectors and a sleek ASA composite grill for clean, professional installs.
-
Style Options: Available in Black Satin or White Gloss to match your build.
-
Designed for Impact: Built to stand out with bold design and serious sound presence.
Specifications:
General Specifications
- Nominal Diameter: 12" / 304.8mm
- Nominal Impedance: 4 ohms
- RMS Power Handling: 800W
- MAX Power Handling: 1600W
- Sensitivity (1w/1m): 87dB
- Frequency Response: 20Hz-250KHz
- Recommended Low-Pass Crossover: 100Hz
- Single
- UPC: 810097265813
Body / Features
- UV Compliant: Yes, 100% Stable
- Protection Coating: Yes, with PU
- Decorative Strips: Yes, Electroplated
- Marine Grade: Type IP65
- Digital LED Lights
- Grill Type: Injection Molded Composite (ASA)

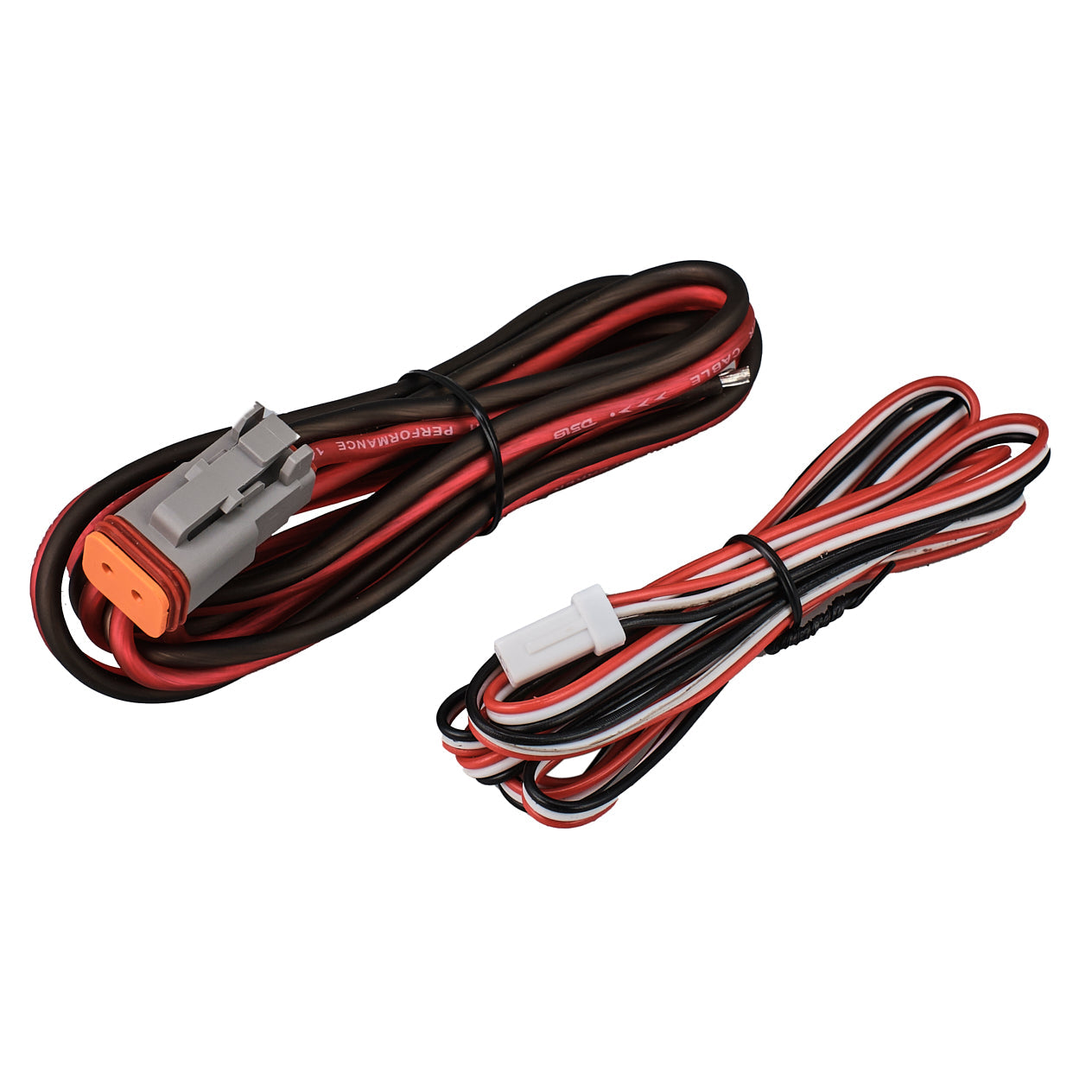

- Speaker / Lights Connector: Waterproof Type
- Color / Finish: Matte Black

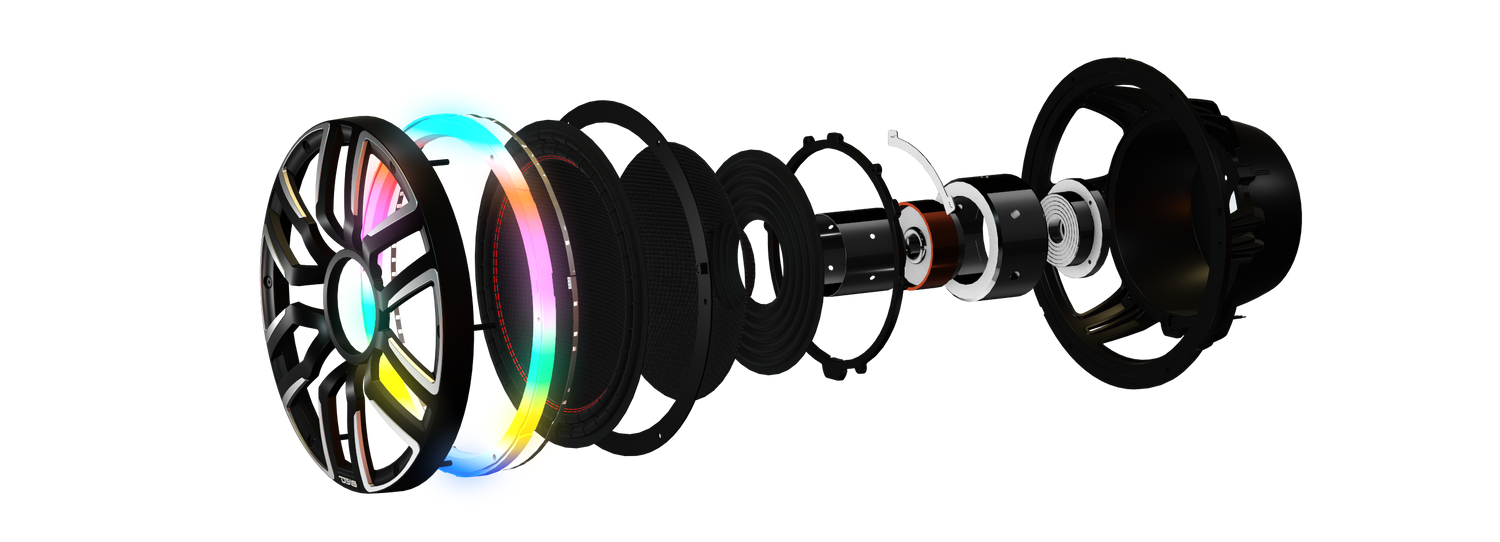

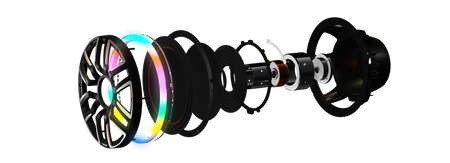

Woofer Specifications
- Voice Coil Diameter: 3" / 76.5mm
- Voice Coil Former Material: Black Aluminum
- Winding Material: CCAW
- Cone Material: Carbon Fiber
- Surround Material: Santoprene (Rubber)
- Basket Material: Aluminum Molded with PU Coating
- Magnet Material: Neodymium
- Magnet Weight: 20 Oz
Thiele & Small Parameters
- Equivalent Volume Vas: 40.8L / 1.44ft3
- Excursion (one way) Xmax: 9.75mm
- Free Air Resonance Fs: 33Hz
- Mechanical Factor Qms: 3.73
- Electrical Factor Qes: 0.45
- Total Factor Qts: 0.4
- Moving Mass Mms: 203g
- Compliance Cms: 0.11mm/N
- Bl Factor Bl: 19.28
- Voice Coil Inductance Le: 0.77mH
- Diaphragm Area Sd: 502.73cm2
- Dc Resistance Re: 3.7 Ohms
- Efficiency Bandwidth Product EBP: 73
Speaker Measurement

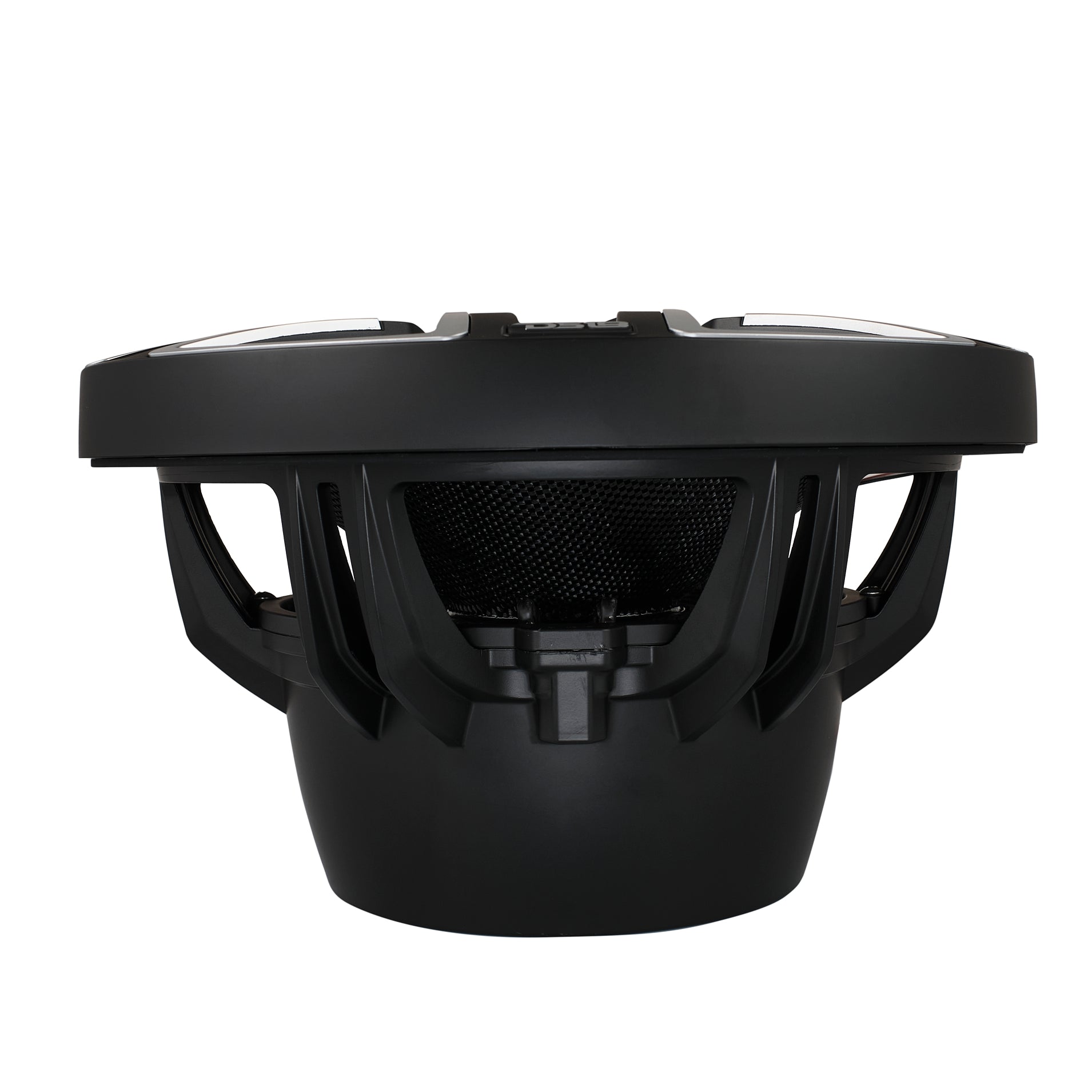

- Overall Diameter: 12.75" / 324mm
- Overall Depth: 7.5" / 190mm
- Front Mount Baffle Cutout: 10.86" / 276mm
- Mounting Depth: 5.78" / 147mm
- Motor Diameter: 6.5" / 165mm
