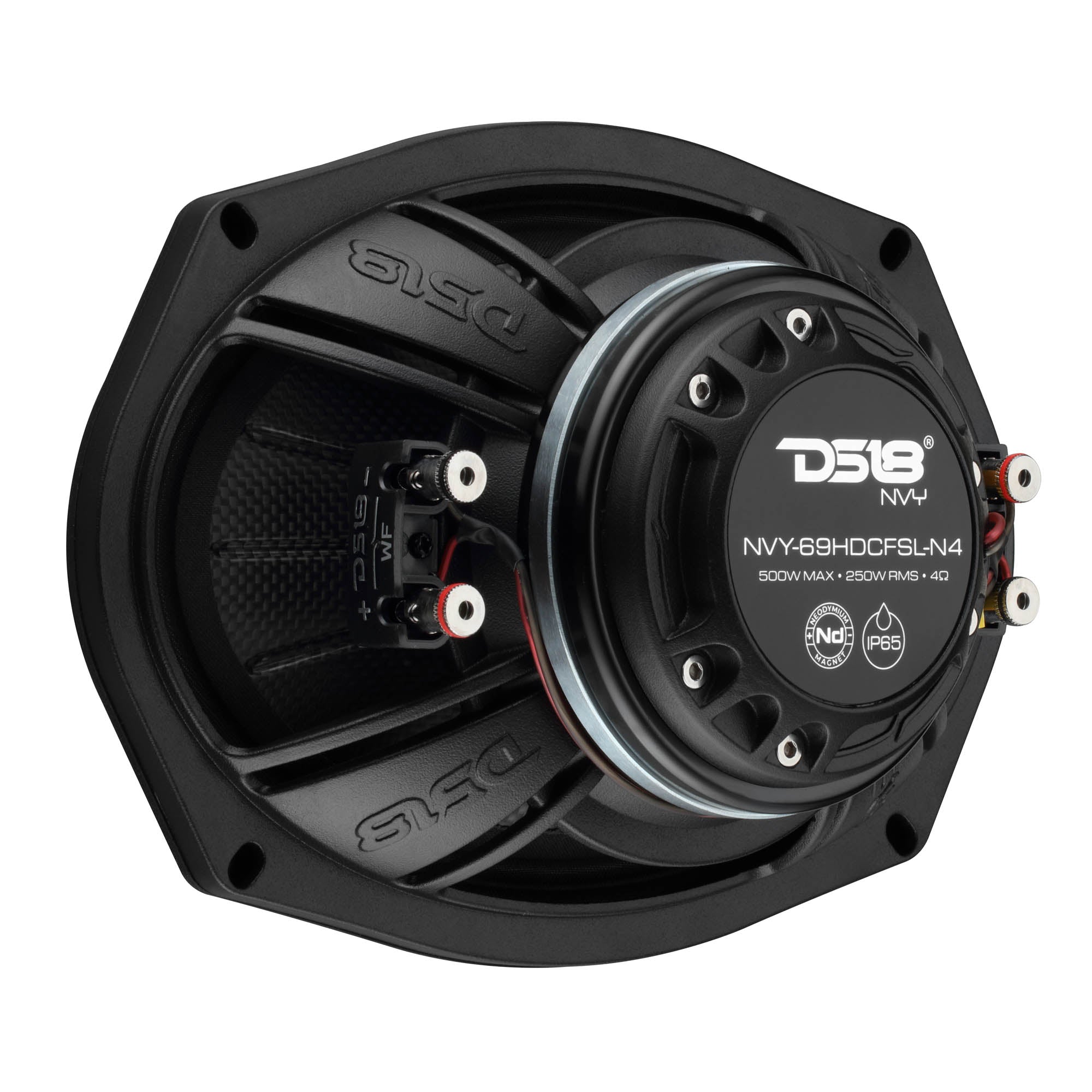

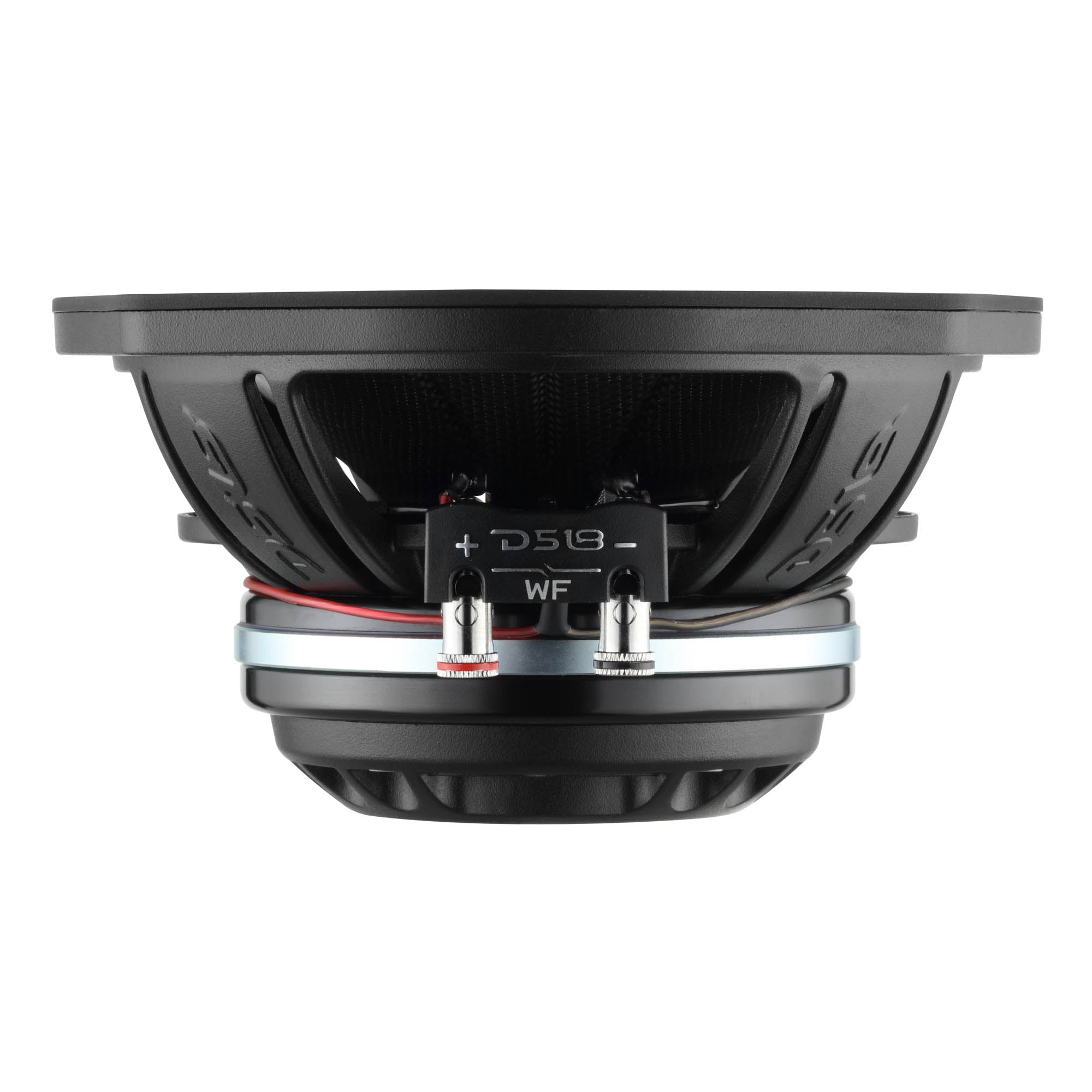

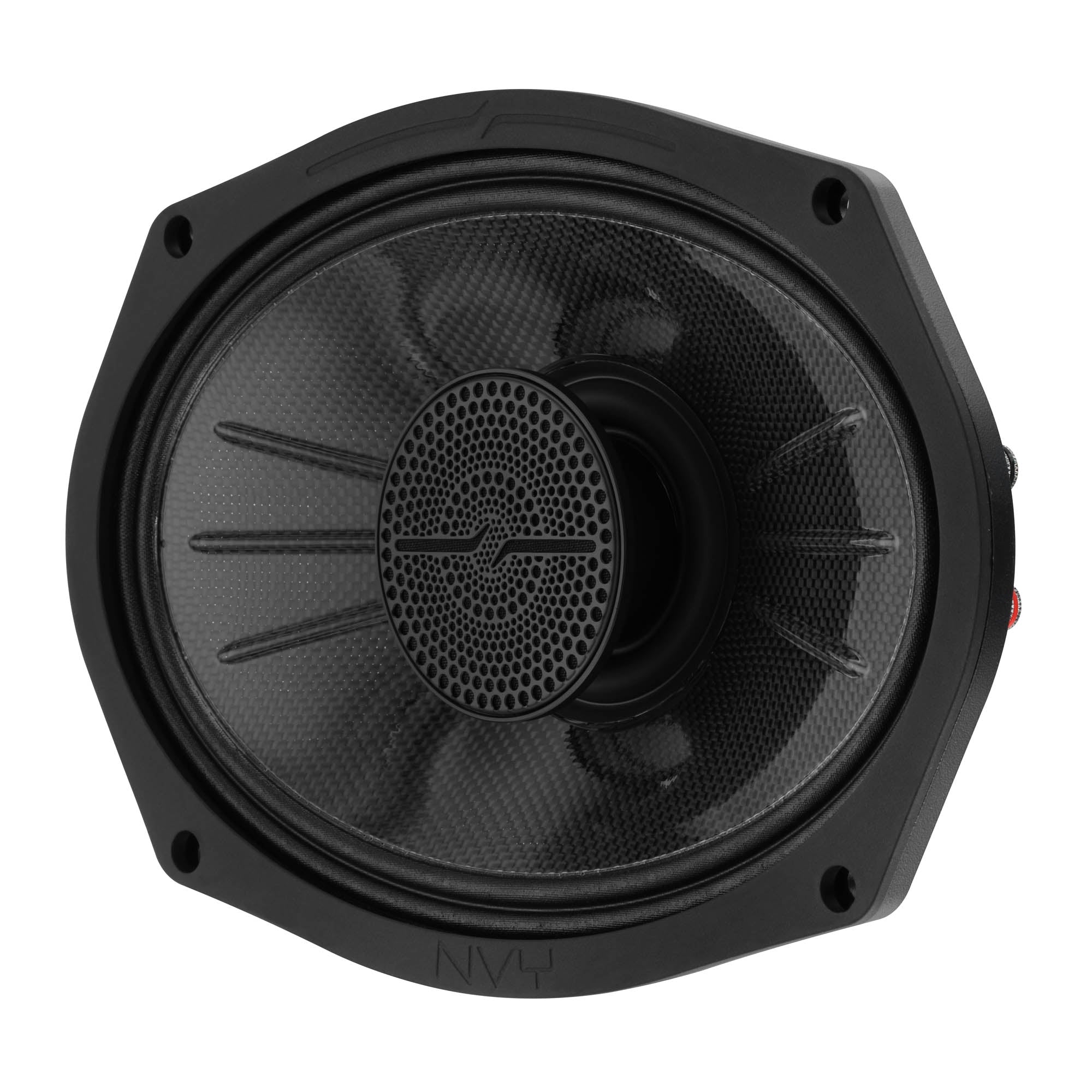

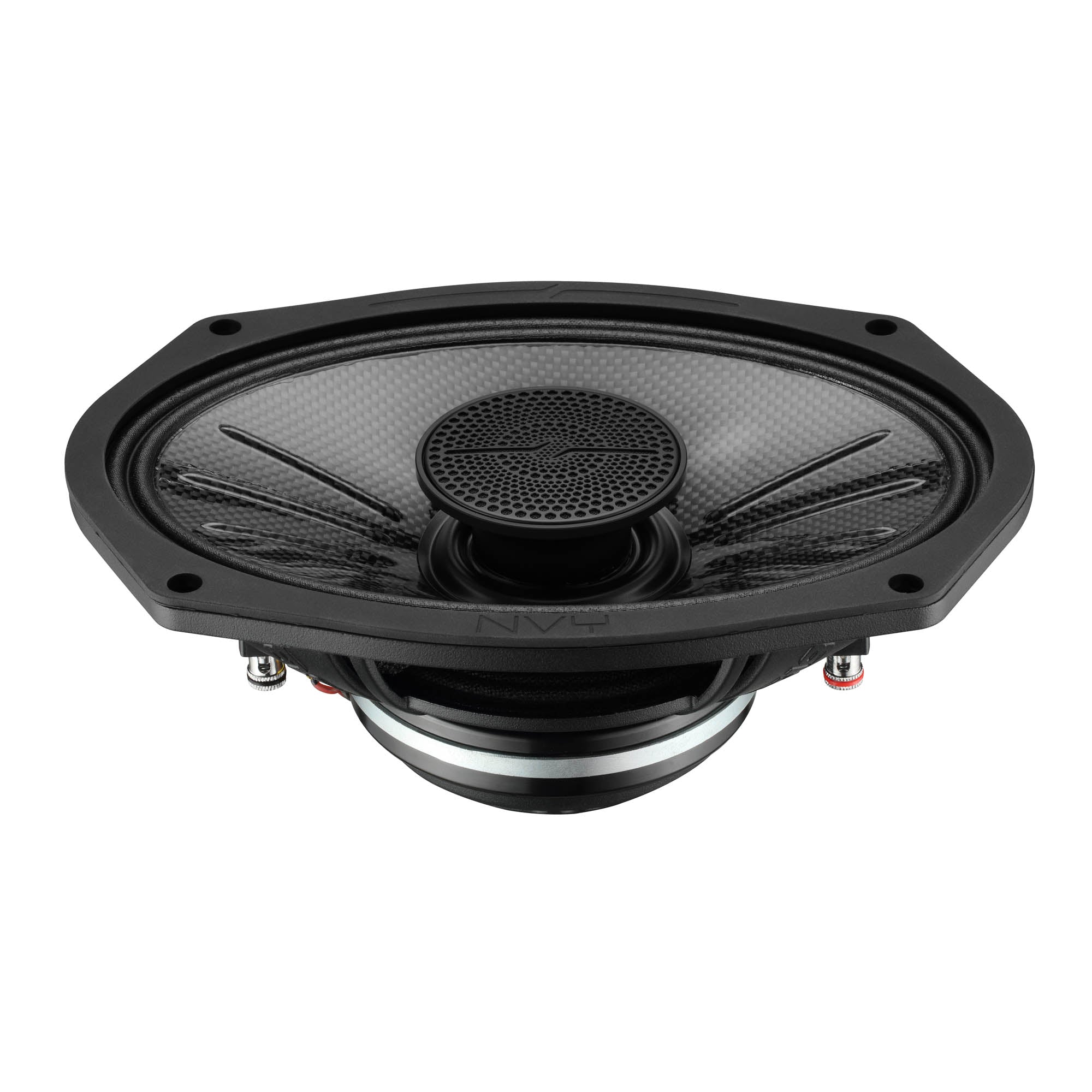

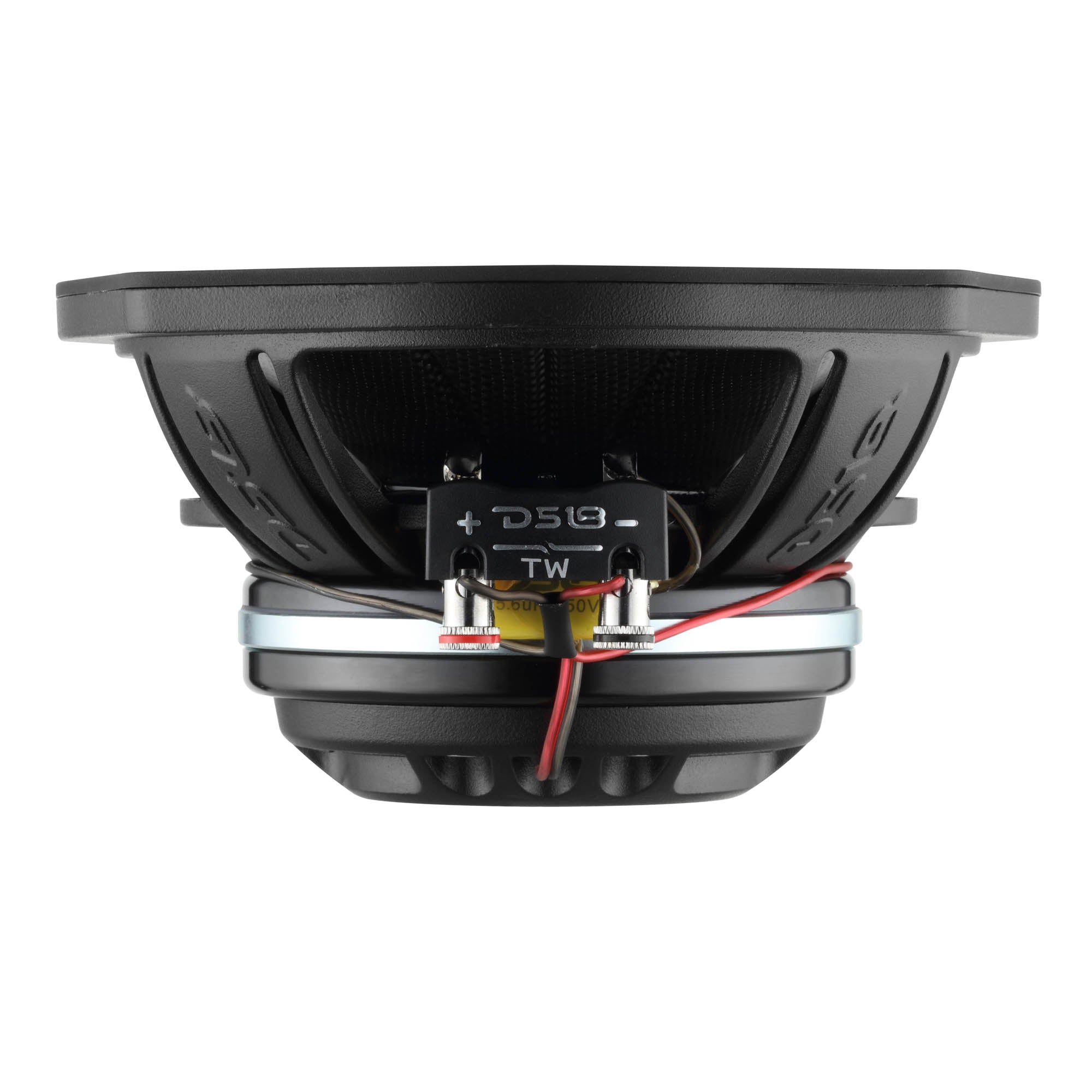

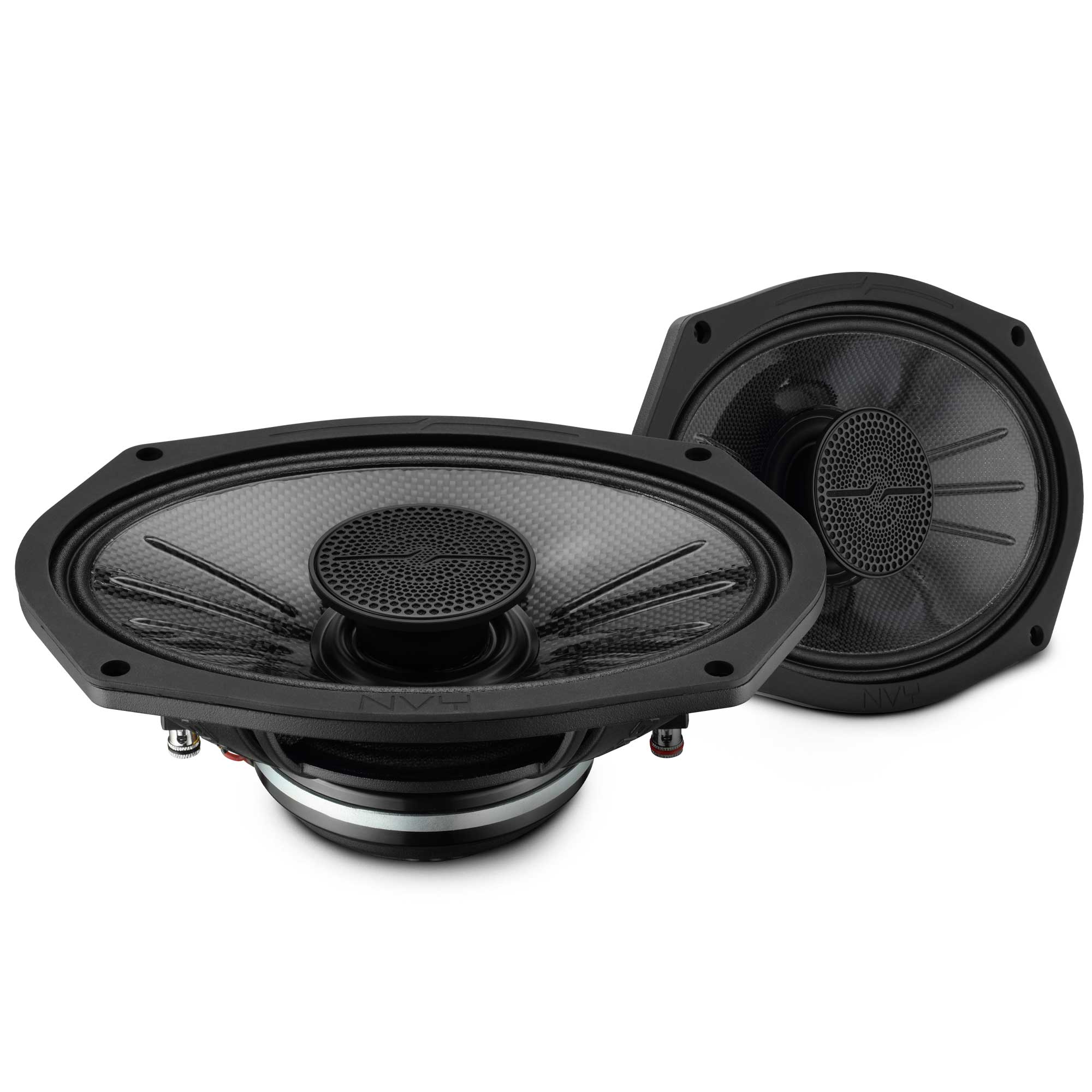

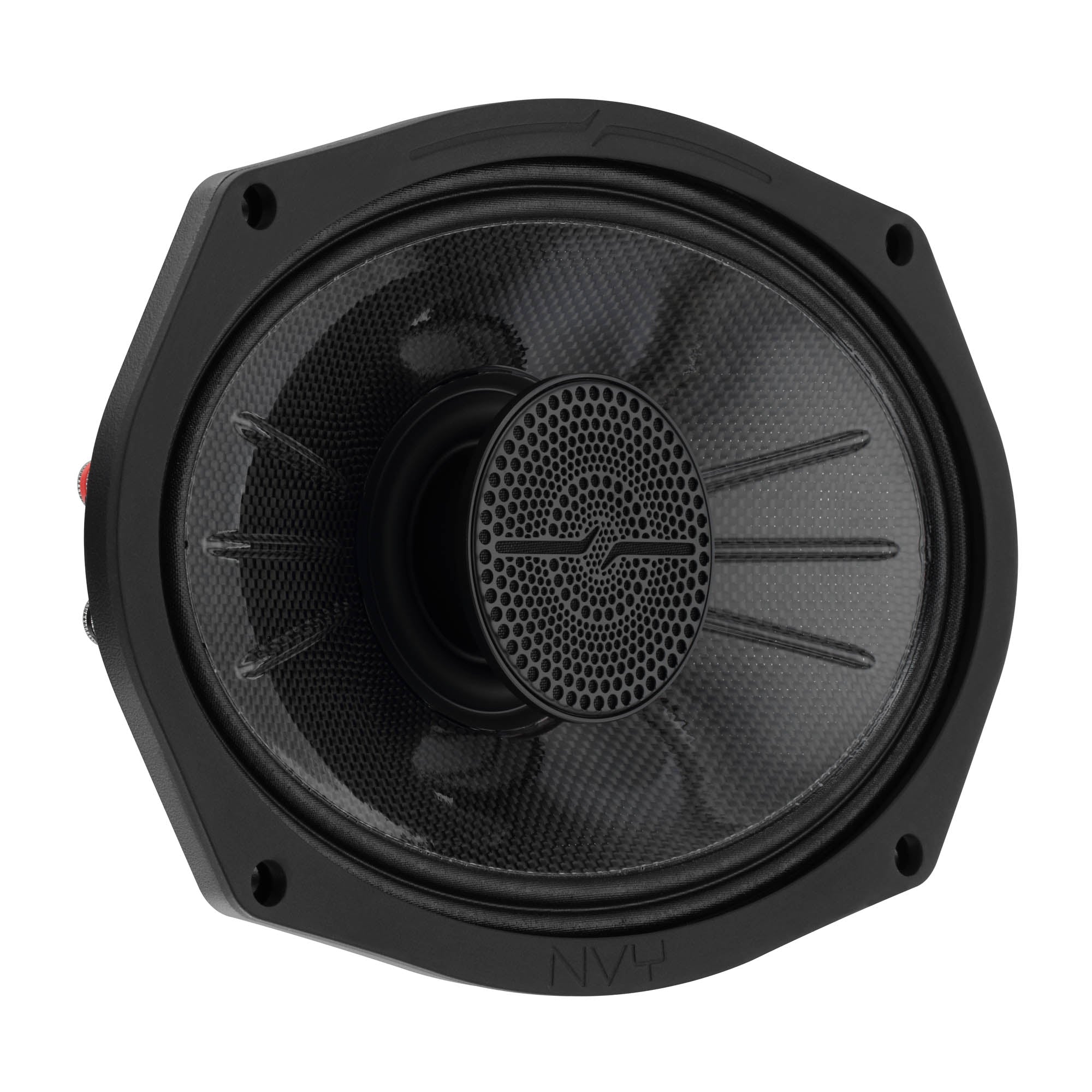

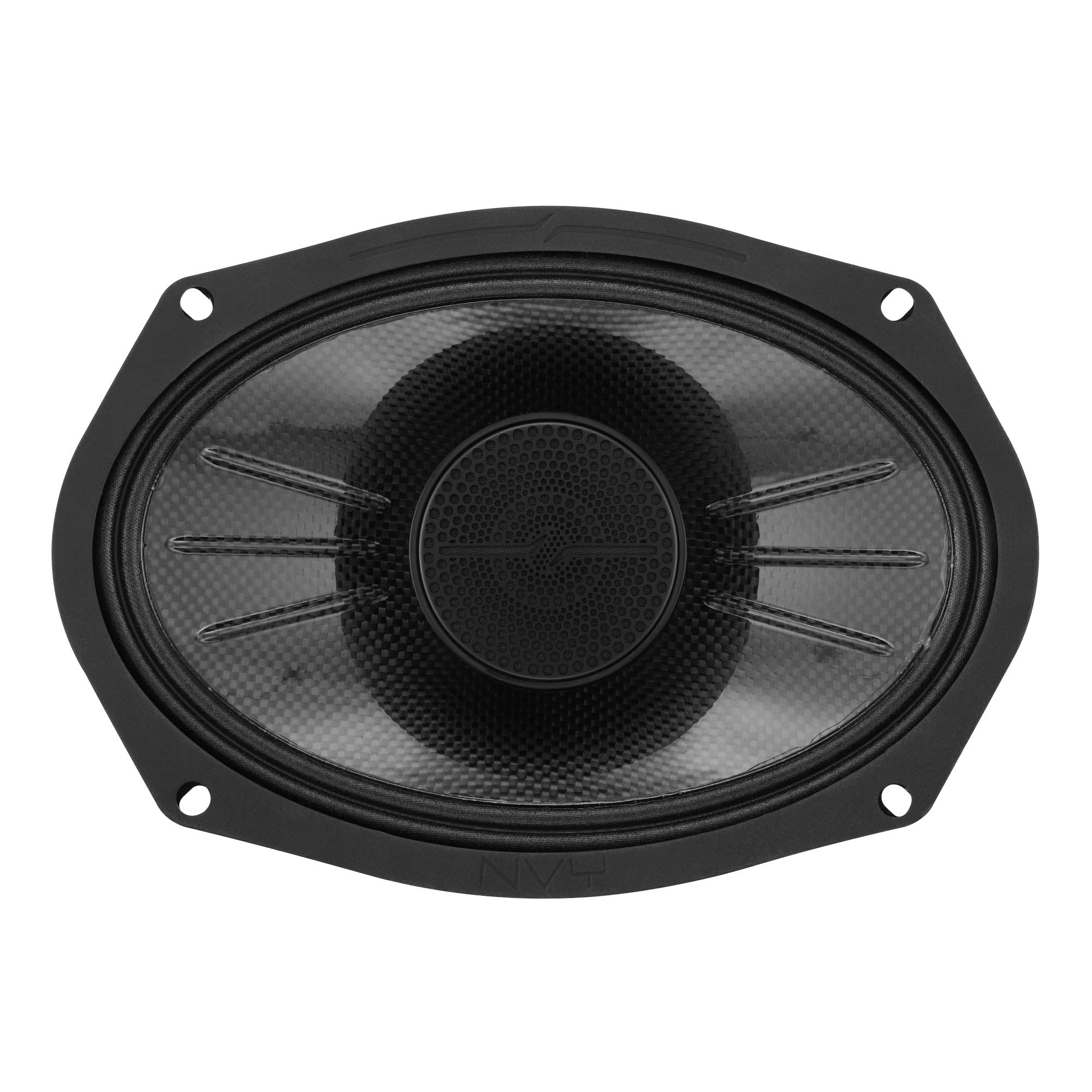

DS18 NVY-69HDCFSL-N4 6x9” Slim Hybrid Loudspeakers with Compression Driver & Carbon Fiber Cone | 250W RMS 4-Ohm High Output Speakers
Massive Power & Clarity
Superior Performance
Advanced Technology
Premium Quality
YOU MIGHT ALSO NEED
The NVY-69HDCFSL-N4 delivers high-end, loud, and accurate sound with strong projection and refined tonal balance. Built with premium materials and precision tuning, it produces clean mids, crisp highs, and excellent clarity even at high volume. Its slim 3” shallow mount design fits tight spaces like motorcycles and compact panels, while the hybrid system combines a carbon fiber cone woofer with a compression driver for powerful, controlled output and low distortion.
Features:
- Carbon Fiber Cone
- Super Tweeter
- High Sensitivity
- Water-Resistant IP65
- Neodymium Magnet
- Perfect for Motorcycles and Powersports
Specifications:
Nominal Diameter: 6x9" (164 x 234mm)
RMS Power Handling (Combined): 250W
MAX Power Handling (Combined): 500W
Sensitivity (1W/1m) (Combined): 98dB
Frequency Response (Combined): 80Hz–20kHz
Number of Ways: 2-Way
Recommended High-Pass Crossover: 100Hz
Water-Resistant Rating: IP65
Configuration: Pair
Woofer Specifications
Nominal Impedance: 4 Ohms
RMS Power Handling: 200W
MAX Power Handling: 400W
Frequency Response: 85Hz–2kHz
Recommended Band-Pass Crossover: 160Hz–2kHz
Voice Coil Diameter: 2" (52.4mm)
Voice Coil Former Material: Glass Fiber
Winding Material: CCAW
Cone Material: Carbon Fiber
Surround Material: Cloth
Basket Material: Aluminum
Basket Color: Black
Magnet Material: Neodymium
Magnet Weight: 9.26 oz
Thiele & Small Parameters
Vas (Equivalent Volume): 8.44L (0.298ft³)
Xmax (One-Way Excursion): 1.2mm
Fs (Free Air Resonance): 114Hz
Qms (Mechanical Q): 8.613
Qes (Electrical Q): 0.473
Qts (Total Q): 0.448
Mms (Moving Mass): 19.302g
Cms (Mechanical Compliance): 0.099mm/N
BL (BL Factor): 10.140
Le (Voice Coil Inductance): 0.133mH
Sd (Diaphragm Area): 245.04cm²
Re (DC Resistance): 3.2 Ohms
Mmd (Mechanical Mass without Air): 242.92g
Driver Specifications
Nominal Impedance: 4 Ohms
AES Power Handling: 50W
Program Power Handling: 100W
Peak Power Handling: 200W
Frequency Response: 2kHz–20kHz
Recommended High-Pass Crossover: 2kHz
Voice Coil Diameter: 1.5" (37.6mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminum Alloy
Magnet Material: Neodymium (N38H)
Magnet Weight: 1.3 oz
Horn Diameter: 2.5" (65mm)
Measurements
Overall Diameter: 6.46" x 9.21" (164 x 234mm)
Overall Depth: 3.38" (86mm)
Front Mount Baffle Cutout: 5.71" x 8.58" (145 x 218mm)
Mounting Depth: 3" (76.5mm)
Motor Diameter: 4.13" (105mm)
UPC: 810199441597
