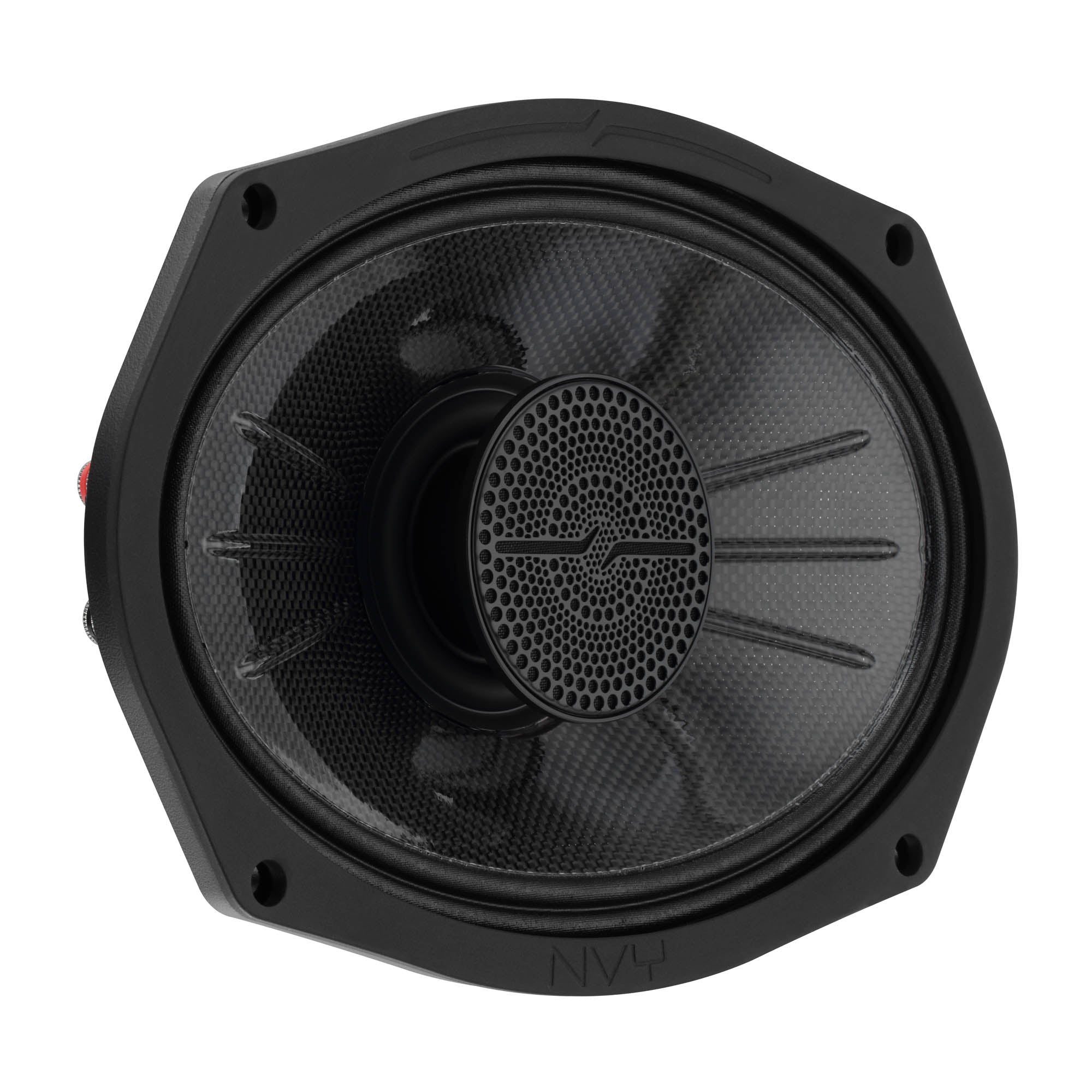

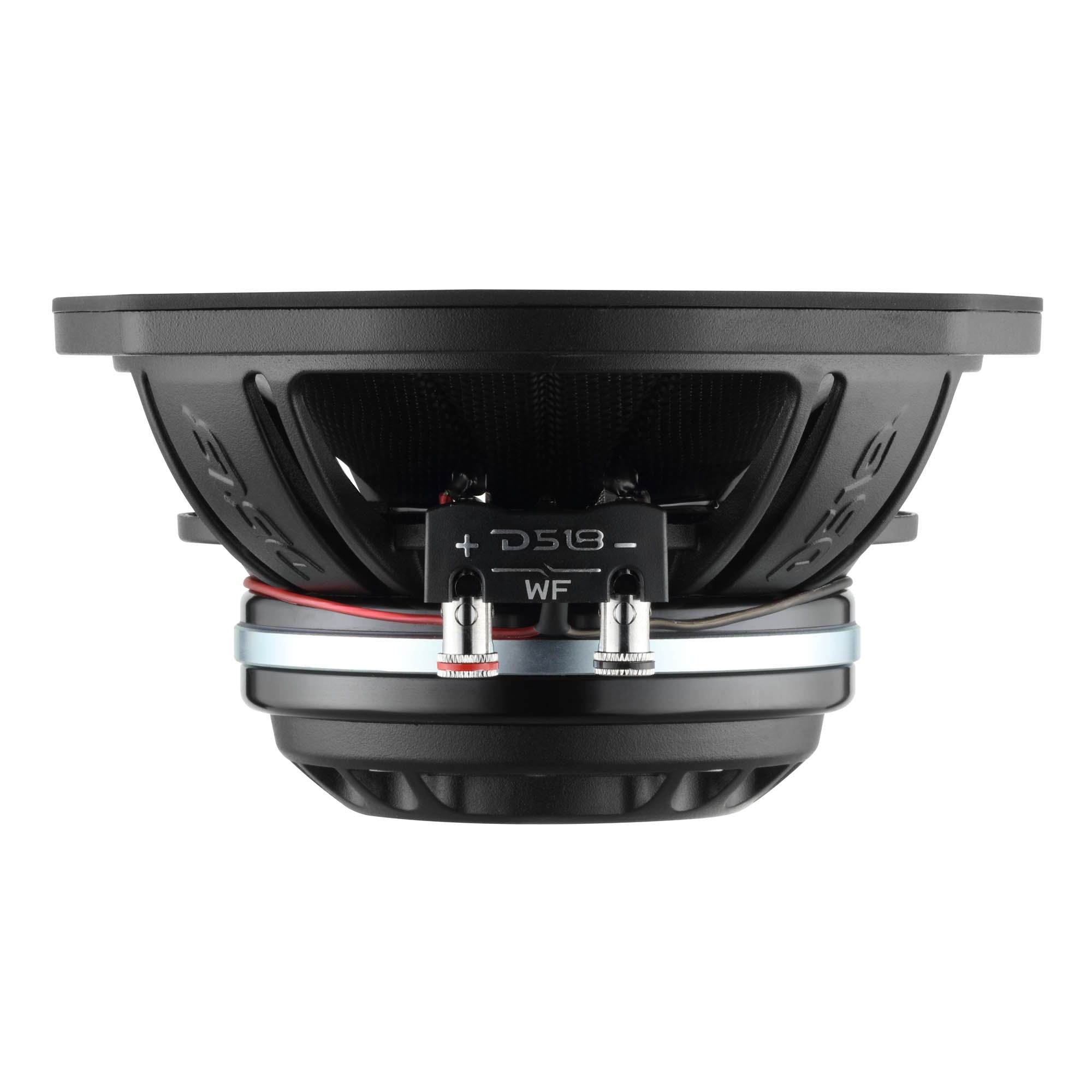

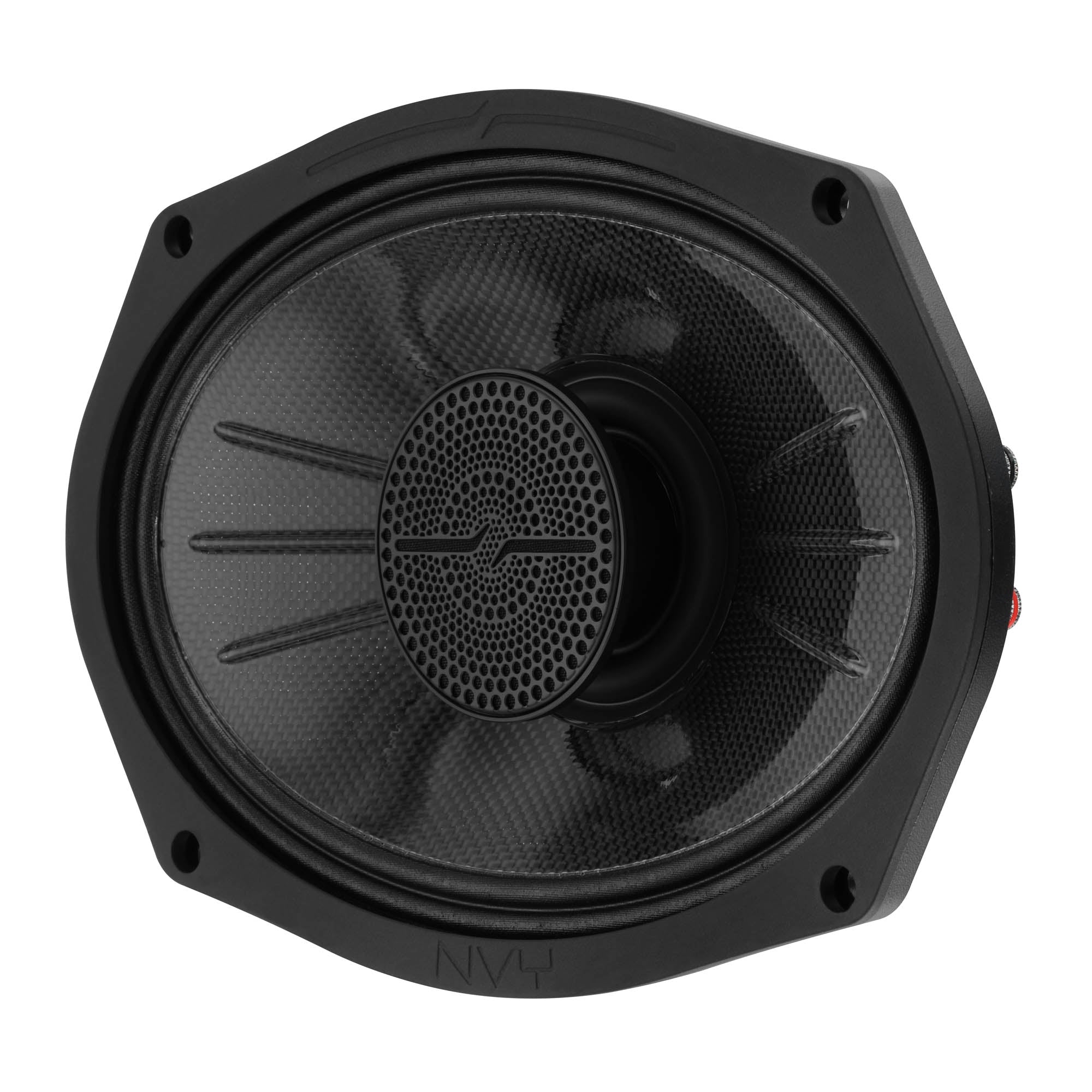

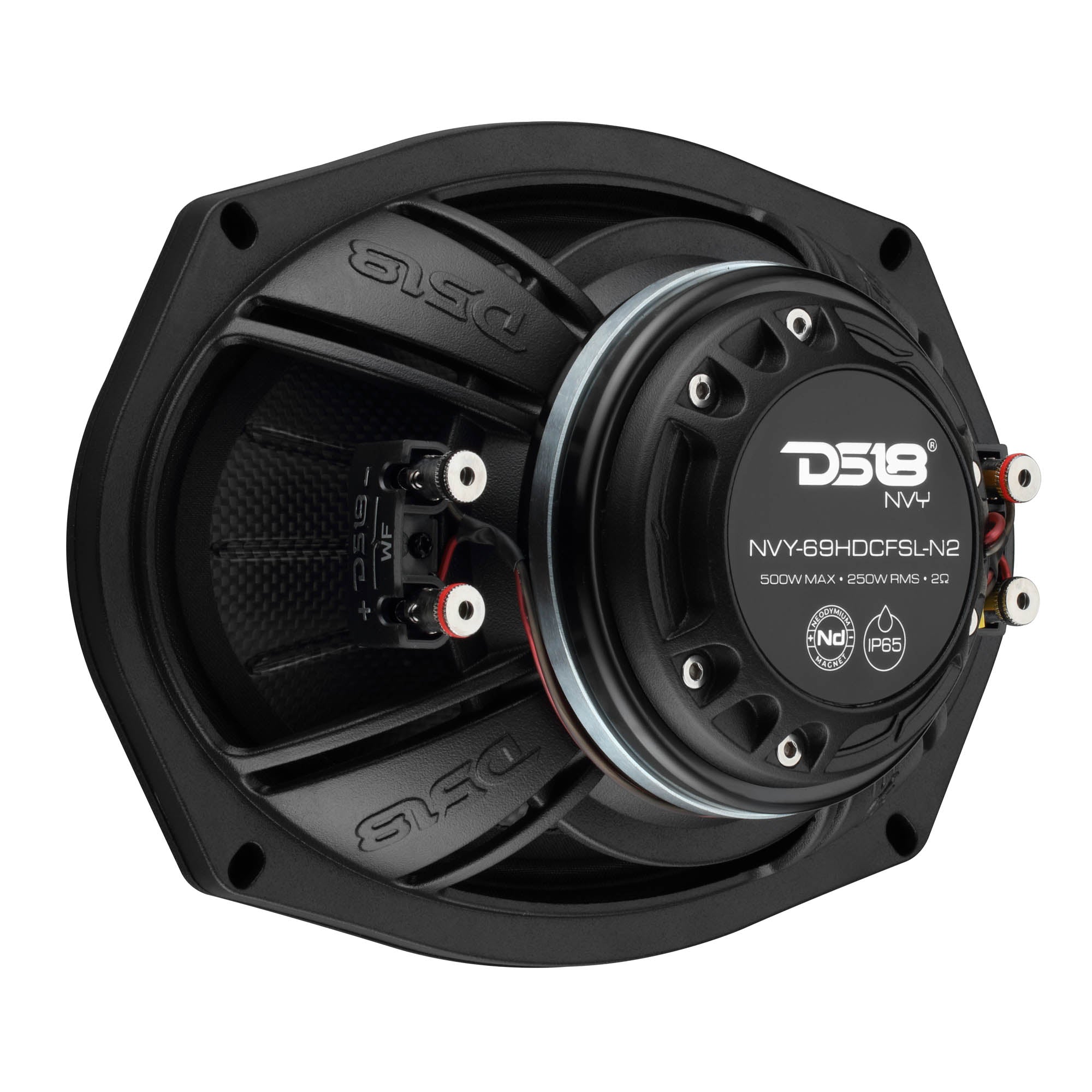

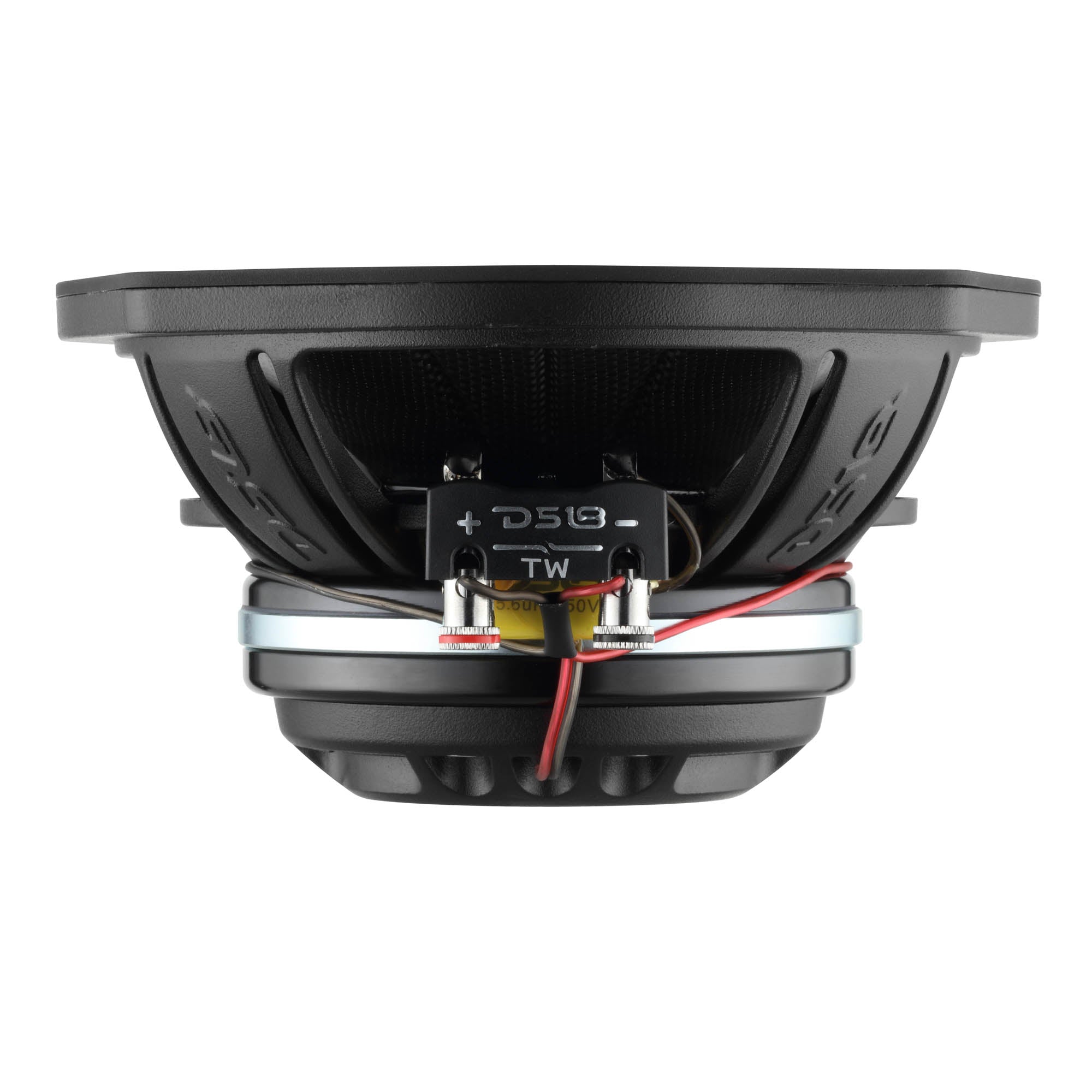

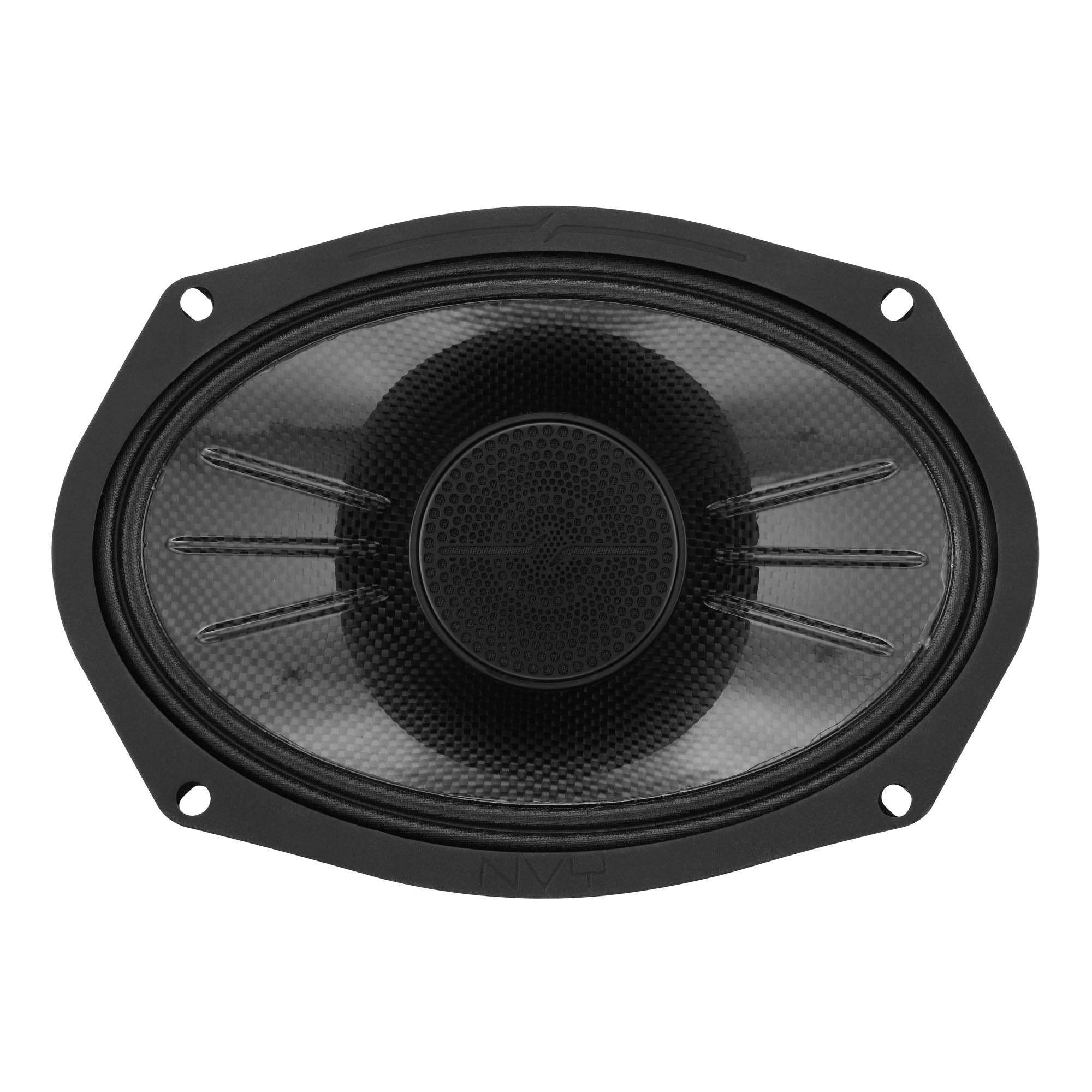

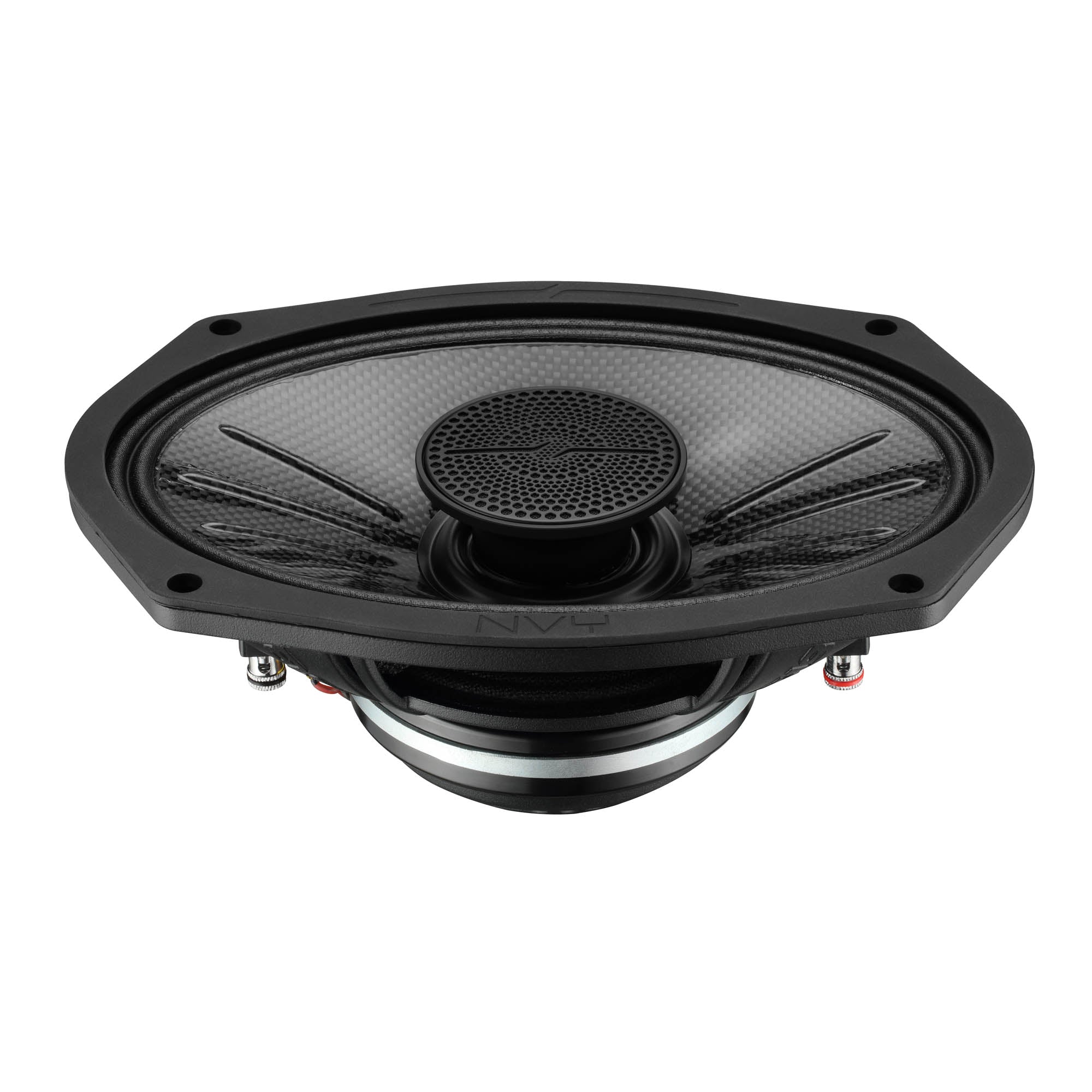

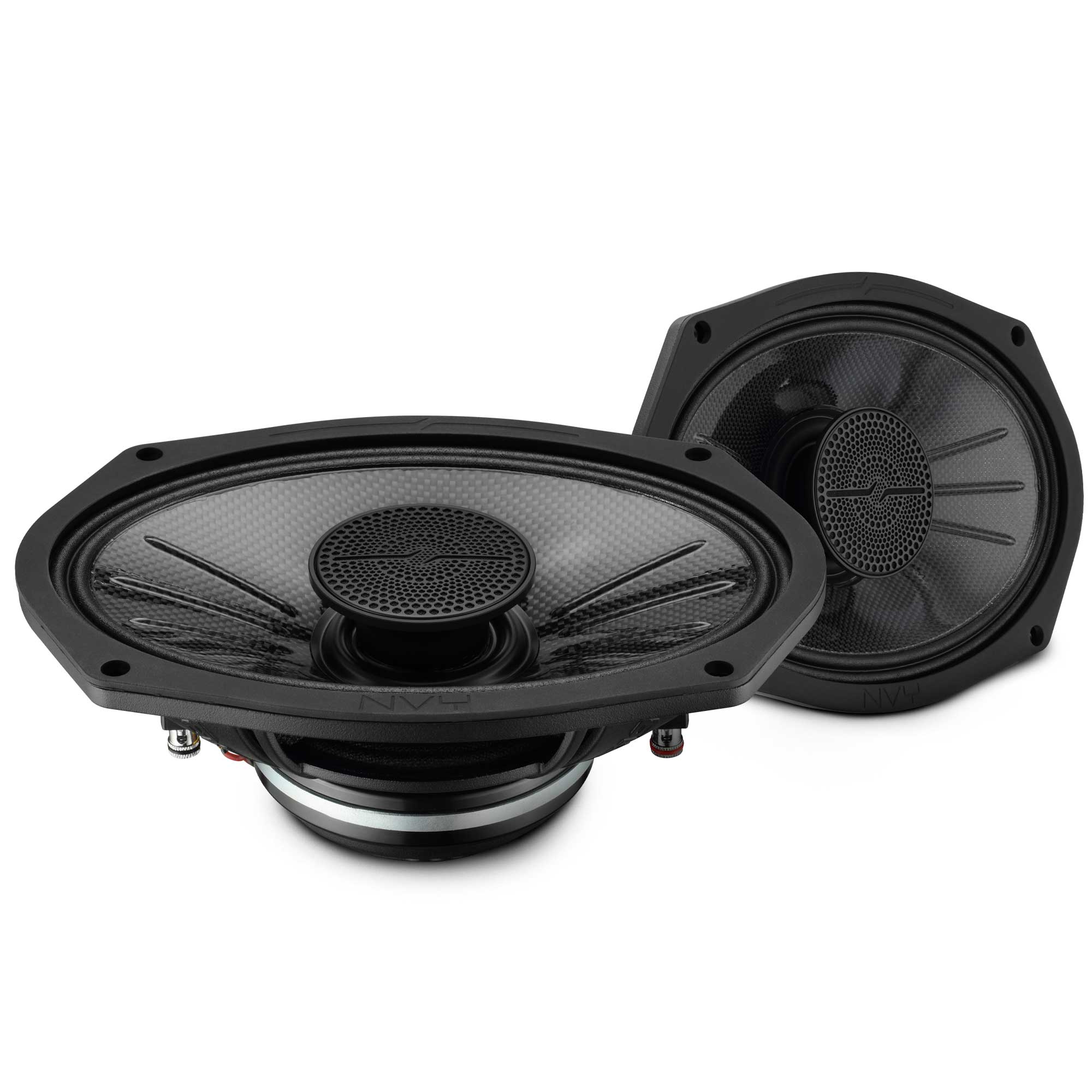

DS18 NVY-69HDCFSL-N2 6x9” Slim Hybrid Loudspeakers with Compression Driver & Carbon Fiber Cone | 250W RMS 2-Ohm High Output Speakers

The NVY-69HDCFSL-N2 delivers high-end acoustic performance with loud, clean, and accurate sound designed for demanding listeners. Built with premium materials and precision tuning, it offers strong midrange, crisp highs, and excellent clarity even at high volume. Its slim 3” shallow mount design allows installation in tight spaces like motorcycle fairings and compact panels, while the hybrid system combines a carbon fiber cone woofer with a compression driver for powerful projection, low distortion, and balanced sound reproduction.

Features:

• Carbon Fiber Cone
• Super Tweeter
• High Sensitivity
• Water-Resistant IP65
• Neodymium Magnet

• Perfect for Motorcycles and Powersports

Specifications:

Nominal Diameter: 6x9" (164 x 234mm)

RMS Power Handling (Combined): 250W

MAX Power Handling (Combined): 500W

Sensitivity (1W/1m) (Combined): 98dB

Frequency Response (Combined): 80Hz–20kHz

Number of Ways: 2-Way

Recommended High-Pass Crossover: 100Hz

Water-Resistant Rating: IP65

Configuration: Pair

Woofer Specifications

Nominal Impedance: 2 Ohms

RMS Power Handling: 200W

MAX Power Handling: 400W

Frequency Response: 85Hz–2kHz

Recommended Band-Pass Crossover: 160Hz–2kHz

Voice Coil Diameter: 2" (52.4mm)

Voice Coil Former Material: Glass Fiber

Winding Material: CCAW

Cone Material: Carbon Fiber

Surround Material: Cloth

Basket Material: Aluminum

Basket Color: Black

Magnet Material: Neodymium

Magnet Weight: 9.26 oz

Thiele & Small Parameters

Vas (Equivalent Volume): 9.72L (0.343ft³)

Xmax (One-Way Excursion): 1.2mm

Fs (Free Air Resonance): 102Hz

Qms (Mechanical Q): 19.188

Qes (Electrical Q): 0.365

Qts (Total Q): 0.358

Mms (Moving Mass): 20.888g

Cms (Mechanical Compliance): 0.114mm/N

BL (BL Factor): 8.780

Le (Voice Coil Inductance): 0.096mH

Sd (Diaphragm Area): 245.04cm²

Re (DC Resistance): 1.8 Ohms

Mmd (Mechanical Mass without Air): 281.92g

Driver Specifications

Nominal Impedance: 4 Ohms

AES Power Handling: 50W

Program Power Handling: 100W

Peak Power Handling: 200W

Frequency Response: 2kHz–20kHz

Recommended High-Pass Crossover: 2kHz

Voice Coil Diameter: 1.5" (37.6mm)

Voice Coil Former Material: Kapton

Winding Material: CCAW

Diaphragm Material: Aluminum Alloy

Magnet Material: Neodymium (N38H)

Magnet Weight: 1.3 oz

Horn Diameter: 2.5" (65mm)

Measurements

Overall Diameter: 6.46" x 9.21" (164 x 234mm)

Overall Depth: 3.38" (86mm)

Front Mount Baffle Cutout: 5.71" x 8.58" (145 x 218mm)

Mounting Depth: 3" (76.5mm)

Motor Diameter: 4.13" (105mm)

UPC: 810199441580
