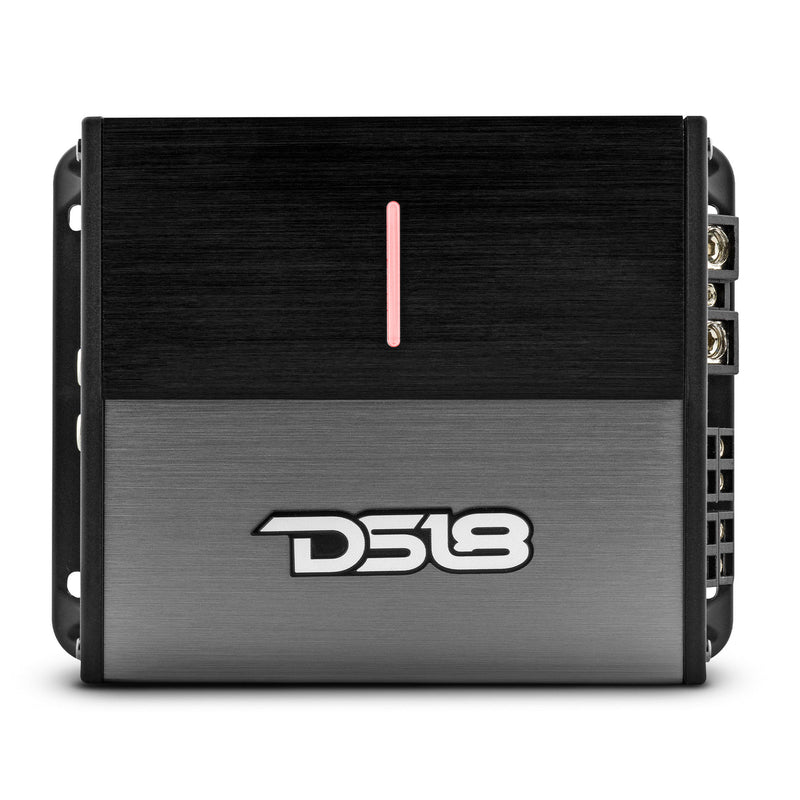

DS18 ION Compact Full Range Class D 4-Channel Amplifier 4 x 150 Watts RMS @ 4-ohm

• 4 Channel Full Range
• Class D
• 2 - 4 Ohm Stable
• 4 X 150 Watts @ 4 Ohm
• Power / Clip / Protection Indicator
• Compact

• DS18 ION1000.4D




  Introducing DS18’s ION1000.4D, the perfect digital micro amplifier addition to your car audio system for boosting performance ensuring a premium listening experience!

  Hi-level Inputs and Tiffany RCA’s allow this amplifier to be easily integrated into any existing audio setup and ensure optimal signal transfer for crystal clear sound. The ION1000.4D’s miniature size and surface mount component technology allows it to be placed almost anywhere in your build without taking up too much space.

  The full variable crossover switch lets you customize your audio settings to your preferences for enhanced audio clarity across all frequencies. Fine tune these levels with the convenient remote level knob control!

  Surface mount component technology makes this amplifier highly resistant to vibrations, ensuring stable performance even on rough terrain. Additionally, protective coating prevents moisture corrosion on the PCB, guaranteeing longevity and durability.

  Safety was a top priority in the creation of DS18’s ION1000.4D amplifier. The power, protection, and clipping LED indicator always keeps you informed of the amplifiers status. While short circuit thermal, DC offset, and high/low voltage protection features, give you the comfort of knowing that your amplifier will operate reliably and safely.

  The ION1000.4D has power ratings of 2 X 500W at 4-ohm bridged, 2 x 250W at 2 ohms, and 4 x 150W at 4 ohms; perfect power ratings to turbocharge every component in your system!

  Experience the power and precision of DS18’s ION1000.4D!



  SPECS

  SKU
  ION1000.4D
  Total Watts (Peak)
  3000W
  RMS Power @ 4 ohm
  4 x 150W
  RMS Power @ 2 ohm
  4 x 250W
  RMS Power @ 1 ohm
  N/A
  RMS Power @ 4 ohm Bridge
  2 x 500W





  AUDIO

  Frequency Response
  10Hz-20KHz
  Signal to Noise Ratio
  >95dB
  Efficiency @ 4 ohm
  88%
  Damping Factor
  210
  Input Impedance
  27Kohms
  Channel Separation
  59dB
  Total Harmonic Distortion (THD)
  0.01%
  Low Level Input Range
  0.2-6V
  High Level Input
  Yes
  Selectable X-Over
  LPF/HPF/FULL
  X-Over Filter Range
  40Hz-2KHz
  Bass Boost Range
  0~12dB
  Bass Boost Frequency
  45Hz





  FEATURES

  Amplifier Class
  Digital
  Amplifier Type
  Full-Range Stereo
  Number of Channels
  4
  Minimum Impedance
  2 Ohm (St) / 4 Ohms (Bridge)
  Led Indicator
  Power / Protect / Clipping
  Power Input Terminal Size
  4 AWG
  Fuse Size
  80A (external)
  Remote Level Control
  No
  Cooling Fan
  No
  Thermal Protection
  Yes
  Over-Load Protection
  Yes
  DC Output Protection
  Yes
  Short Circuit Output Protection
  Yes
  Voltage Input Protection
  Yes
  Clipping Protection
  Yes
  Body Color / Finish
  Aluminum Black / Silver





  EXTRA FEATURES

  Hi-Level Speaker connector
  Yes
  Tiffany RCA Terminal
  Yes
  LED Clip Indicator
  Yes
  High Efficiency Micro Digital Design
  Yes





  MEASUREMENT

  Overall Length
  6.14" / 156mm
  Overall Wide
  4.72" / 120mm
  Overall Height
  2" / 52mm
  Heatsink Length
  4.84" / 123mm
  Gross Single Unit Weight
  0.8Kg



  UPC: 810097264052
