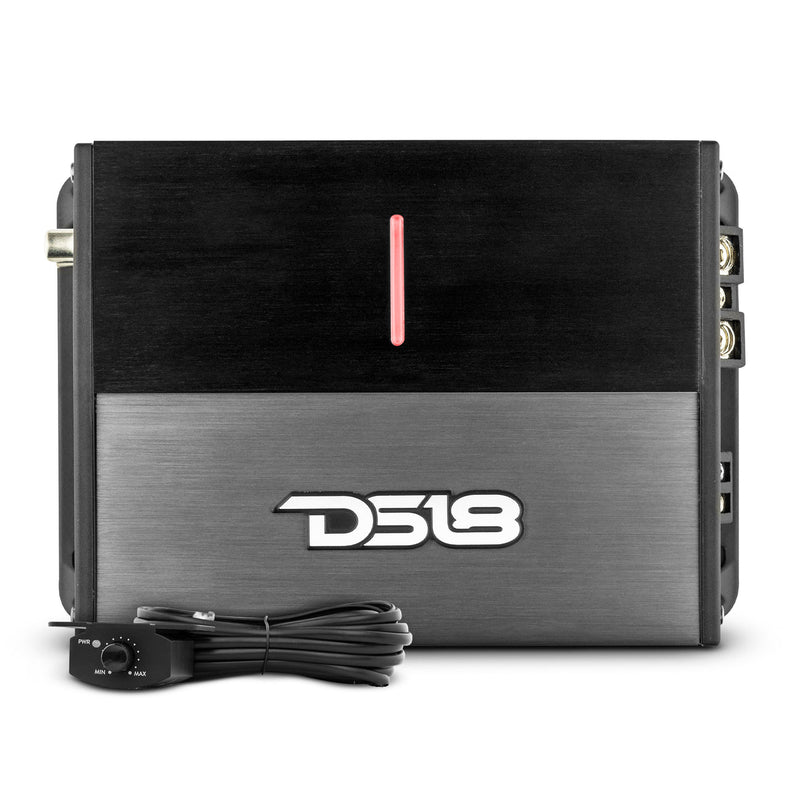

DS18 ION Compact Full Range 1 Channel Amplifier 1200 Watts RMS @ 1-Ohm

Out of stock
SKU: DS-ION1200.1D
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $249.95 USD
  • 1 Channel Full Range
  • Class D
  • 1 - 4 Ohm Stable
  • 1 X 1200 Watts @ 1 Ohm
  • Power / Clip / Protection Indicator

DS18 ION1200.1D


Experience an unparalleled sound journey with DS18’s ION1200.1D, a full-range high efficiency micro digital 1-channel amplifier, designed for powerful and crisp audio performance that will elevate your listening experience to new heights.

Built for seamless integration into your audio system, DS18’s ION1200.1D allows for easy connectivity and optimal signal transfer using Hi-Level Inputs and Tiffany RCA’s. It’s miniature size and surface mount component technology allow you to place the ION1200.1D almost anywhere in your build.

 With a frequency response of 10Hz – 20KHz this full-range amplifier comes with variable full-range crossover filters for precise control over your sound. This gives the ION1200.1D the ability to be configured for bass or mids/highs depending on how you set the full range crossover. Fine tune these levels with the convenient remote level control knob!

The ION1200.1D is engineered to withstand the test of time. Protective coating on the PCB prevents moisture corrosion, while bonded components provide extra vibration protection.

Safety was a top priority in the construction of DS18’s ION1200.1D amplifier. The power, protection, and clipping LED indicator always keeps you informed of the amplifier’s status. While short circuit thermal, DC offset, and high/low voltage protection features, give you the comfort of knowing that your amplifier will operate reliably and safely.

The ION1200.1D has power ratings of 1200W at 1 ohm, 800W at 2 ohms, and 400W at 4 ohms; perfect power ratings to turbocharge every piece of equipment in your system!

Immerse yourself in a world of superior sound quality and reliability with DS18’s ION1200.1D!



SPECS

SKU
ION1200.1D
Total Watts (Peak)
3600W
RMS Power @ 4 ohm
400W
RMS Power @ 2 ohm
800W
RMS Power @ 1 ohm
1200W
RMS Power @ 4 ohm Bridge
N/A


AUDIO

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
>95dB
Efficiency @ 4 ohm
88%
Damping Factor
210
Input Impedance
27Kohms
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.2-6V
High Level Input
Yes
Selectable X-Over
Band-Pass
X-Over Filter Range
HP: 15Hz-1KHz / LP: 40Hz-20KHz
Bass Boost Range
0~12dB
Bass Boost Frequency
45Hz


FEATURES

Amplifier Class
Digital
Amplifier Type
Full-Range Monoblock
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power / Protect / Clipping
Power Input Terminal Size
4 AWG
Fuse Size
100A (external)
Remote Level Control
Yes
Cooling Fan
No
Thermal Protection
Yes (90?C)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Aluminum Black / Silver


EXTRA FEATURES

Hi-Level Speaker connector
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
High Efficiency Micro Digital Design
Yes


MEASUREMENT

Overall Length
6.92" / 176mm
Overall Wide
4.72" / 120mm
Overall Height
2" / 52mm
Heatsink Length
5.62" / 143mm
Gross Single Unit Weight
1Kg
