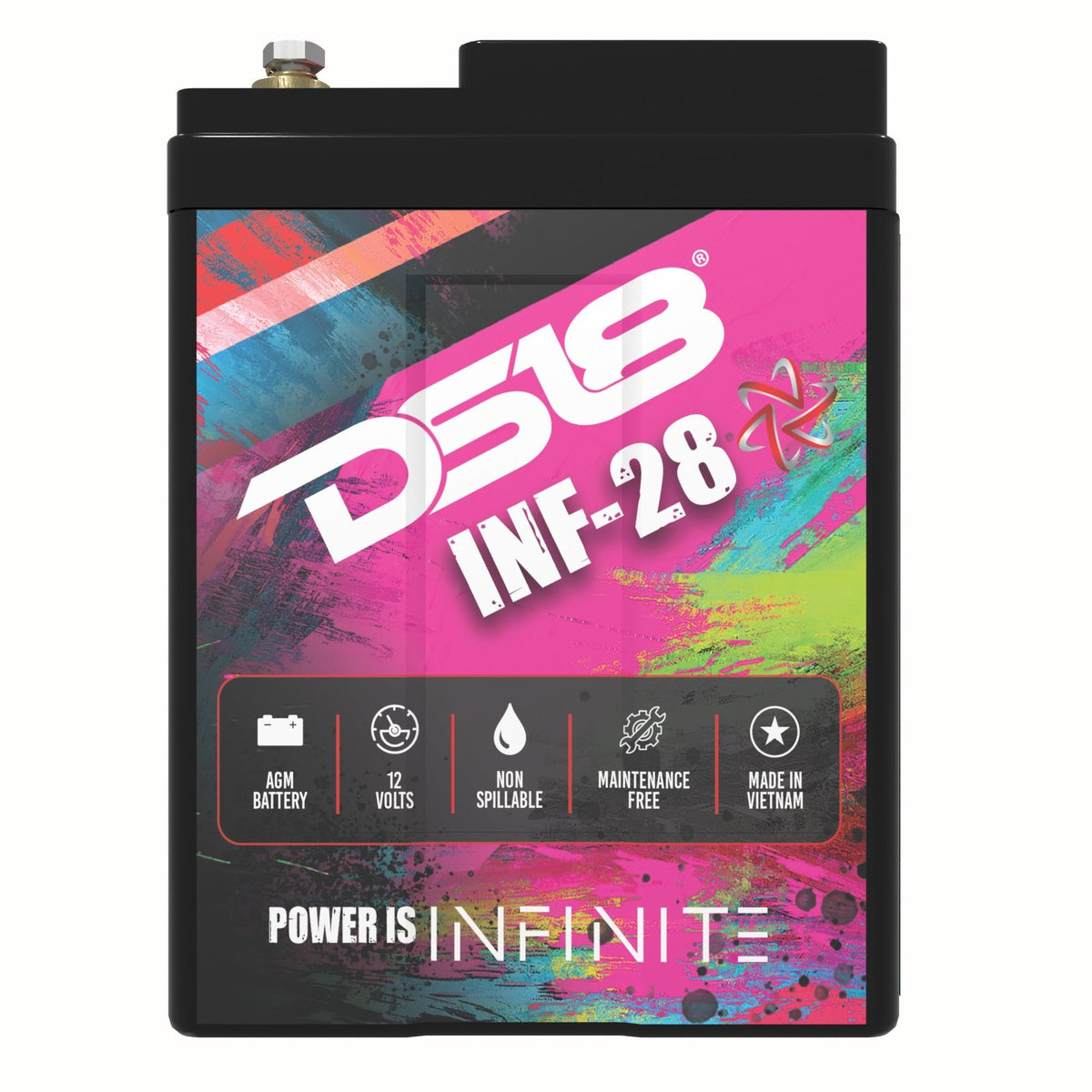

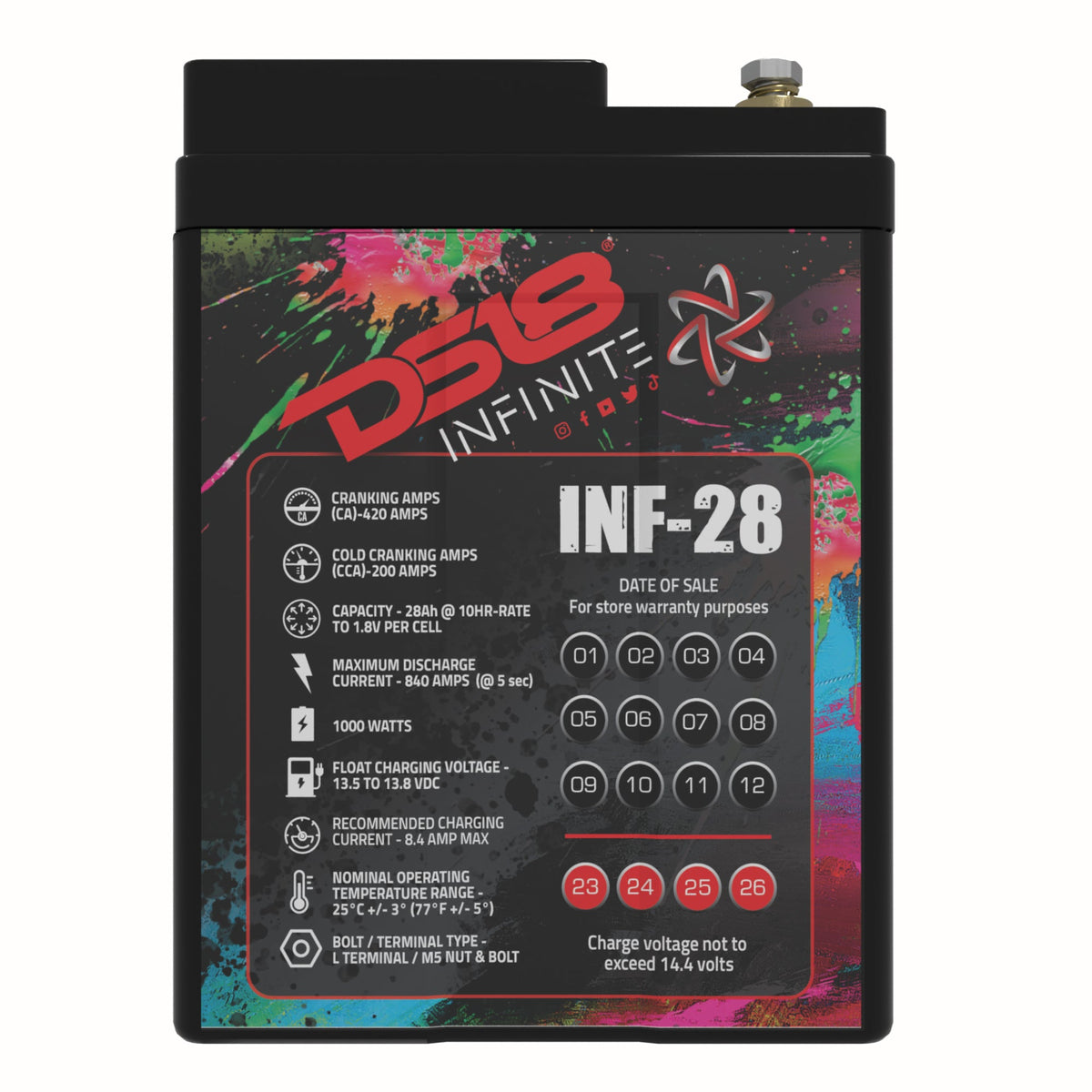

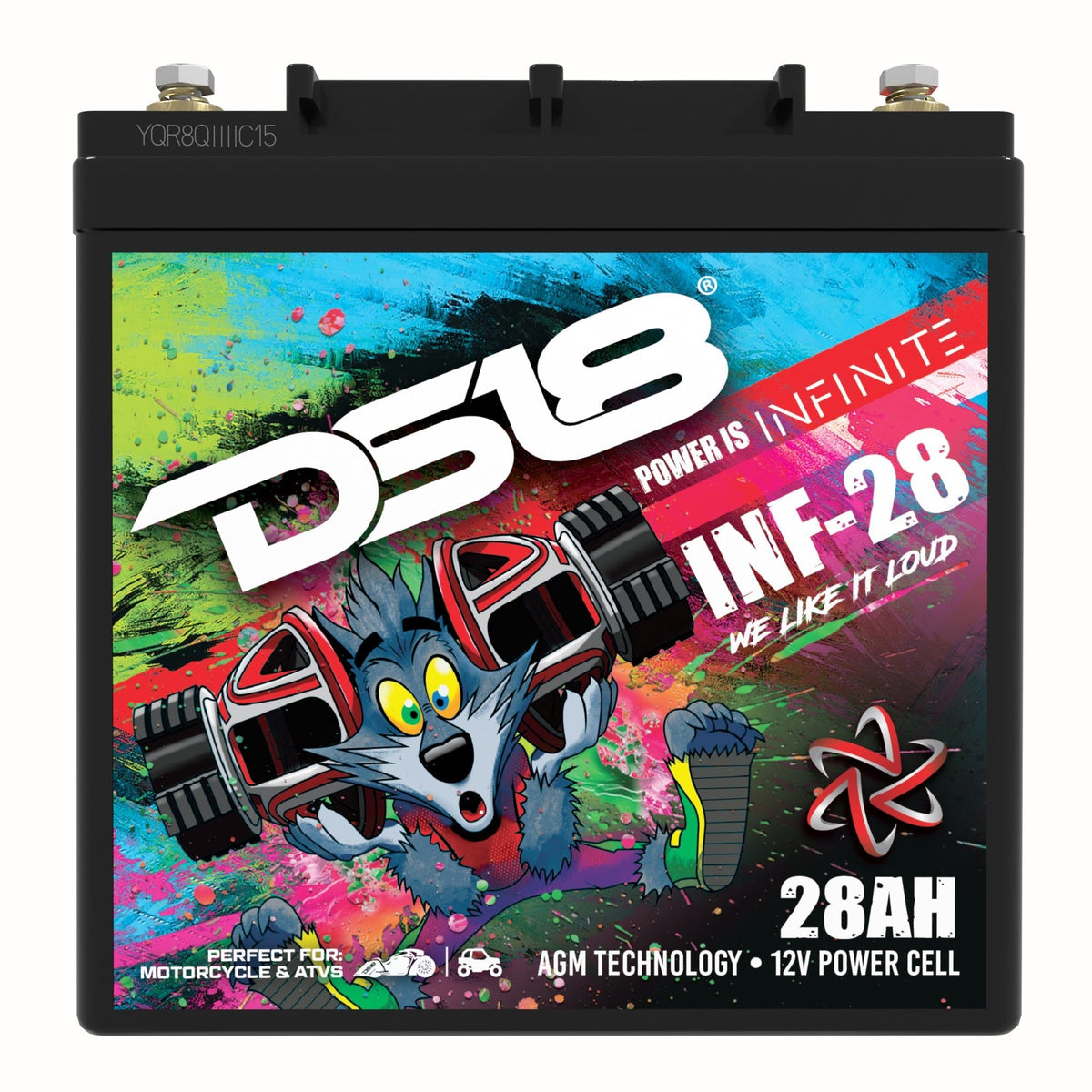

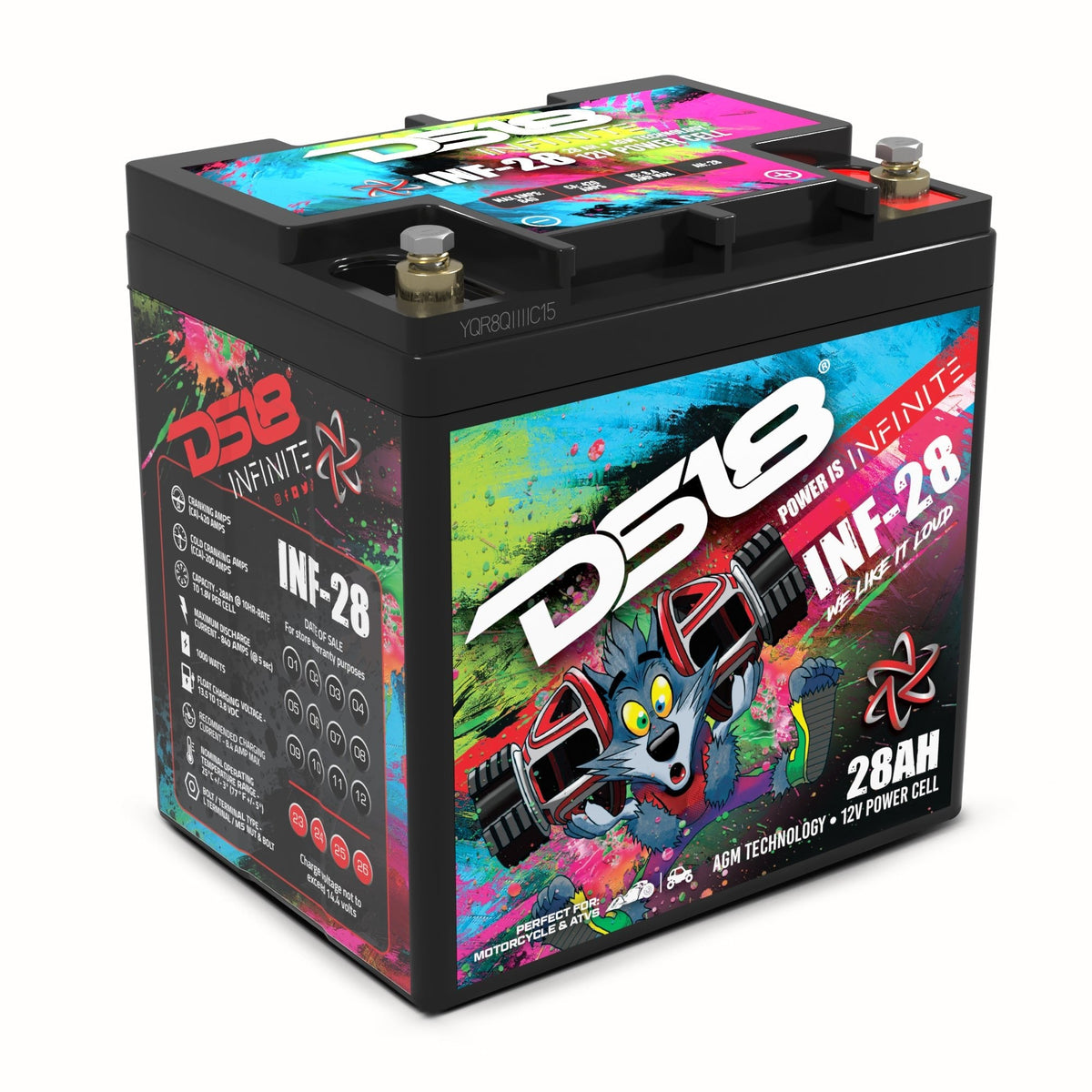

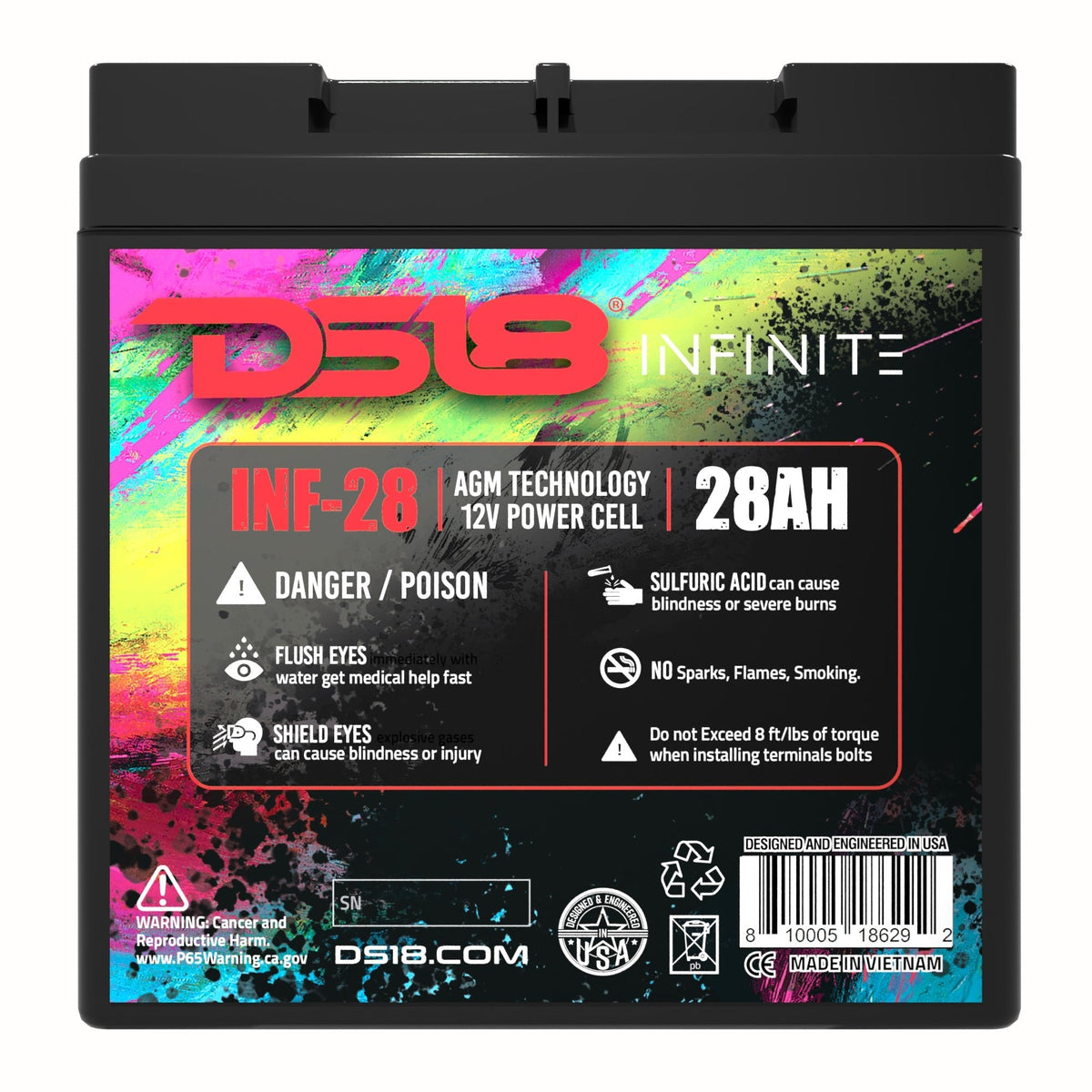

DS18 INF-28 INFINITE 28Ah AGM Power Cell 12 Volt Battery - 1000W, 840A Max Discharge DS18
The DS18 INF-28 is a 28Ah INFINITE series AGM power cell for car audio systems. It is rated for 1000 watts and can deliver up to 840 amps for 5 seconds, helping hold voltage during heavy amplifier draws.
Absorbed glass mat construction makes it non-spill, so it can be mounted in different positions, including upside down. A higher float charge of 13.5 to 13.8 volts gives extra reserve when the alternator is charging.

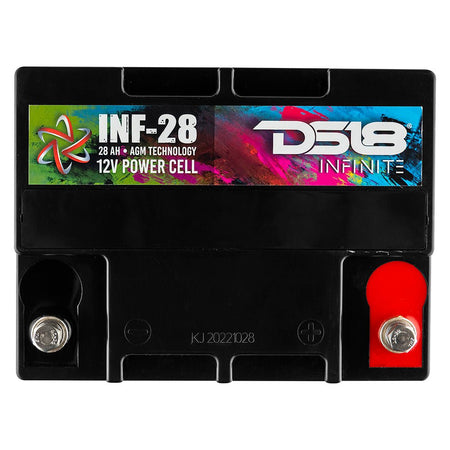

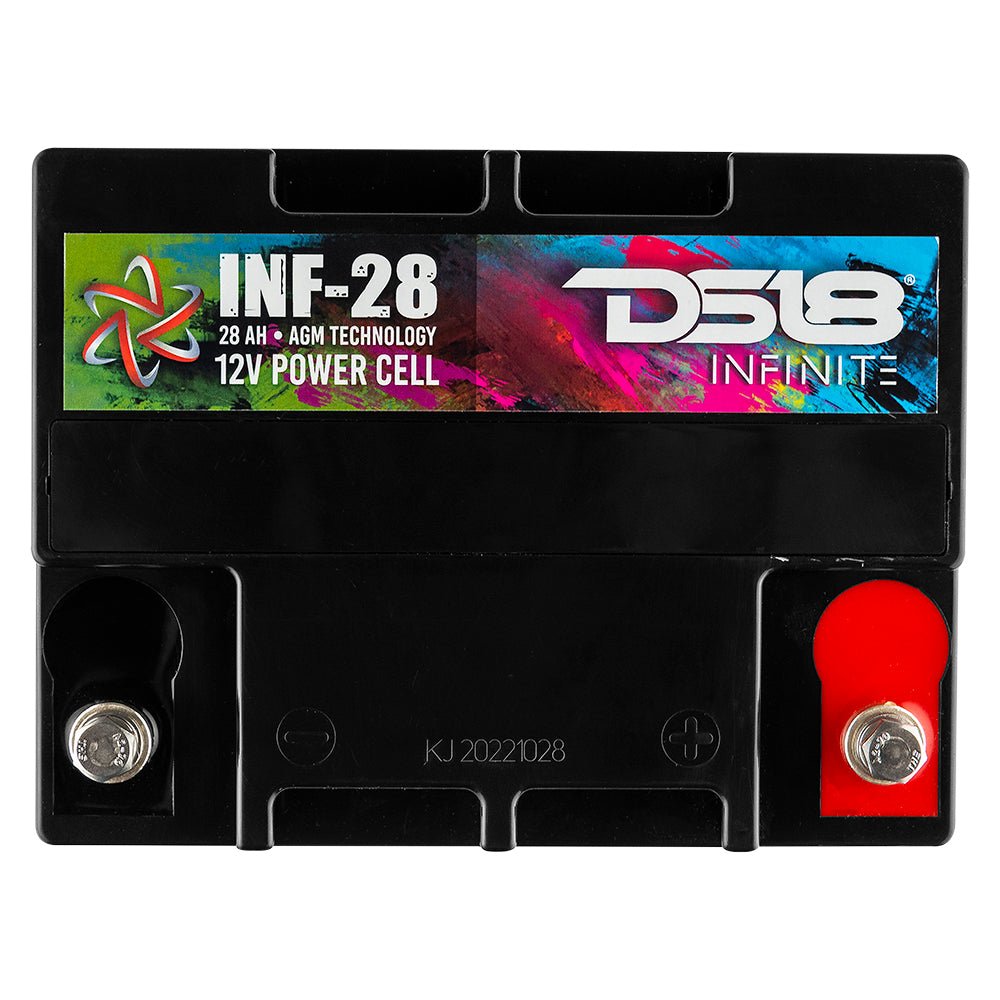

L-type terminals with M5 nut and bolt hardware allow add-on terminals and busbars. The battery measures 6.49 x 6.88 x 5 inches, small enough for compact installs.
HIGHLIGHTS:
- 28Ah capacity (10-hour rate)
- 840A maximum discharge current (5 seconds)
- 1000W rating
- Non-spill AGM design, mounts in multiple orientations
- L terminal with M5 nut & bolt
- Float charging voltage 13.5 - 13.8 V
GREAT FOR:
- Adding reserve power for a car audio system
- Compact secondary battery installs
- Supporting mid-power amplifier setups
SPECIFICATIONS:
| SERIES | INFINITE |
| BATTERY TYPE | AGM |
| CAPACITY | 28Ah @ 10-hr rate |
| NOMINAL VOLTAGE | 12.4 V |
| MAX DISCHARGE CURRENT | 840 Amps (5 sec) |
| WATTS | 1000W |
| FLOAT CHARGING VOLTAGE | 13.5 - 13.8 Vdc |
| RECOMMENDED CHARGING CURRENT | 8.4 Amp max |
| TERMINAL | L Terminal / M5 Nut & Bolt |
| LENGTH | 6.49 in |
| WIDTH | 6.88 in |
| HEIGHT | 5 in |
| WEIGHT | 17.6 lbs |
| SOLD AS | Each |
| BRAND | DS18 |
| UPC | 810005186292 |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Electrical That Keeps Up
Power to Run the System You Built
Stable Voltage Under Load
Holds voltage when the system pulls hard, so lights stay steady and amplifiers do not cut out.
Built for Audio Draw
High-output designs are made for heavy current and repeated deep discharge, unlike a standard starting battery.
Size It to the System
Match capacity and charging output to the total draw of your amplifiers. The specs list what this unit delivers.
Safe Installation
Correct fusing, cable gauge and secure mounting are essential on any high-current upgrade.
