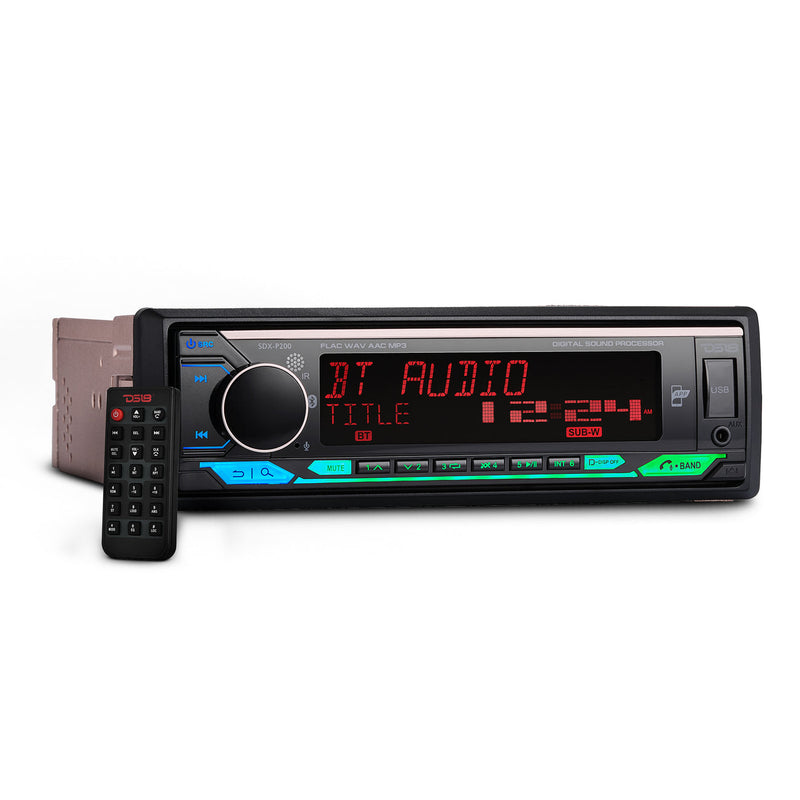

DS18 SDX-P200


Single DIN Digital Media Receiver With DSP / Bluetooth / USB / APP / AUX & Built-In High Power Amplifier

Upgrade your on-the-go audio experience with DS18’s SDX-P200!
Featuring a sleek and compact design, this single DIN receiver seamlessly integrates into any existing sound system. Enhancing its versatility, the SDX-P200 features 3.5V RCA outputs, providing seamless connectivity options for an even more dynamic audio setup. With the AM/FM radio and 30 memory stations, you can easily tune in to your favorite stations.
The SDX-P200 also has a high-powered built-in amplifier, delivering an impressive 60W x 4 RMS. Whether you're cruising down the highway or stuck in traffic, the SDX-P200 ensures that your music is LOUD and clear.
Take control of your sound with the integrated DSP (Digital Signal Processor) featuring time alignment and a 24-band graphic equalizer. The 2/3-way crossover allows you to fine-tune the sound for optimal performance, while the subwoofer pre-output gives you the option to add some extra bass to your music.
Use the Bluetooth feature to stream audio wirelessly from your smartphone or make hands-free calls on-the-go. The USB reader supports various media file formats, including FLAC, WAV, AAC, APE, and MP3: and provides convenient access to charging for your devices.
With its 4" LCD dots display and dynamic multi-color LED backlighting, this receiver adds a touch of style to your car's interior. The 3-zone RGB illumination allows you to customize the color scheme to match your mood or vehicle's aesthetics.
Stay connected on the go with DS18’s SDX App! This lets you control your receiver, processing, and other features included in the SDX-P200 using your smartphone. The wireless remote also allows complete control without the need for steering wheel control interfaces.
The ultimate in-car audio experience starts with DS18’s SDX-P200.



GENERAL SPECIFICATIONS

SKU
SDX-P200
Nominal DIN Size
1-DIN
Rated Power Voltage
14.4V
Voltage Operation
9.6-15 Volts
Maximum Current Consumption
30A
Temperature Operation
0~60°C / 32~140°F
Screen Size
4" / 104mm
Display Type
LCD Dots
Buttons / Controls
ABS
Backlight Illumination Type
RGB / 3 Zones
Body Material / Color / Finish
Steel / Bronze


AUDIO SPECIFICATIONS

Maximum Power Output (Peak)
4x180W
Continuous Power Output (RMS)
4x60W
Minimum Impedance
4 Ohms
Frequency Response
20Hz-20KHz
Pre-Output Level (RCA)
3V / 3.5V (Subwoofer)
Equalizer Bands
24 Bands
Equalizer Gain
+ / - 9dB
Crossover
3-Way
Crossover Slope
6 / 12 / 24 dB/Oct
Time Alignment
0~25ms / 0~850cm
Audio Control
Subwoofer Level, Fader, Balance, Loudness
Frequency Range (FM)
87.5 - 108.0 MHz
Frequency Range (AM)
522 - 1620 KHz
Presets Memory
18 FM / 12 AM
Region
Europe, America, Asia, Russia
Sensitivity Adjustment
Local / DX


BT SPECIFICATIONS

Version
4.2
Services
Hands Free Calls, Audio Streaming, APP Remote Control
Audio Protocols
A2DP, AVRCP, HFP
Range
32ft / 10m


USB / SD PLAYER SPECIFICATIONS

Type / Class
2.0, 3.0 / FAT 16, FAT32
Format Files Supported
FLAC (16 Bit), WAV, AAC, APE, MP3
Max Memory Size Reader
64 Gb
Max Current USB Charger
1A
Number of Ports
1 (Front)


CONNECTIVITY SPECIFICATIONS

A/V Aux Input
Yes, Front 3.5mm Jack (2V Max)
Microphone
Yes, Built-In / External Mic Input
Remote Control (SWC)
Yes, 3.5mm Jack Input
Remote Control (Handset)
Yes, Card Type with Rubber Buttons
APP Control
Yes, (Android Devices)


MEASUREMENTS

Overall Width (Chassis)
7" / 178mm
Overall Height (Chassis)
1.96" / 50mm
Overall Depth (Chassis)
6.2" / 158mm
Overall Width (Bezel Frame)
7.4" / 188mm



UPC: 810097264472
