DS18 GEN-X110LD 10" Loaded Ported Subwoofer Enclosure with GEN-X104D - 400W RMS, 2-Ohm DS18

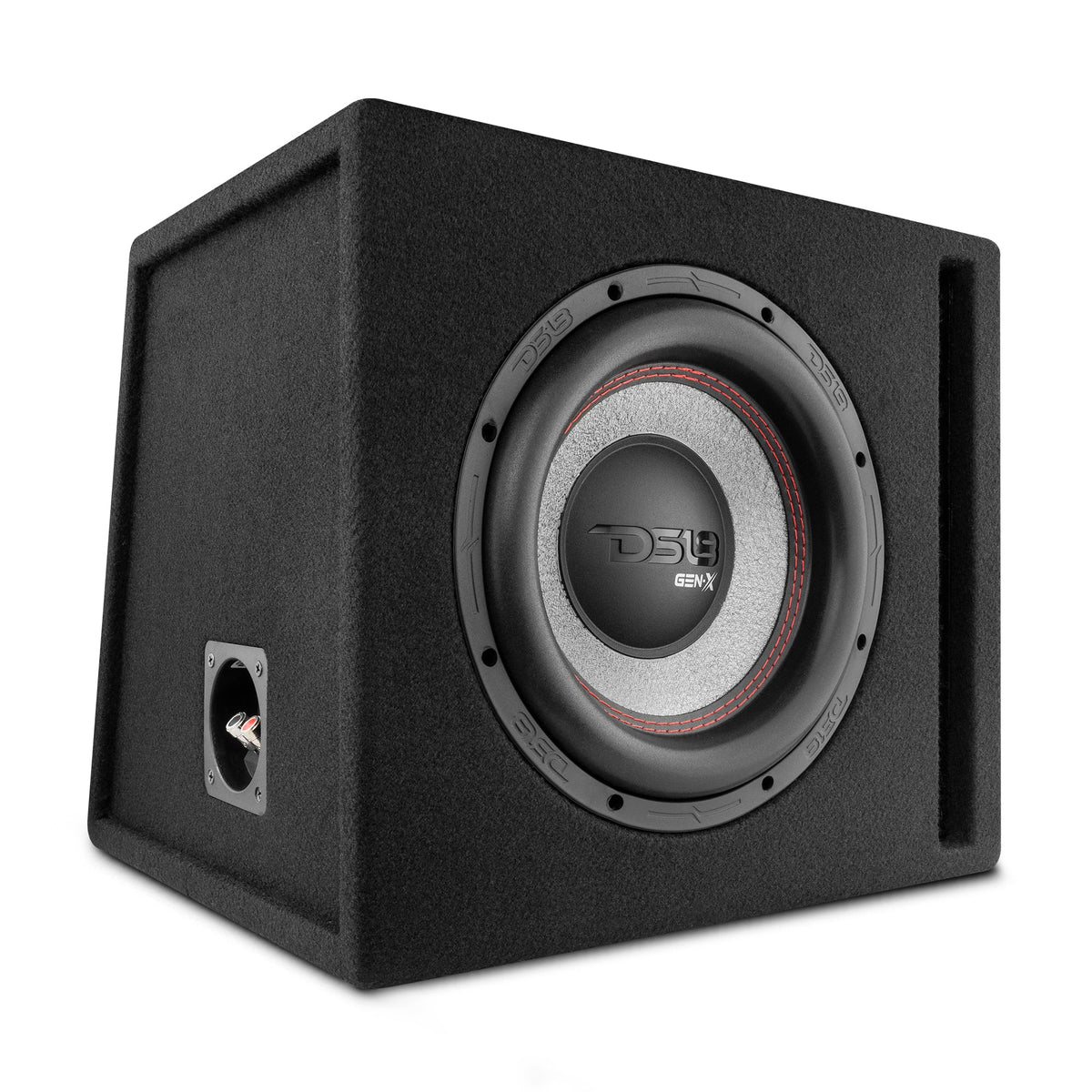

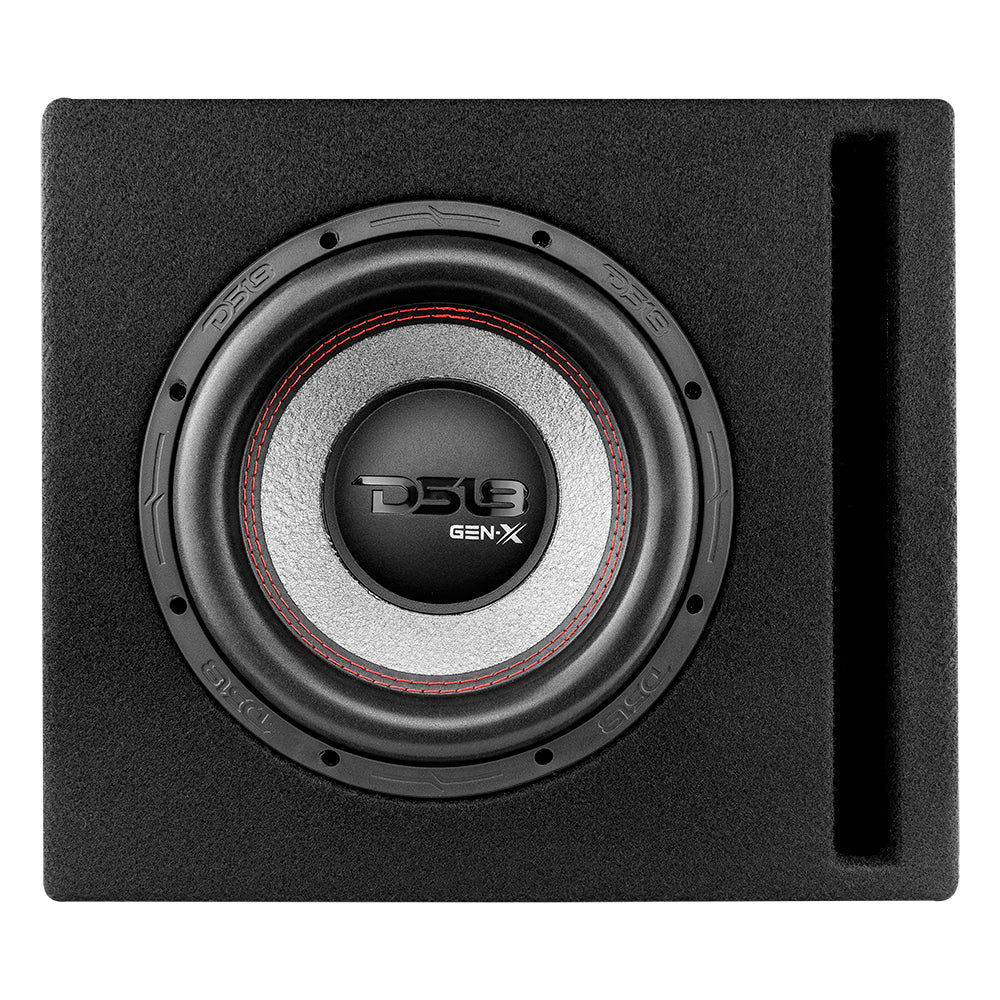

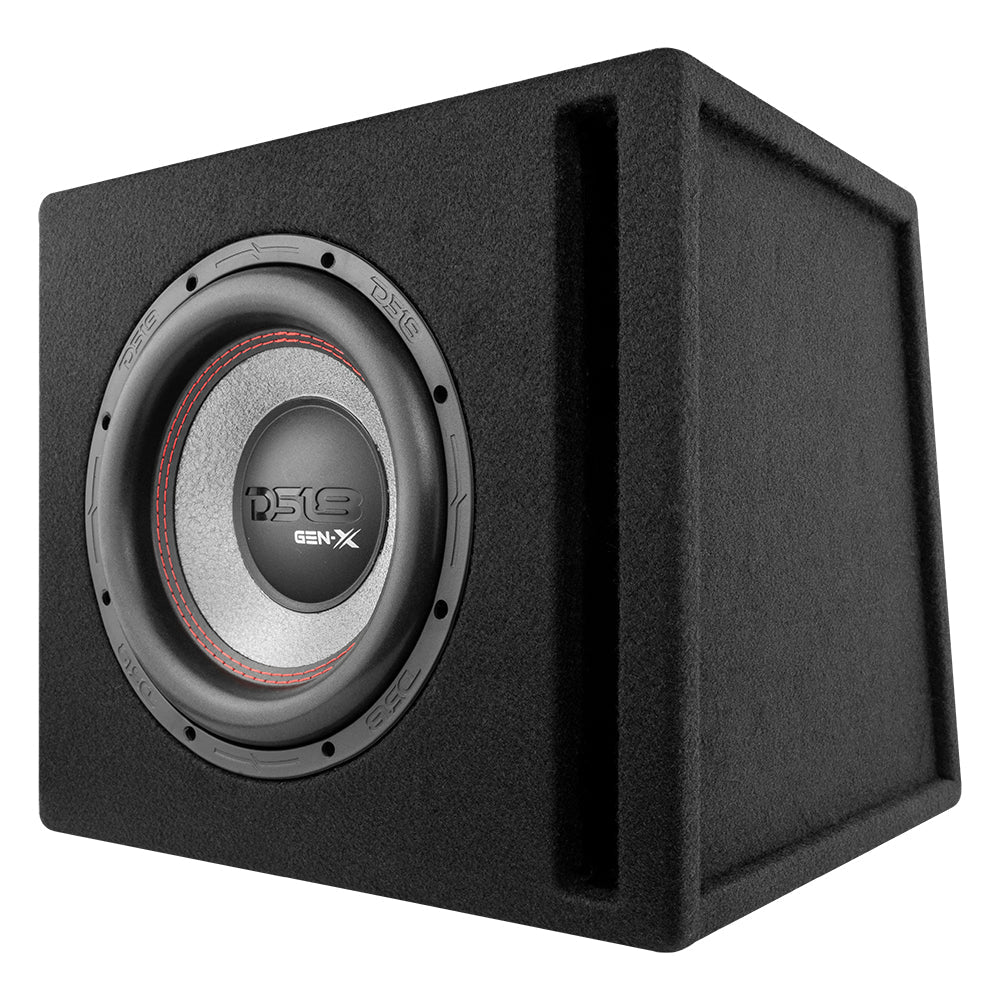

The DS18 GEN-X110LD is a ready-to-install bass package: a 10-inch GEN-X104D subwoofer mounted in a front-ported enclosure. The system handles 400 watts RMS and 800 watts max, with 90 dB sensitivity and a 25 to 250 Hz range.
The box has 1.3 cu ft (36.3 L) of internal volume and is tuned to 35 Hz, with an F3 of 29 Hz for deep extension. It is built from 1/2-inch MDF and finished in black carpet.
The GEN-X104D uses a 2-inch voice coil on a black aluminum former, a paper and fiberglass cone, foam surround, steel basket and a 66 oz ferrite magnet. Its dual 4-ohm coils come wired in parallel for a 2-ohm final load. DS18 recommends a 120 Hz low-pass crossover.
HIGHLIGHTS:
- Loaded with one 10" GEN-X104D subwoofer
- 400W RMS / 800W MAX power handling
- 2-ohm final load (dual 4-ohm coils wired in parallel)
- Front-ported, 1.3 cu ft, tuned to 35 Hz
- 1/2" MDF with black carpet finish
- 90 dB sensitivity, 25 - 250 Hz range
GREAT FOR:
- Simple bolt-in bass upgrades
- Cars, trucks and SUVs with limited space
- Pairing with a monoblock amplifier
SPECIFICATIONS:
| SERIES | GEN-X |
| SUBWOOFER | 1 x 10" GEN-X104D |
| RMS POWER | 400 Watts |
| MAX POWER | 800 Watts |
| FINAL IMPEDANCE | 2 Ohm (Parallel) |
| SENSITIVITY | 90 dB |
| FREQUENCY RESPONSE | 25 - 250 Hz |
| RECOMMENDED LPF | 120 Hz |
| BOX TYPE | Front Ported |
| INTERNAL VOLUME | 1.3 cu ft / 36.3 L |
| PORT TUNING | 35 Hz |
| F3 | 29 Hz |
| MATERIAL | 1/2" MDF, Black Carpet |
| VOICE COIL | 2 Inch, Black Aluminum |
| MAGNET | Ferrite, 66 oz |
| DIMENSIONS (H x W x D) | 13.78" x 15.75" x 11" / 14" |
| SOLD AS | Each |
| BRAND | DS18 |
| UPC | 810097262478 |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
The Box Matters as Much as the Sub
Enclosures Built to the Right Volume and Tuning
Built to Spec
Internal volume and port tuning are set for the drivers it is designed around, which is what keeps bass tight instead of boomy.
Solid Construction
Braced panels and sealed joints reduce the flex and air leaks that rob output.
Check It Fits
Compare the listed outside dimensions and mounting depth with your vehicle space before ordering.

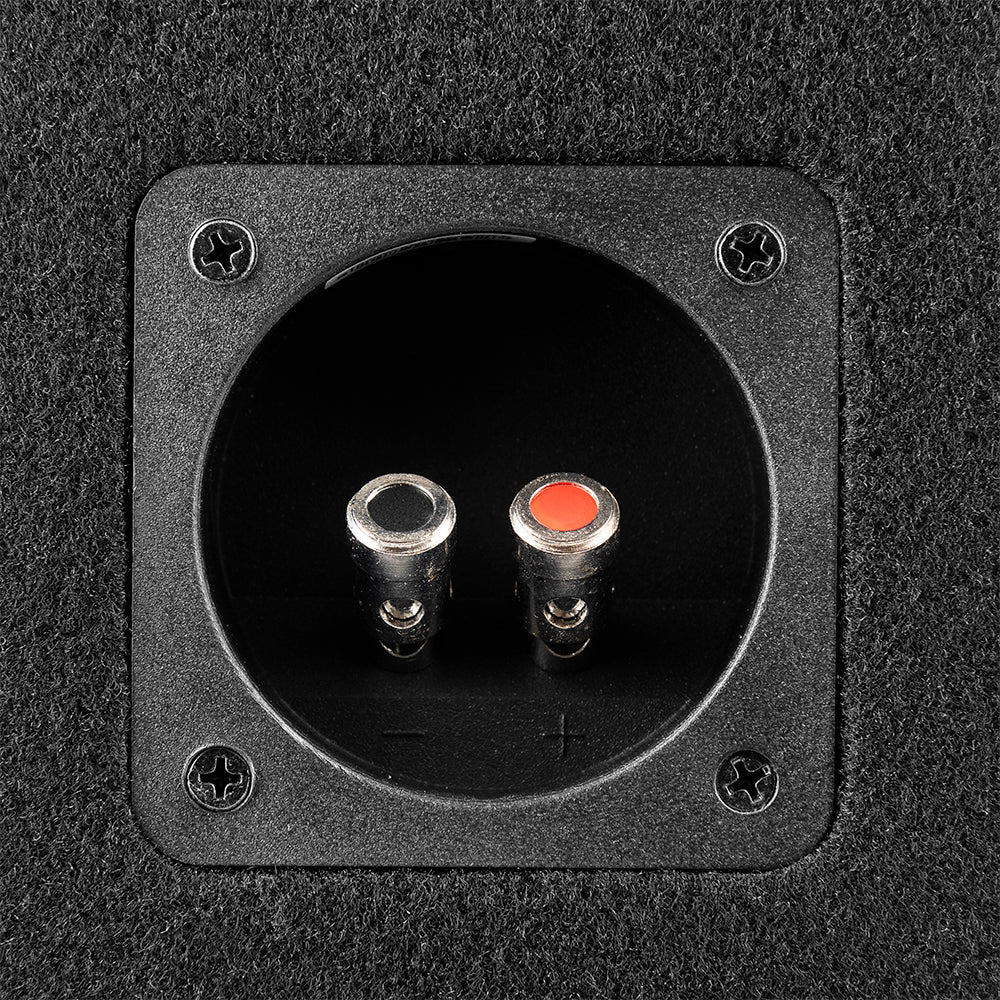

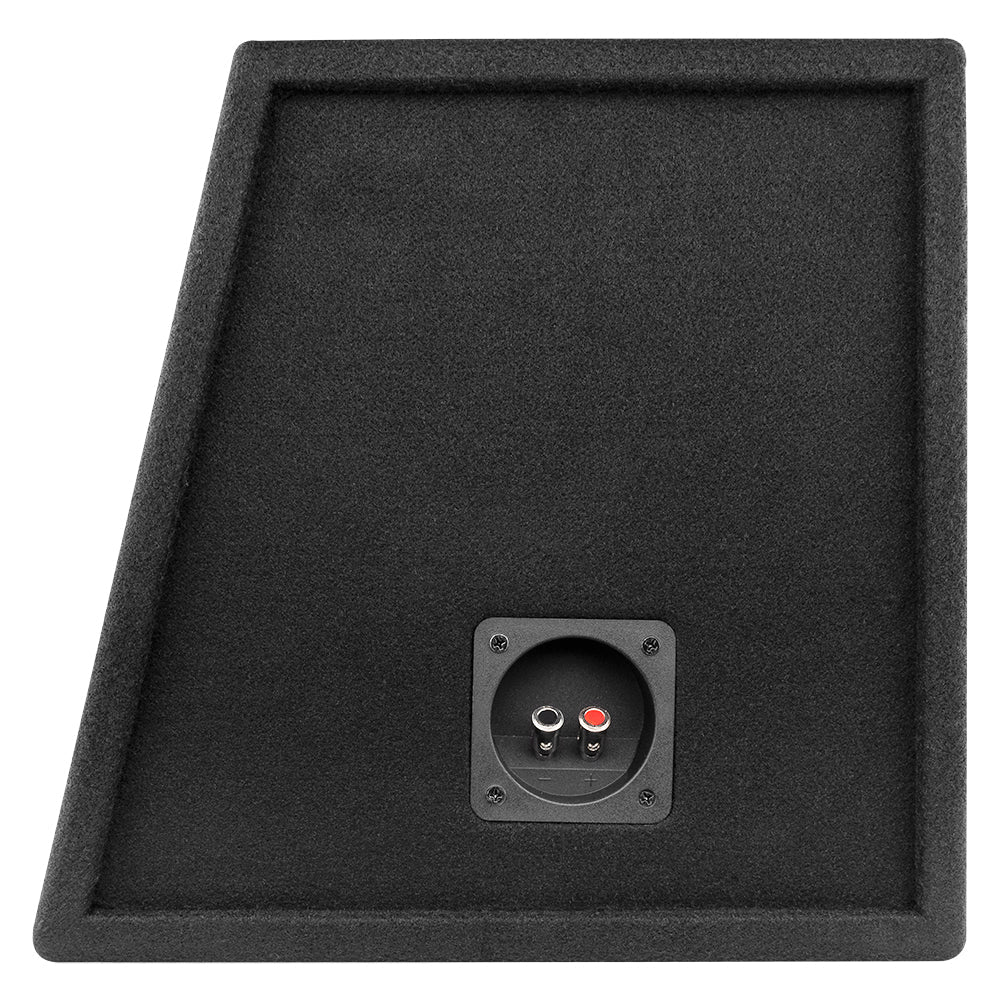

Ready to Wire
