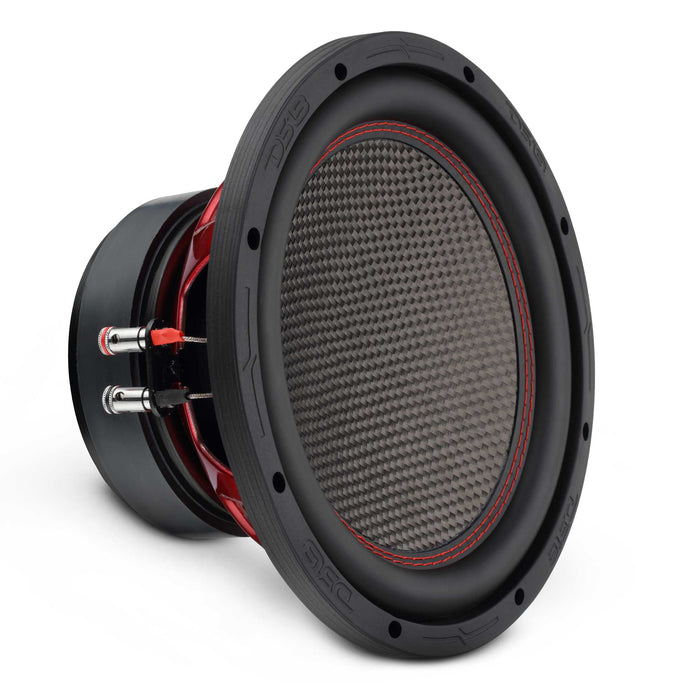

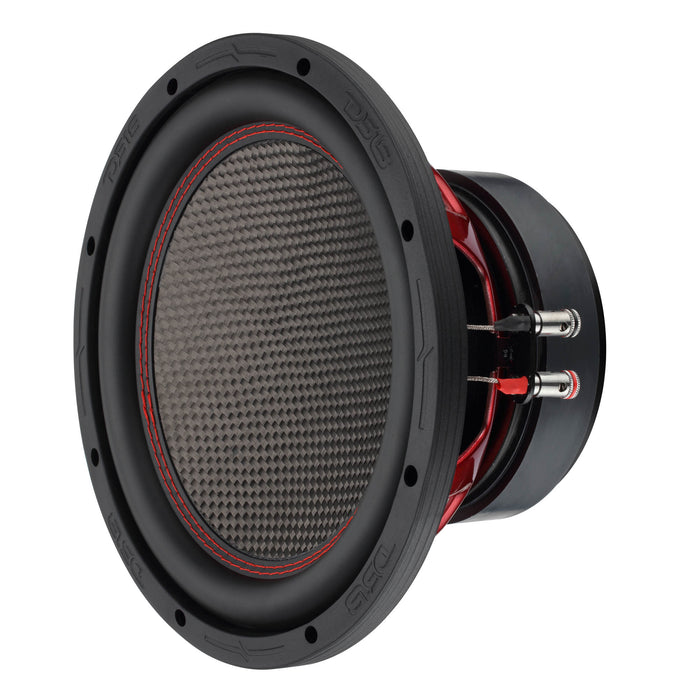

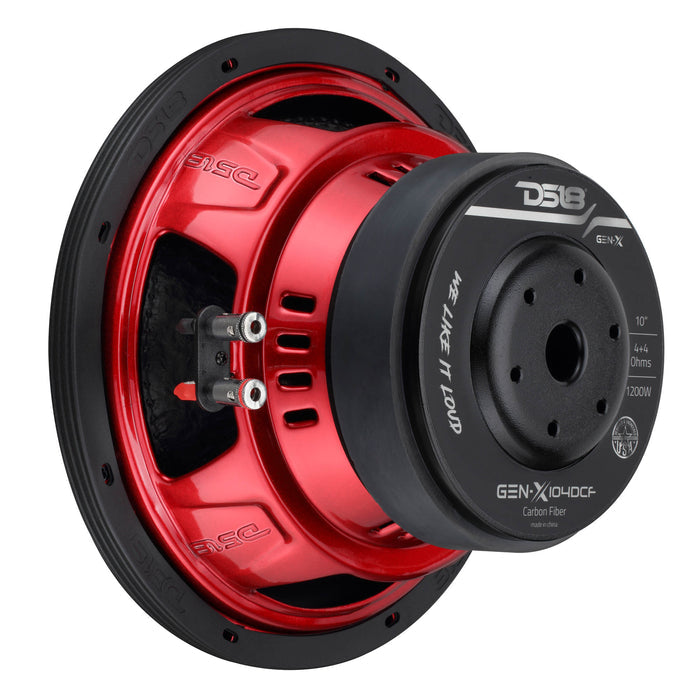

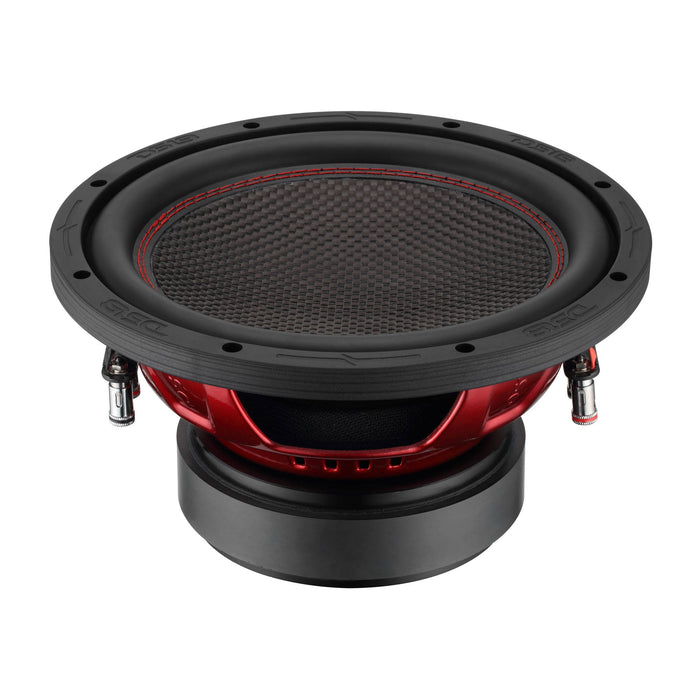

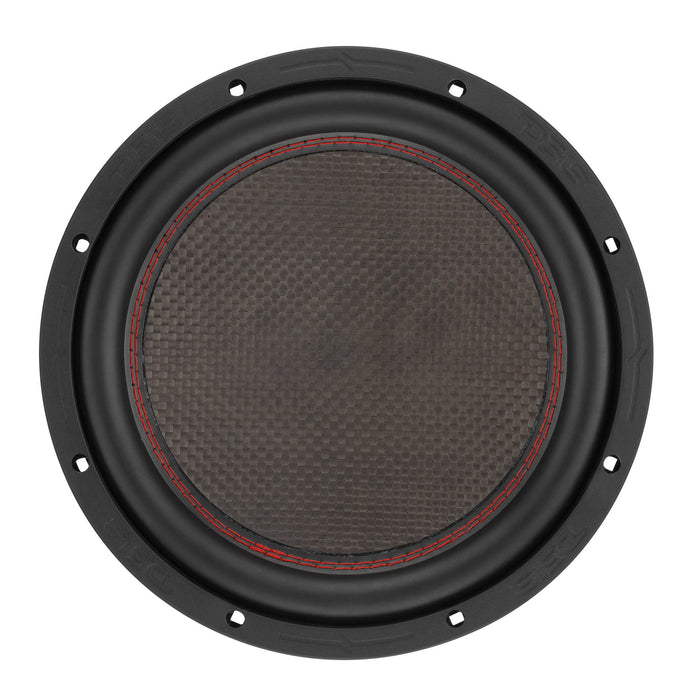

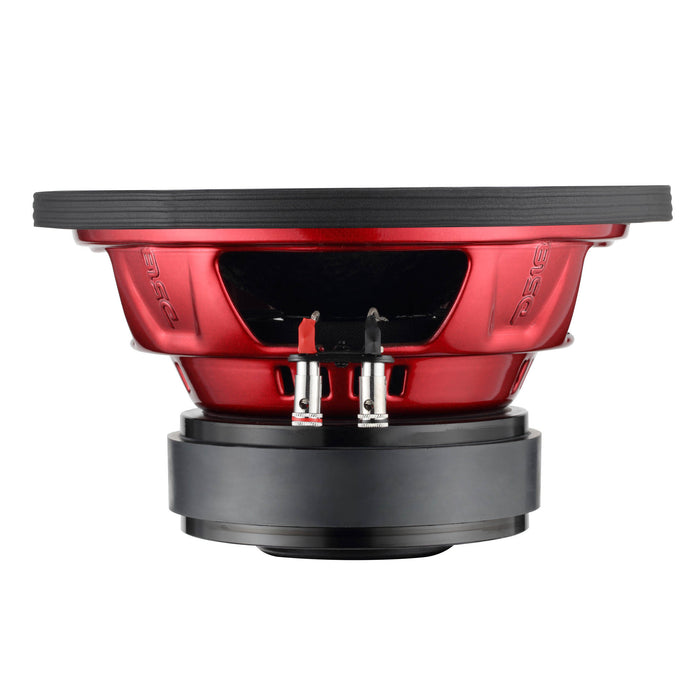

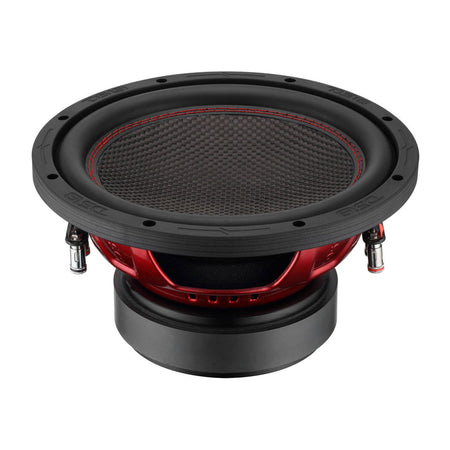

DS18 GEN-X104DCF GEN-X 10" Subwoofer | 600W RMS Dual 4-Ohm Voice Coil with Carbon Fiber Dust Cap

In stock
SKU: DS-GEN-X104DCF
Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last
Regular price $224.95 USD
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last

The GEN-X104DCF 10" subwoofer delivers powerful, clean bass for daily builds with 600W RMS and 1200W peak performance. It uses a durable non-pressed paper cone with a carbon fiber dust cap, 81 oz ferrite magnet, and 2" aluminum voice coil, built for strength and reliability in sealed or ported enclosures. Dual 4-ohm voice coils provide flexible wiring options for a wide range of system setups. With a 25–250Hz frequency response, this sub is tuned for deep, accurate low-end performance.

Features:

  • 600W RMS Power – Delivers clean, powerful bass with authority
  • Dual 4-Ohm Coils – Easy wiring and system flexibility
  • Carbon Fiber Dust Cap – Stronger cone with aggressive styling
  • Sealed or Ported Use – Tight or loud bass on demand
  • Rugged Construction – Engineered for long-term daily use and reliability

Specifications:

Nominal Diameter
10" / 254mm
Nominal Impedance
4 + 4 ohms
RMS Power Handling
600W
MAX Power Handling
1200W
Sensitivity (1w/1m)
92 dB
Frequency Response
25Hz-250Hz
Recommended Low-Pass Crossover
120 Hz


Motor

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non Pressed Paper
Dust Cap Material
Carbon Fiber
Surround Material
Rubber
Basket Material
Steel
Basket Color / Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
81 oz


Thiele & Small Parameters

Equivalent Volume
23.67L / 0.835ft3
Excursion (one way)
10.5mm
Free Air Resonance
37Hz
Mechanical Factor
5.07
Electrical Factor
0.76
Total Factor
0.66
Moving Mass
140.16g
Compliance
0.13mm/N
BL Factor
9.26
Voice Coil Inductance
0.38mH
Diaphragm Area
352.99cm2
DC Resistance
3.2 + 3.2 Ohms
Efficiency Bandwidth Product
48.6


Measurement

Overall Diameter
10.37" / 263.5mm
Overall Depth
6" / 152mm
Front Mount Baffle Cutout
9" / 230mm
Mounting Depth
5.4" / 137mm
Motor Diameter
6.1" / 155mm
