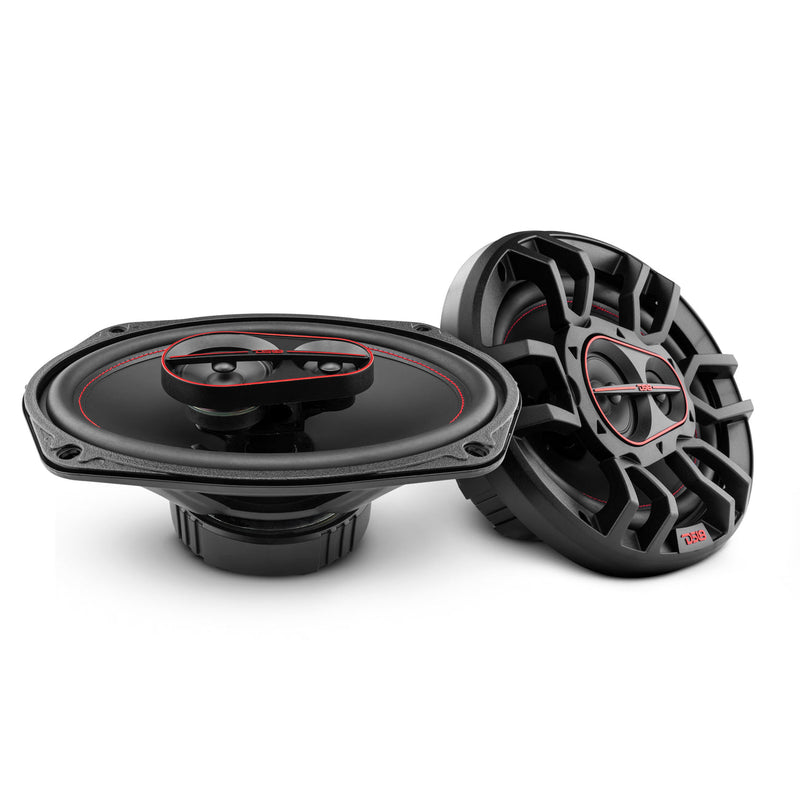

DS18 GEN-X 6x9" 3-Way Coaxial Speakers 60 Watts Rms 4-Ohm

In stock
SKU: DS-G6.9XI
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $63.95 USD



  • 6X9" 3-Way Coaxial
  • MAX Power: 180 Watts
  • RMS Power: 60 Watts
  • Impedance: 4-Ohm
  • Ferrite & Neodymium Magnets
  • Grills Included

DS18 G6.9XI


3-Way Coaxial Speakers 180 Watts 4-Ohm

The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.

The G6.9Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

The G6.9Xi is notable for its 3-way design consisting of a woofer, a mid-range driver, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G6.9Xi's 3-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 35Hz.

These speakers get loud extremely easily with a MAX Power Handling of 180W and RMS Power Handling of 60W.

Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G6.9Xi will deliver. Order yours today and take the first step towards audio perfection on the road.



SPECS

SKU
G6.9XI
Nominal Diameter
6X9" / 152x228mm
Nominal Impedance
4 Ohms
RMS Power Handling
60W
Maximum Power Handling
180W
Sensitivity (1w/1m)
86dB
Frequency Response
35Hz-20KHz
Recommended HI Pass Crossover
50Hz
Number of ways
3
Pair or single
Pair
Grill Included
Yes


WOOFER SPECS

Voice Coil Diameter
1" / 25.5mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Barium Ferrite
Magnet Weight
15.7Oz / 445g


THIELE & SMALL PARAMETERS

Equivalent Volume Vas
14.3L / 0.5ft3
Excursion (one way) Xmax
3.3mm
Free Air Resonance Fs
68Hz
Mechanical Factor Qms
4.8
Electrical Factor Qes
1.97
Total Factor Qts
1.4
Mechanical Mass Mms
23.8g
Mechanical Compliance Cms
248mm/N
BL Factor BL
4.2
Voice Coil Inductance Le
197uH
Cone Area Sd
202cm2
DC Resistance Re
3.7 Ohms
Mechanical Mass w/o air Mmd
20.5g


TWEETER SPECS

Nominal Diameter
Tw1: 2.3" / 59mm Tw2: 1.1" / 29mm
Voice Coil Diameter
Tw1: 0.6" / 17mm Tw2: Peizo
Voice Coil Former Material
Tw1: PESV Tw2: N/A
Winding Material
Tw1: EISVM Tw2: N/A
Diaphragm Material
Tw1: Mylar Tw2: Mylar
Magnet Material
Tw1: Barium Ferrite Tw2: N/A
Magnet Weight
Tw1: 34g Tw2: N/A


SPEAKER MEASUREMENTS

Overall Diameter
6.4" x 9.2" / 163 x 234mm
Overall Depth
3.85" / 97.8mm
Overall Diameter (With Grill)
7.24" x 10.4" / 184 x 264mm
Overall Depth (With Grill)
4.15" / 105.5mm
Front Mount Baffle Cutout
5.9 x 8.66" / 150 x 220mm
Mounting Depth
2.95" / 75mm
Motor Diameter
4.17" / 106mm
Tweeter Protrusion
0.9" / 22.8mm
Gross Single Unit Weight
1.25KG
Single Unit Box Dimensions W x L x H
305 x 125 x 375mm
Quantity of Units in Master Carton
5 PRS/CTN
Gross Master Carton Weight
15.5KG
Master Carton Dimensions W x L x H
650 x 320 x 390mm
