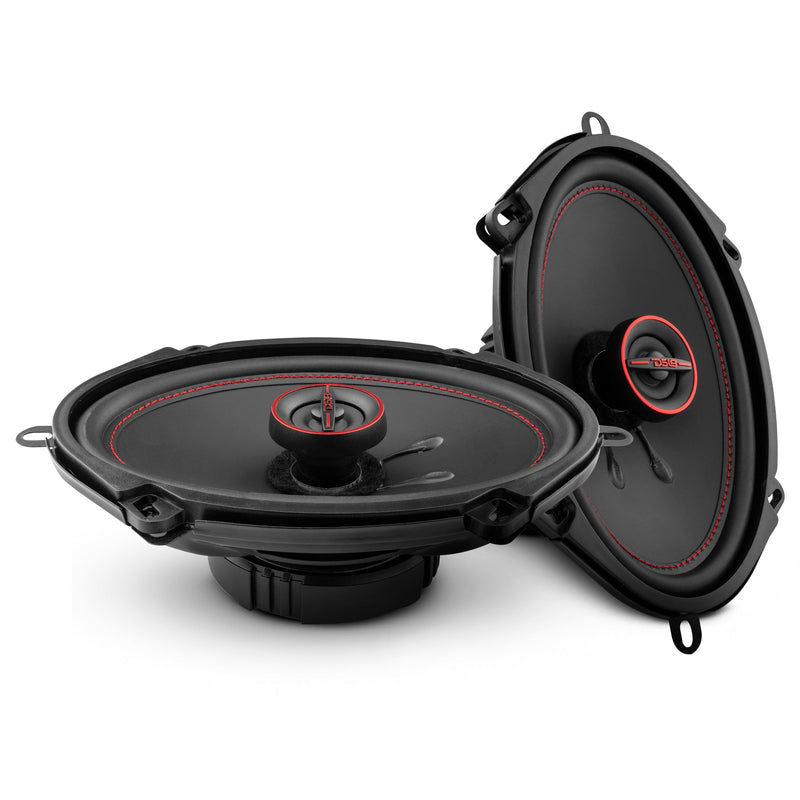

DS18 GEN-X 5x7" 3-Way Coaxial Speakers 50 Watts Rms 4-Ohm

In stock
SKU: DS-G5.7XI
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $47.95 USD



  • 5X7" 2-Way Coaxial
  • MAX Power: 150 Watts
  • RMS Power: 50 Watts
  • Impedance: 4-Ohm
  • Ferrite & Neodymium Magnets

DS18 G5.7XI


2-Way Coaxial Speakers 150 Watts 4-Ohm

The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.

The G5.7Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

The G5.7Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G5.7Xi's 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 40Hz.

These speakers get loud extremely easily with a MAX Power Handling of 150W and RMS Power Handling of 50W.

Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G5.7Xi will deliver. Order yours today and take the first step towards audio perfection on the road.



SPECS

SKU
G5.7XI
Nominal Diameter
5X7" / 127x177mm
Nominal Impedance
4 Ohms
RMS Power Handling
50W
Maximum Power Handling
150W
Sensitivity (1w/1m)
85dB
Frequency Response
40Hz-20KHz
Recommended HI Pass Crossover
70Hz
Number of ways
2
Pair or single
Pair
Grill Included
No


WOOFER SPECS

Voice Coil Diameter
1" / 25.5mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Barium Ferrite
Magnet Weight
7.8Oz / 221g


THIELE & SMALL PARAMETERS

Equivalent Volume Vas
6.2L / 0.21ft3
Excursion (one way) Xmax
2.7mm
Free Air Resonance Fs
82Hz
Mechanical Factor Qms
4.1
Electrical Factor Qes
2.2
Total Factor Qts
1.4
Mechanical Mass Mms
13.2g
Mechanical Compliance Cms
250mm/N
Bl Factor Bl
3.4
Voice Coil Inductance Le
172uH
Cone Area Sd
134.7cm2
DC Resistance Re
3.7 Ohms
Mechanical Mass w/o air Mmd
11.5g


TWEETER SPECS

Nominal Diameter
1" / 25.5mm
Voice Coil Diameter
0.5" / 13.25mm
Voice Coil Former Material
ASV
Winding Material
EISVM
Diaphragm Material
Mylar
Magnet Material
Neodymium
Magnet Weight
1.8g


MEASUREMENTS

Overall Diameter
5.57" x 7.6" / 141.5 x 193mm
Overall Depth
2.63" / 66.8mm
Front Mount Baffle Cutout
4.9" x 7" / 126 x 180mm
Mounting Depth
2.13" / 54mm
Motor Diameter
3.4" / 86mm
Tweeter Protrusion
0.5" / 12.8mm
Gross Single Unit Weight
0.68KG
Single Unit Box Dimensions W x L x H
235 x 85 x 310mm
Quantity of Units in Master Carton
10 PRS/CTN
Gross Master Carton Weight
18 KG
Master Carton Dimensions W x L x H
490 x 450 x 330mm
