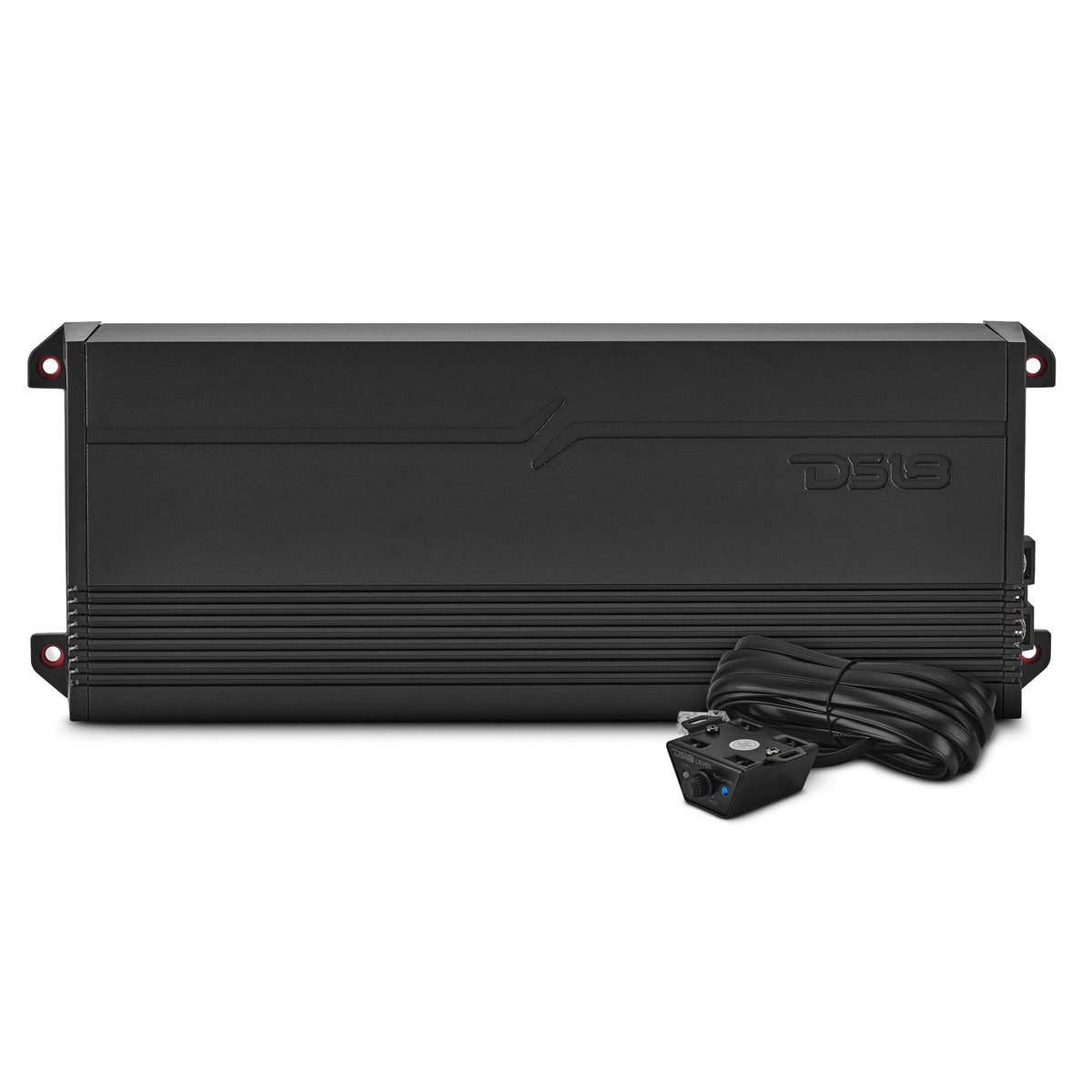

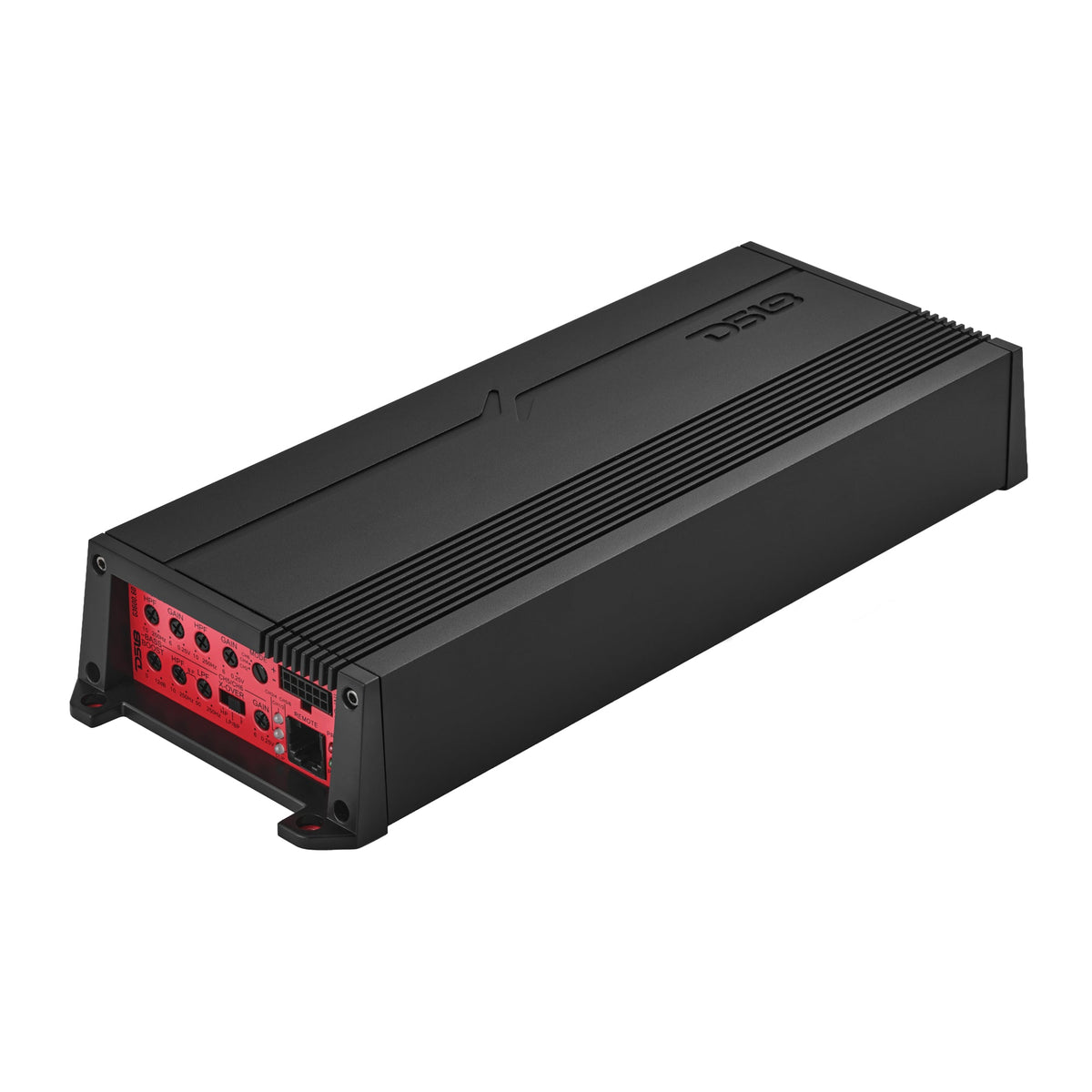

DS18 G3600.6D GEN-X 6-Channel Class D Full-Range Amplifier - 6 x 200W RMS at 4 Ohms DS18
The DS18 G3600.6D is a 6-channel Class D full-range amplifier that can run an entire system from one chassis. It delivers 200 watts RMS per channel at 4 ohms and 250 watts RMS per channel at 2 ohms.
Need more for subwoofers? Bridge it to 3 channels at 500 watts RMS each at 4 ohms. Variable high-pass, band-pass and full-range crossovers, plus up to 12 dB of bass boost at 45 Hz, let you tune every channel precisely.
High-level and low-level inputs work with factory or aftermarket head units, and switchable input modes route 2, 4 or 6 channels. A remote level control is included, and thermal, overload, DC output, short circuit, voltage and clipping protection keep the amp safe.
HIGHLIGHTS:
- 6 x 200W RMS at 4 ohms, 6 x 250W RMS at 2 ohms
- Bridgeable: 3 x 500W RMS at 4 ohms

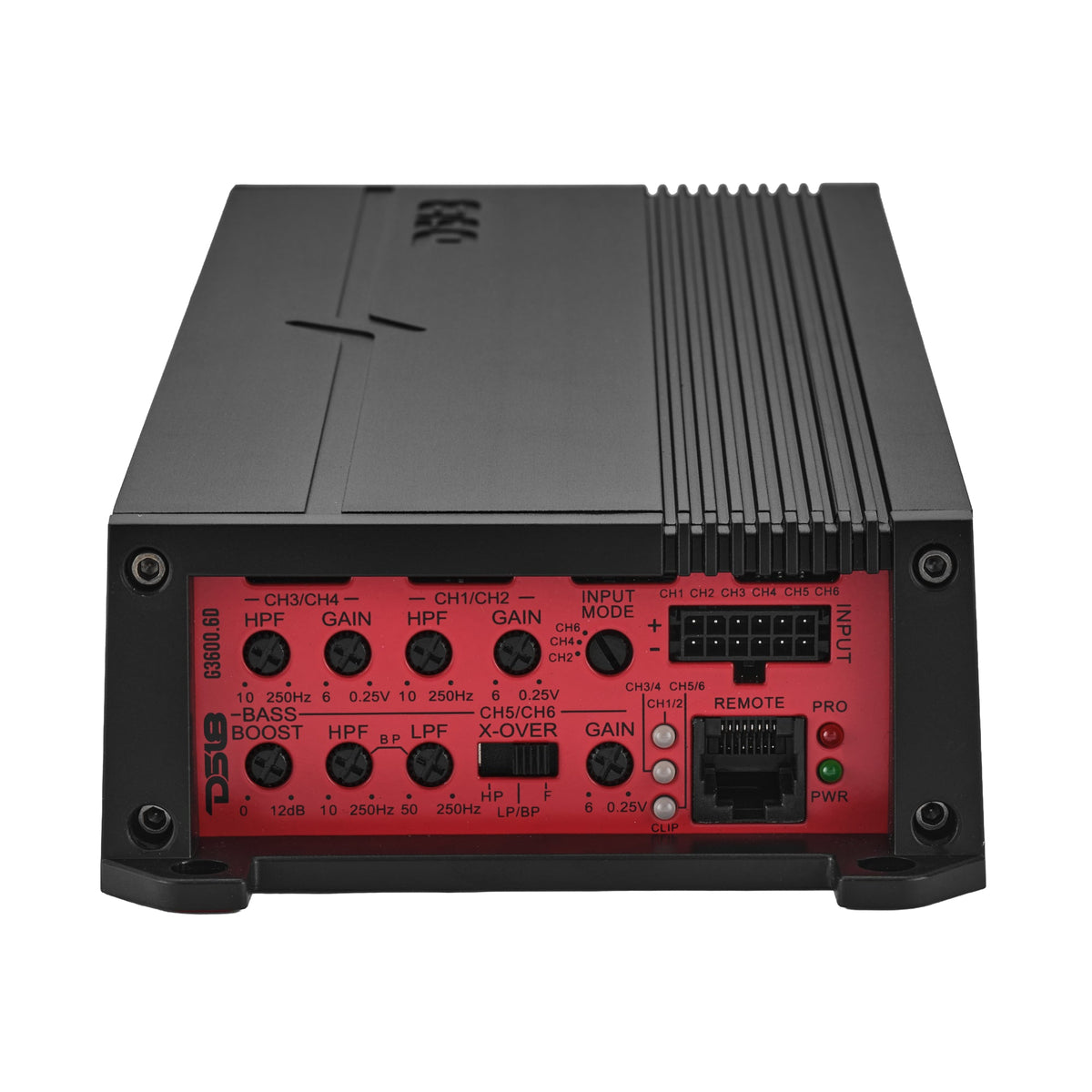

- HPF, BPF and full-range crossover settings
- Bass boost up to 12 dB at 45 Hz
- High-level and low-level inputs, 2/4/6-channel input modes

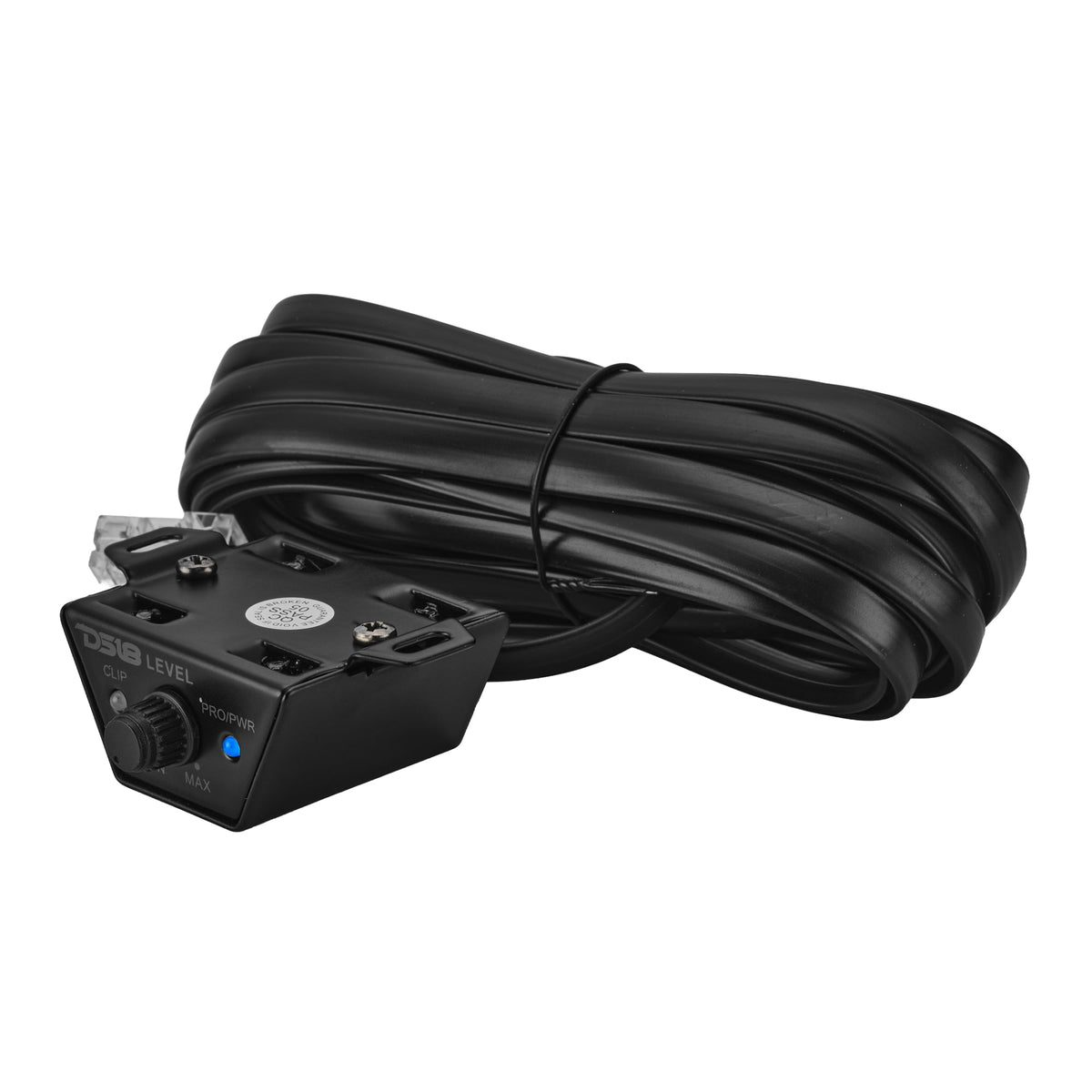

- Remote level control included
GREAT FOR:
- Full systems from a single amp
- Speakers plus subwoofer setups
- OEM integration
SPECIFICATIONS:
| SERIES | GEN-X |
| CHANNELS | 6 Channel |
| CLASS | Class D |
| RMS @ 4 OHM | 200W x 6 |
| RMS @ 2 OHM | 250W x 6 |
| BRIDGED @ 4 OHM | 500W x 3 |
| INPUT SENSITIVITY | 0.25V - 6V |
| BASS BOOST | 0 - 12 dB @ 45 Hz |
| REMOTE LEVEL CONTROL | Included |
| SOLD AS | Each |
| BRAND | DS18 |
| UPC | 810097268876 |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Clean Power, Properly Delivered
Amplification That Holds Up Under Load
Stable Power Delivery
Built to hold its rated output under real load, so volume stays clean instead of falling away when the bass hits.
Protection Built In
Thermal, short-circuit and impedance protection shut the amp down safely rather than letting it fail.
Tuning Control
Onboard gain, crossover and bass controls let you match the amp to your speakers or subs instead of guessing.
Install-Ready
Standard terminals and mounting points make it straightforward to fit with the correct amp kit and fusing.
