DS18 FRP Full Range Class D 1 Channel Amplifier 1500 Watts Rms @ 1 OHM - TITANIUM

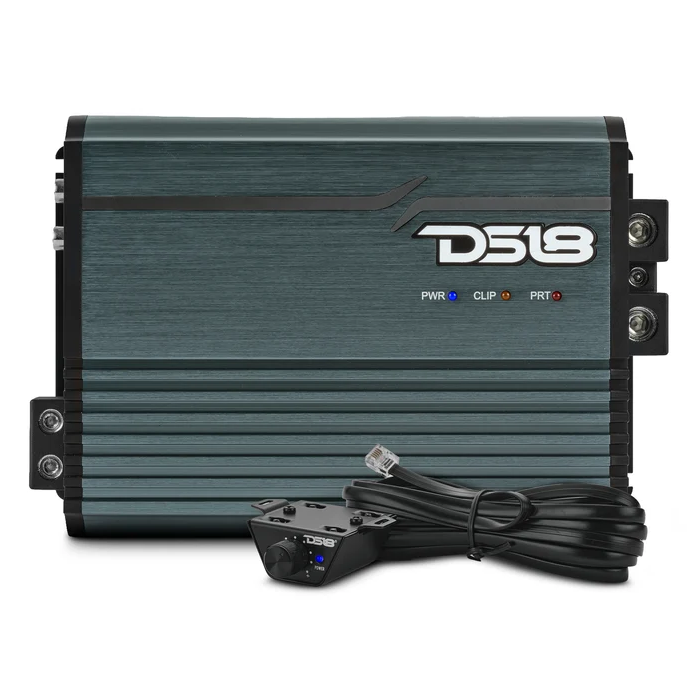

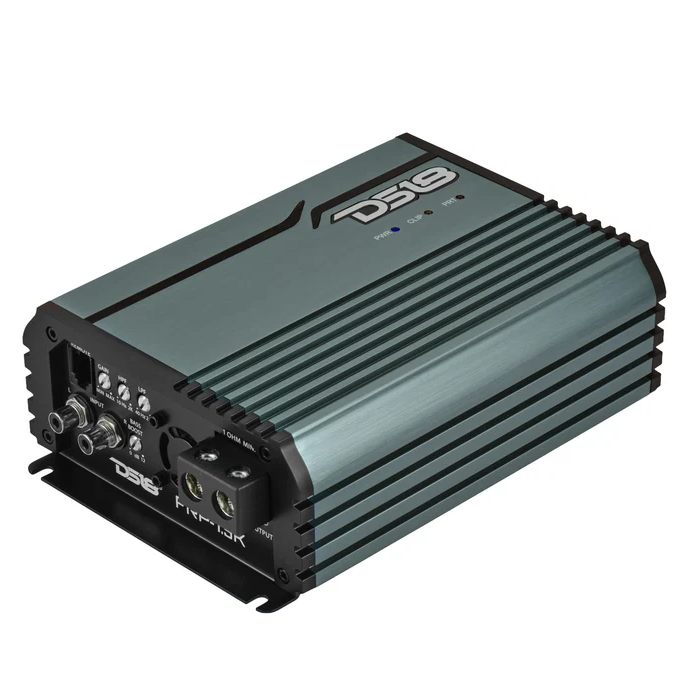

Bring serious power to your car audio system with the DS18 FRP-1.5K/TI — a compact full-range Class D monoblock amplifier designed to deliver up to 1,500W RMS at 1 Ohm. With a full-range 10Hz–20kHz response, this versatile amplifier can power a wide range of audio applications while its compact chassis makes installation easy in tight spaces. Smart cooling, comprehensive protection circuitry, LED clip monitoring, and an included remote level control give you powerful performance with the control and reliability needed for demanding systems.

Key Features

• Full-Range Class D Monoblock – Versatile 1-channel amplifier for a wide range of car audio applications
• 1,500W RMS @ 1 Ohm – Delivers serious power from a compact chassis
• 900W RMS @ 2 Ohms – Strong output for lower-impedance applications
• 500W RMS @ 4 Ohms – Reliable power for higher-impedance systems
• 1,800W MAX @ 1 Ohm – Provides additional burst power when needed
• Full-Range Frequency Response – 10Hz–20kHz allows the amplifier to handle a broad range of frequencies
• Band-Pass Crossover – Adjustable HPF and LPF filtering for system flexibility
• Smart Cooling System – Dual smart cooling fans help manage amplifier temperature
• LED Clip Indicator – Monitor clipping and help maintain clean system performance
• Full Protection Suite – Thermal, overload, DC output, short-circuit, voltage input, and clipping protection
• Tiffany-Style RCA Terminal – Premium-style signal connections
• 0GA Power Input Terminal – Designed for high-current power delivery
• Remote Level Control Included – Convenient remote control with clip indicator
• Compact High-Power Design – 8" long chassis makes installation easier in tight spaces

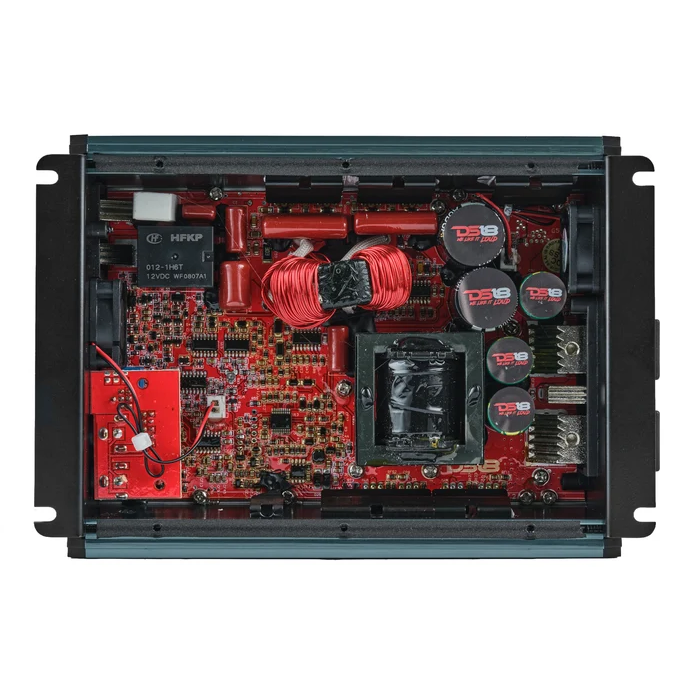

• Four-Layer PCB Design – Stable and reliable internal circuit design
• Surface-Mount Component Technology – Compact construction and efficient circuit layout
• Audio Precision Quality Control – Designed with quality-control verification using Audio Precision instruments

Specifications

• Amplifier Class: Digital (Class D)
• Amplifier Type: Full-Range Monoblock
• Number of Channels: 1
• RMS Power @ 4-Ohm: 500W
• RMS Power @ 2-Ohm: 900W
• RMS Power @ 1-Ohm: 1,500W
• MAX Power @ 1-Ohm (Burst): 1,800W
• Minimum Impedance: 1 Ohm
• Frequency Response: 10Hz–20kHz
• Signal-to-Noise Ratio: 90dB
• Efficiency @ 4-Ohm: 92%
• Damping Factor: 90
• Input Impedance: 10K Ω
• Total Harmonic Distortion (THD): 0.5%
• Low-Level Input Range: 400mV–6V
• High-Level Input: No
• Selectable Crossover: Band-Pass
• Crossover Filter Range: HP 10Hz–2kHz / LP 40Hz–20kHz
• Bass Boost Range: 0–12dB
• Bass Boost Frequency: 50Hz
• Phase Selector: No
• LED Indicators: Power / Protect / Clipping

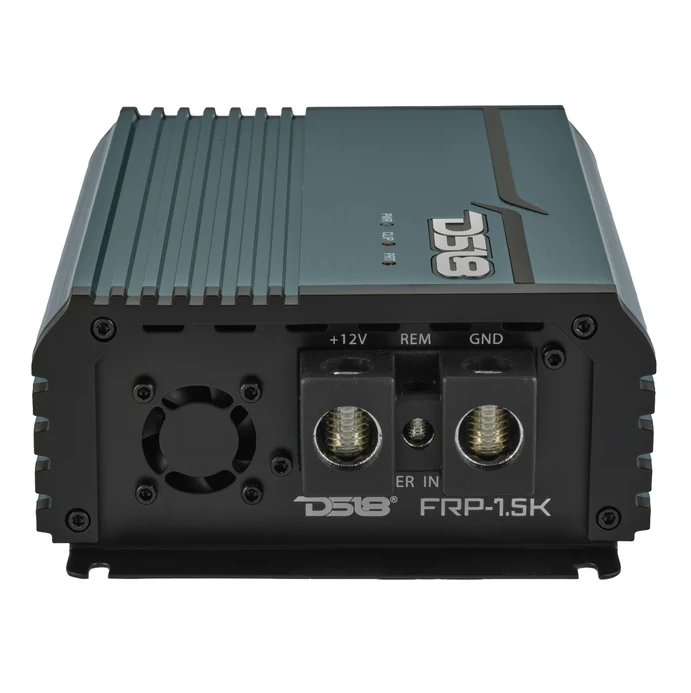

• Power Input Terminal: 0GA
• Recommended Fuse Size: 130A
• Cooling Fans: Yes, Smart Cooling x2
• Voltmeter: No
• Thermal Protection: Yes
• Overload Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes
• Clipping Protection: Yes
• RCA Terminals: Tiffany-Style

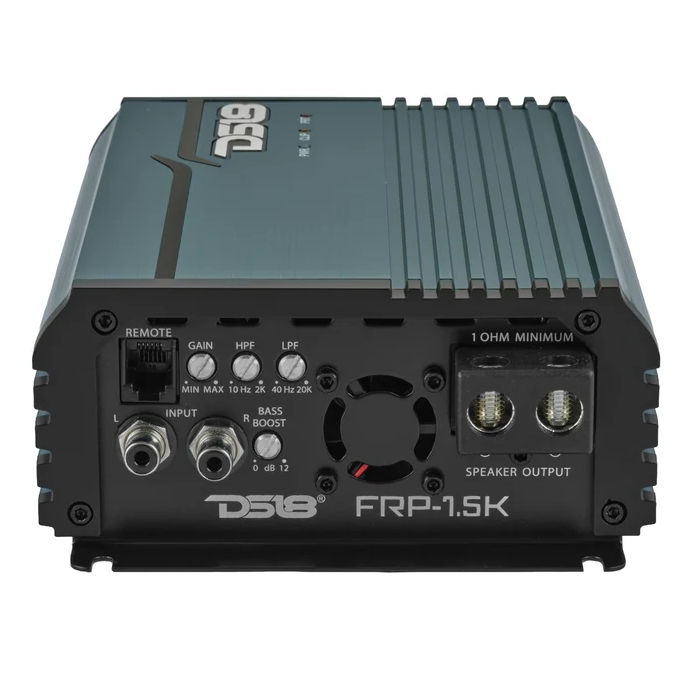

• Controls: Metal Knobs with Click Steps

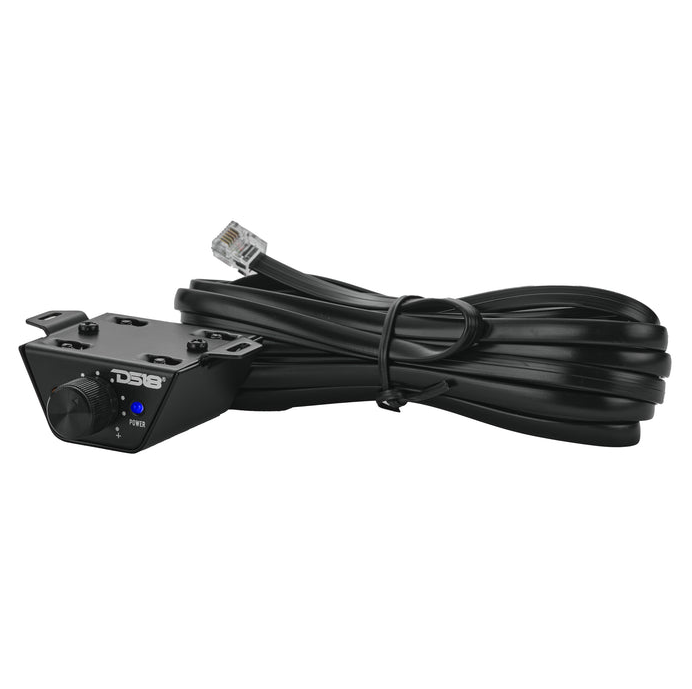

• Remote Level Control: Included with Clip Indicator
• Optional Remote: Remote Level Control with Clip Indicator and Voltmeter
• Overall Dimensions (L x W x H): 8" x 5.5" x 2.36"
• Heatsink Length: 6.7"
• Weight: 1.96 kg (4.32 lbs)
• Finish: Titanium

Package Includes

• DS18 FRP-1.5K/TI 1-Channel Full-Range Class D Amplifier
• Remote Level Control with Clip Indicator
• Mounting Hardware
• Owner's Manual

SKU: DS-FRP-1.5K/TI
UPC: 810097269415
