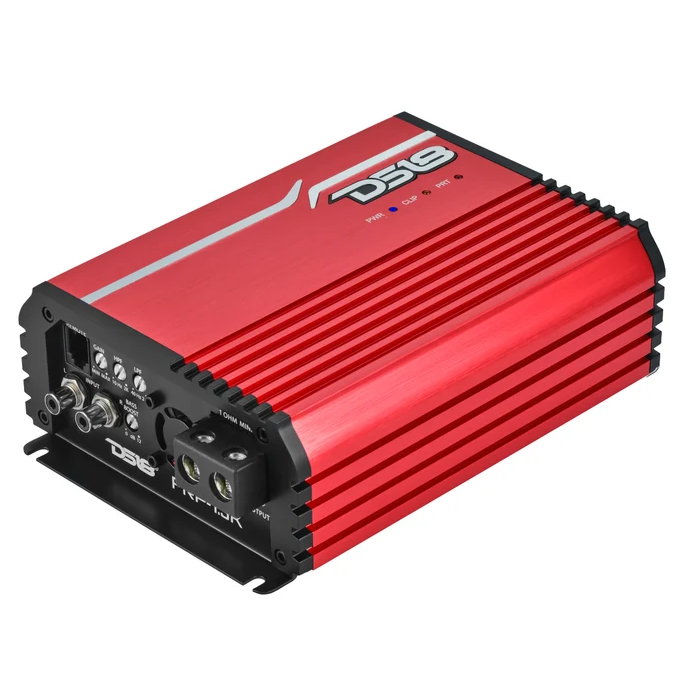

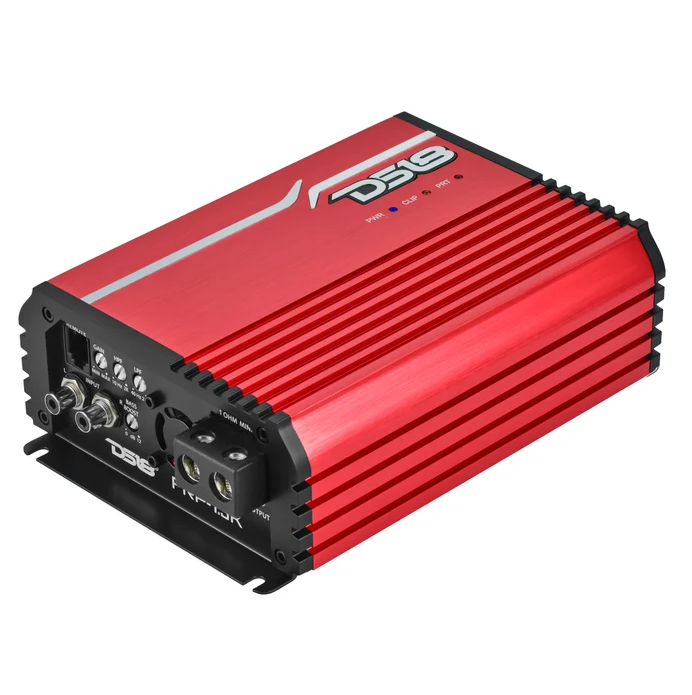

DS18 FRP Full Range Class D 1 Channel Amplifier 1500 Watts Rms @ 1 OHM - RED

Bring serious power to your car audio system with the DS18 FRP-1.5K/RD — a compact full-range Class D monoblock amplifier designed to deliver up to 1,500W RMS at 1 Ohm and 1,800W MAX burst power. With a wide 10Hz–20kHz frequency response, this versatile amplifier is capable of powering a variety of speakers, tweeters, and other audio equipment. Its compact chassis, smart cooling system, LED clip indicator, and comprehensive protection circuitry make it an excellent choice for high-output systems where space and performance both matter. Finished in an aggressive red, the FRP-1.5K/RD delivers serious power without taking up unnecessary space.

Key Features

• Full-Range Class D Monoblock – Versatile 1-channel amplifier for a wide range of car audio applications
• 1,500W RMS @ 1 Ohm – Delivers serious power from a compact chassis
• 900W RMS @ 2 Ohms – Strong output for lower-impedance applications
• 500W RMS @ 4 Ohms – Reliable power for higher-impedance systems
• 1,800W MAX @ 1 Ohm – Provides additional burst power when needed
• Full-Range Frequency Response – 10Hz–20kHz for broad audio reproduction

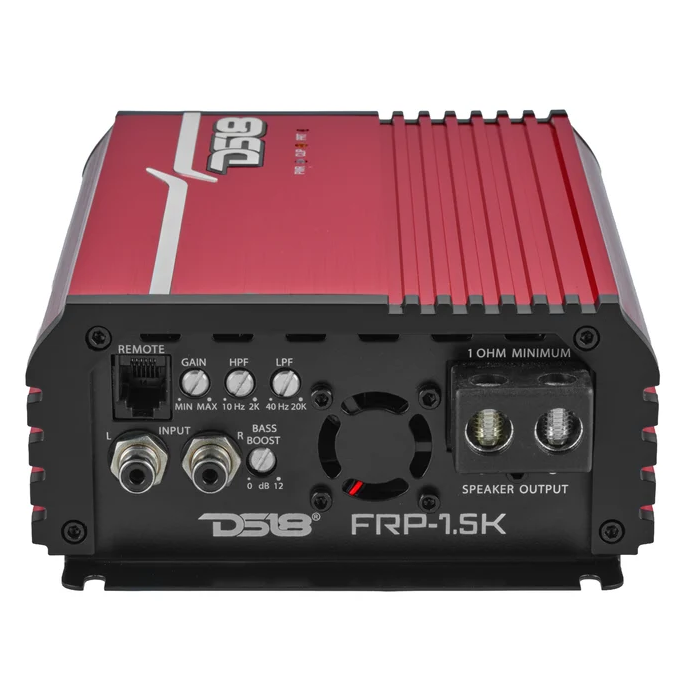

• Band-Pass Crossover – Adjustable HPF and LPF filtering for flexible system tuning
• Smart Cooling System – Dual smart cooling fans help manage operating temperatures
• LED Clip Indicator – Provides visual monitoring to help prevent clipping
• Full Protection Suite – Thermal, overload, DC output, short-circuit, voltage input, and clipping protection
• Tiffany-Style RCA Terminal – Premium-style signal connection

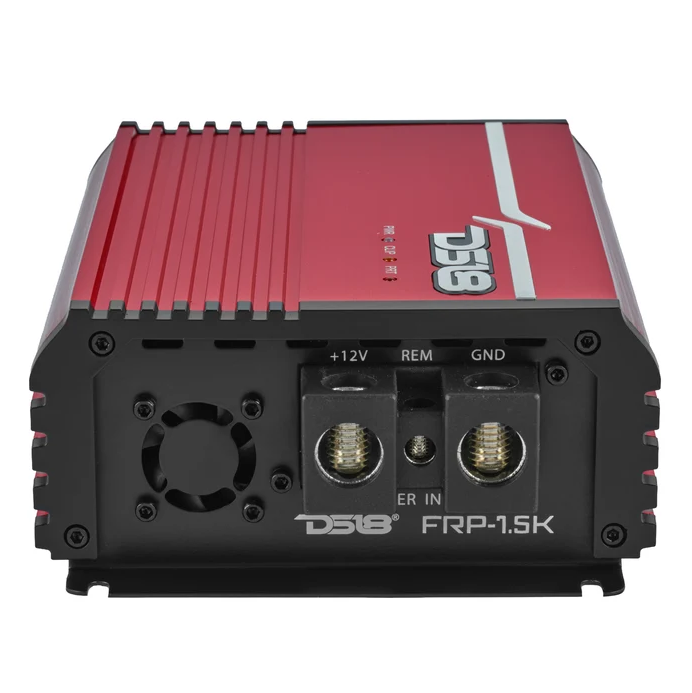

• 0GA Power Input Terminal – Designed for high-current power delivery

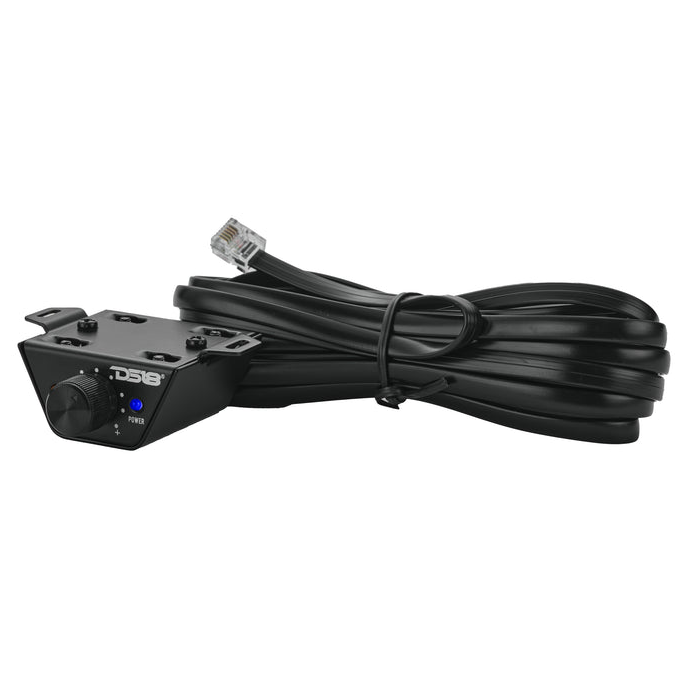

• Remote Level Control Included – Convenient level adjustment with built-in clip indicator
• Compact High-Power Design – Easy to install in space-limited applications

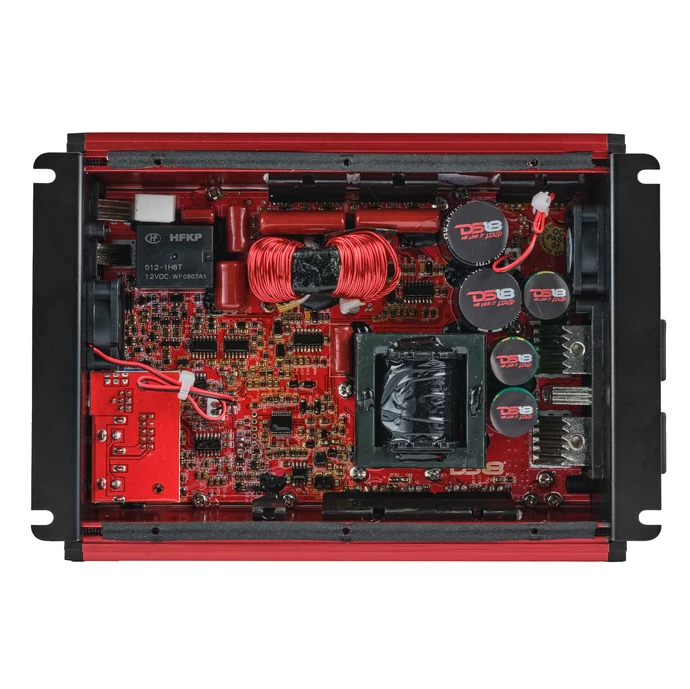

• Four-Layer PCB Design – Stable and reliable internal circuit construction
• Surface-Mount Component Technology – Compact and efficient internal design
• Audio Precision Quality Control – Verified using professional Audio Precision testing instruments
• Red Finish – Aggressive styling for performance-oriented audio builds

Specifications

• Amplifier Class: Digital (Class D)
• Amplifier Type: Full-Range Monoblock
• Number of Channels: 1
• RMS Power @ 4-Ohm: 500W
• RMS Power @ 2-Ohm: 900W
• RMS Power @ 1-Ohm: 1,500W
• MAX Power @ 1-Ohm (Burst): 1,800W
• Minimum Impedance: 1 Ohm
• Frequency Response: 10Hz–20kHz
• Signal-to-Noise Ratio: 90dB
• Efficiency @ 4-Ohm: 92%
• Damping Factor: 90
• Input Impedance: 10K Ω
• Total Harmonic Distortion (THD): 0.5%
• Low-Level Input Range: 400mV–6V
• High-Level Input: No
• Selectable Crossover: Band-Pass
• Crossover Filter Range: HP 10Hz–2kHz / LP 40Hz–20kHz
• Bass Boost Range: 0–12dB
• Bass Boost Frequency: 50Hz
• Phase Selector: No
• LED Indicators: Power / Protect / Clipping
• Power Input Terminal: 0GA
• Recommended Fuse Size: 130A
• Cooling Fans: Yes, Smart Cooling x2
• Voltmeter: No
• Thermal Protection: Yes
• Overload Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes
• Clipping Protection: Yes
• RCA Terminals: Tiffany-Style
• Controls: Metal Knobs with Click Steps
• LED Clip Indicator: Yes
• Remote Level Control: Included with Clip Indicator
• Optional Remote: Remote Level Control with Clip Indicator and Voltmeter
• Overall Dimensions (L x W x H): 8" x 5.5" x 2.36"
• Heatsink Length: 6.7"
• Weight: 1.96 kg (4.32 lbs)
• Finish: Red

Package Includes

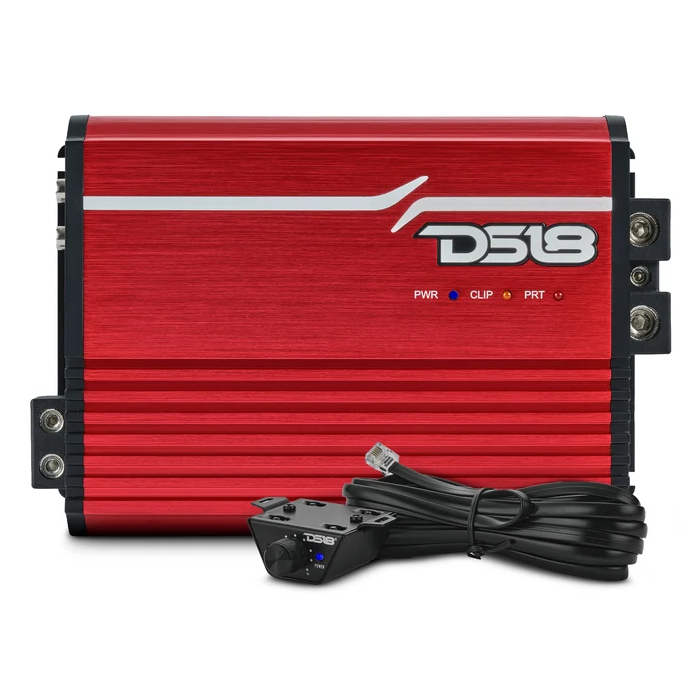

• DS18 FRP-1.5K/RD 1-Channel Full-Range Class D Amplifier
• Remote Level Control with Clip Indicator
• Mounting Hardware
• Owner's Manual
