DS18 FRP Full Range 5ch Amp 250Wx4@4ohms 500x1 on Sub, 325wx4@2ohms 800x1 on Sub, 4ohms Bridge 550x2 1200X1@ 1ohm-Red
Power your entire car audio system from one compact amplifier with the DS18 FRP-2.5K5/RD — a high-output full-range Class D 5-channel amplifier designed to deliver serious power to your speakers, tweeters, and subwoofer from a single chassis. Producing up to 2,800W MAX, it combines four full-range channels with a dedicated subwoofer channel capable of up to 1,200W RMS at 1 Ohm. With bridgeable full-range channels, flexible crossover controls, smart cooling, and a compact design, the FRP-2.5K5/RD gives you the power and versatility needed for a complete high-performance audio system.
Key Features
- Full-Range 5-Channel Class D Amplifier – Powers speakers, tweeters, and subwoofers from one compact amplifier
- 2,800W MAX Power Output – High-output performance for demanding car audio systems
- 1,200W RMS Subwoofer Channel @ 1 Ohm – Dedicated low-frequency power for serious bass
- 250W x 4 + 500W RMS @ 4 Ohms – Delivers strong full-range and subwoofer performance
- 325W x 4 + 800W RMS @ 2 Ohms – Provides additional power for lower-impedance applications
- Bridgeable Full-Range Channels – 550W x 2 @ 4 Ohms when bridged
- LED Clip Indicator – Helps monitor amplifier performance and prevent clipping
- Smart Cooling – Designed to help manage heat during demanding operation
- Selectable Crossovers – HPF for channels 1–4 and LPF for the dedicated subwoofer channel
- Bass Boost & Infrasonic Filter – Fine-tune low-frequency performance on the subwoofer channel
- Full Protection Suite – Thermal, overload, DC output, short-circuit, and voltage input protection
- Tiffany-Style RCA Terminals – Premium-style connections for reliable signal transfer

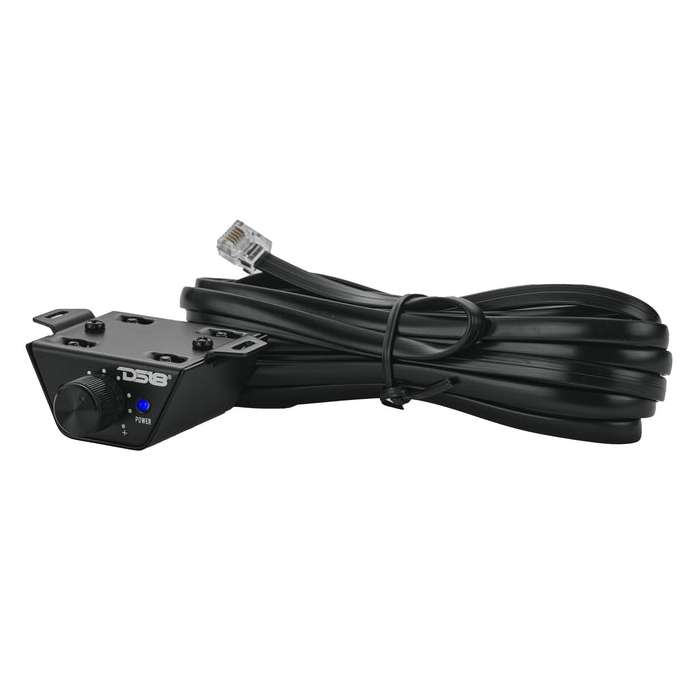

- Remote Level Control Included – Dash-mountable control with clip indicator
- Compact Chassis – Designed for easy installation where space is limited
- Red Finish – Aggressive styling that stands out in performance-oriented builds
Specifications
- Amplifier Class: Digital (Class D)
- Amplifier Type: Stereo Full-Range + Subwoofer
- Number of Channels: 5
- MAX Power Output: 2,800W
- RMS Power @ 4-Ohm: 250W x 4 (CH1–4) + 500W (Sub)
- RMS Power @ 2-Ohm: 325W x 4 (CH1–4) + 800W (Sub)
- RMS Power @ 1-Ohm: 1,200W (Sub)
- RMS Power @ 4-Ohm Bridged: 550W x 2 (CH1–4)
- Minimum Impedance: 2-Ohm Stereo / 4-Ohm Bridge + 1-Ohm (Sub)
- Frequency Response: 10Hz–20kHz (CH1–4) / 10Hz–250Hz (Sub)
- Signal-to-Noise Ratio: 90dB
- Efficiency @ 4-Ohm: 92%
- Damping Factor: 90 (CH1–4) / 250 (Sub)
- Channel Separation: 50dB
- Total Harmonic Distortion (THD): 0.5%
- Input Impedance: 10K Ω
- Low-Level Input Range: 400mV–6V
- High-Level Input: N/A
- Selectable Crossover: HPF (CH1–4) / LPF (Sub)
- Crossover Filter Range: HP 10Hz–2kHz (CH1–4) / LP 10Hz–250Hz (Sub)
- Bass Boost: 0–18dB @ 50Hz (Sub Channel Only)
- Infrasonic Filter: 10Hz–55Hz (Sub Channel Only)
- LED Indicators: Power / Protect / Clipping
- Protection: Thermal / Overload / DC Output / Short Circuit / Voltage Input
- Power Input Terminal: 0GA
- Recommended Fuse Size: 300A
- RCA Terminals: Tiffany-Style
- Controls: Metal Knobs with Click Steps
- Input Selector: 4CH / 5CH
- Remote Level Control: Included with Clip Indicator
- Optional Remote: Remote Level Control with Clip Indicator and Voltmeter
- Overall Dimensions (L x W x H): 14.5" x 6.5" x 2.4"
- Heatsink Length: 13.3"
- Weight: 4.22 kg (9.3 lbs)
- Finish: Red
Package Includes

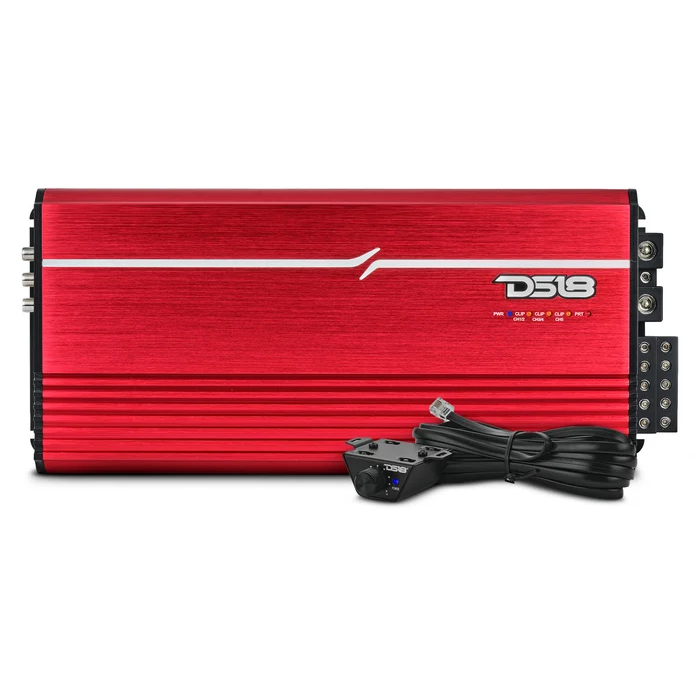

- DS18 FRP-2.5K5/RD 5-Channel Class D Amplifier
- Remote Level Control with Clip Indicator
- Mounting Hardware
- Owner's Manual
SKU: DS-FRP-2.5K5/RD
UPC: 810199441832
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Address: 13446 Alondra Boulevard, Cerritos ,California 90703, United States
Email: info@eliteautogear.com
Phone: (877)-215-8187
