DS18 FRP Full Range 5ch Amp 250Wx4@4ohms 500x1 on Sub, 325wx4@2ohms 800x1 on Sub, 4ohms Bridge 550x2 1200X1@ 1ohm-Blue
Run your entire car audio system from one amplifier with the DS18 FRP-2.5K5/BL — a compact full-range Class D 5-channel amplifier built to power your speakers, tweeters, and subwoofer from a single unit. Delivering up to 2,800W MAX output, it combines four full-range channels with a dedicated subwoofer channel capable of 1,200W RMS at 1 Ohm. With bridgeable channels, flexible crossover controls, smart cooling, and a compact chassis, the FRP-2.5K5/BL gives you the versatility and power needed to build a serious sound system without taking up unnecessary space. The blue finish adds a clean performance look to any installation.
Key Features
- Full-Range 5-Channel Class D Amplifier – One amplifier powers speakers, tweeters, and subwoofers
- 2,800W MAX Power Output – High-output performance in a compact chassis
- 1,200W RMS Subwoofer Channel @ 1 Ohm – Dedicated power for your low-frequency system
- 250W x 4 + 500W RMS @ 4 Ohms – Powerful full-range and subwoofer output
- 325W x 4 + 800W RMS @ 2 Ohms – Increased power for lower-impedance applications
- Bridgeable Full-Range Channels – 550W x 2 @ 4 Ohms when bridged
- Smart Cooling – Helps manage heat during demanding operation
- LED Clip Indicator – Provides visual monitoring of amplifier performance
- Selectable Crossovers – HPF for CH1–4 and LPF for the dedicated subwoofer channel
- Bass Boost & Infrasonic Filter – Fine-tune the subwoofer channel for your system
- Full Protection Suite – Thermal, overload, DC output, short-circuit, and voltage input protection
- Tiffany-Style RCA Terminals – Premium connection points for reliable signal transfer
- 4CH/5CH Input Selector – Flexible signal configuration for different system designs
- Remote Level Control Included – Allows convenient subwoofer level adjustment with clip indication
- Compact Design – 14.5" long chassis makes installation easier in space-limited applications
- Blue Finish – Distinctive styling for performance-oriented builds
Specifications
- Amplifier Class: Digital (Class D)
- Amplifier Type: Stereo Full-Range + Subwoofer
- Number of Channels: 5
- RMS Power @ 4-Ohm: 250W x 4 (CH1–4) + 500W (Sub)
- RMS Power @ 2-Ohm: 325W x 4 (CH1–4) + 800W (Sub)
- RMS Power @ 1-Ohm: 1,200W (Sub)
- RMS Power @ 4-Ohm Bridged: 550W x 2 (CH1–4)
- Maximum Power Output: 2,800W MAX
- Minimum Impedance: 2-Ohm Stereo / 4-Ohm Bridge + 1-Ohm (Sub)
- Frequency Response: 10Hz–20kHz (CH1–4) / 10Hz–250Hz (Sub)
- Signal-to-Noise Ratio: 90dB
- Efficiency @ 4-Ohm: 92%
- Damping Factor: 90 (CH1–4) / 250 (Sub)
- Channel Separation: 50dB
- Total Harmonic Distortion (THD): 0.5%
- Input Impedance: 10K Ω
- Low-Level Input Range: 400mV–6V
- High-Level Input: N/A
- Selectable Crossover: HPF (CH1–4) / LPF (Sub)
- Crossover Filter Range: HP 10Hz–2kHz (CH1–4) / LP 10Hz–250Hz (Sub)
- Bass Boost: 0–18dB @ 50Hz (Sub Channel Only)
- Infrasonic Filter: 10Hz–55Hz (Sub Channel Only)
- LED Indicators: Power / Protect / Clipping
- Protection: Thermal / Overload / DC Output / Short Circuit / Voltage Input
- Power Input Terminal: 0GA
- Recommended Fuse Size: 300A
- RCA Terminals: Tiffany-Style
- Input Selector: 4CH / 5CH
- Remote Level Control: Included with Clip Indicator
- Optional Remote: Remote Level Control with Clip Indicator and Voltmeter
- Overall Dimensions (L x W x H): 14.5" x 6.5" x 2.4"
- Heatsink Length: 13.3"
- Weight: 4.22 kg (9.3 lbs)
- Finish: Blue
Package Includes

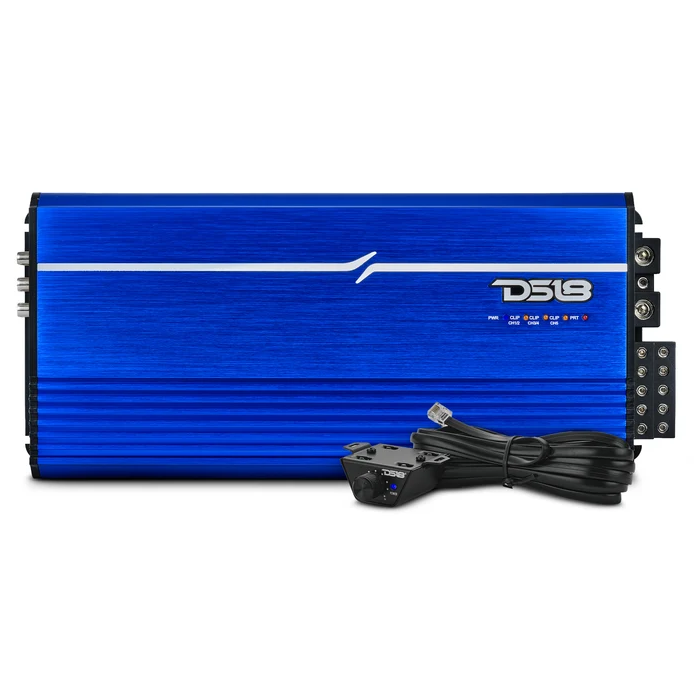

- DS18 FRP-2.5K5/BL 5-Channel Class D Amplifier

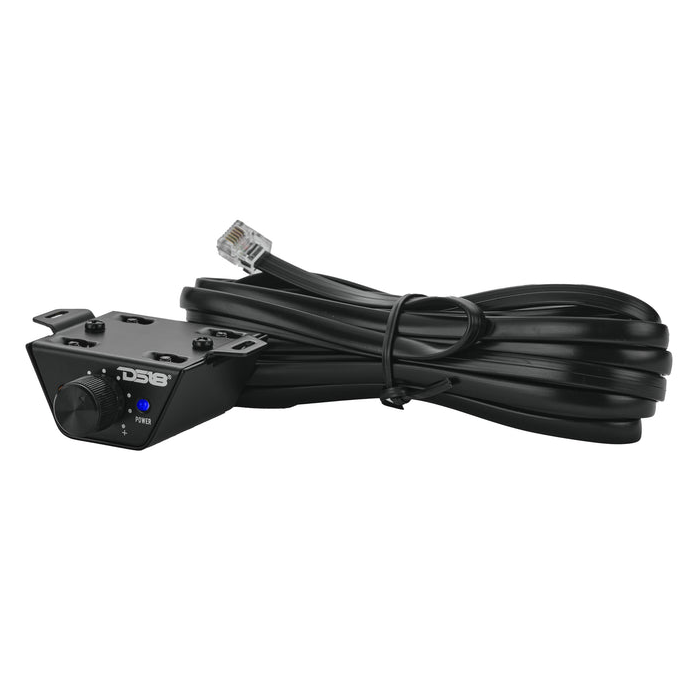

- Remote Level Control with Clip Indicator
- Mounting Hardware
- Owner's Manual
SKU: DS-FRP-2.5K5/BL
UPC: 810199441825
