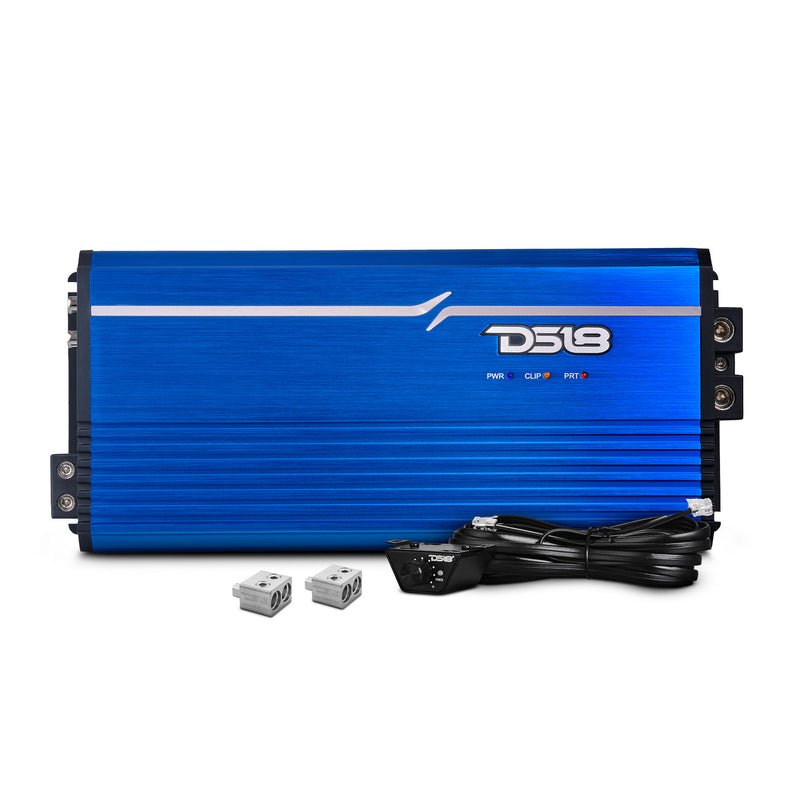

DS18 FRP Compact Full-Range Class D 1-Channel Amplifier 5,000 Watts Rms @ 1-Ohm Blue

Only 3 left
SKU: DS-FRP-5K/BL
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $549.95 USD
  • 1 Channel Full Range
  • Class D
  • 1 ~ 4 Ohm Stable
  • 1 X 5000 Watts RMS @ 1 Ohm
  • Clip / Protection Indicator
  • Remote Level Control Knob

DS18 FRP-5K/BL


Compact Full-Range Class D 1-Channel Amplifier 5,000W RMS @ 1-ohm Blue

DS18’s FRP-5K is the latest game-changer in car audio!
High efficiency micro digital design maximizes this compact amplifier’s power output and minimizes its energy consumption. Its variable full crossover filters allows you to fine-tune your sound for optimal performance. Depending on your Band-Pass Adjustments, this Full-Range Amplifier can be used for Bass, Mids, or Highs.
DS18’s FRP-5K features surface mount component technology and Reliable Four Layer Trace PCB Design that enhances durability and performance. The protective coating on the PCB prevents moisture corrosion, while bonded components provide extra vibration protection. This means you can enjoy high-quality sound even in harsh conditions.
Equipped with power, protection, and clipping LED indicators: the FRP-5K provides real-time feedback on its status. Gain peace of mind with short circuit thermal, DC offset, and high/low voltage protection to safeguard both your amplifier and vehicle.
DS18’s FRP-5K outputs 1500W RMS @ 4-Ohm; 2900W RMS @ 2-Ohm; 5000W RMS @ 1-Ohm; and 5600W RMS @ 1-Ohm (BURST) - perfect power settings to supercharge any vehicle.
Installation is a breeze thanks to the FRP-5K’s compact size and Tiffany RCA Terminals. Coming in three different colors (blue, titanium, or red) the FRP-5K will fit right into any system.
Upgrade with DS18’s FRP-5K and experience the DS18 Difference firsthand.

SPECS

SKU
FRP-5K/BL
RMS Power @ 4 ohms
1500W
RMS Power @ 2 ohms
2900W
RMS Power @ 1 ohm
5000W
MAX Power @ 1 ohm (Burst)
5600W


AUDIO

Frequency Response
10Hz-15KHz
Signal to Noise Ratio
83dB
Efficiency @ 4ohm
92%
Damping Factor
90
Input Impedance
10KΩ
Total Harmonic Distortion (THD)
0.5%
Low Level Input Range
400mv-3.6V
High Level Input
No
Selectable X-Over
Fixed Band-Pass
X-Over Filter Range
HP: 10Hz-2KHz / LP: 40Hz-20KHz
Bass Boost Range
0-12dB
Bass Boost Frequency
50Hz
Phase Selector
No


FEATURES

Amplifier Class
Digital
Amplifier Type
Full-Range Monoblock
Number of Channels
1CH
Minimum Impedance

Led Indicator
Power / Protect / Clipping
Power Input Terminal Size
0GA
Fuse Size (Recommended)
500A
Remote Level Control
Yes (Volmeter Optional)
Cooling Fan
Yes (Smart Cooling x 2)
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Blue / Red / Titanium
Compact Size to Easy Installation for Any Applications
Yes
Stable/Reliable Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
Metal Knobs with Click Steps
Yes
Remote Level Control with Clip Indicator
Included
Remote Level Control with Clip Indicator and Voltmeter
Optional


MEASUREMENT

Overall Length
12.2" / 310mm
Overall Width
5.5" / 140mm
Overall Height
2.36" / 60mm
Heatsink Length
11" / 278mm
Gross Single Unit Weight
3.3kg
