• 1 Channel Full Range
• Class D
• 1 ~ 4 Ohm Stable
• 1 X 3500 Watts RMS @ 1 Ohm
• Clip / Protection Indicator
• Remote Level Control Knob

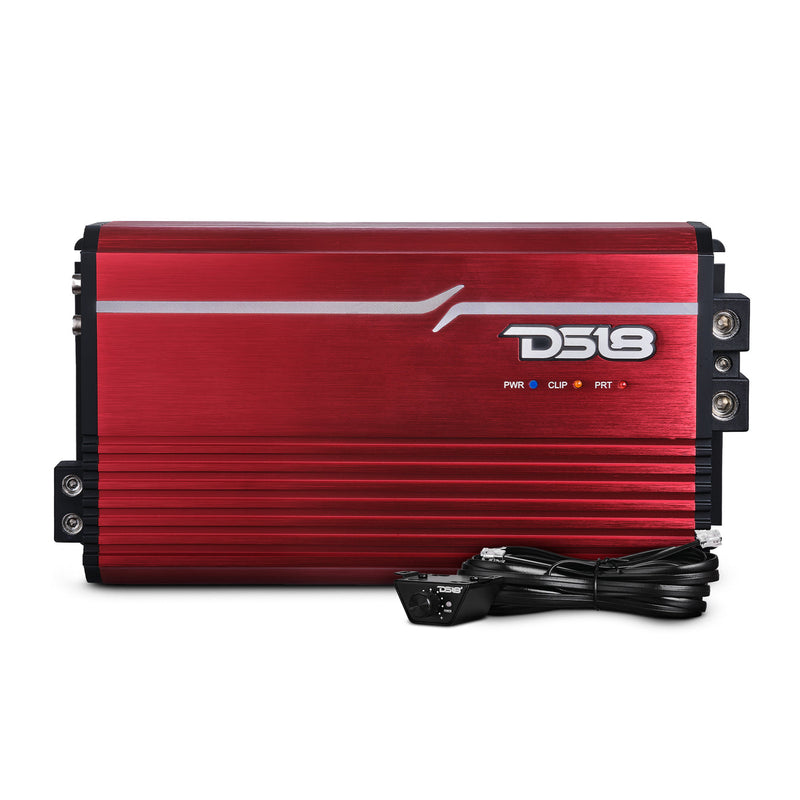

• DS18 FRP-3.5K/RD




  Compact Full Range Class D 1-Channel Amplifier

  DS18’s FRP-3.5K is the latest game-changer in car audio!
  High efficiency micro digital design allows this compact amplifier to maximize its power output while minimizing its energy consumption. Its variable full crossover filters allow you to fine-tune your sound, for optimal performance tailored to your preferences. Depending on your Band-Pass Adjustments, this Full-Range Amplifier can be used for Bass, Mids, or Highs.
  Built for the road, DS18’s FRP-3.5K features surface mount component technology and Reliable Four Layer Trace PCB Design that enhances durability and performance. The protective coating on the PCB prevents moisture corrosion, while bonded components provide extra vibration protection. This means you can enjoy high-quality sound even in harsh conditions.
  Equipped with power, protection, and clipping LED indicators: the FRP-3.5K provides real-time feedback on its status. You'll have peace of mind knowing that it features short circuit thermal, DC offset, and high/low voltage protection to safeguard both your amplifier and your vehicle.
  DS18’s FRP-3.5K outputs 1000W RMS @ 4-Ohm; 2000W RMS @ 2-Ohm; 3500W RMS @ 1-Ohm; and 4000W RMS @ 1-Ohm (BURST) - perfect power settings to supercharge any vehicle. Installation is a breeze thanks to the FRP-3.5K’s compact size and Tiffany RCA Terminals. Coming in three different colors (blue, titanium, or red) the FRP-3.5K will fit right into any system.
  Upgrade with DS18’s FRP-3.5K and experience the DS18 Difference firsthand.

  SPECS

  SKU
  FRP-3.5K/RD
  RMS Power @ 4 ohms
  1000W
  RMS Power @ 2 ohms
  2000W
  RMS Power @ 1 ohm
  3500W
  MAX Power @ 1 ohm (Burst)
  4000W





  AUDIO

  Frequency Response
  10Hz-20KHz
  Signal to Noise Ratio
  83dB
  Efficiency @ 4ohm
  80.9%
  Damping Factor
  90
  Input Impedance
  10KΩ
  Total Harmonic Distortion (THD)
  0.5%
  Low Level Input Range
  400mv-3.6V
  High Level Input
  No
  Selectable X-Over
  Fixed Band-Pass
  X-Over Filter Range
  HP: 10Hz-2KHz / LP: 40Hz-20KHz
  Bass Boost Range
  0-12dB
  Bass Boost Frequency
  50Hz
  Phase Selector
  No





  FEATURES

  Amplifier Class
  Digital
  Amplifier Type
  Full-Range Monoblock
  Number of Channels
  1CH
  Minimum Impedance
  1Ω
  Led Indicator
  Power / Protect / Clipping
  Power Input Terminal Size
  0GA
  Fuse Size (Recommended)
  300A
  Remote Level Control
  Yes (Volmeter Optional)
  Cooling Fan
  Yes (Smart Cooling x 2)
  Voltmeter
  No
  Thermal Protection
  Yes
  Over-Load Protection
  Yes
  DC Output Protection
  Yes
  Short Circuit Output Protection
  Yes
  Voltage Input Protection
  Yes
  Clipping Protection
  Yes
  Body Color / Finish
  Blue / Red / Titanium
  Compact Size to Easy Installation for Any Applications
  Yes
  Stable/Reliable Four Layers Traces PCB Design
  Yes
  Surface Mount Component Technology
  Yes
  Quality Control Verification using Audio Precision Instruments
  Yes
  Tiffany RCA Terminal
  Yes
  LED Clip Indicator
  Yes
  Metal Knobs with Click Steps
  Yes
  Remote Level Control with Clip Indicator
  Included
  Remote Level Control with Clip Indicator and Voltmeter
  Optional





  MEASUREMENT

  Overall Length
  10.2" / 260mm
  Overall Width
  5.5" / 140mm
  Overall Height
  2.36" / 60mm
  Heatsink Length
  9" / 228mm
  Gross Single Unit Weight
  2.64kg





  UPC: 810097264939
