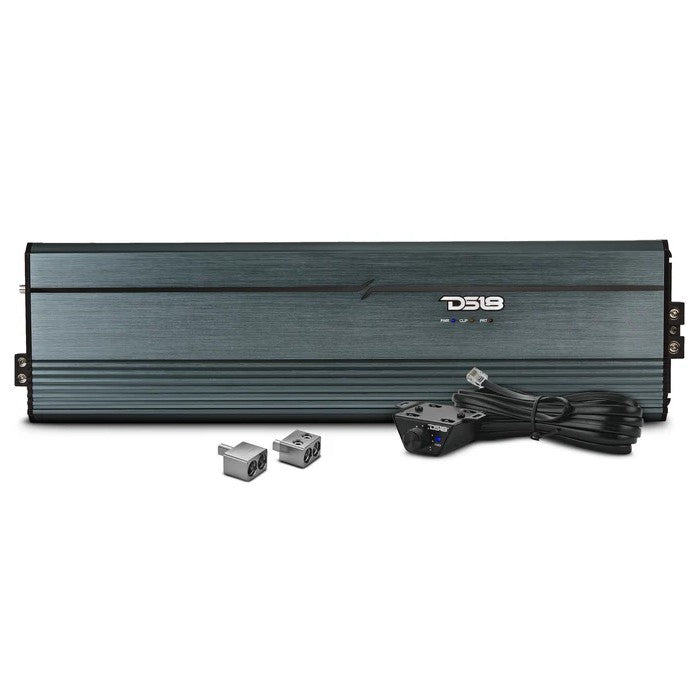

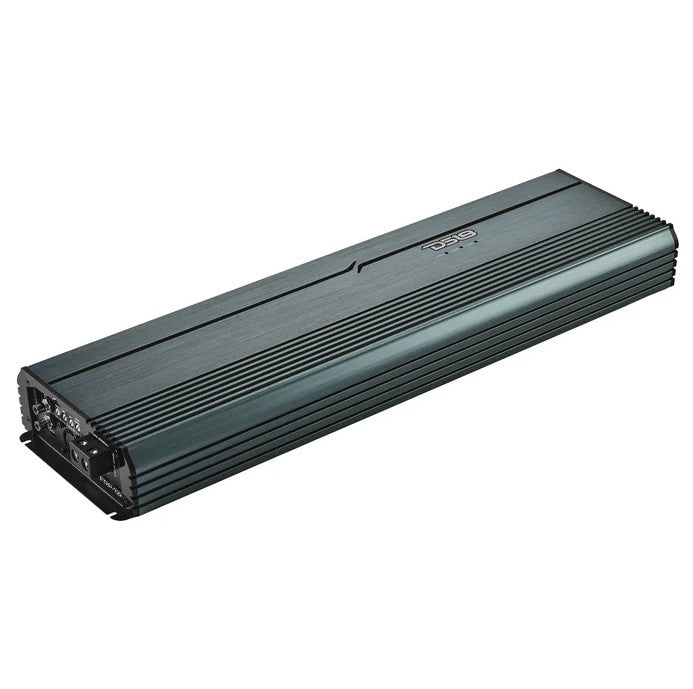

DS18 FRP-12K/TI- FRP Full Range Class D 1 Channel Amplifier 12000 Watts Rms @ 1 OHM - Titanium
Upgrade your system with the DS18 FRP-12K/TI β a compact full-range Class D monoblock built to push a staggering 12,000W RMS at 1 ohm through every speaker, tweeter, and subwoofer in your rig. Squeezed into a footprint barely bigger than a briefcase, this amp trades bulk for raw output, backed by triple Smart Cooling fans and a full suite of protection circuitry so the party never has to stop for overheating, clipping, or a blown fuse. This isn't just power β it's headroom for days.
Key Features
- Full-Range Class D Monoblock β One channel, full-spectrum output for speakers, tweeters & subs
- 12,000W RMS @ 1 Ohm β Up to 13,000W MAX burst power on tap
- Compact High-Power Design β Massive output in a space-saving footprint
- Smart Cooling System β Triple cooling fans keep power flowing without the heat
- Remote Level Control β Dash-mountable control with clip indicator included
- Full Protection Suite β Guards against clipping, short circuits & overload
Specifications
- Amplifier Class: Digital (Class D)
- Amplifier Type: Full-Range Monoblock
- Number of Channels: 1
- RMS Power @ 4-Ohm: 4,000W
- RMS Power @ 2-Ohm: 7,500W
- RMS Power @ 1-Ohm: 12,000W
- MAX Power @ 1-Ohm (Burst): 13,000W
- Minimum Impedance: 1 Ohm
- Frequency Response: 10Hz β 15kHz
- Signal to Noise Ratio: 90dB
- Efficiency @ 4-Ohm: 92%
- Damping Factor: 90
- Total Harmonic Distortion (THD): 0.5%
- Input Impedance: 10K Ξ©
- Low-Level Input Range: 400mV β 6V
- High-Level Input: No
- Selectable Crossover: Band-Pass (HP: 10Hzβ2kHz / LP: 40Hzβ15kHz)
- Bass Boost: 0β12dB @ 50Hz
- LED Indicators: Power / Protect / Clipping
- Cooling: Smart Cooling x3 Fans
- Protection: Thermal, Overload, DC Output, Short Circuit, Voltage Input, Clipping

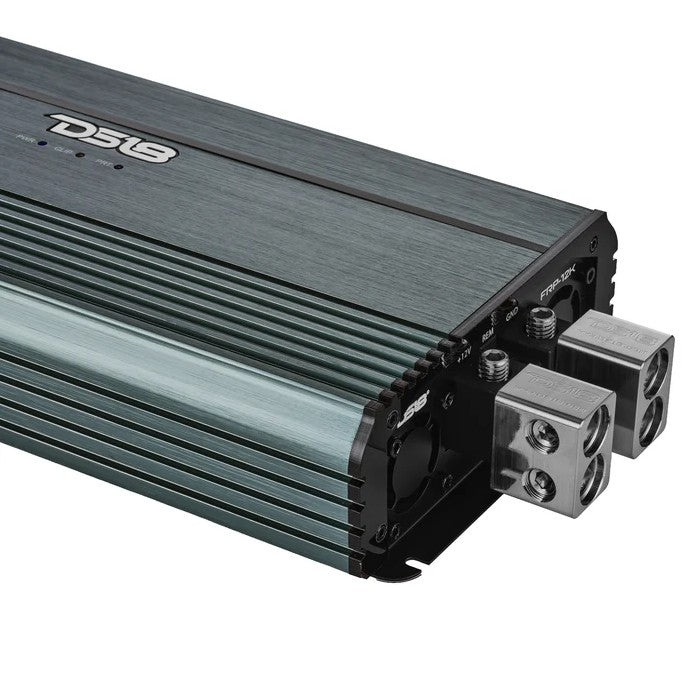

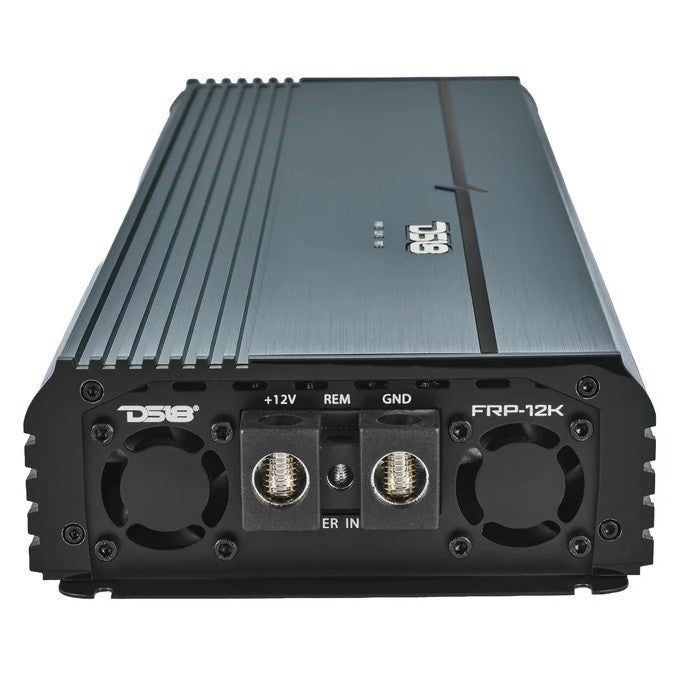

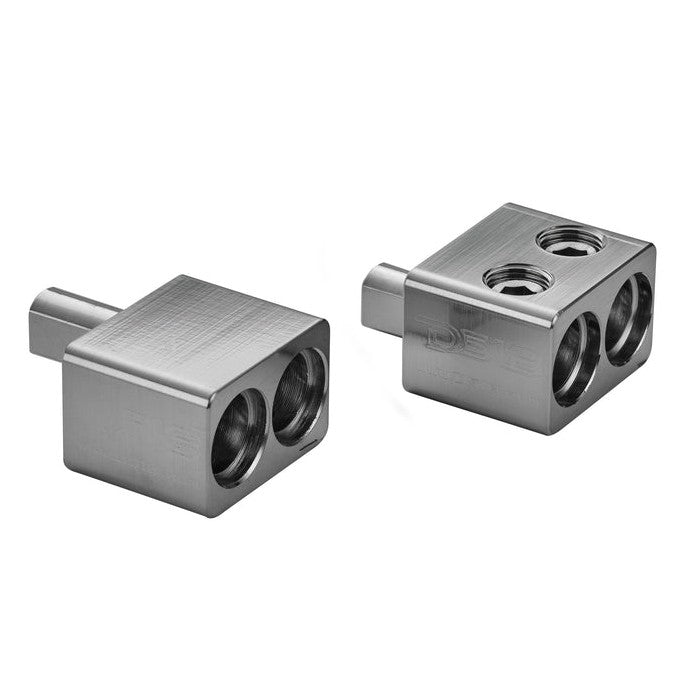

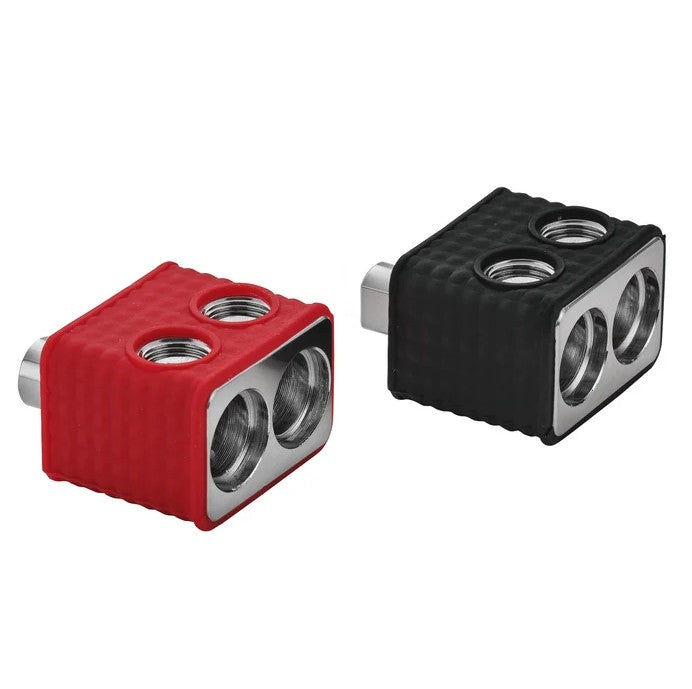

- Power Input Terminal: 0GA
- Recommended Fuse Size: 1300A
- RCA Terminals: Tiffany-Style

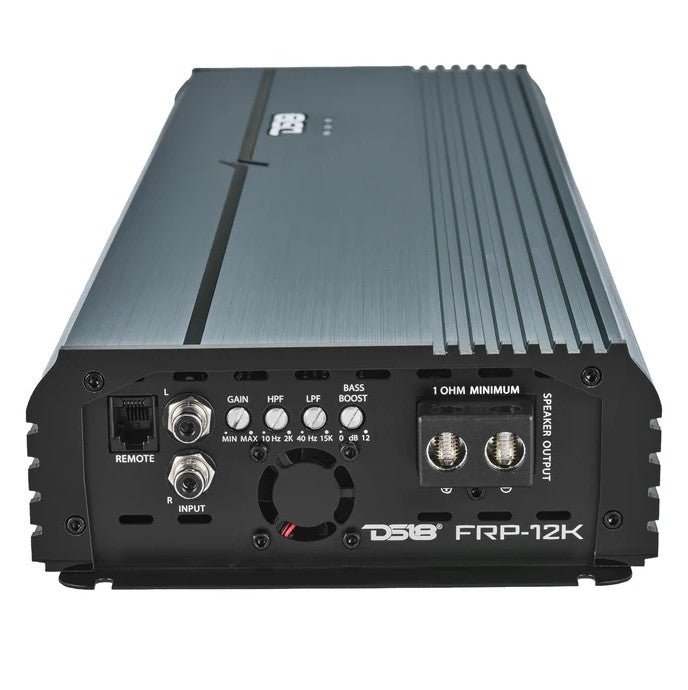

- Controls: Metal Knobs with Click Steps

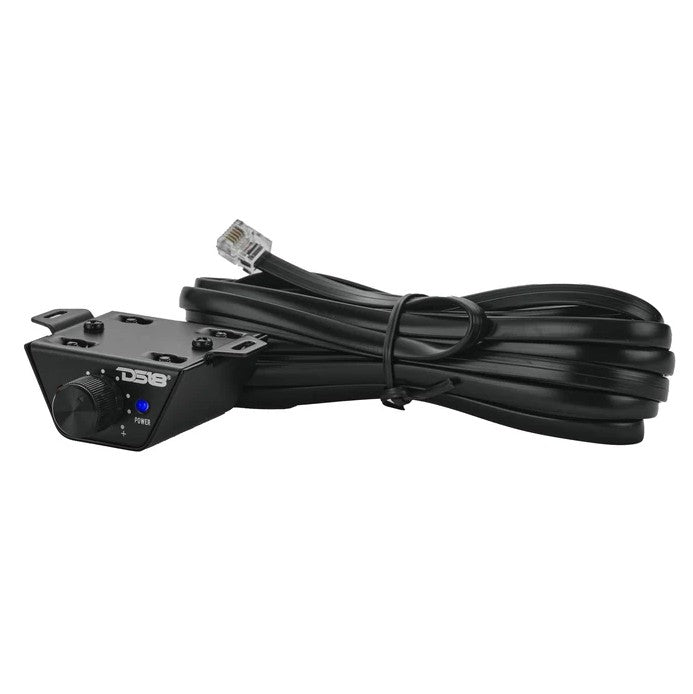

- Remote Level Control: Included (with clip indicator); voltmeter version optional
- Overall Length x Width x Height: 24" x 6.5" x 2.4"
- Heatsink Length: 22.6"
- Weight: 7.3 kg (16.1 lbs)
SKU: DS-FRP-12K/TI
UPC: 810199441870
