In stock
SKU: DS-FRP-1.2K4/RD

DS18 FRP-1.2K4/RD FRP 4-Channel Full-Range Car Amp – High-Power Class-D, 1200W RM - Red

Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last
Regular price $299.95 USD
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last

DS18 FRP-1.2K4 Compact 4-Channel Class-D Car Amplifier delivers 1200W RMS of clean full-range power. Features flexible crossover, bass boost, efficient cooling, and compact design for tight installs.

Features:

  • RMS Power: 4 x 120W @ 4Ω, 4 x 200W @ 2Ω, 4 x 300W @ 1Ω
  • Bridged Power: 2 x 350W @ 4Ω | 2 x 500W @ 2Ω
  • Selectable HPF / LPF / Full crossover
  • Bass Boost: 0–12dB at 50Hz

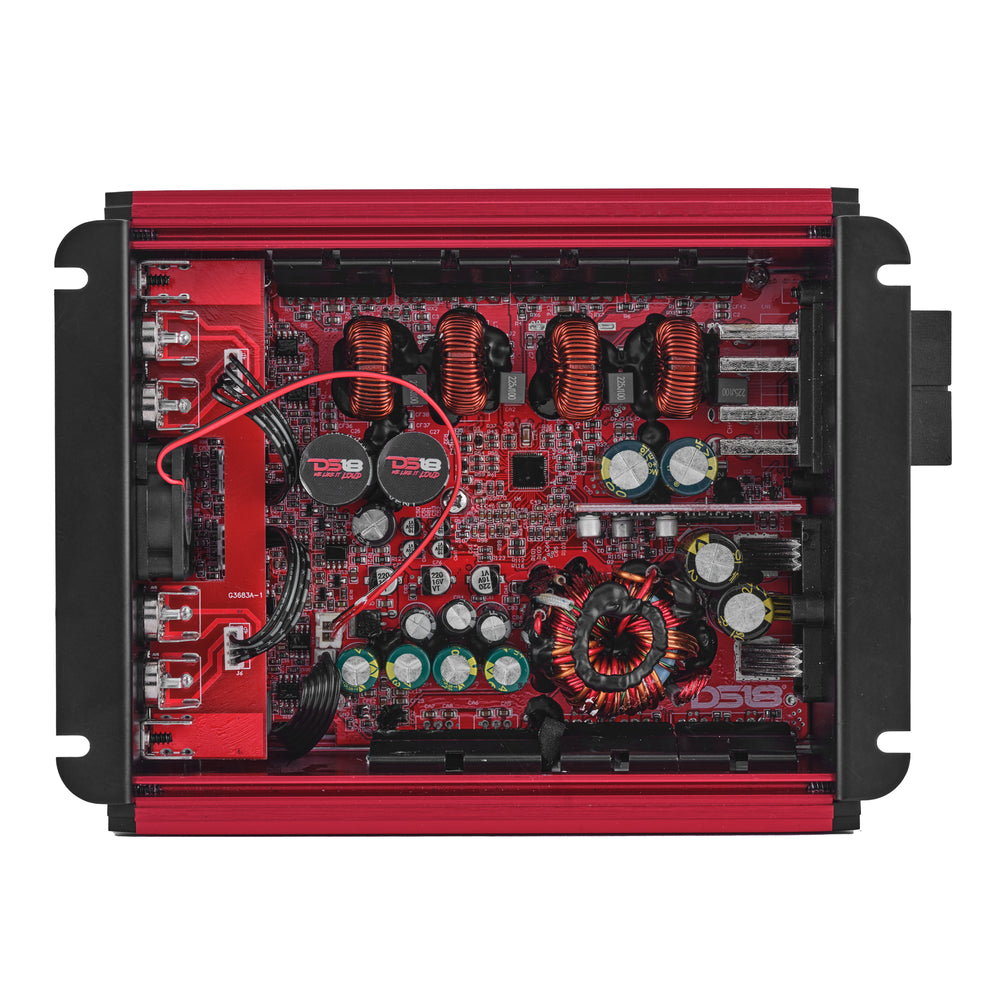

  • Smart cooling fan + 4-layer PCB
  • Power, Protect, Clip LED indicators

Specifications:

Power

RMS Power @ 4 ohms
4 x 120W
RMS Power @ 2 ohms
4 x 200W
RMS Power @ 1 ohm
4 x 300W
RMS Power @ 4 ohm Bridge
2 x 350W
RMS Power @ 2 ohm Bridge
2 x 500W


Audio

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
97%
Damping Factor
90
Input Impedance
10KΩ
Channel Separation
50dB
Total Harmonic Distortion (THD)
0.5%
Low Level Input Range
400mv-6V
High Level Input
No
Selectable X-Over
Yes, HPF/FULL/LPF
X-Over Filter Range
10Hz-2KHz
Bass Boost Range
0-12dB
Bass Boost Frequency
50Hz
Phase Selector
No


Features

Amplifier Class
Digital
Amplifier Type
Full-Range Multi-Channel
Number of Channels
4CH
Minimum Impedance
1ohm St / 2ohm Bridge
Led Indicator
Power / Protect / Clipping
Power Input Terminal Size
4GA
Fuse Size (Recommended)
140A
Cooling Fan
Yes (Smart Cooling x 1)
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Blue / Red / Titanium
Compact Size to Easy Installation for Any Applications
Yes
Stable/Reliable Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
Metal Knobs with Click Steps
Yes
Input Selector
Yes (2ch/4ch)
Remote Level Control with Clip Indicator
No
Remote Level Control with Clip Indicator and Voltmeter
No


Measurement

Overall Length
7.2" / 183mm
Overall Width
5.5" / 140mm
Overall Height
2.4" / 63.5mm
Heatsink Length
6" / 152mm
Gross Single Unit Weight
1.6Kg

UPC: 810097269378

Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.

Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.

1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.

Customer Support : 9:00 am to 5:00 pm

Email: info@eliteautogear.com

For technical support questions, contact us at cs@eliteautogear.com

Phone: (877)-215-8187

From Our Community

Real Installs. Real Sound.

See what enthusiasts are saying — straight from their builds

Clean Power, Properly Delivered

Amplification That Holds Up Under Load

Stable Power Delivery

Built to hold its rated output under real load, so volume stays clean instead of falling away when the bass hits.

Protection Built In

Thermal, short-circuit and impedance protection shut the amp down safely rather than letting it fail.

Tuning Control

Onboard gain, crossover and bass controls let you match the amp to your speakers or subs instead of guessing.

Install-Ready

Standard terminals and mounting points make it straightforward to fit with the correct amp kit and fusing.

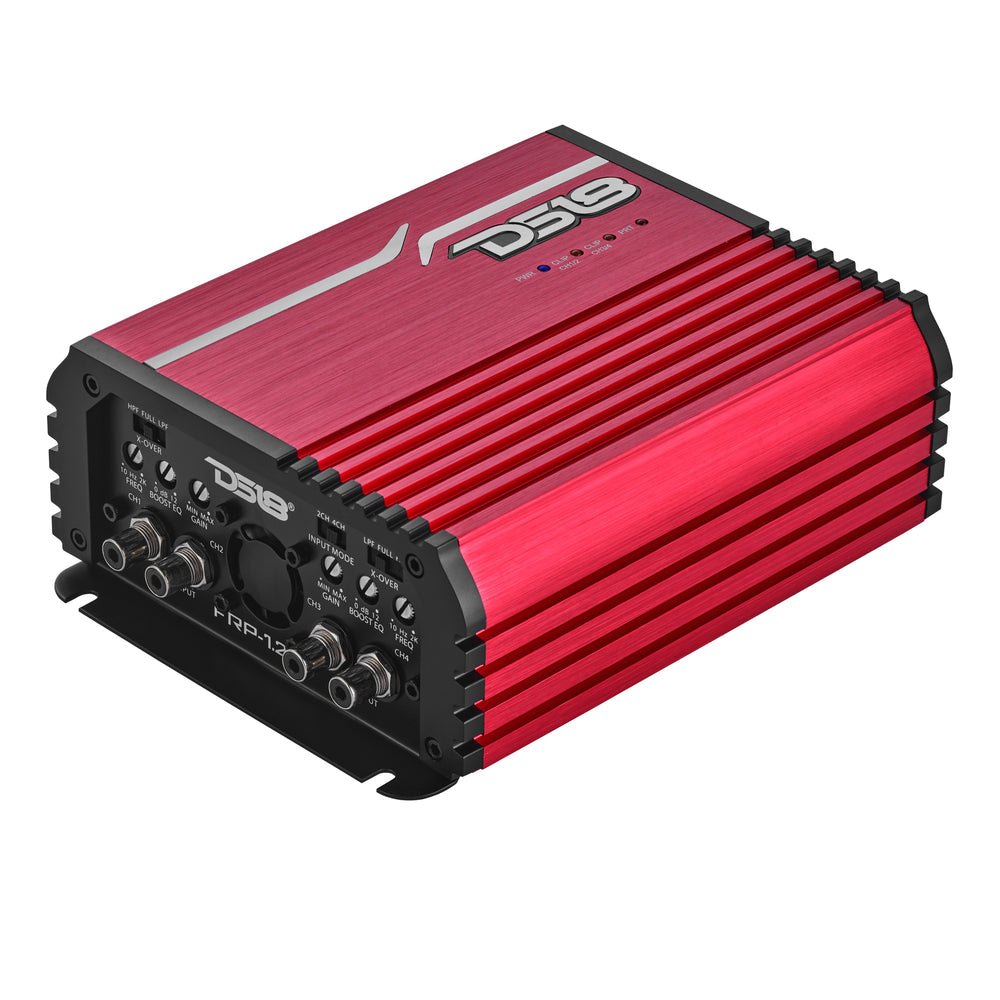

DS18 FRP-1.2K4/RD amp, front view showing red brushed casing and status LEDs
