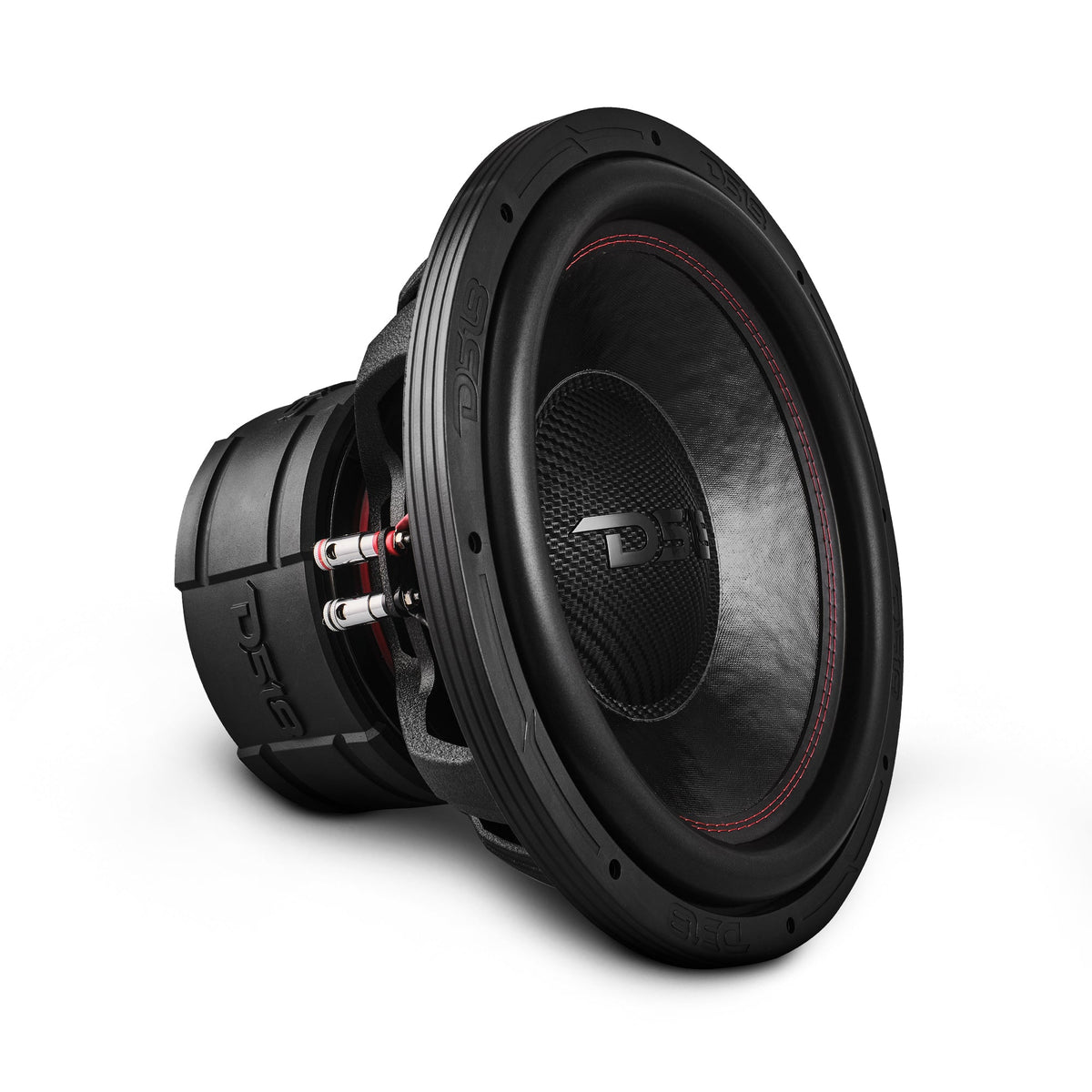

DS18 EXL-TRX15.4D EXL 15" Quad Stack Subwoofer - 3000W RMS, 4" Dual 4-Ohm Voice Coil DS18
The DS18 EXL-TRX15.4D is a 15-inch subwoofer rated at 3000 watts RMS and 6000 watts max. It is aimed at stunt walls and turbo boxes, but also works in sealed and ported enclosures.

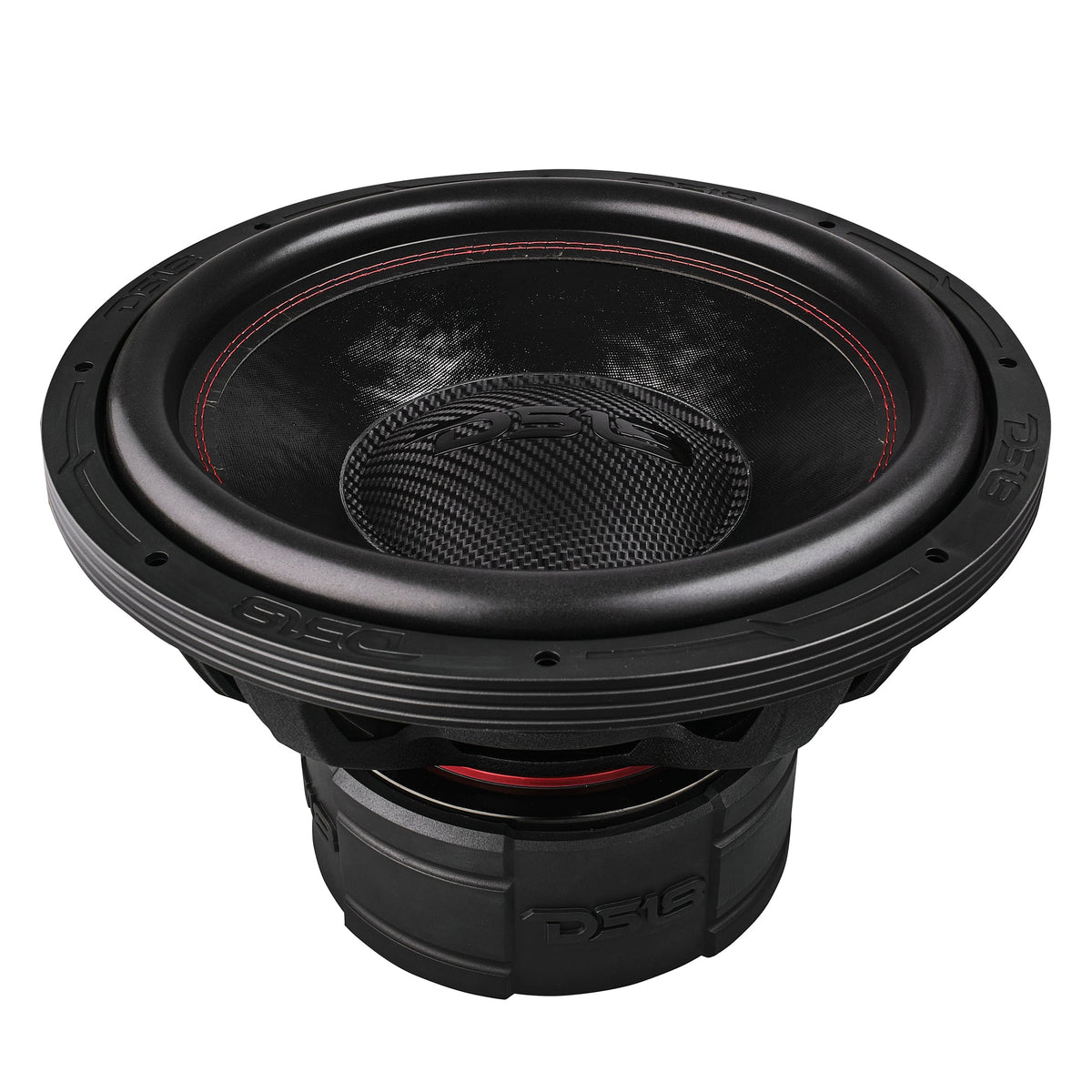

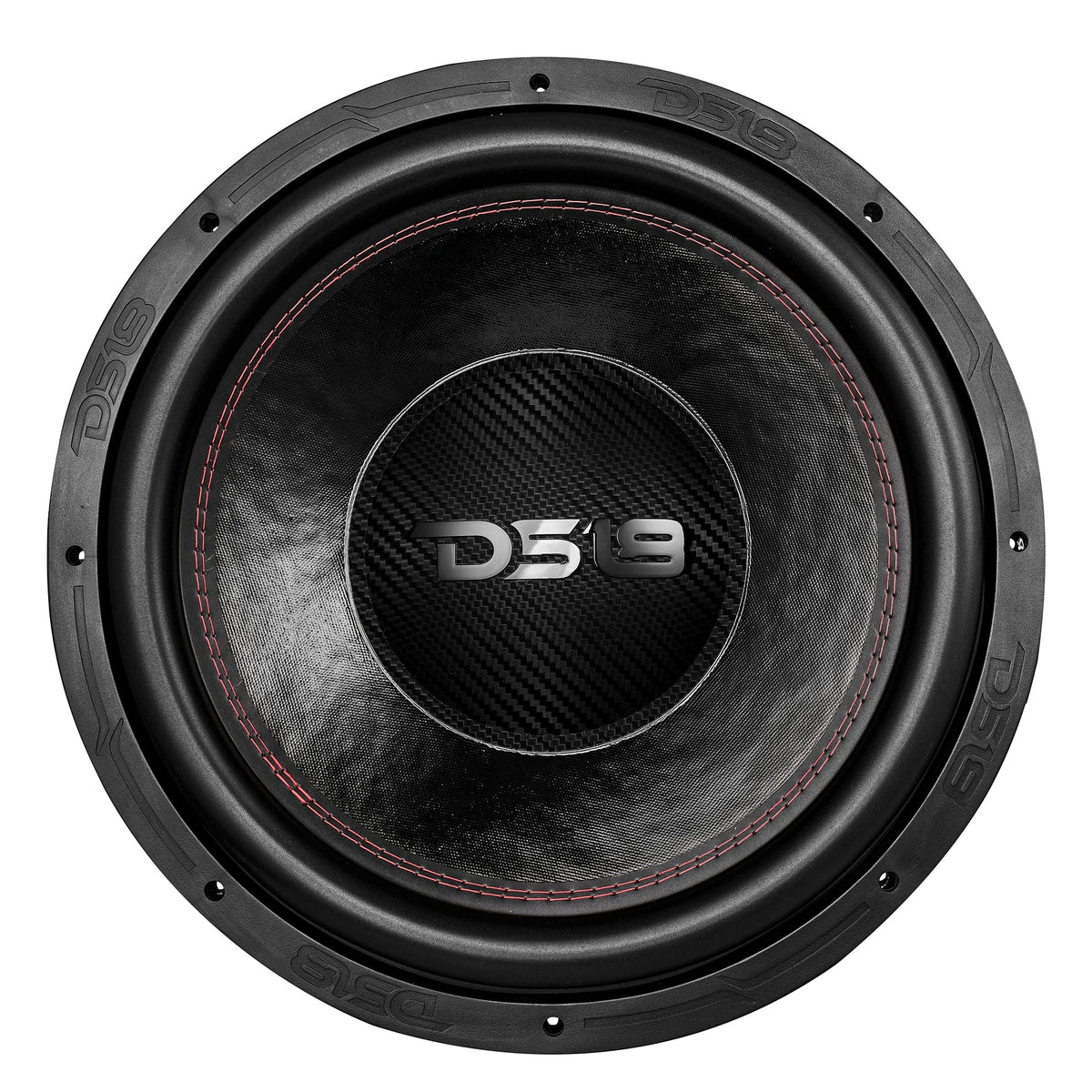

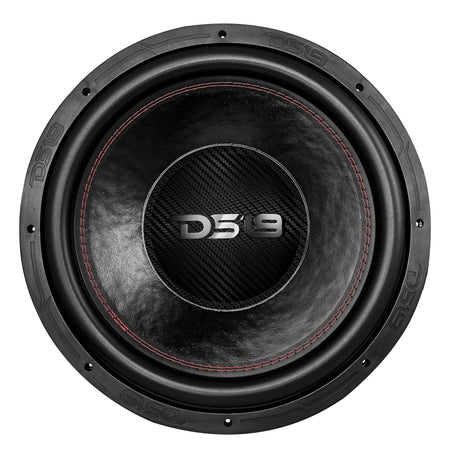

The reinforced non-pressed paper cone with epoxy coating stands up to heavy power, and dual 4-inch voice coils with thermal management keep output consistent during long, loud sessions. With 86 dB sensitivity and a 10 to 400 Hz range, it covers everything from deep rumble to punchy bass lines.

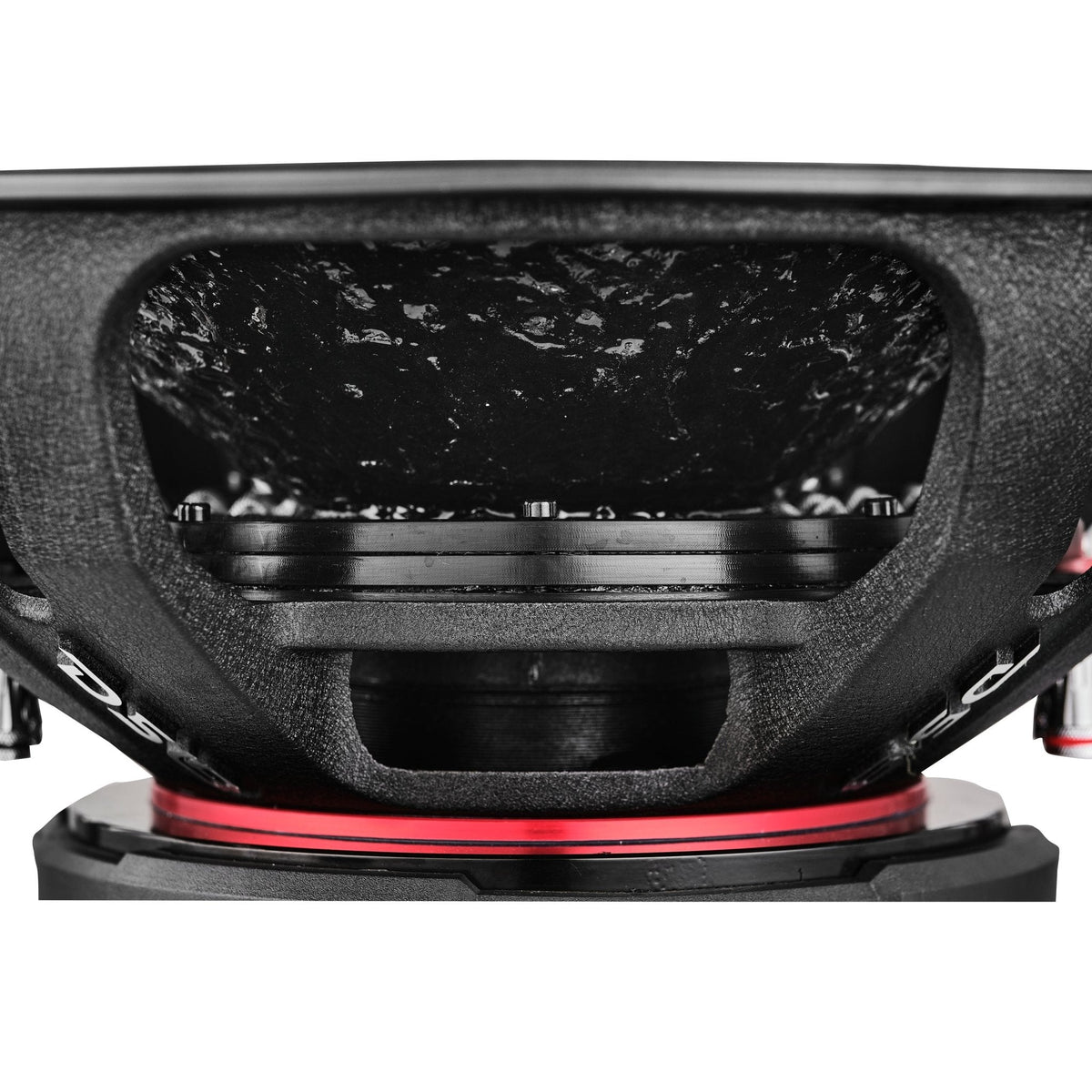

An aluminum basket and ferrite magnet structure add durability for competition and high-output builds. DS18 lists a 1.25 cu ft sealed and 2.5 cu ft ported box as starting points.
HIGHLIGHTS:
- 3000W RMS / 6000W MAX power handling

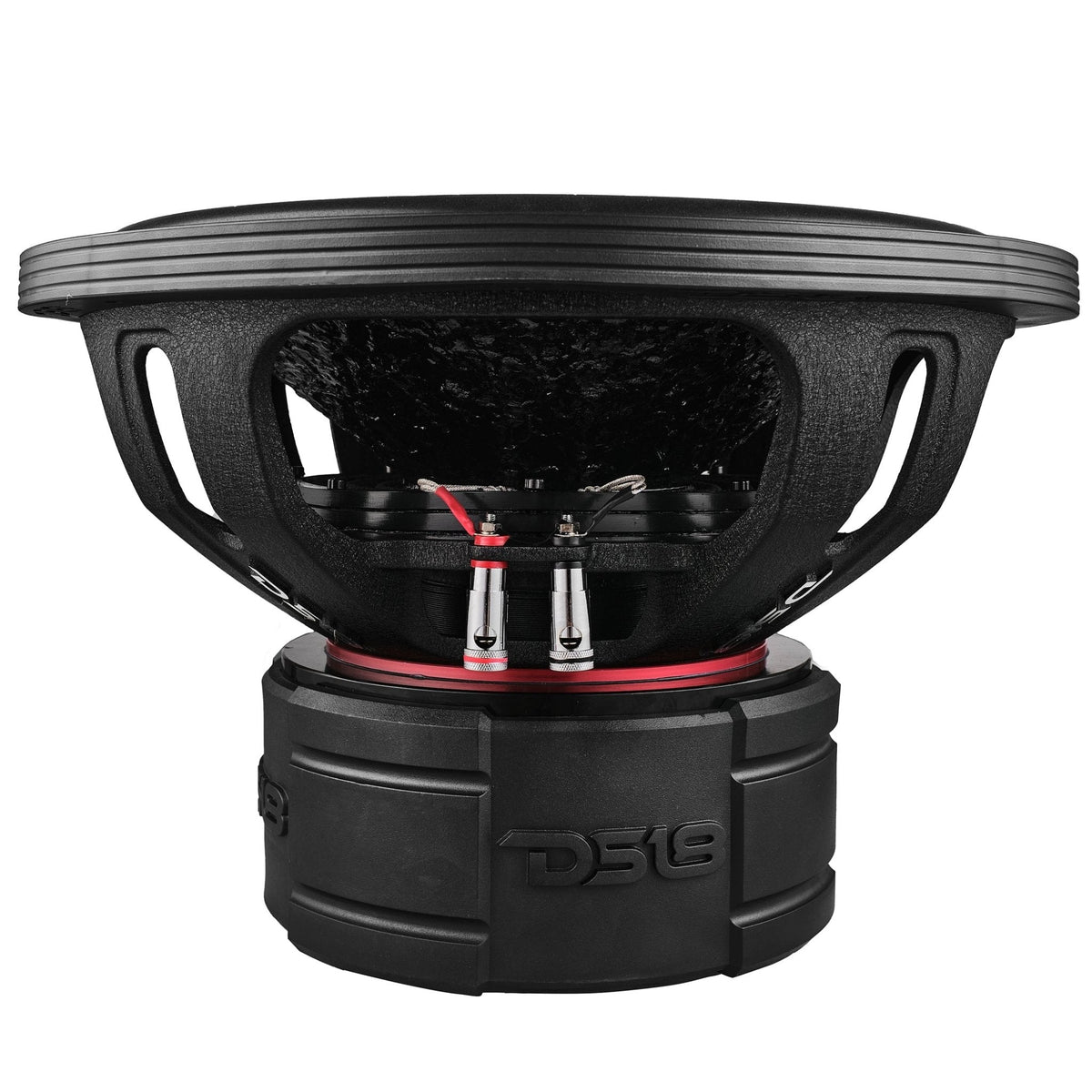

- Dual 4" 4-ohm voice coils

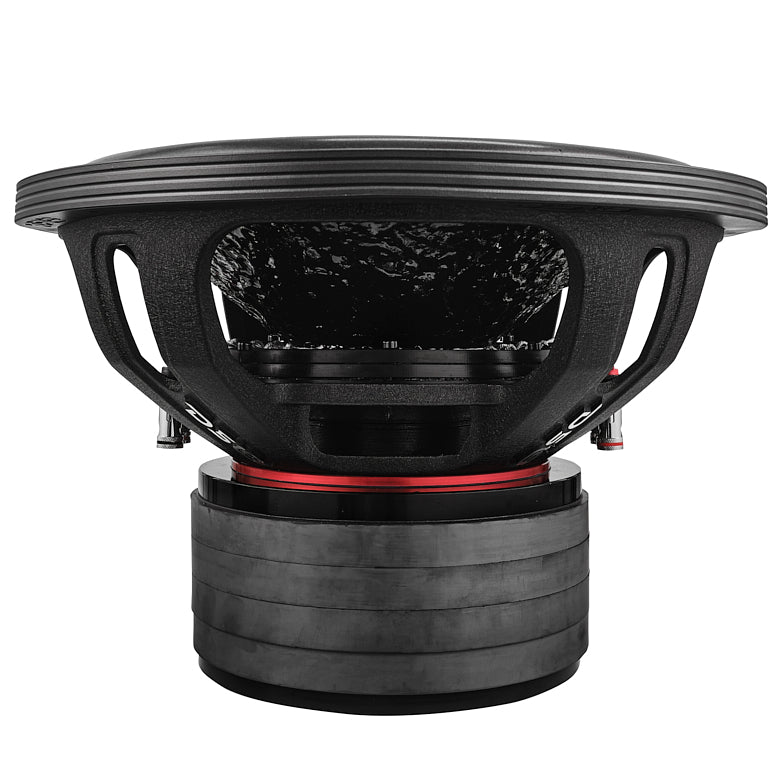

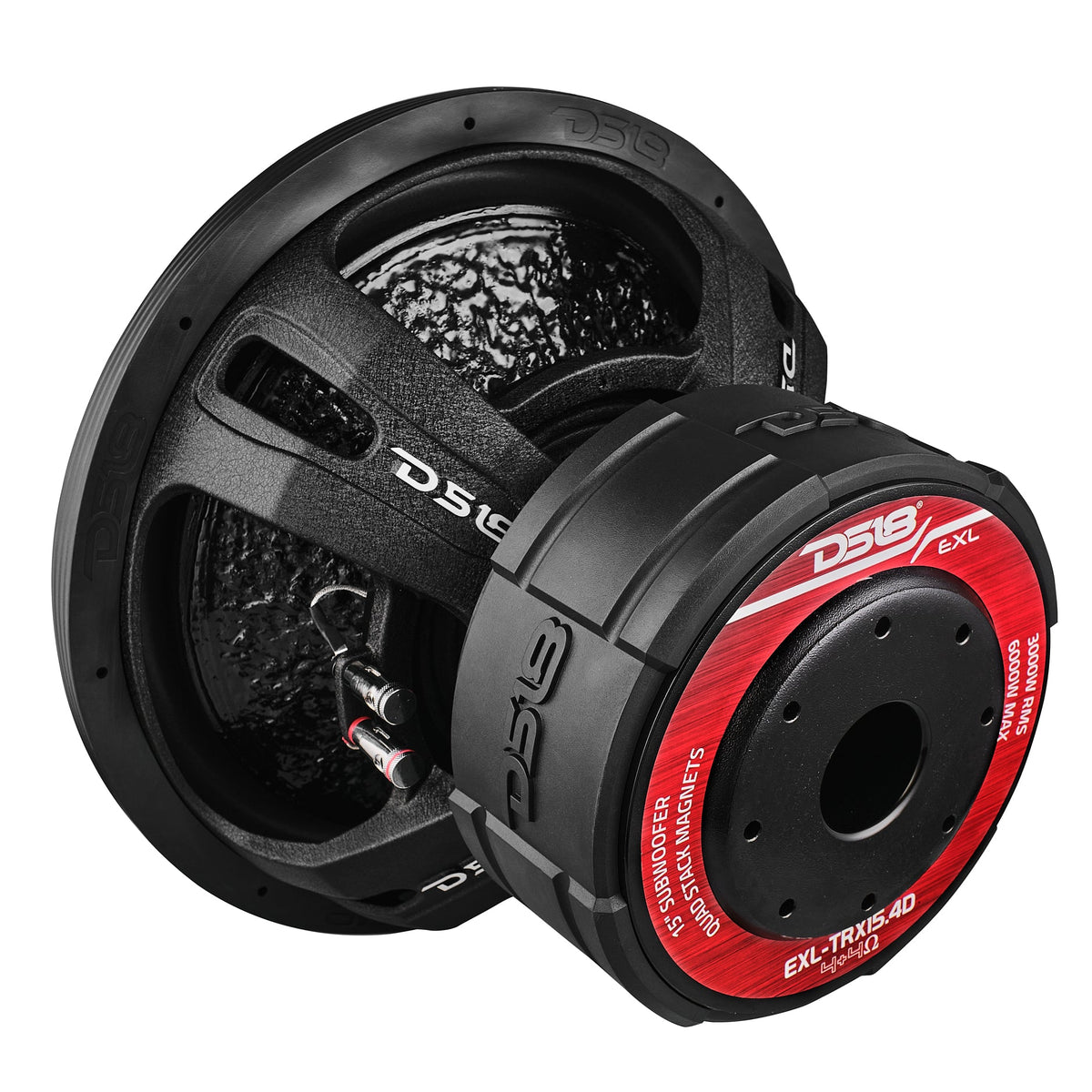

- Quad-stack ferrite magnet with aluminum basket
- Epoxy-coated reinforced non-pressed paper cone
- 86 dB sensitivity, 10 - 400 Hz range
- Sealed (1.25 cu ft) or ported (2.5 cu ft) enclosure
GREAT FOR:
- Stunt walls and turbo boxes
- SPL competition systems
- High-output sealed or ported builds
SPECIFICATIONS:
| SERIES | EXL |
| SIZE | 15 Inch |
| RMS POWER | 3000 Watts |
| MAX POWER | 6000 Watts |
| IMPEDANCE | Dual 4 Ohm (DVC) |
| VOICE COIL | 4 Inch |
| SENSITIVITY | 86 dB |
| FREQUENCY RESPONSE | 10 - 400 Hz |
| SEALED BOX VOLUME | 1.25 cu ft |
| PORTED BOX VOLUME | 2.5 cu ft |
| BASKET | Aluminum |
| SOLD AS | Each |
| BRAND | DS18 |
| UPC | 810097265851 |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
