DS18 EXL-TRX12.4D EXL 12" Triple Stack Subwoofer - 2000W RMS, 3" Dual 4-Ohm Voice Coil DS18
The DS18 EXL-TRX12.4D is a 12-inch high-power subwoofer that handles 2000 watts RMS and 4000 watts max. Its triple-stacked ferrite magnet weighs 255 oz for strong motor control and deep, solid bass.
The reinforced non-pressed paper cone has an epoxy coating for durability without hurting sound quality. A 3-inch dual 4-ohm voice coil on a black aluminum former with SV winding manages heat during loud sessions, and crossed spider leads keep connections reliable under heavy loads. Response reaches down to 10 Hz.
The sub works in both sealed and ported enclosures, and the dual 4-ohm coils make it easy to wire for the load your amplifier needs.
HIGHLIGHTS:
- 2000W RMS / 4000W MAX power handling
- 3" dual 4-ohm voice coil on a black aluminum former
- Triple-stacked 255 oz ferrite magnet
- Epoxy-coated reinforced non-pressed paper cone
- Crossed spider lead design
- Works in sealed or ported enclosures
GREAT FOR:
- SPL and high-output systems
- Single or multi-sub builds
- Sealed or ported box builds
SPECIFICATIONS:
| SERIES | EXL |
| SIZE | 12 Inch |
| RMS POWER | 2000 Watts |
| MAX POWER | 4000 Watts |
| IMPEDANCE | Dual 4 Ohm (DVC) |
| VOICE COIL | 3 Inch, Black Aluminum, SV |
| MAGNET | Triple-Stacked Ferrite, 255 oz |
| CONE | Non-Pressed Paper + Epoxy |

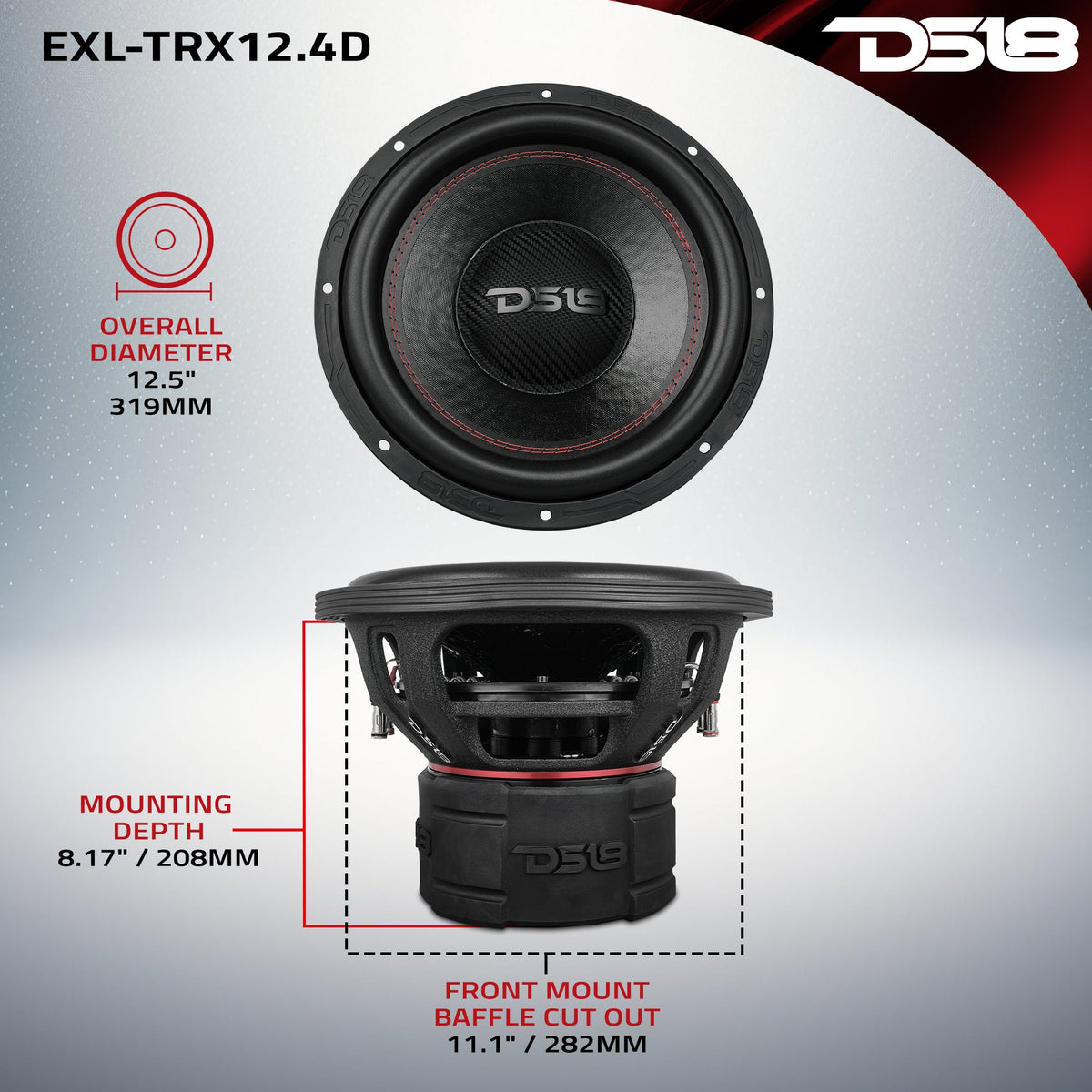

| MOUNTING DEPTH | 8.17 Inch |
| SOLD AS | Each |
| BRAND | DS18 |
| UPC | 810097265844 |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
