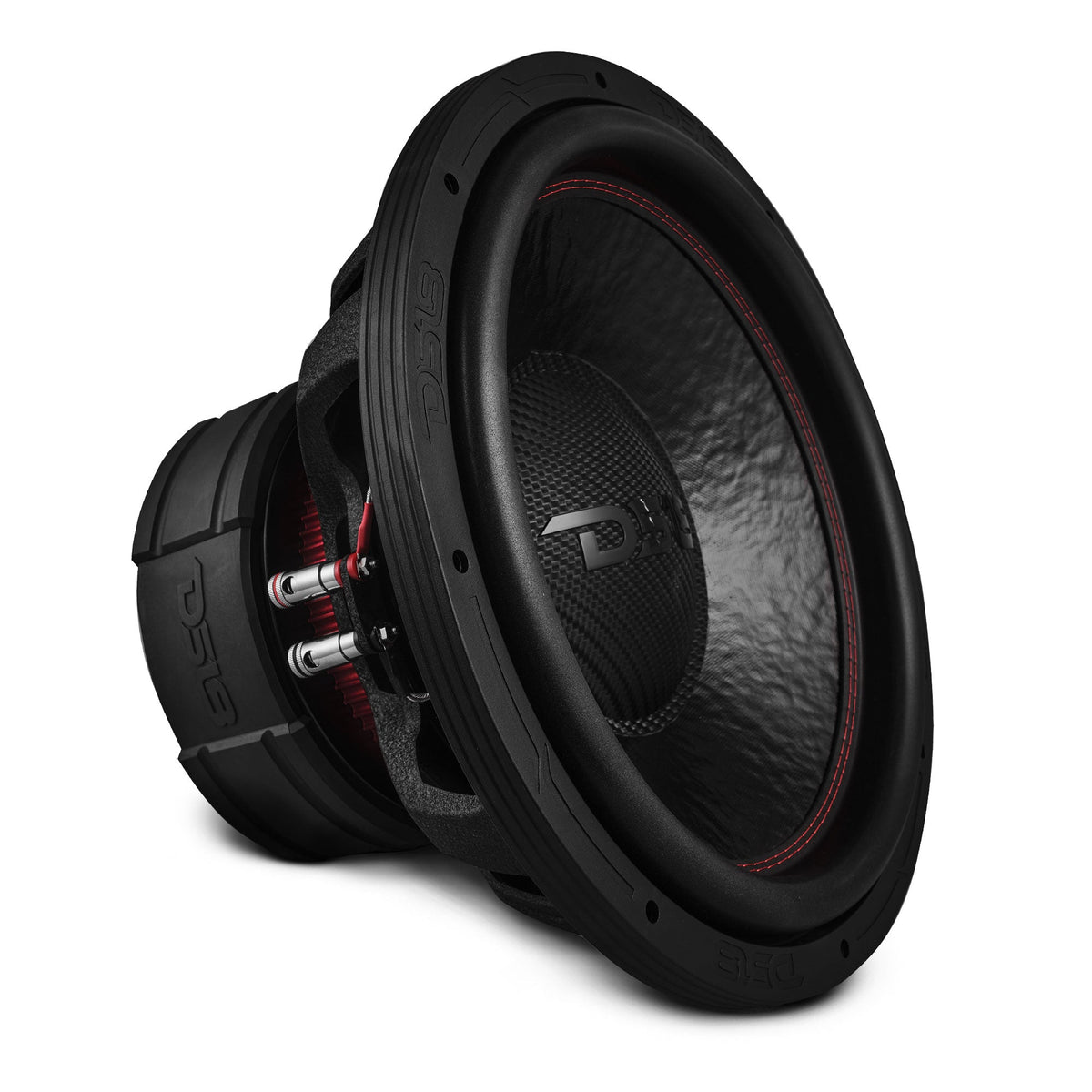

DS18 EXL-TR15.4D EXL 15" Triple Stack Subwoofer - 2500W RMS, 4" Dual 4-Ohm Voice Coil DS18
The DS18 EXL-TR15.4D is a 15-inch subwoofer built for big, high-power bass systems. It handles 2500 watts RMS and 5000 watts max, and its triple-stacked ferrite magnets increase magnetic flux for loud, controlled output.
The reinforced curvilinear cone combines non-pressed paper with epoxy for strength and low distortion under heavy power. A 4-inch dual voice coil on a black aluminum former with CCAW winding sheds heat, and the dual 4-ohm coils give you flexible wiring options.
The sub works in both sealed and ported enclosures and covers 10 to 400 Hz, so you can build for tight, accurate bass or maximum output.
HIGHLIGHTS:
- 2500W RMS / 5000W MAX power handling
- 4" dual 4-ohm voice coil on a black aluminum former
- Triple-stacked ferrite magnet
- Reinforced non-pressed paper + epoxy curvilinear cone
- 10 - 400 Hz frequency range
- Works in sealed or ported enclosures
GREAT FOR:
- SPL and competition systems
- High-output daily driver builds
- Sealed or ported box builds
SPECIFICATIONS:
| SERIES | EXL |
| SIZE | 15 Inch |
| RMS POWER | 2500 Watts |
| MAX POWER | 5000 Watts |
| IMPEDANCE | Dual 4 Ohm (DVC) |
| VOICE COIL | 4 Inch, Black Aluminum, CCAW |
| MAGNET | Triple-Stacked Ferrite |
| CONE | Non-Pressed Paper + Epoxy |
| FREQUENCY RESPONSE | 10 - 400 Hz |
| SOLD AS | Each |
| BRAND | DS18 |
| UPC | 810097265837 |
