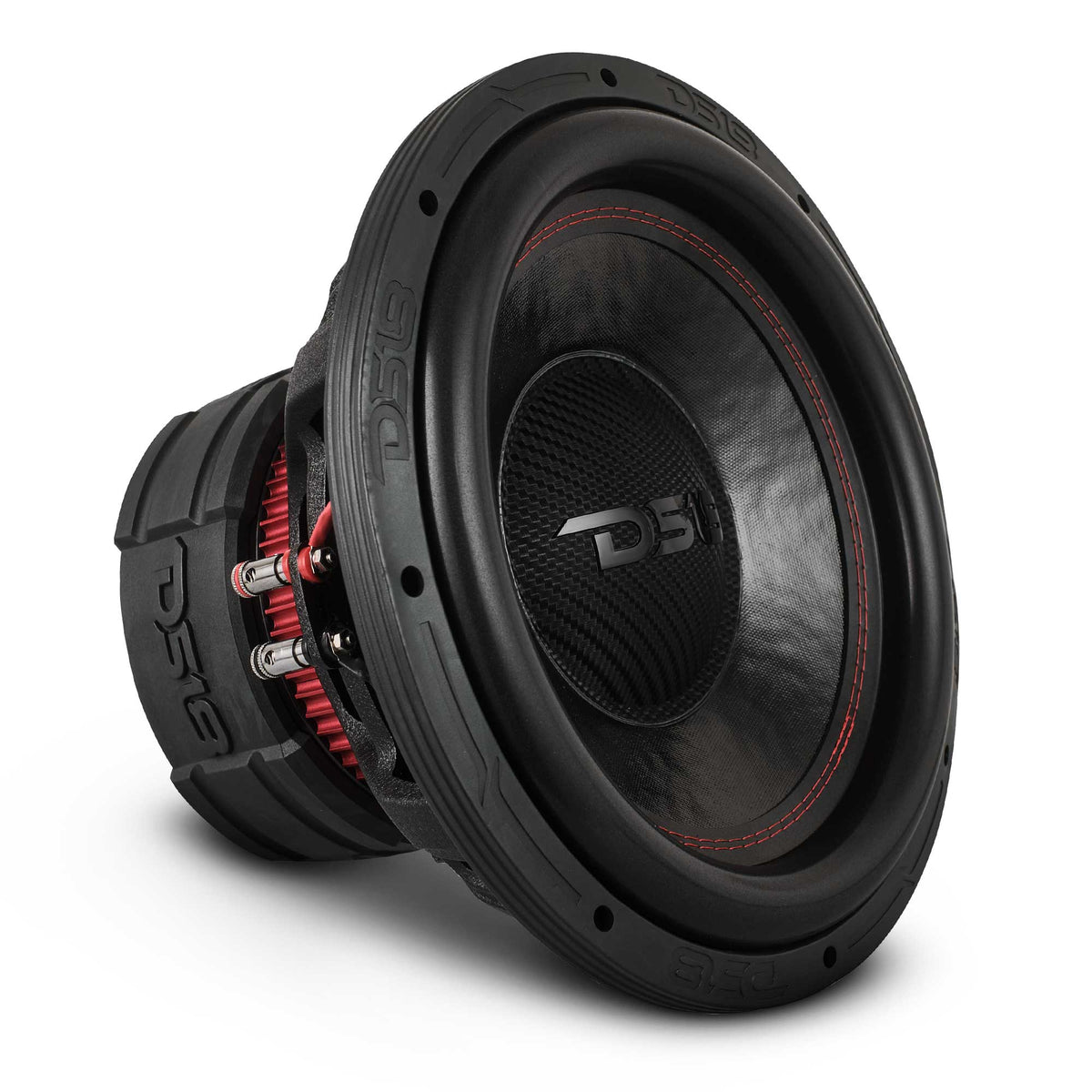

DS18 EXL-TR12.4D EXL 12" Dual Stack Subwoofer - 1500W RMS, 3" Dual 4-Ohm Voice Coil DS18
The DS18 EXL-TR12.4D is a 12-inch high-excursion subwoofer built for serious bass. It handles 1500 watts RMS and 3000 watts max, so it can keep up with a big amplifier.
The non-pressed paper cone is reinforced with an epoxy coating for strength without losing sound quality. A 3-inch black aluminum voice coil former with SV winding sheds heat during long, loud sessions, and spider-crossed leads keep the signal reliable.
A double-stacked 170 oz ferrite magnet and 17.5 mm of excursion move a lot of air, with response reaching down to 10 Hz. The dual 4-ohm voice coils give you flexible wiring options, and the sub works in both sealed and ported enclosures.
HIGHLIGHTS:
- 1500W RMS / 3000W MAX power handling
- 3" dual 4-ohm voice coil on a black aluminum former
- Double-stacked 170 oz ferrite magnet
- 17.5 mm excursion for deep, loud bass
- Epoxy-coated non-pressed paper cone
- Works in sealed or ported enclosures
GREAT FOR:
- Daily driver bass upgrades
- SPL and high-output systems
- Sealed or ported box builds
SPECIFICATIONS:
| SERIES | EXL |
| SIZE | 12 Inch |
| RMS POWER | 1500 Watts |
| MAX POWER | 3000 Watts |
| IMPEDANCE | Dual 4 Ohm (DVC) |
| VOICE COIL | 3 Inch |
| MAGNET | Double-stacked ferrite, 170 oz |
| EXCURSION | 17.5 mm |

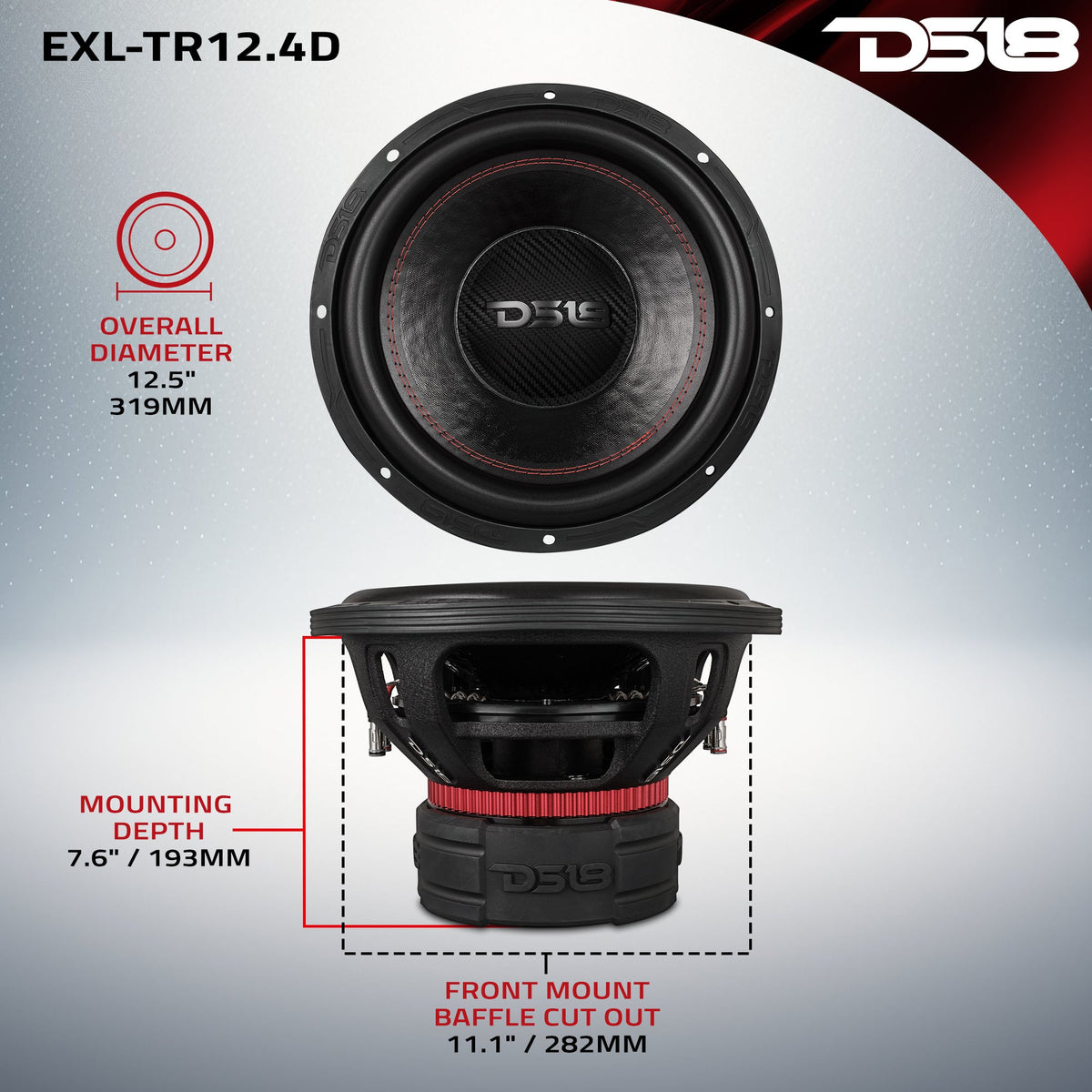

| MOUNTING DEPTH | 7.6 Inch |
| SOLD AS | Each |
| BRAND | DS18 |
| UPC | 810097265820 |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
