DS18 DSP8.8BT 8-Channel in and 8-Channel Out Digital Sound Processor with Bluetooth

In stock
SKU: DS-DSP8.8BT
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Regular price $395.95 USD
Massive Power & Clarity

Massive Power & Clarity

Superior Performance

Superior Performance

Advanced Technology

Advanced Technology

Premium Quality

Premium Quality

8-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth

At DS18, we understand that true enthusiasts seek control over every aspect of their soundstage, and DS18’s DSP8.8BT is the ONLY way to achieve that.

The DS18 DSP8.8BT takes audio tuning to an entirely new level with its 31 Band Graphic Equalizer, granting you the power to adjust the response across a wide range of frequencies. With this level of control, you can target and eliminate peaks and dips in specific frequency ranges. Fine-tune the tonal balance of your music, bringing out the best in each instrument and vocal, and achieving a sound signature that suits your personal preferences.

Creating the perfect audio system has never been easier, thanks to the DSP8.8BT's intuitive features. Our BT Interface grants you direct access to an extensive list of filtration settings, ensuring that your sound is tailored precisely to your preferences. Our dedicated DSP8.8BT Application, available on both the App Store and Google Play, dares you to fine-tune and monitor every aspect of your signal. Effortlessly save presets for specific songs or genres, creating the ideal listening experience every time.

The DS18 DSP8.8BT goes a step further by offering adjustable crossovers on each channel: with the ability to customize crossover points from 6 to 48dB/octave, you have complete control over how frequencies are divided and sent to your speakers, amplifiers, and subwoofers.

CIFICATIONS

POWER SUPPLY

Working Voltage
9 - 16 VDC
Remote Input Voltage
9 - 16V
Remote Output Voltage
12.8V (0.5A)
Fuse Size
2 Amp
DSP Speed
147 MIPS
DSP Precision
32-Bit
DSP Accumulators
72-Bit


AUDIO

THD + N
< 1%
Frequency Response
20Hz-20KHz (+/- 0.5dB)
Signal to Noise Ratio @ A Weighted
>100dB
Input Sensitivity
0.2 - 9V
Input Impedance
20kΩ
Maximum Pre-Out Level (RMS)
8V
Pre-Out Impedance
200Ω


AUDIO ADJUSTMENT

Crossover Frequency
Variable HPF/LPF 20Hz to 20KHz
Crossover Slope
Selectable 6/12/18/24/36/48 dB/Oct
Equalization
31 Bands Parametric
Q Factor
Selectable 0.05 to 20
EQ Presets
Yes POP/Dance/Rock/Classic/Vocal/Bass
User Presets
Yes Basic / Advanced


DIGITAL TO ANALOG CONVERSION (DAC)

Precision
24-Bit
Dynamic Range
108dB
THD + N
-98dB


ANALOG TO DIGITAL CONVERSION (ADC)

Precision
24-Bit
Dynamic Range
105dB
THD + N
-98dB

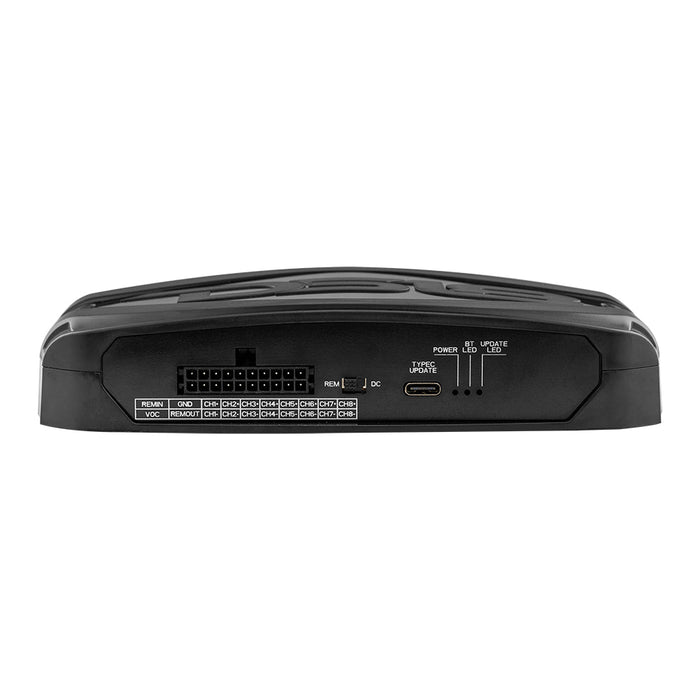

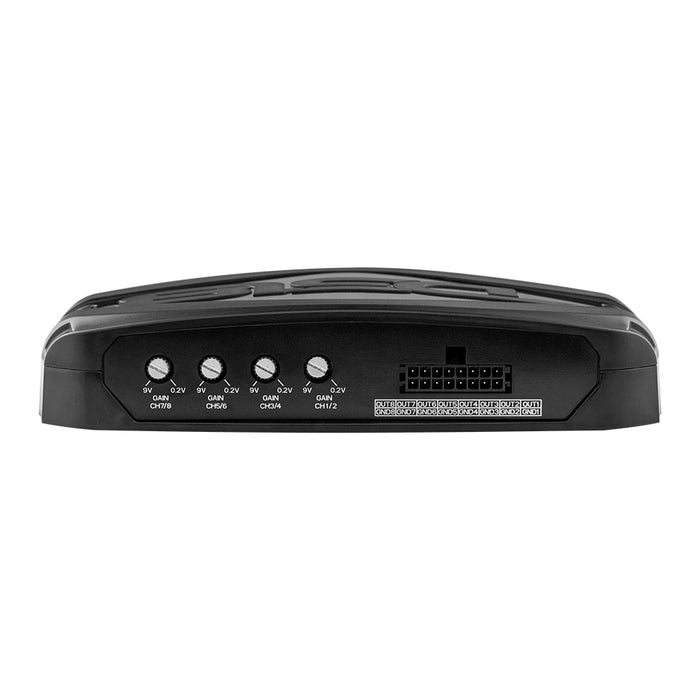

INPUT | OUTPUT

High / Low Level Input
Up to 8 channel
Low Level Output
Up to 8 Channel
Type
RCA (Female)


DIMENSIONS / SHIPPING INFO

Length
6.37" / 162mm
Depth
3.6" / 91.5mm
Height
1.24" / 31.7mm
Dimensions Single Box L x W x H (Inches)
8 x 4.75 x 3.25
Weight (lb)
1
M/C Dimension L x W x H (Inches)
17 x 14 x 15
M/C Weight (lb)
30
M/C Qty
24 Pcs
