DS18 GEN-X G3600.4D Amplifier + 4× PRO-ZT6 6.5" Coaxial Midrange Speakers with Bullet Tweeters Bundle

Upgrade your system with this complete DS18 Car Audio Bundle, combining one GEN-X G3600.4D 4-Channel Full-Range Class D Amplifier with four PRO-ZT6 6.5" Coaxial Midrange Speakers featuring Built-In Bullet Tweeters and Grills. Together, they deliver clean highs, strong midrange, and reliable power for a full, high-output setup.

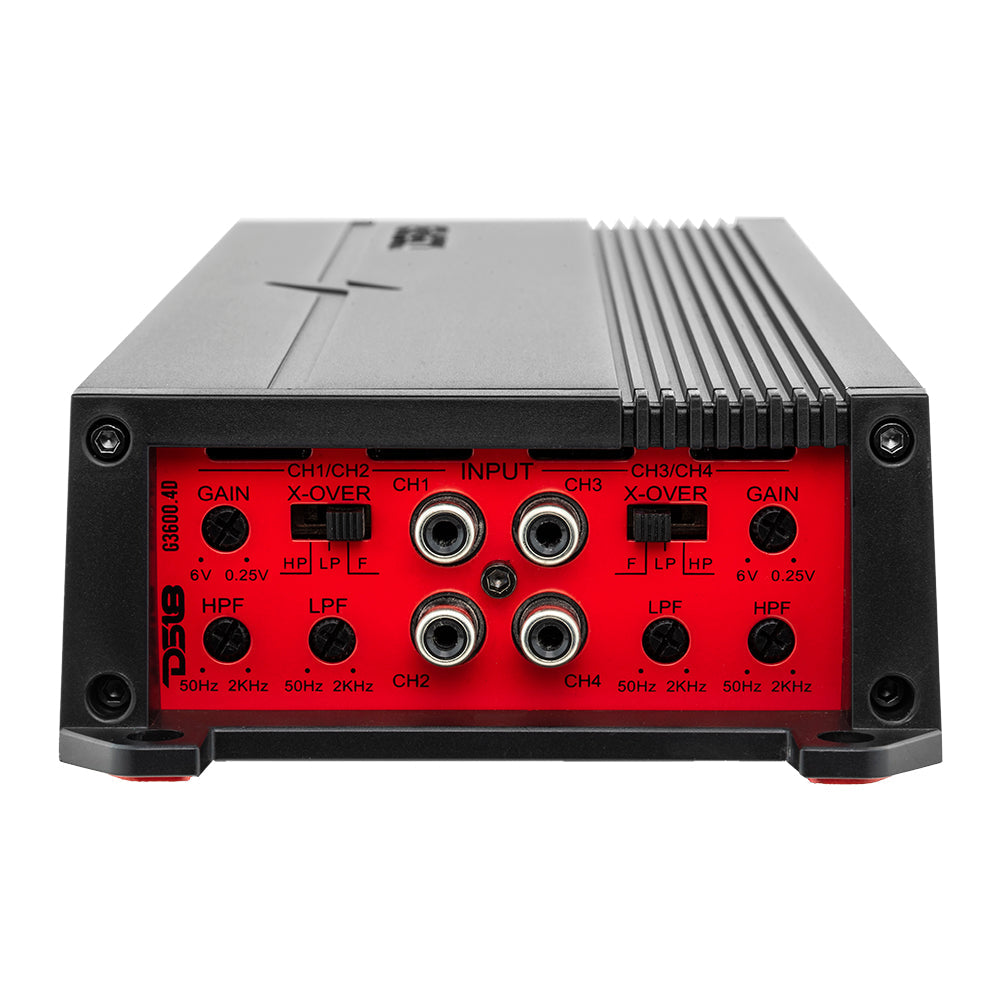

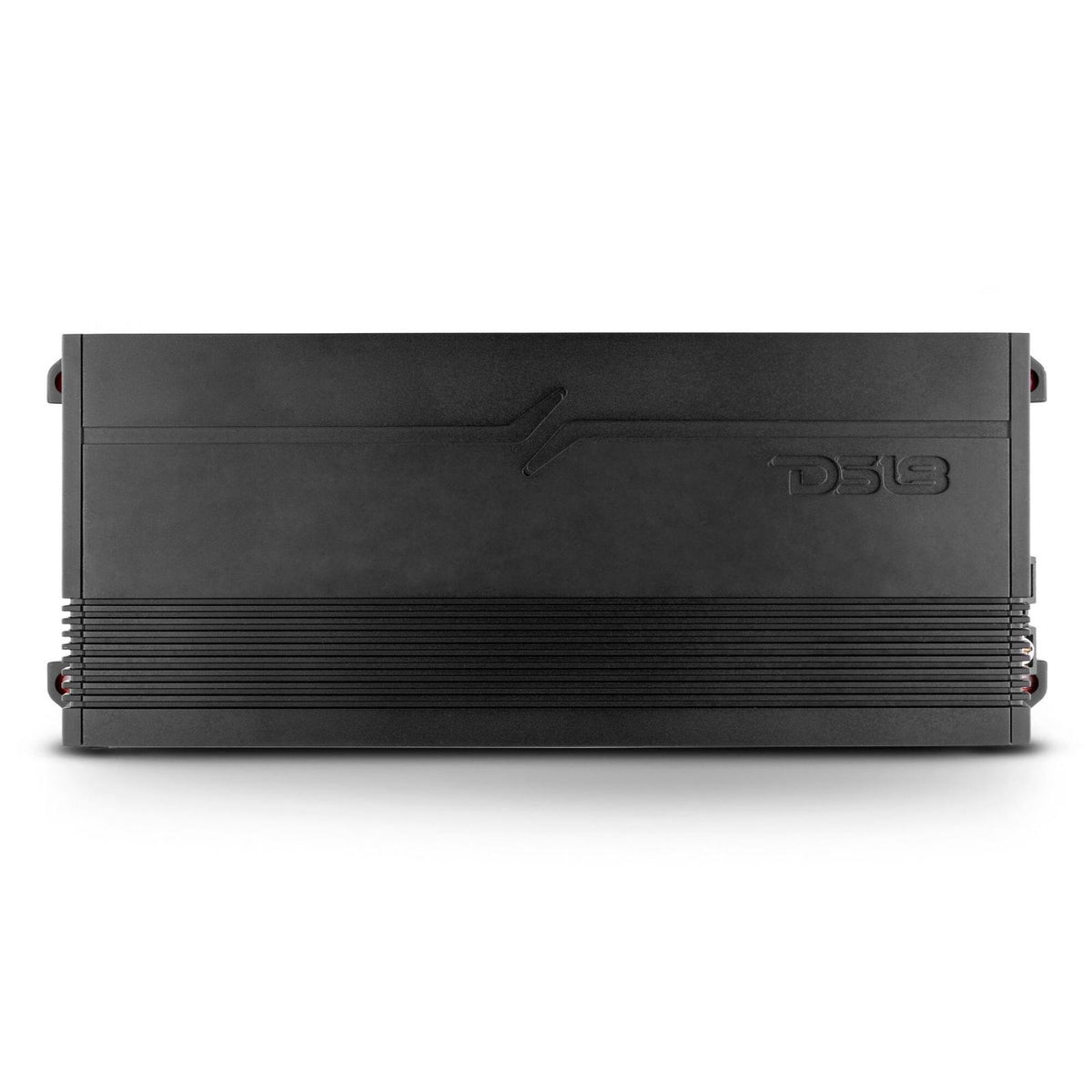

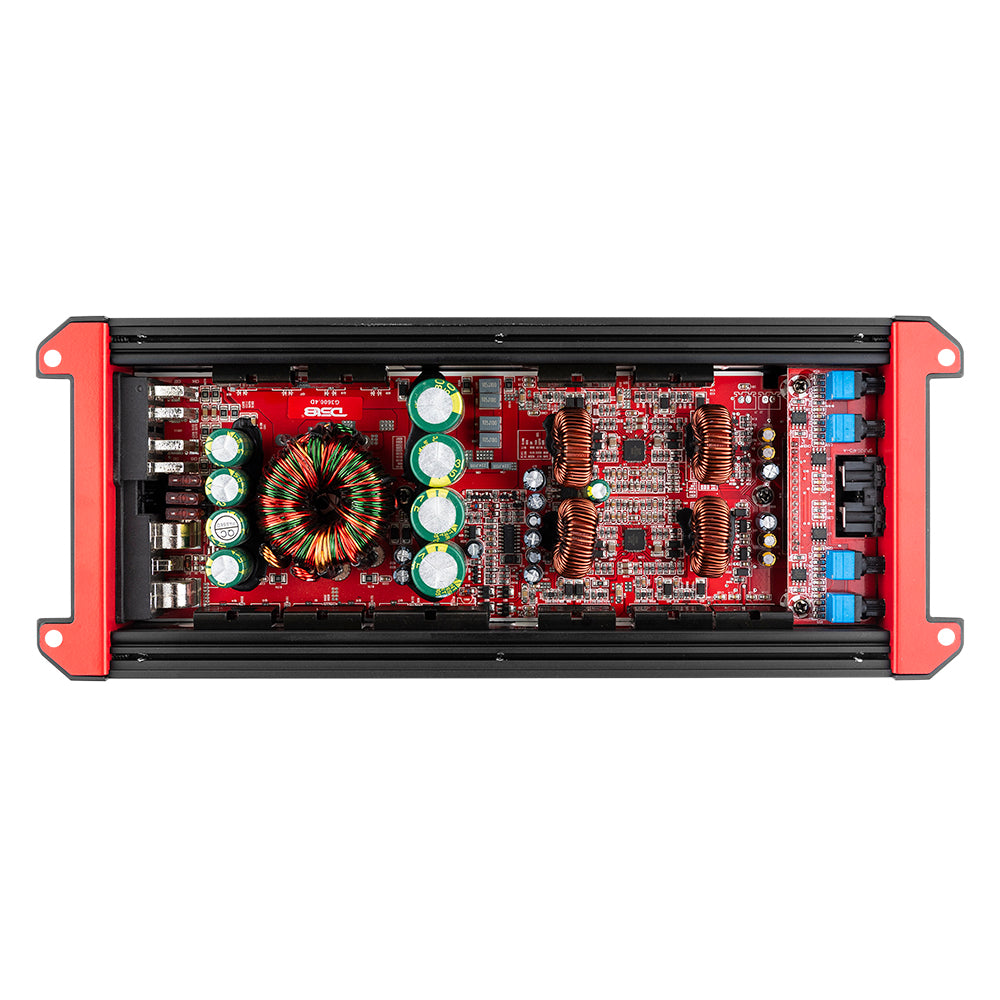

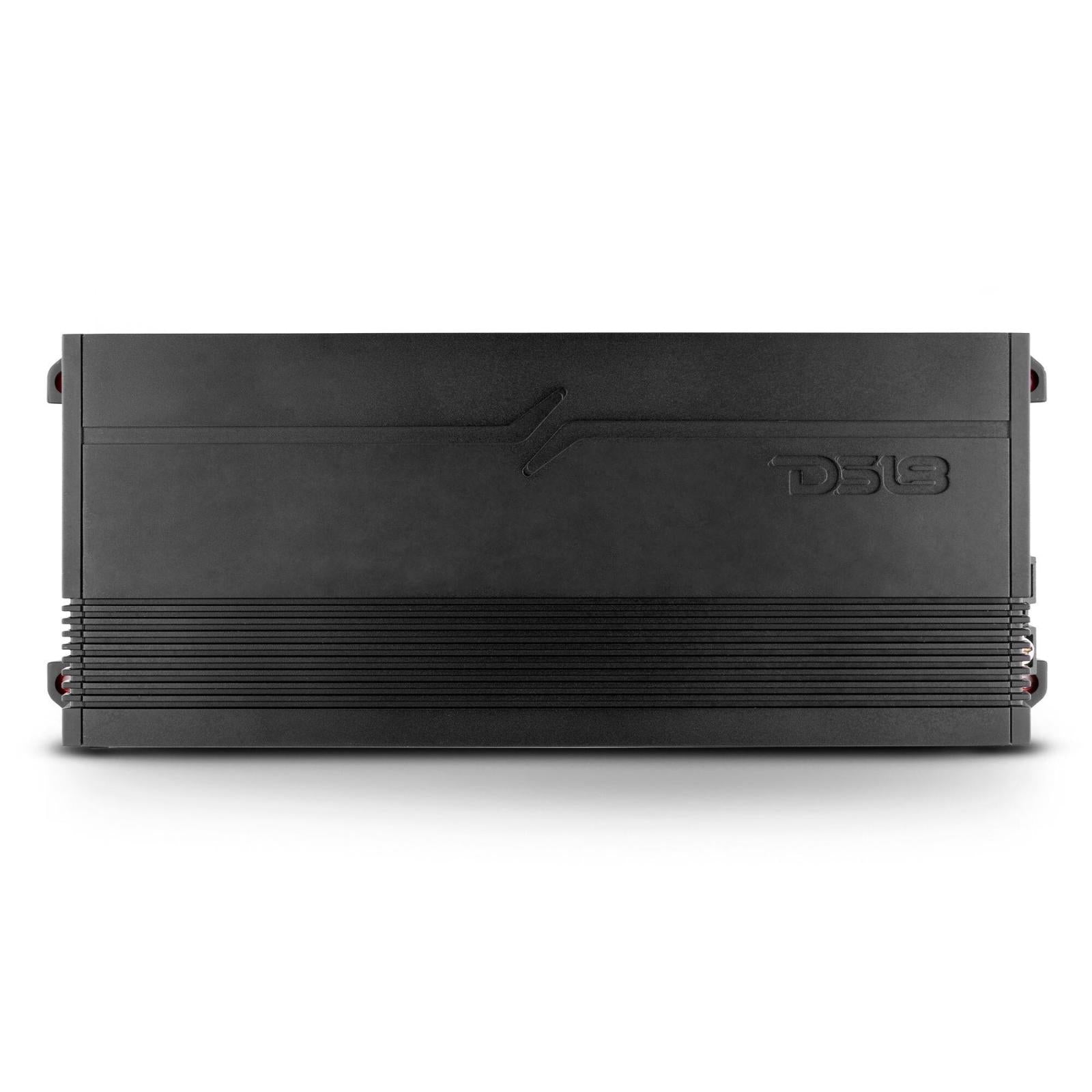

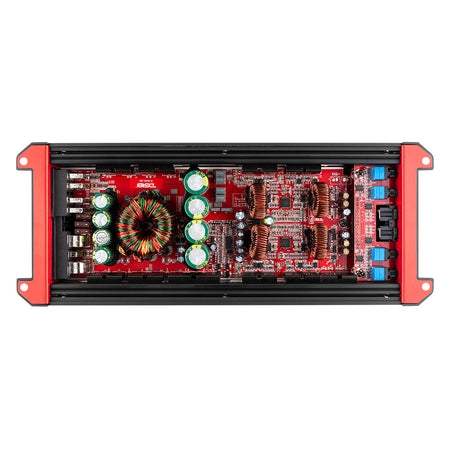

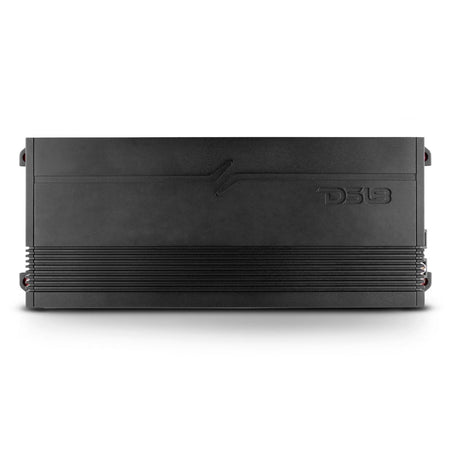

🔊 DS18 GEN-X G3600.4D 4-Channel Amplifier

Power your car audio system with precision and performance using the DS18 G3600.4D. Compact yet powerful, this Class D amplifier delivers 3600W peak power and 4 × 300W RMS at 4 ohms, giving you efficient, crystal-clear sound in a space-saving design.

Features:

• 4 Channel Full Range

• Class D Digital Design

• Stable at 2–4 Ohm

• Power / Protection / Clip Indicator

• Built-in Crossover

Specifications:

• Peak Power: 3600W

• RMS Power @ 4 Ohm: 4 × 300W

• RMS Power @ 2 Ohm: 4 × 420W

• RMS Power @ 4 Ohm Bridged: 2 × 740W

• Minimum Impedance: 2Ω Stereo / 4Ω Bridged

• Operating Voltage: 9V – 15V

Performance & Controls:

• Frequency Response: 20Hz – 20KHz

• Signal-to-Noise Ratio: >90dB

• Low Pass Filter: 50Hz – 250Hz

• High Pass Filter: 50Hz – 250Hz

• Efficiency @ 4 Ohm: 80%

• Damping Factor: 78

• THD %: 0.01%

• Input Sensitivity: 0.25V – 6V

• X-Over Filter Range: 50Hz – 250Hz

Build & Protection:

• Selectable X-Over: LPF / FLAT / HPF

• LED Indicators: Power / Protection / Clip

• Voltage, Clipping & Thermal Protection

• Speaker Output Size: 12GA

• Power Input Size: 4GA

• Fuse Rating: 120A

• Cooling Fan: No

• Finish: Matte Black

Measurements:

• Dimensions: 12.25 × 6.25 × 3.25 in

• Weight: 4 lb

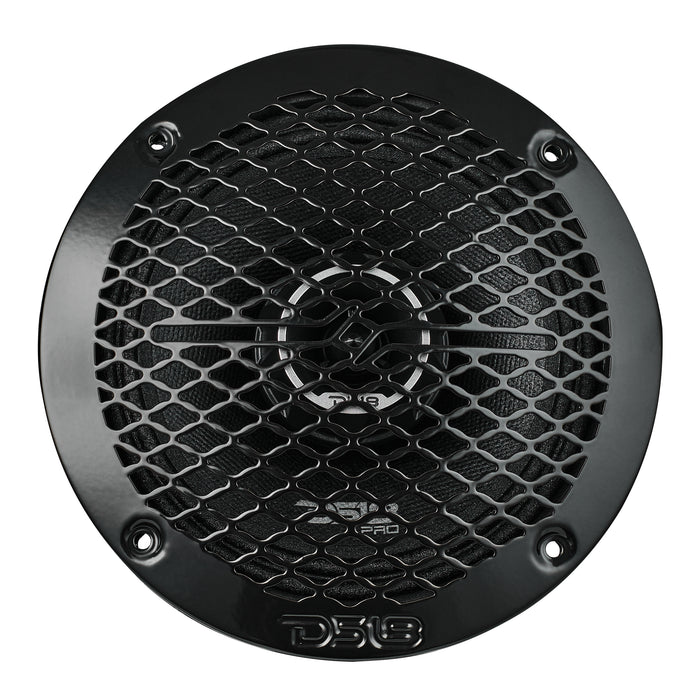

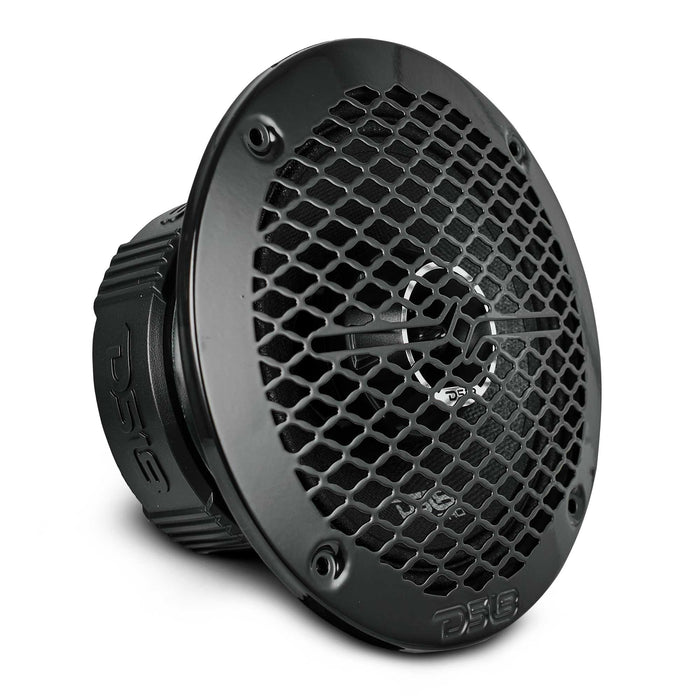

🔊 DS18 PRO-ZT6 6.5" Coaxial Midrange Speakers with Built-in Bullet Tweeters (×4)

Unleash powerful, full-range sound with the DS18 PRO-ZT6. These rugged, water-resistant 2-way coaxial speakers deliver up to 450W peak power / 225W RMS each, making them perfect for crisp highs and punchy mids. The built-in bullet tweeter ensures loud, clear highs, while the ferrite magnet woofer provides strong, clean mids.

Features:

• 6.5" Coaxial Water Resistant Mid-Range Speakers

• RMS Power: 225W per speaker (450W Peak)

• Built-in Bullet Tweeter with Grill

• 96dB Sensitivity

• 65Hz – 22kHz Frequency Response

• 4-Ohm Impedance

• Ferrite & Neodymium Magnets

Specifications:

• Nominal Diameter: 6.5" (165.1 mm)

• Nominal Impedance: 4 Ohms

• RMS Power Handling: 225W

• Max Power Handling: 450W

• Sensitivity (1W/1m): 96dB

• Frequency Response: 65Hz – 22kHz

• Recommended Hi-Pass Crossover: 120Hz

Midrange:

• Voice Coil Diameter: 1.5" (38.1 mm)

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Basket Material: Steel

• Magnet Weight: 27 oz

• Magnet Material: Ferrite

Tweeter:

• Voice Coil Diameter: 1"

• Voice Coil Material: Kapton

• Winding Material: CCAW

• Diaphragm Material: Aluminum Alloy

• Magnet Material: Neodymium (N38H)

Thiele & Small Parameters:

• Vas: 2.917 L

• Xmax: 16 mm

• Fs: 150 Hz

• Qms: 3.906

• Qes: 0.747

• Qts: 0.627

• Re: 3.2

Measurements:

• Overall Diameter: 178 mm (7")

• Baffle Cutout: 144 mm (5.67")

• Mounting Depth: 77 mm (3.03")

• Overall Depth: 97 mm (3.81")

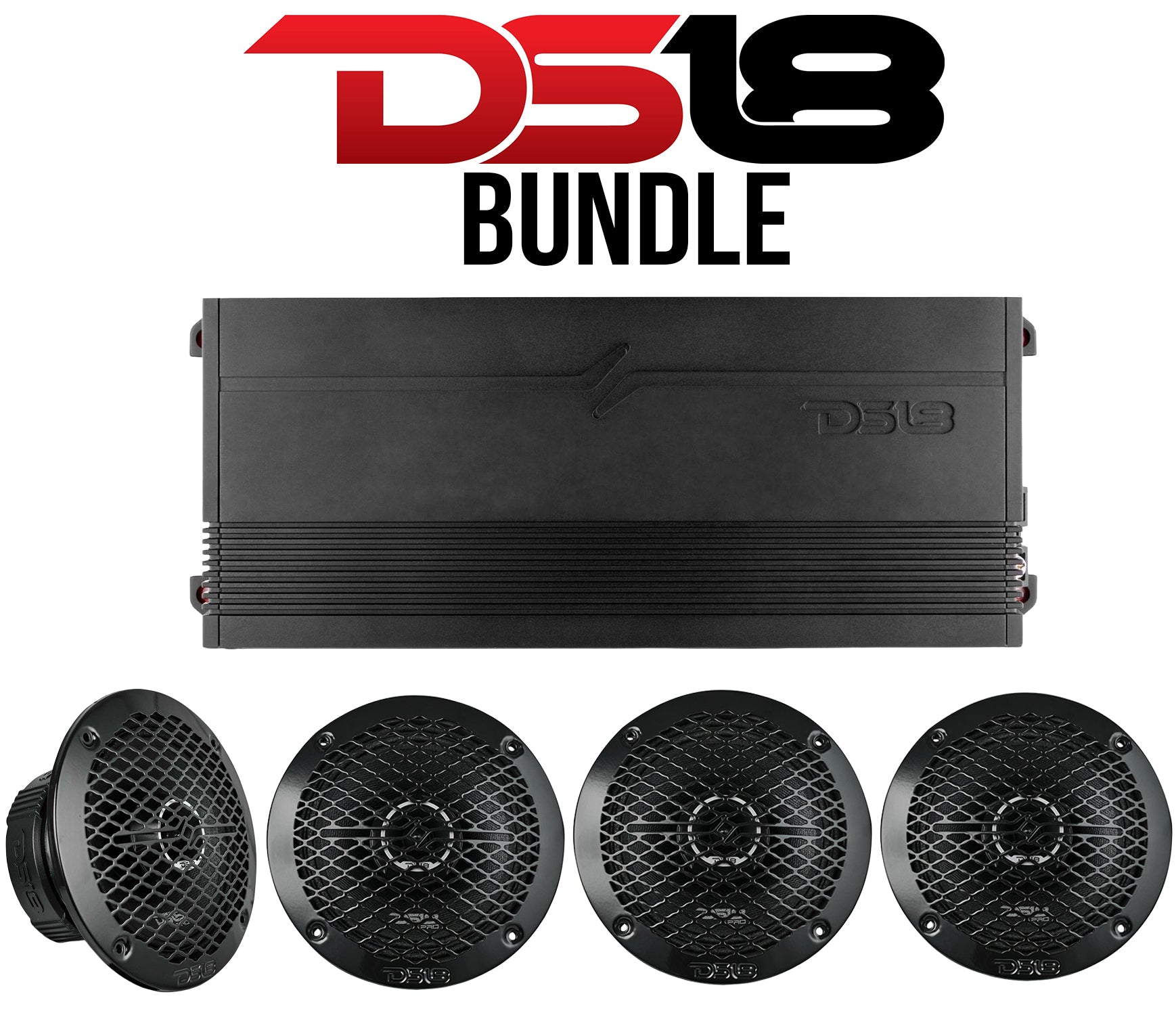

✅ What’s Included in This Bundle:

• (1) DS18 GEN-X G3600.4D 4-Channel Class D Full-Range Amplifier

• (4) DS18 PRO-ZT6 6.5" Coaxial Midrange Speakers with Bullet Tweeters & Grills

This all-in-one DS18 bundle gives you everything you need to build a high-power, high-clarity system. The G3600.4D provides clean amplification while the PRO-ZT6 speakers ensure loud, crisp mids and highs with rugged, water-resistant durability. Perfect for audiophiles and enthusiasts looking for maximum performance in a complete package.
