DS18 DBPM100.MX Digital Bass Processor - Mexico Design

In stock
SKU: DS-DBPM100.MX
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $129.95 USD
  • Digital Bass Restoration Processor W/ Mexico Design
  • 2 Channel Preamp Input / Output
  • Subsonic Filter / Output Voltage / Ground Iso
  • Bass / Power / Clip LED
  • Remote Level Control w/ Clip LED
  • Compact Design

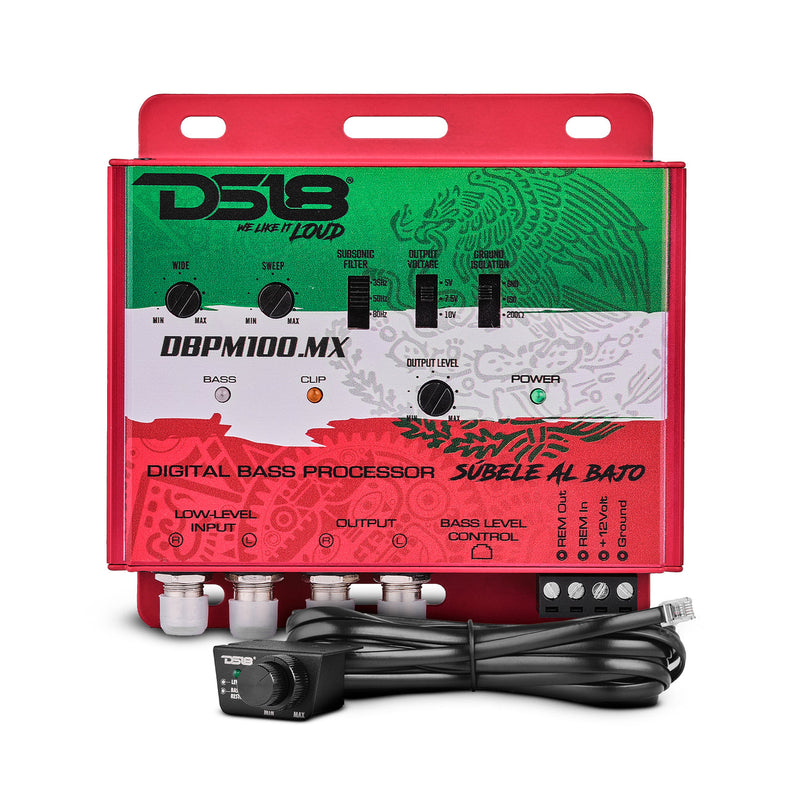

DS18 DBPM100.MX


Upgrade your car audio system with DS18’s DBPM100.MX to get LOUD for la cultura!

Although sleek and compact, DS18’s DBPM100.MX is equipped with a range of impressive features. The fully adjustable bass processor enhances low frequencies from the original source, allowing you to fine tune your bass with authority. With the hi-level speaker inputs, you can seamlessly integrate this bass processor into your OEM system, maximizing its potential.

Controlling your bass has never been easier with the dual knob dash mount remote control included with the DBPM100.MX. Adjusting the settings to suit your preferences is effortless, giving you complete control over your sound. The subsonic filter helps eliminate unwanted frequencies (adjustable at 35Hz, 50Hz, and 80Hz), ensuring clean and distortion-free output.

Designed for convenience and durability, DS18’s DBPM100.MX is equipped with a PCB featuring an anti-corrosion coating. This ensures long-lasting performance even in harsh conditions. The LED indicators provide visual feedback on power, bass enhancement, and clipping, making it easy to monitor and optimize your sound.

With an operating voltage of 8-17V and low power consumption of 0.24A, this digital bass processor is efficient and reliable. Its compact size allows for easy installation in any application, making it adaptable to any existing system.

Experience the power of enhanced bass with DS18’s DBPM100.MX and vive la vida en voz alta!

GENERAL FEATURES

SKU
DBPM100.MX
Operating Voltage
8-17V
Power Consumption
0.24A
Recommended Fuse Rating
1A
Power Input Terminal Size
16ga
LED Indicator
Power / Bass Enhancer / Clip
Ground Isolation Switch
Yes (GND/ISO/200Ω)
Hi-Level Speaker Input
No
Auto Turn-on Function
No
Remote Turn-on (Input / Output)
Yes
Remote Level Control
Yes (Bass Enhancer)
RCA Connector Type
Tiffany (Silver)
Housing Material
Aluminum
Body Color / Finish
Red/Green/White (Mexico Theme)


AUDIO SPECIFICATIONS

Frequency Response
10Hz-20kHz
S/N Ratio
120dB
THD
0.0022%
Input Sensitivity (Low-Level)
<10V
Input Sensitivity (Hi-Level)
N/A
Input Impedance
20Kohms
Output Voltage
Selectable (5V/7.5V/10V)
Output Impedance
100ohms
Balanced Input Noise Rejection
>60dB
Stereo Separation
>80dB


CROSSOVER SECTION & BASS PROCESSOR

Subwoofer LPF Frequency Cut-off
No (Full Range Signal)
Subwoofer Infrasonic Frequency Cut-off
Selectable (35/50/80Hz)
Gain
0~8.8V
Center Frequency (Sweep)
75Hz~120Hz
Q Factor (Wide)
1~3
