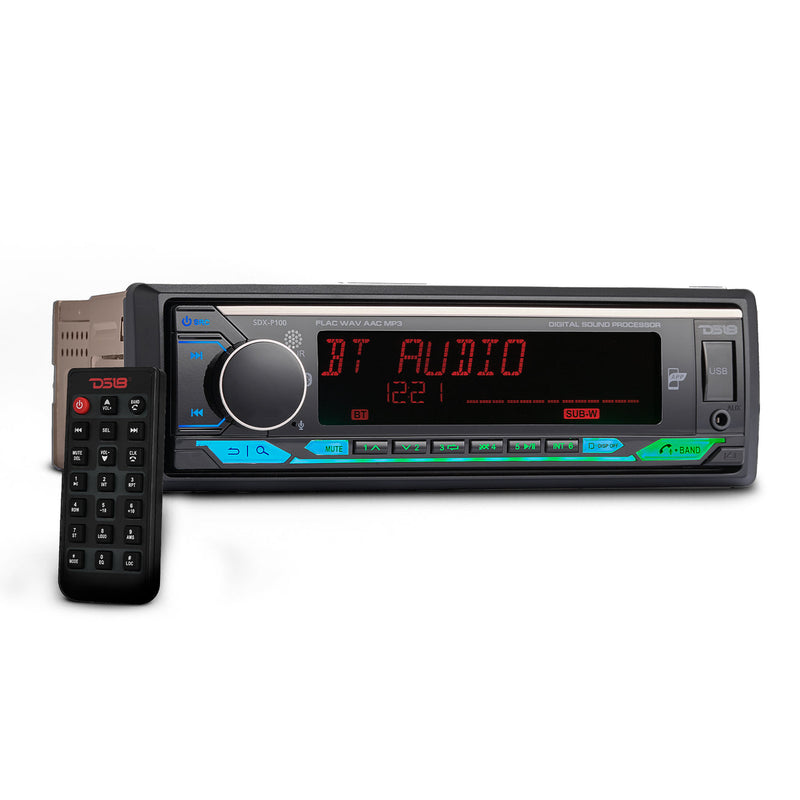

Ds18 Digital Media Receiver | Single Din | DSP | APP | Bluetooth Audio and Calling Head Unit | Aux Input | USB | Mechless | AM/FM Radio Receiver | 3V + 3.5V Subwoofer

In stock
SKU: DS-SDX-P100
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Regular price $179.95 USD
Massive Power & Clarity

Massive Power & Clarity

Superior Performance

Superior Performance

Advanced Technology

Advanced Technology

Premium Quality

Premium Quality

DS18 SDX-P100


Upgrade your sound system with DS18’s SDX-P100 for the ultimate in-car audio experience.
This mech-less media receiver gives you full control over your audio. Enhancing its versatility, the SDX-P100 features 3.5V RCA outputs, providing seamless connectivity options for an even more dynamic audio setup. The single DIN in-dash mounting ensures a seamless fit into your vehicle's console, making installation a breeze.
Tune in to your favorite radio stations with the AM/FM radio function, offering 30 memory stations for easy access to your go-to channels. Plus, the USB reader allows you to play media files directly from a USB drive, supporting formats like FLAC, WAV, AAC, APE, and MP3. Stream music wirelessly via Bluetooth and enjoy hands-free calling for added convenience and safety.
The 4" LCD display delivers crystal-clear visuals, while the dynamic multi-color LED backlight adds a touch of personalization to your dashboard. With 3-zone RGB illumination, you can choose from a wide range of colors to match your mood or interior.
With a maximum power output of 40W x 4 and a continuous power output of 13W x 4, rich and immersive sound quality is guaranteed. The built-in DSP (Digital Signal Processor) with time alignment and 2/3 way crossover allows you to fine-tune your audio settings for optimal listening pleasure. Take control with the 24-band graphic equalizer and adjust volume, subwoofer level, balance, and fader settings to create the perfect soundstage.
Stay connected on the go with DS18’s SDX App! This lets you control your receiver, processing, and other features included in the SDX-P200 using your smartphone. The wireless remote also allows complete control without the need for steering wheel control interfaces.
Designed to meet the highest standards of quality, DS18’s SDX-P100 is built to last. Order yours today and experience the DS18 Difference.

SPECS

SKU
SDX-P100
Nominal DIN Size
1-DIN
Rated Power Voltage
14.4V
Voltage Operation
9.6-15 Volts
Maximum Current Consumption
15A
Temperature Operation
0~60°C / 32~140°F
Screen Size
4" / 104mm
Display Type
LCD Dots
Buttons / Controls
ABS
Backlight Illumination Type
RGB / 3 Zones
Body Material / Color / Finish
Steel / Bronze


AUDIO SPECIFICATIONS

Maximum Power Output (Peak)
4x40W
Continuous Power Output (RMS)
4x15W
Minimum Impedance
4 Ohms
Frequency Response
20Hz-20KHz
Pre-Output Level (RCA)
3V / 3.5V (Subwoofer)
Equalizer Bands
24 Bands
Equalizer Gain
+ / - 9dB
Crossover
3-Way
Crossover Slope
6 / 12 / 24 dB/Oct
Time Alignment
0~25ms / 0~850cm
Audio Control
Subwoofer Level, Fader, Balance, Loudness


TUNER & BT SPECIFICATIONS

Frequency Range (FM)
87.5 - 108.0 MHz
Frequency Range (AM)
522 - 1620 KHz
Presets Memory
18 FM / 12 AM
Region
Europe, America, Asia, Russia
Sensitivity Adjustment
Local / DX
Version
4.2
Services
Hands Free Calls, Audio Streaming, APP Remote Control
Audio Protocols
A2DP, AVRCP, HFP
Range
32ft / 10m


USB / SD PLAYER SPECIFICATIONS

Type / Class
2.0, 3.0 / FAT 16, FAT32
Format Files Supported
FLAC (16 Bit), WAV, AAC, APE, MP3
Max Memory Size Reader
64 Gb
Max Current USB Charger
1A
Number of Ports
1 (Front)


CONNECTIVITY SPECIFICATIONS

A/V Aux Input
Yes, Front 3.5mm Jack (2V Max)
Microphone
Yes, Built-In / External Mic Input
Remote Control (SWC)
Yes, 3.5mm Jack Input
Remote Control (Handset)
Yes, Card Type with Rubber Buttons
APP Control
Yes, (Android Devices)


MEASUREMENTS

Overall Width (Chassis)
7" / 178mm
Overall Height (Chassis)
1.96" / 50mm
Overall Depth (Chassis)
4" / 104mm
Overall Width (Bezel Frame)
7.4" / 188mm
Overall Height (Bezel Frame)
2.2" / 58mm
Overall Depth (Bezel Frame)
0.98" / 25mm



UPC: 810097264489
