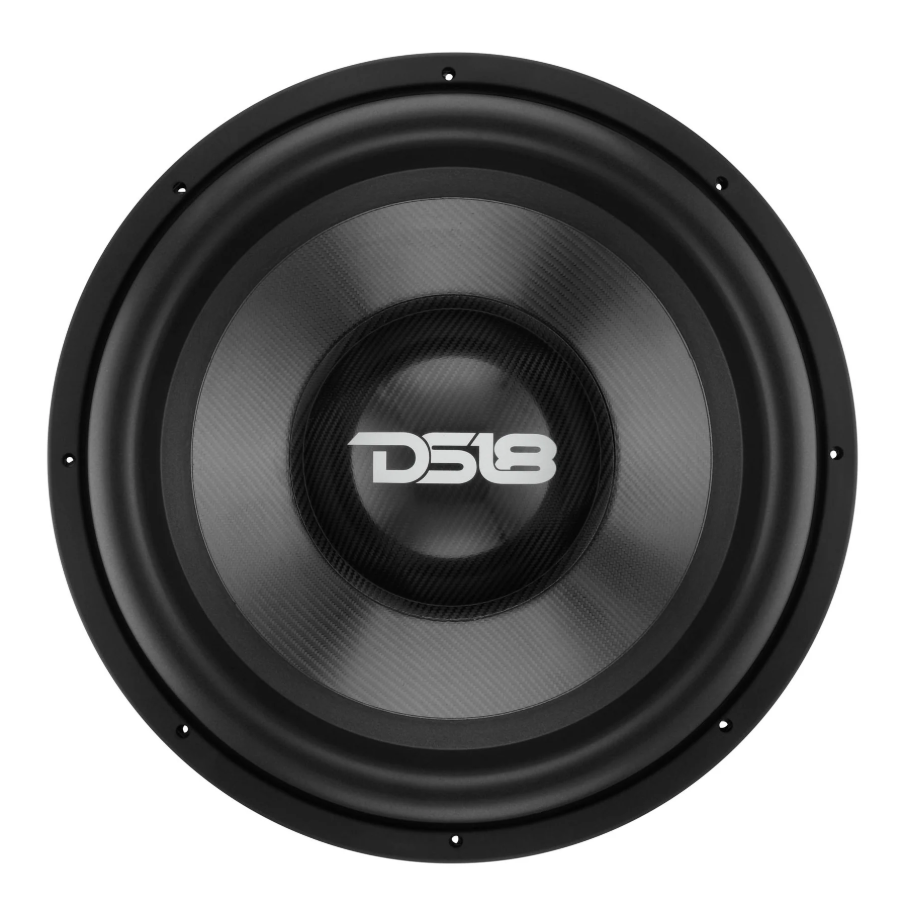

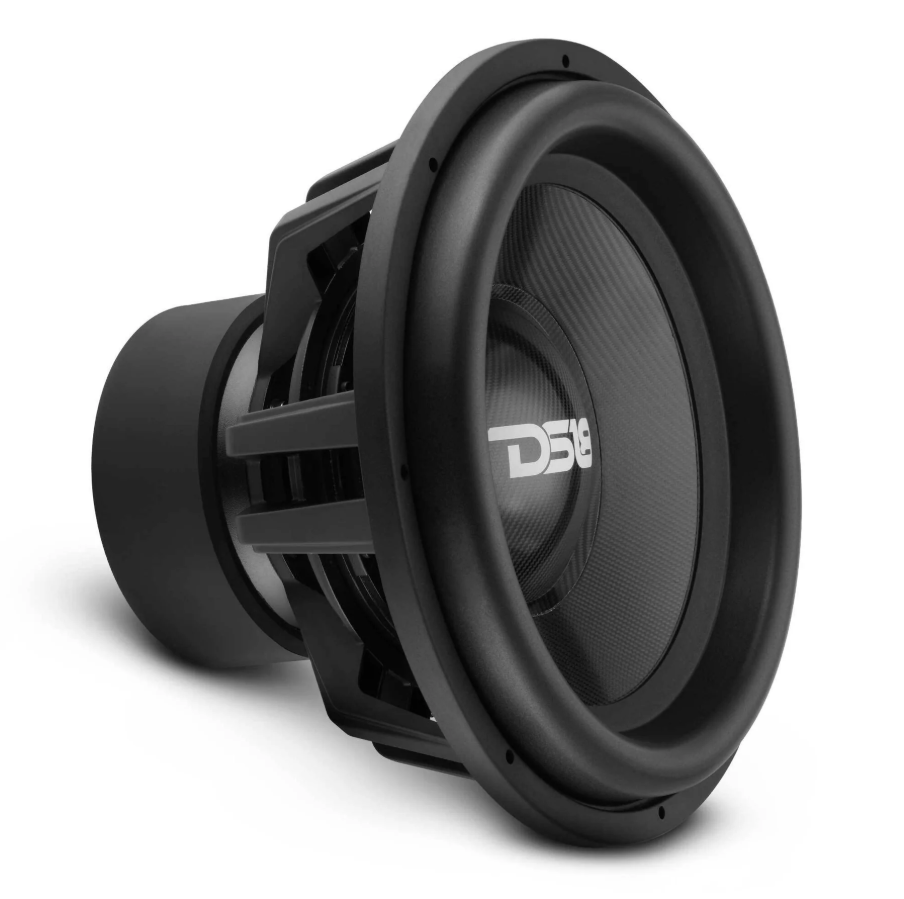

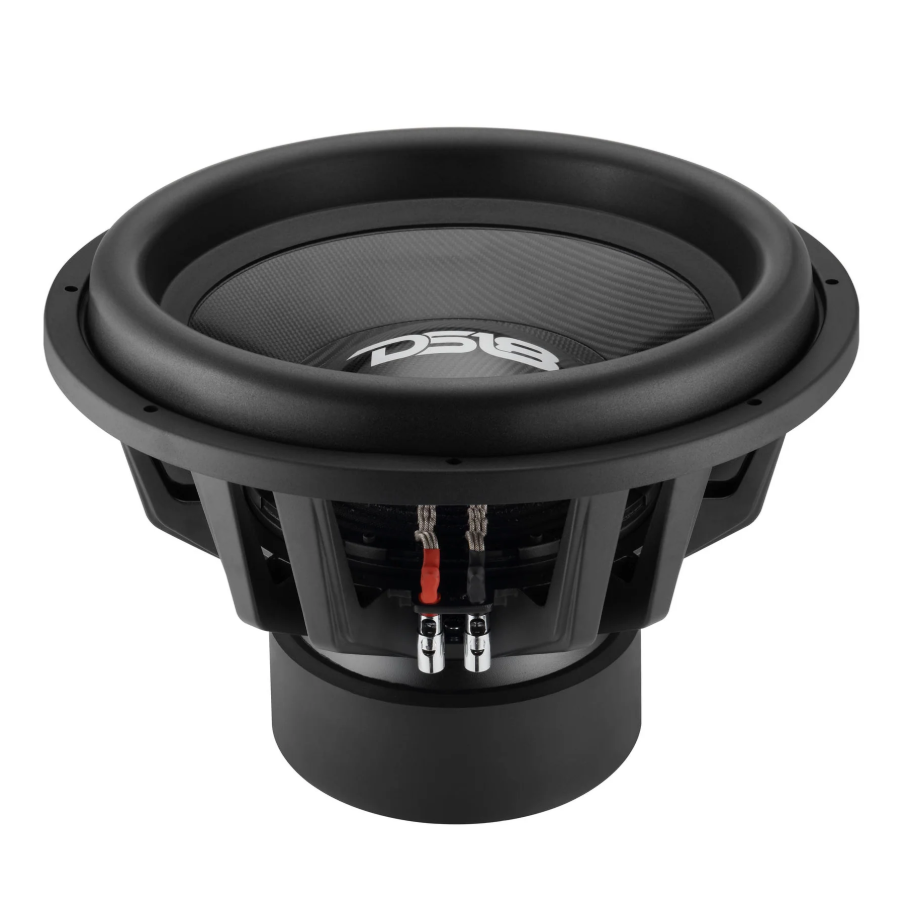

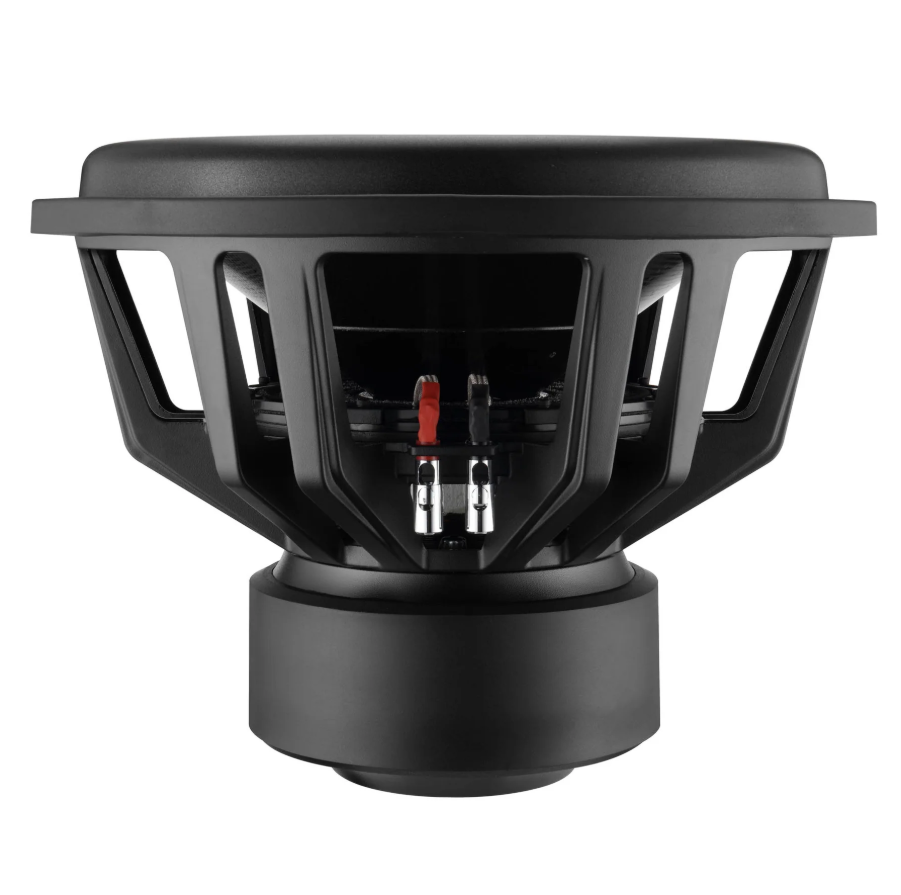

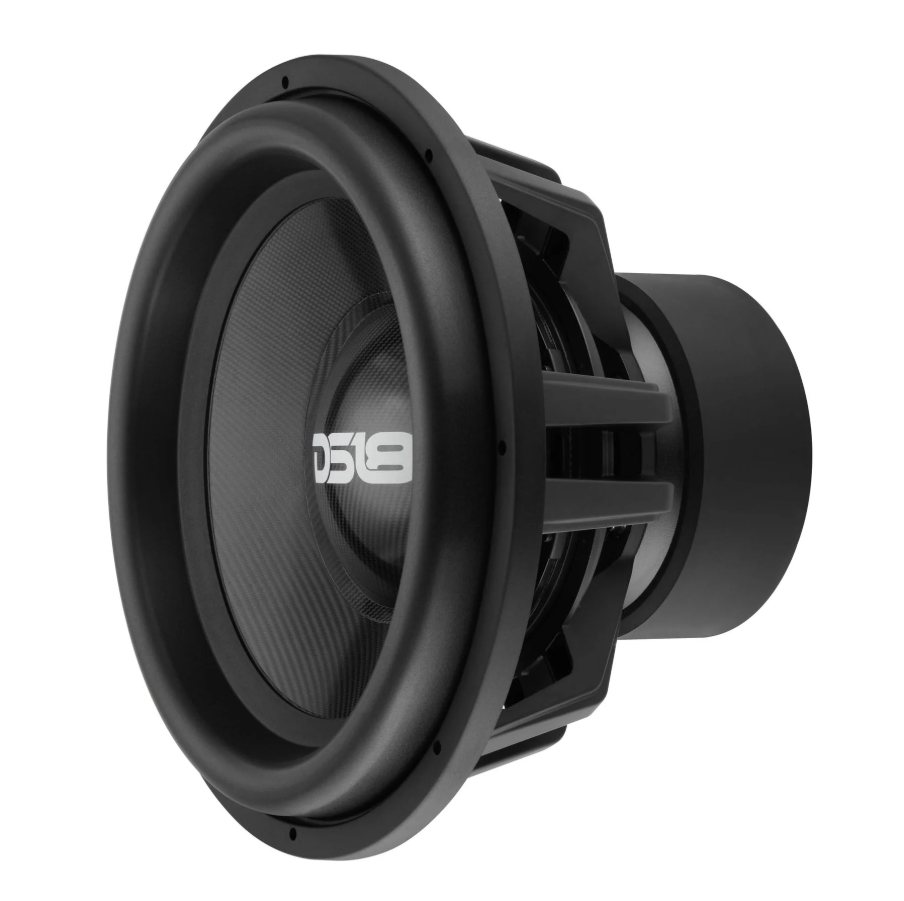

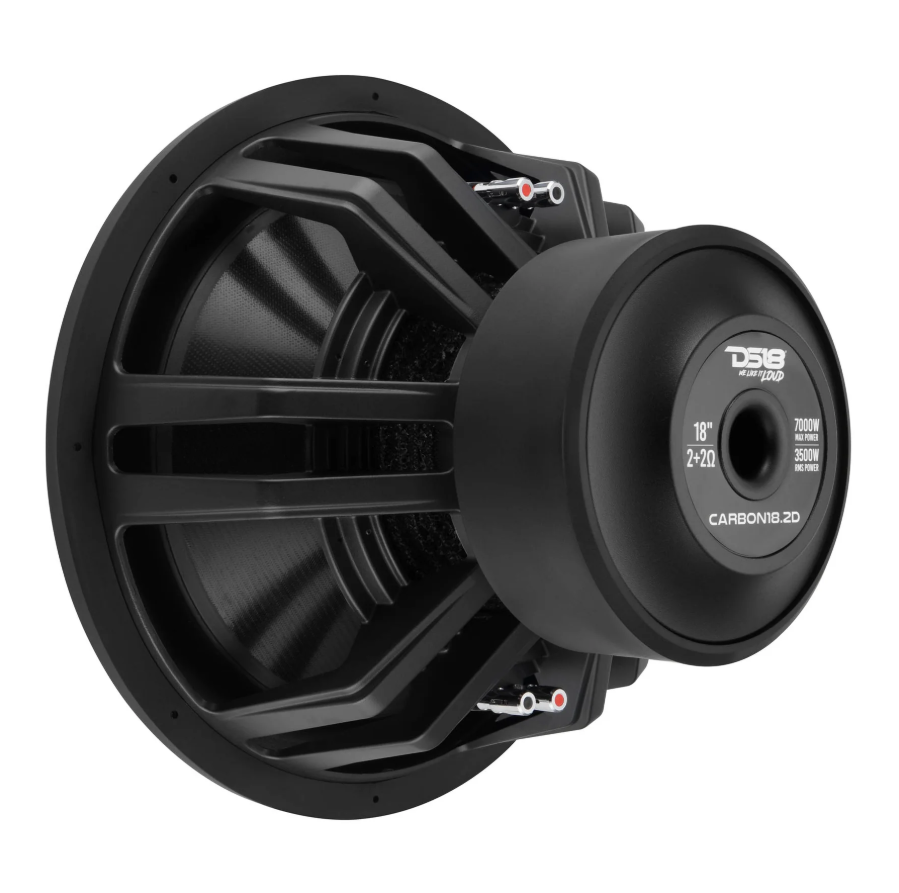

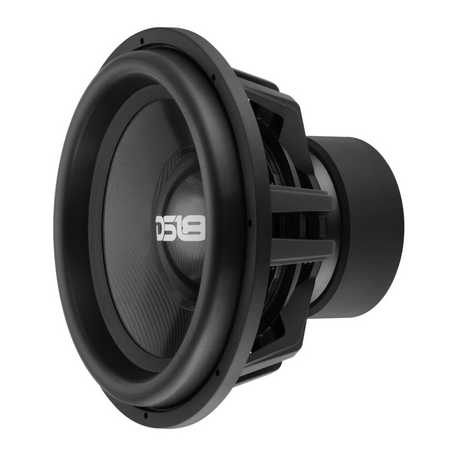

DS18 Carbon18.2D- 18" High Excursion Subwoofer with Carbon Fiber Cone | 3500W RMS / 7000W Peak | Dual 2-Ohm Voice Coil
Built for extreme low-frequency performance, the DS18 CARBON18.2D 18" High Excursion Subwoofer is engineered to deliver massive bass output for high-powered car audio and SPL competition systems. Rated at 3,500 watts RMS and 7,000 watts maximum power, the CARBON18.2D combines exceptional power handling with a high-excursion design to move massive amounts of air and produce deep, powerful bass. Its dual 2-ohm voice coil configuration provides flexible wiring options, allowing installers to configure the subwoofer for different amplifier loads, including 1-ohm parallel or 4-ohm series configurations.
The CARBON18.2D combines premium materials with a powerful motor structure designed to handle extreme power while maintaining reliable performance. Its carbon-fiber cone and carbon-fiber dust cap provide a lightweight and rigid diaphragm designed for controlled movement and responsive bass reproduction. A 3.5" aluminum voice coil with CCAR winding supports high power handling and improved heat dissipation during extended high-power operation, while the massive 425 oz ferrite magnet provides the motor force needed for high-excursion performance. The foam surround and aluminum basket support the moving assembly during demanding use, while 22.5 mm of one-way Xmax allows the 18-inch driver to achieve substantial cone travel and air displacement. With a 10–200 Hz frequency response, the CARBON18.2D is built for serious high-output systems where deep, powerful bass is the priority.
Key Features
- High-Power 18" Subwoofer – Delivers 3,500W RMS and 7,000W maximum power handling for extreme bass performance
- Dual 2-Ohm Voice Coils – Provides flexible wiring configurations, including 1-ohm parallel or 4-ohm series wiring
- Carbon-Fiber Cone – Provides a lightweight and rigid diaphragm for powerful, controlled bass reproduction
- Carbon-Fiber Dust Cap – Reinforces the cone assembly while supporting the subwoofer's high-performance construction
- High-Excursion Design – Features 22.5 mm of one-way Xmax for increased cone movement and substantial air displacement
- 3.5" Aluminum Voice Coil – Designed for high power handling and improved heat dissipation
- CCAR Voice Coil Winding – Supports reliable performance under demanding high-power conditions
- 425 oz Ferrite Magnet – Delivers substantial motor force for high-output bass applications
- Foam Surround – Supports controlled high-excursion cone movement while providing durability
- 9" Spider – Supports the moving assembly during high-excursion operation
- Aluminum Basket – Provides a strong and rigid foundation for the motor and moving components
- 4-Gauge Push Terminals – Accommodates heavy-gauge speaker wire for high-powered installations
- Improved Heat Management – Designed to help manage heat during extended high-power operation
- SPL-Oriented Design – Engineered for high-output systems and serious competition-oriented bass applications
- Sealed and Ported Enclosure Compatible – Designed for properly sized sealed or ported enclosure applications
- CARBON Series Performance – Built for high-powered car audio systems where deep, powerful bass is the priority
Specifications
- Model: CARBON18.2D
- Series: CARBON
- Subwoofer Size: 18"
- Voice Coil Configuration: Dual 2-Ohm
- Nominal Impedance: 2 + 2 Ohms
- Power Handling RMS: 3,500 Watts
- Power Handling MAX: 7,000 Watts
- Sensitivity: 85 dB
- Frequency Response: 10–200 Hz
- Recommended Low-Pass Crossover: 60 Hz
- Cone Shape: Conic
- Cone Material: Carbon Fiber
- Dustcap Material: Carbon Fiber
- Dustcap Size: 8" (200 mm)
- Surround Material: Foam
- Voice Coil Diameter: 3.5" (89 mm)
- Voice Coil Former Material: Aluminum
- Voice Coil Winding: CCAR
- Spider Diameter: 9" (228 mm)
- Leads Connection Type: Spider Crossed
- Basket Material: Aluminum
- Basket Finish: Aluminum / Black
- Magnet Material: Ferrite
- Magnet Weight: 425 oz
- Speaker Terminals: 4-Gauge Push Terminals
- Xmax: 22.5 mm One-Way
- Overall Diameter: 18.5" (470 mm)
- Overall Depth: 14" (355 mm)
- Mounting Depth: 12.15" (309 mm)
- Front Mount Baffle Cutout: 16.75" (426 mm)
- Motor Diameter: 9" (230 mm)
Package Includes
- 1 × DS18 CARBON18.2D 18" Dual 2-Ohm High Excursion Subwoofer
- 1 × Owner's Manual
- Mounting Hardware
SKU: DS-CARBON18.2D
UPC: 810199442419
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
