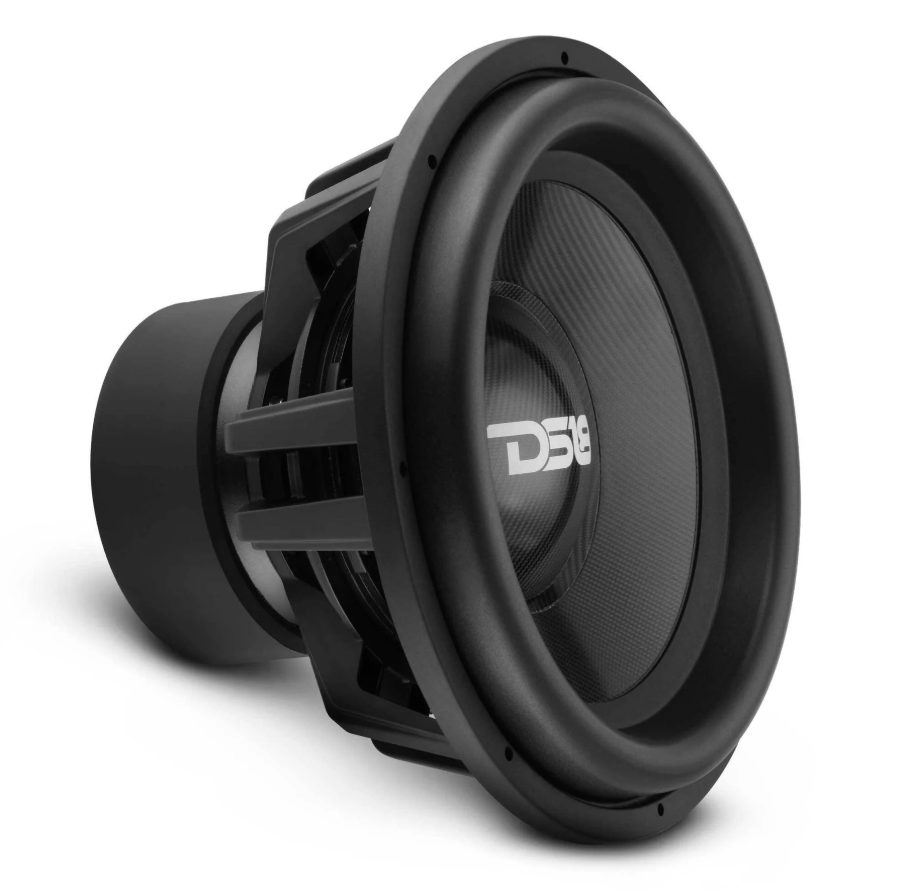

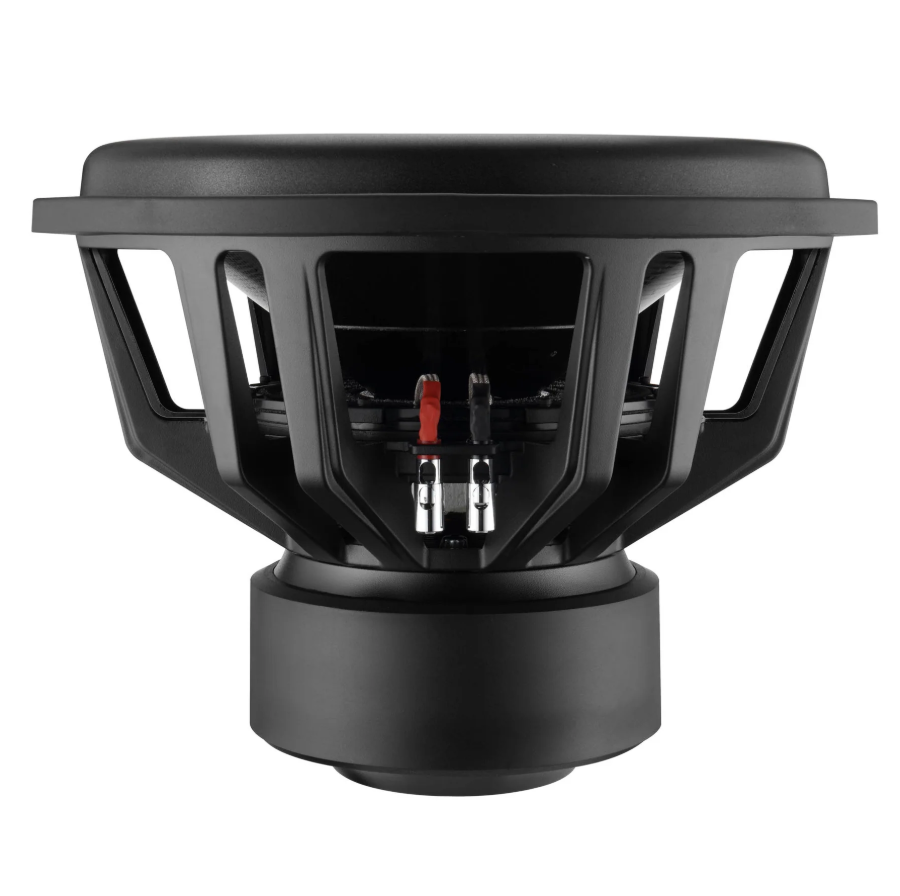

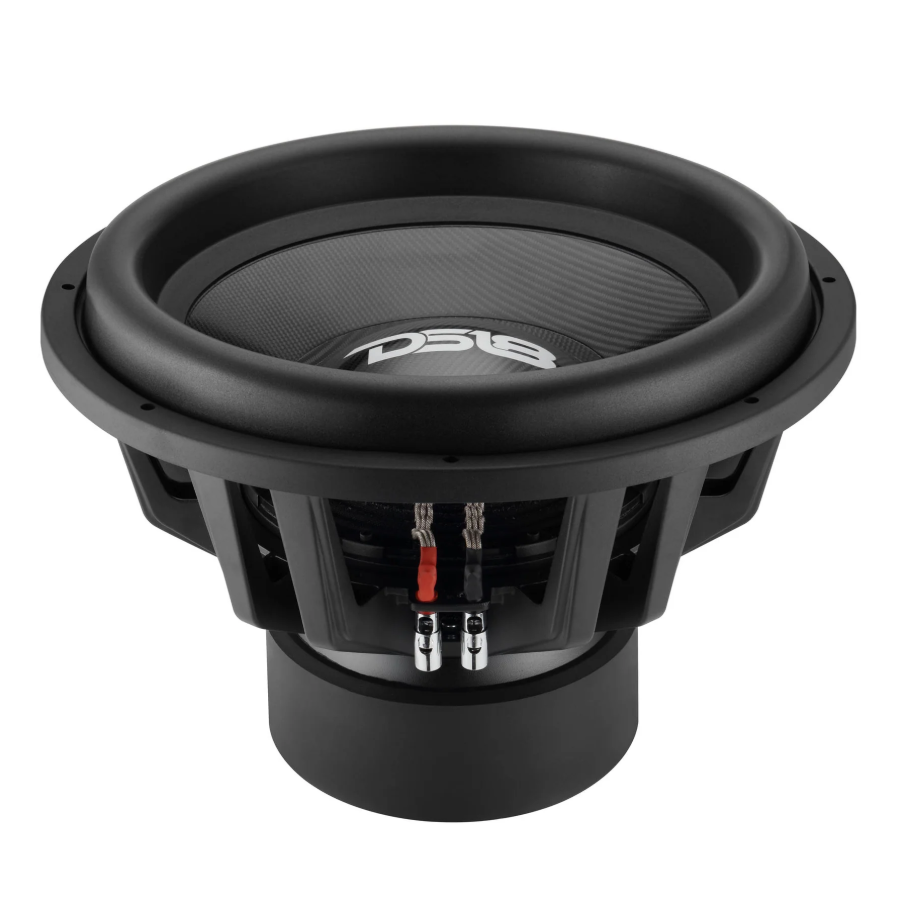

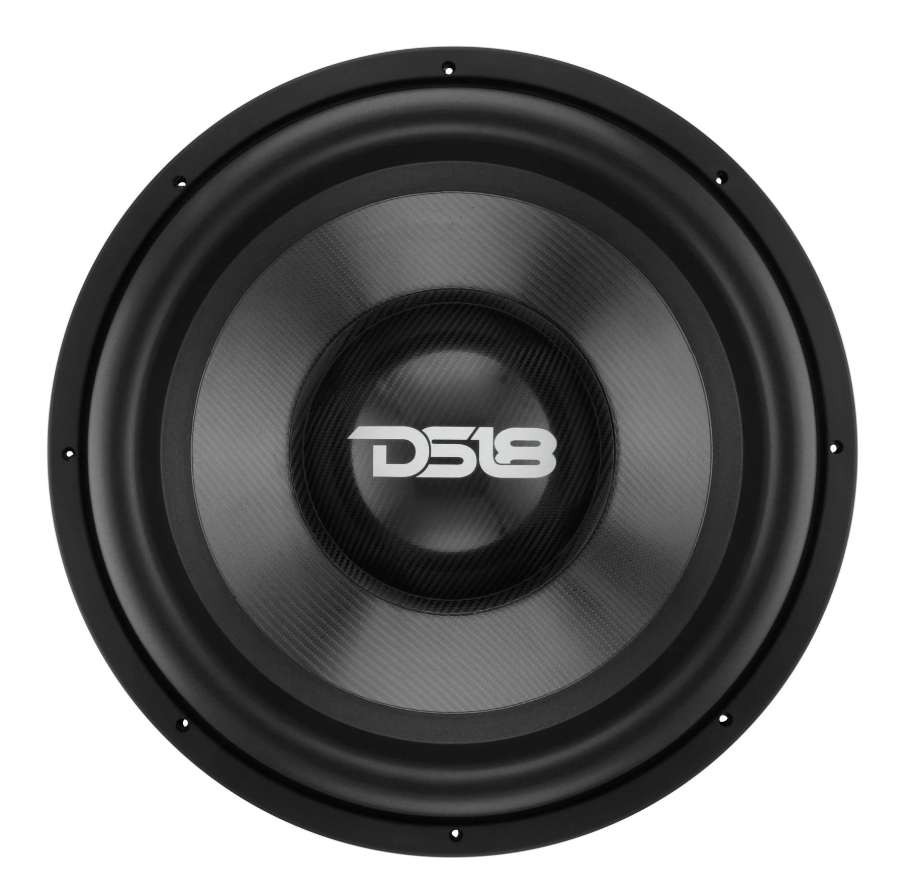

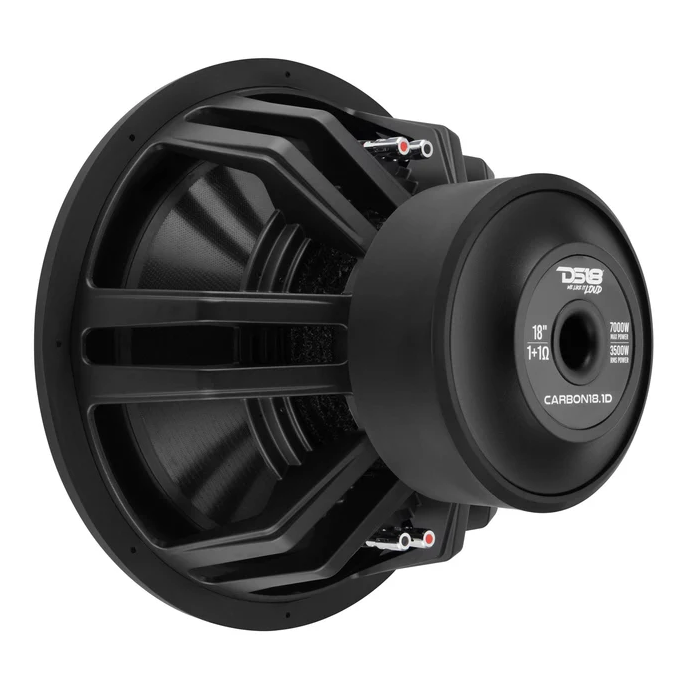

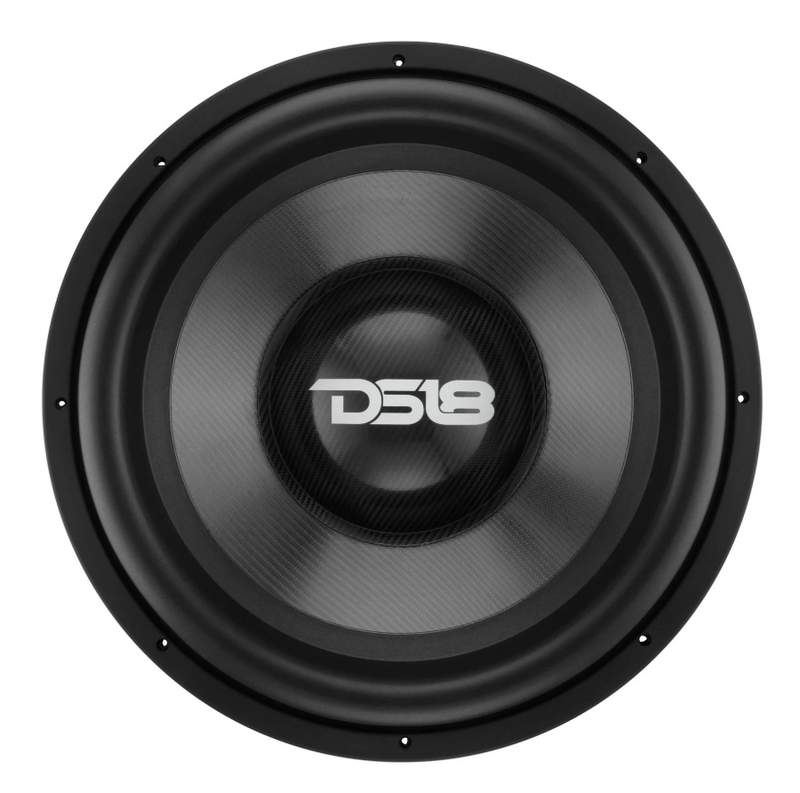

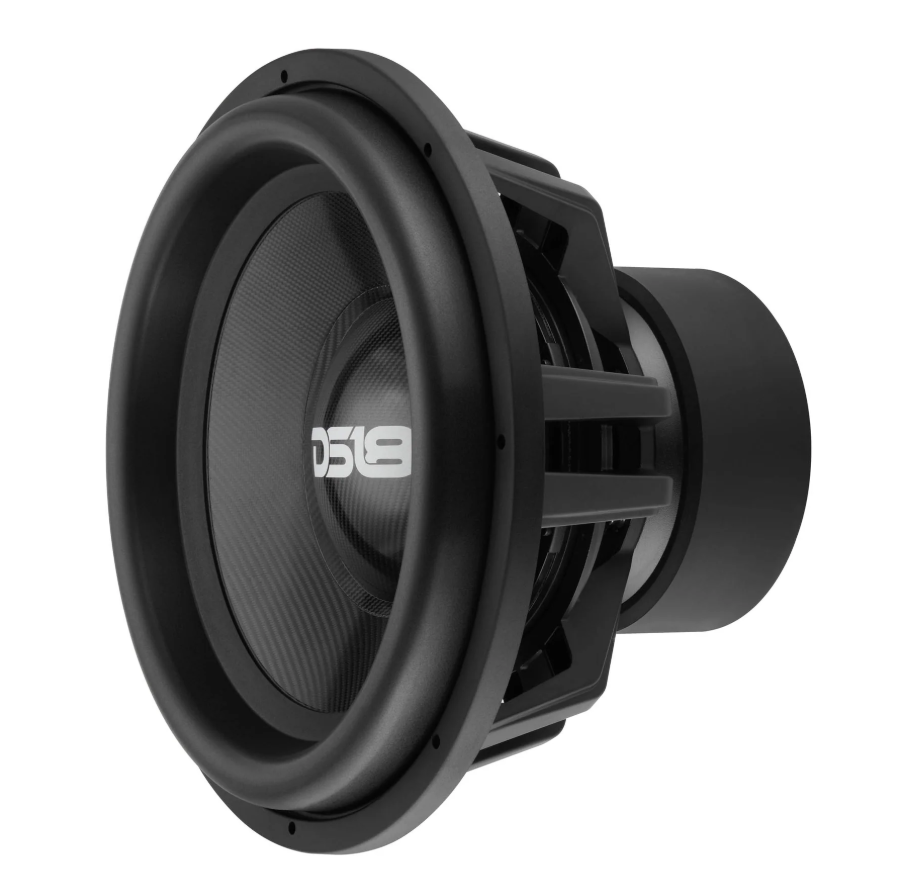

DS18 Carbon18.1D- 18" High Excursion Subwoofer with Carbon Fiber Cone | 3500W RMS / 7000W Peak | Dual 1-Ohm Voice Coil
Built for extreme low-frequency performance, the DS18 CARBON18.1D 18" High Excursion Subwoofer is engineered to deliver massive bass output for high-powered car audio and SPL competition systems. Rated at 3,500 watts RMS and 7,000 watts maximum power, the CARBON18.1D combines exceptional power handling with a high-excursion design to move massive amounts of air and produce deep, powerful bass. Its dual 1-ohm voice coil configuration provides flexible wiring options, allowing installers to configure the subwoofer for different amplifier loads.
The CARBON18.1D combines premium materials with a powerful motor structure designed to handle extreme power while maintaining reliable performance. Its carbon-fiber cone and carbon-fiber dust cap provide a lightweight and rigid diaphragm designed for controlled movement and responsive bass reproduction. A 3.5" aluminum voice coil with CCAR winding supports high power handling and improved heat dissipation during extended high-power operation, while the massive 425 oz ferrite magnet provides the motor force needed for high-excursion performance. The foam surround and aluminum basket support the moving assembly during demanding use, while 22.5 mm of one-way Xmax allows the 18-inch driver to achieve substantial cone travel and air displacement. With a 10–200 Hz frequency response, the CARBON18.1D is built for serious high-output systems where deep, powerful bass is the priority.
Key Features
- High-Power 18" Subwoofer – Delivers 3,500W RMS and 7,000W maximum power handling for extreme bass performance
- Dual 1-Ohm Voice Coils – Provides flexible wiring configurations for high-powered amplifier systems
- Carbon-Fiber Cone – Provides a lightweight and rigid diaphragm for powerful, controlled bass reproduction
- Carbon-Fiber Dust Cap – Reinforces the cone assembly while supporting the subwoofer's high-performance construction
- High-Excursion Design – Features 22.5 mm of one-way Xmax for increased cone movement and substantial air displacement
- 3.5" Aluminum Voice Coil – Designed for high power handling and improved heat dissipation
- CCAR Voice Coil Winding – Supports reliable performance under demanding high-power conditions
- 425 oz Ferrite Magnet – Delivers substantial motor force for high-output bass applications
- Foam Surround – Supports controlled high-excursion cone movement while providing durability
- 9" Spider – Supports the moving assembly during high-excursion operation
- Aluminum Basket – Provides a strong and rigid foundation for the motor and moving components
- 4-Gauge Push Terminals – Accommodates heavy-gauge speaker wire for high-powered installations
- Improved Heat Management – Designed to help manage heat during extended high-power operation
- SPL-Oriented Design – Engineered for high-output systems and serious competition-oriented bass applications
- Sealed and Ported Enclosure Compatible – Designed for properly sized sealed or ported enclosure applications
- CARBON Series Performance – Built for high-powered car audio systems where deep, powerful bass is the priority
Specifications
- Model: CARBON18.1D
- Series: CARBON
- Subwoofer Size: 18"
- Voice Coil Configuration: Dual 1-Ohm
- Nominal Impedance: 1 + 1 Ohms
- Power Handling RMS: 3,500 Watts
- Power Handling MAX: 7,000 Watts
- Sensitivity: 85 dB
- Frequency Response: 10–200 Hz
- Recommended Low-Pass Crossover: 60 Hz
- Cone Shape: Conic
- Cone Material: Carbon Fiber
- Dustcap Material: Carbon Fiber
- Dustcap Size: 8" (200 mm)
- Surround Material: Foam
- Voice Coil Diameter: 3.5" (89 mm)
- Voice Coil Former Material: Aluminum
- Voice Coil Winding: CCAR
- Spider Diameter: 9" (228 mm)
- Leads Connection Type: Spider Crossed
- Basket Material: Aluminum
- Basket Finish: Aluminum / Black
- Magnet Material: Ferrite
- Magnet Weight: 425 oz
- Speaker Terminals: 4-Gauge Push Terminals
- Xmax: 22.5 mm One-Way
- Overall Diameter: 18.5" (470 mm)
- Overall Depth: 14" (355 mm)
- Mounting Depth: 12.15" (309 mm)
- Front Mount Baffle Cutout: 16.75" (426 mm)
- Motor Diameter: 9" (230 mm)
Package Includes
- 1 × DS18 CARBON18.1D 18" Dual 1-Ohm High Excursion Subwoofer
- 1 × Owner's Manual
- Mounting Hardware
SKU: DS-CARBON18.1D
UPC: 810199442419
