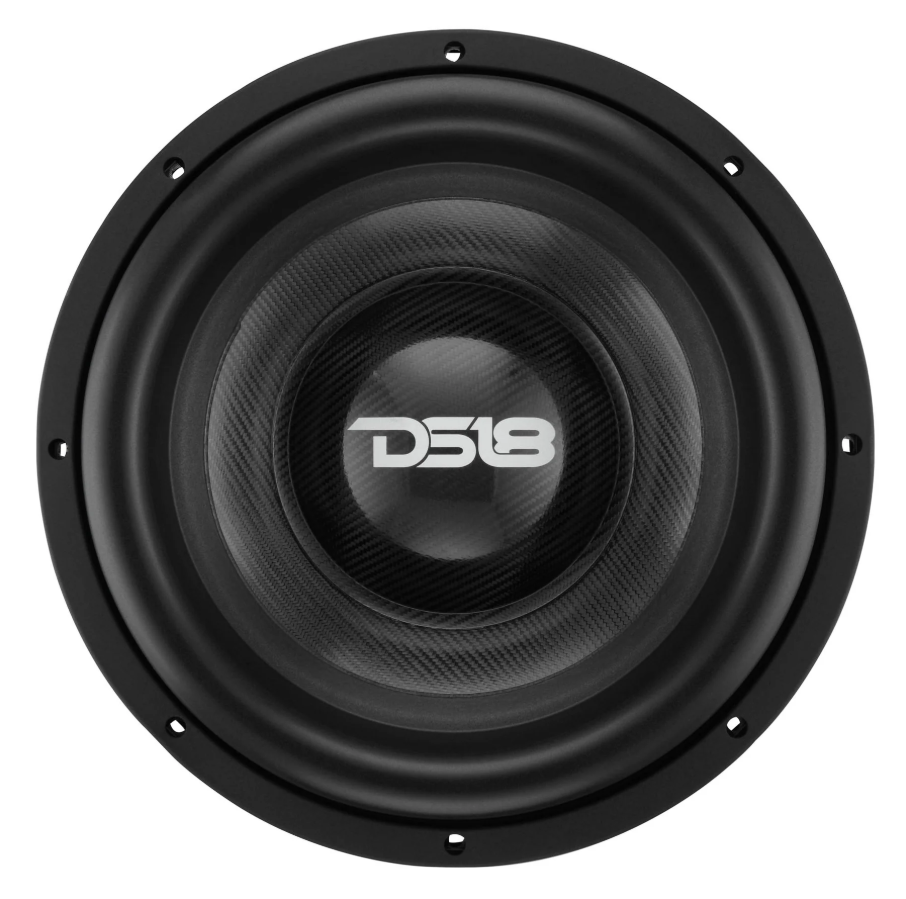

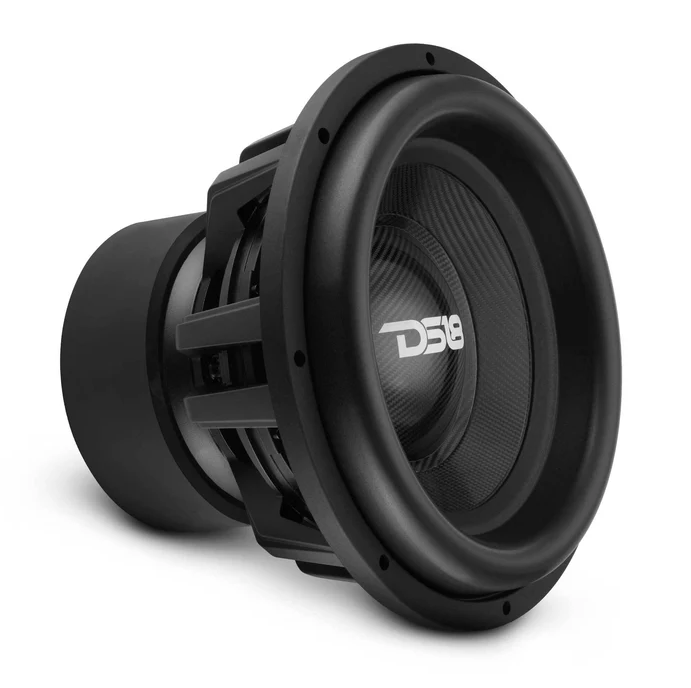

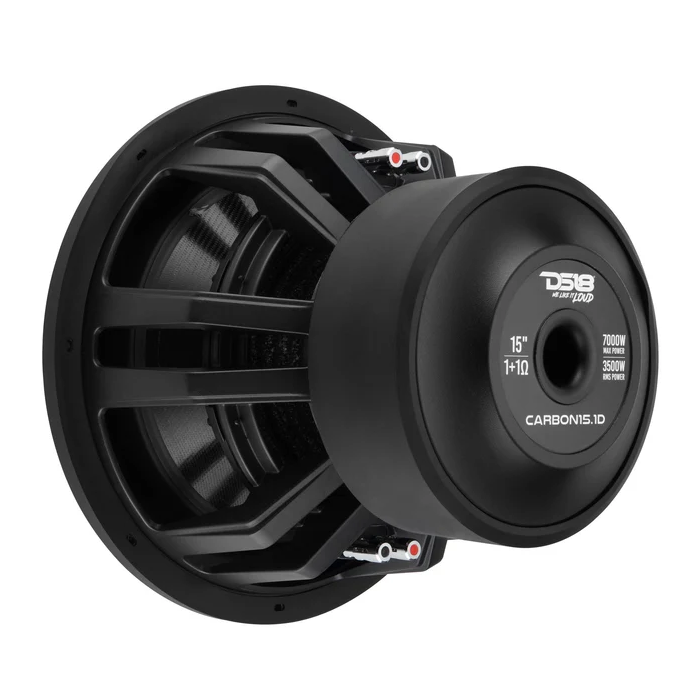

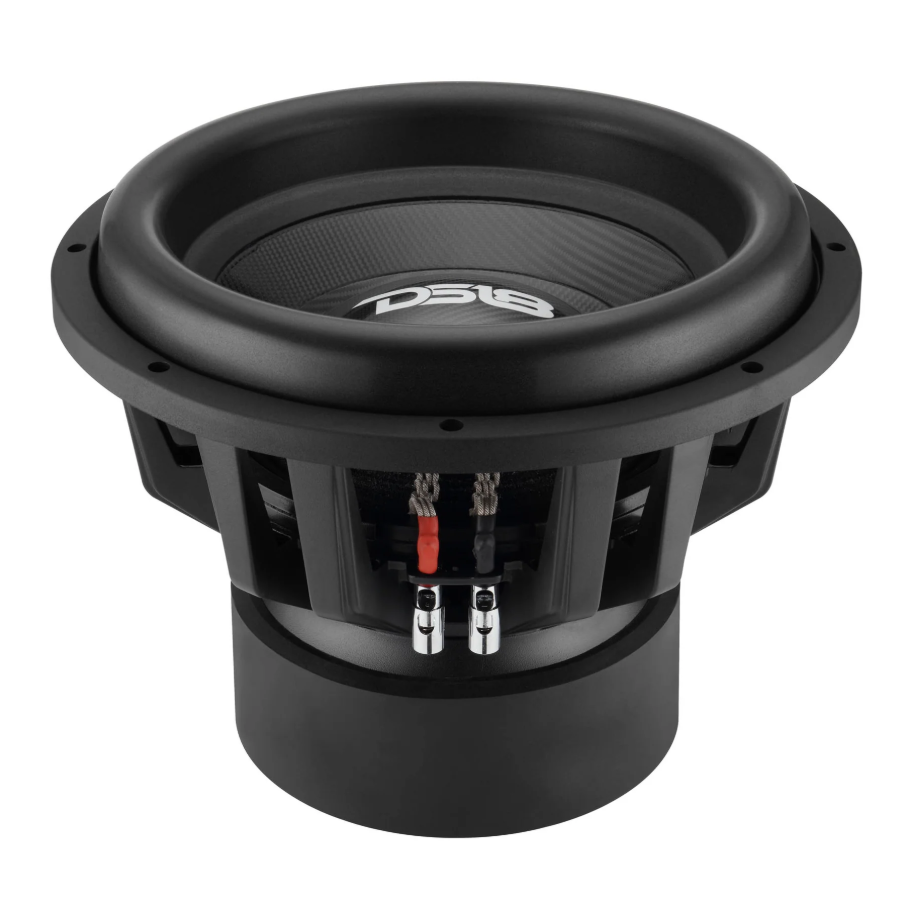

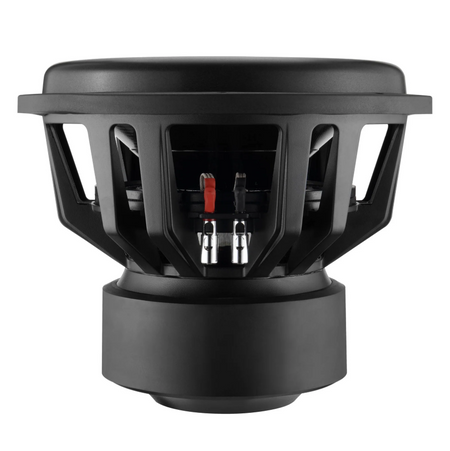

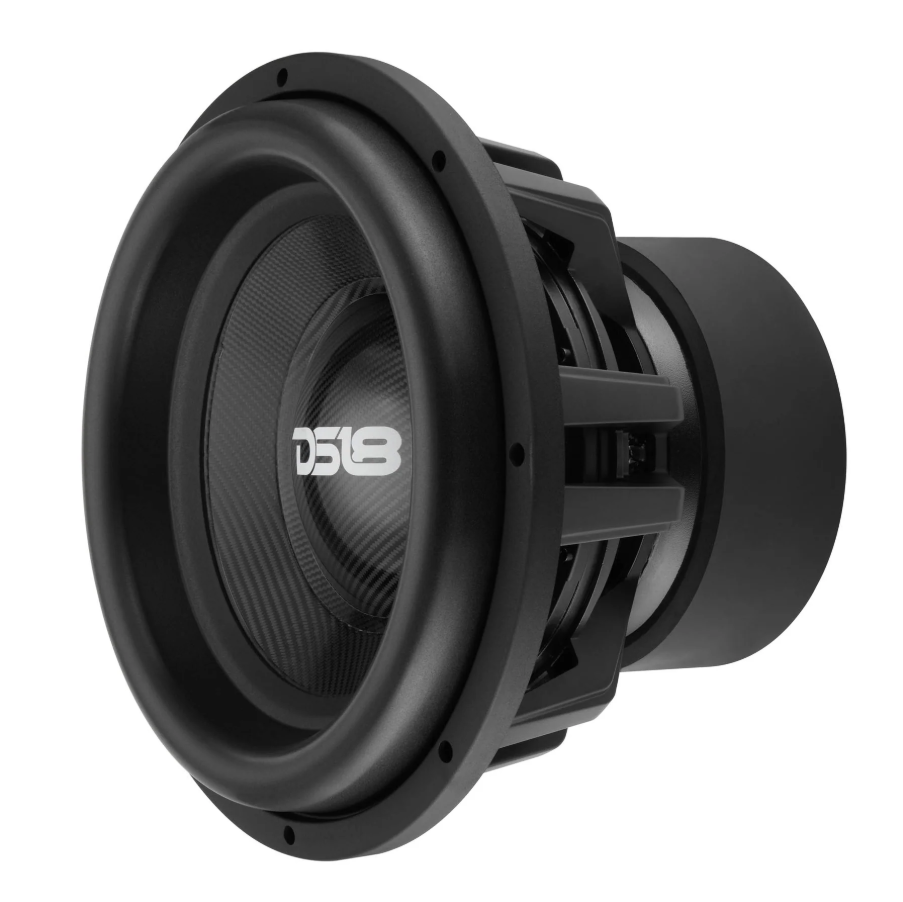

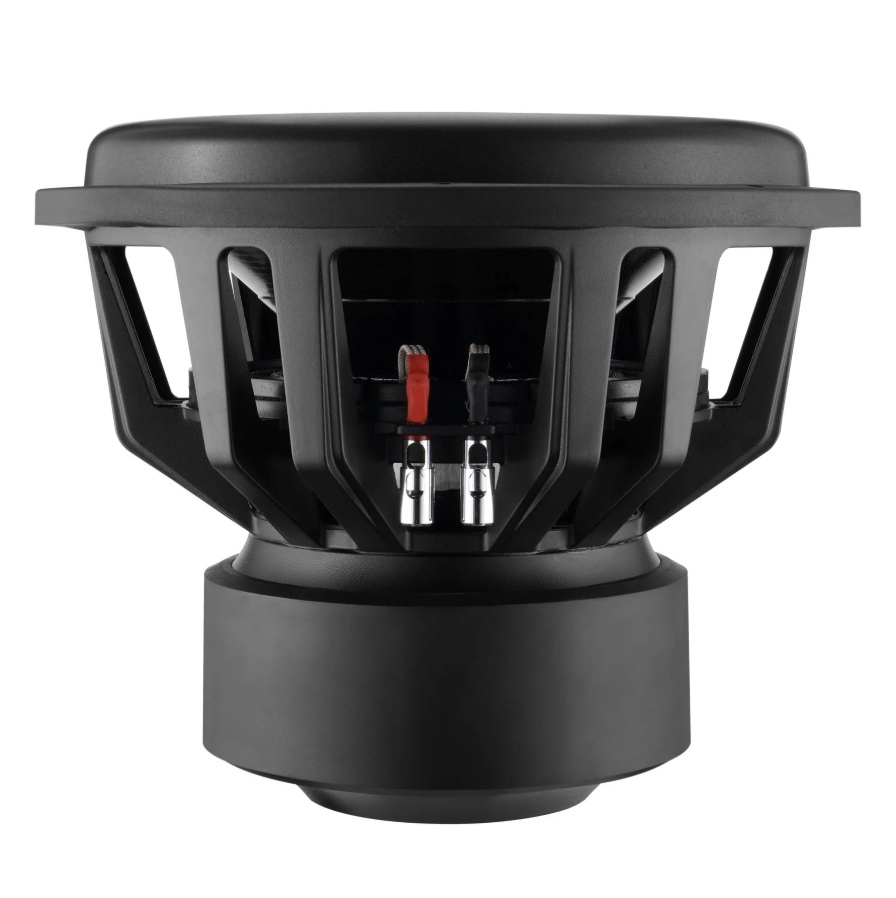

DS18 Carbon15.1D- 15" High Excursion Subwoofer with Carbon Fiber Cone | 3500W RMS / 7000W Peak | Dual 1-Ohm Voice Coil

Built for extreme low-frequency performance, the DS18 CARBON15.1D 15" High Excursion Subwoofer is engineered to deliver massive bass output for high-powered car audio and SPL competition systems. Rated at 3,500 watts RMS and 7,000 watts maximum power, the CARBON15.1D combines exceptional power handling with a high-excursion design to produce deep, powerful bass in demanding applications. Its dual 1-ohm voice coil configuration provides flexible wiring options, allowing installers to configure the subwoofer for different amplifier loads.

The CARBON15.1D combines premium materials with a massive motor structure designed to handle extreme power while maintaining reliable performance. Its carbon-fiber cone and carbon-fiber dust cap provide a lightweight and rigid diaphragm designed for controlled movement during high-excursion operation. A 3.5" aluminum voice coil with CCAR winding supports high power handling and heat management, while the massive 425 oz ferrite magnet provides the motor strength needed to drive the subwoofer with authority. The foam surround and aluminum basket support the moving assembly during demanding use, while 22.5 mm of one-way Xmax allows the 15-inch driver to move substantial amounts of air. With a 10–200 Hz frequency response, the CARBON15.1D is designed to deliver deep, powerful bass for serious high-output systems.

Key Features

• High-Power 15" Subwoofer – Delivers 3,500W RMS and 7,000W maximum power handling for extreme bass performance
• Dual 1-Ohm Voice Coils – Provides flexible wiring configurations for high-powered amplifier systems
• Carbon-Fiber Cone – Provides a lightweight and rigid diaphragm designed for powerful, controlled bass reproduction
• Carbon-Fiber Dust Cap – Reinforces the cone assembly while supporting the subwoofer's high-performance construction
• High-Excursion Design – Features 22.5 mm of one-way Xmax for increased cone movement and substantial air displacement
• 3.5" Aluminum Voice Coil – Designed for high power handling and improved heat dissipation
• CCAR Voice Coil Winding – Supports reliable performance under demanding high-power conditions
• 425 oz Ferrite Magnet – Delivers substantial motor force for high-output bass applications
• Foam Surround – Supports controlled high-excursion cone movement while providing durability
• 9" Spider – Supports the moving assembly during high-excursion operation
• Aluminum Basket – Provides a rigid and durable foundation for the motor and moving components
• 4-Gauge Push Terminals – Accommodates heavy-gauge speaker wire for high-powered installations
• Improved Heat Management – Designed to help manage heat during extended high-power operation
• SPL-Oriented Design – Engineered for high-output systems and serious competition-oriented bass applications
• Sealed and Ported Enclosure Compatible – Designed for use with properly sized sealed or ported enclosures
• CARBON Series Performance – Built for high-powered car audio systems where deep, powerful bass is the priority

Specifications

• Model: CARBON15.1D
• Series: CARBON
• Subwoofer Size: 15"
• Voice Coil Configuration: Dual 1-Ohm
• Nominal Impedance: 1 + 1 Ohms
• Power Handling RMS: 3,500 Watts
• Power Handling MAX: 7,000 Watts
• Sensitivity: 84 dB
• Frequency Response: 10–200 Hz
• Recommended Low-Pass Crossover: 60 Hz
• Cone Shape: Conic
• Cone Material: Carbon Fiber
• Dustcap Material: Carbon Fiber
• Dustcap Size: 7" (180 mm)
• Surround Material: Foam
• Voice Coil Diameter: 3.5" (89 mm)
• Voice Coil Former Material: Aluminum
• Voice Coil Winding: CCAR
• Spider Diameter: 9" (228 mm)
• Leads Connection Type: Spider Crossed
• Basket Material: Aluminum
• Basket Finish: Aluminum / Black
• Magnet Material: Ferrite
• Magnet Weight: 425 oz
• Speaker Terminals: 4-Gauge Push Terminals
• Xmax: 22.5 mm One-Way
• Free Air Resonance (Fs): 38 Hz
• Equivalent Volume (Vas): 34.26 L / 1.209 ft³
• Moving Mass (Mms): 442.7 g
• Compliance (Cms): 39.72 mm/N
• BL Factor: 13.96
• Voice Coil Inductance (Le): 0.88 mH
• Diaphragm Area (Sd): 779.3 cm²
• DC Resistance (Re): 1 + 1 Ohms
• Overall Diameter: 15.5" (394 mm)
• Overall Depth: 12.75" (324 mm)
• Mounting Depth: 10.9" (277 mm)
• Front Mount Baffle Cutout: 14.15" (360 mm)
• Motor Diameter: 9" (230 mm)

Package Includes

• 1 × DS18 CARBON15.1D 15" Dual 1-Ohm High Excursion Subwoofer
• 1 × Owner's Manual
• Mounting Hardware

SKU: DS-CARBON15.1D
UPC: 810199442396
