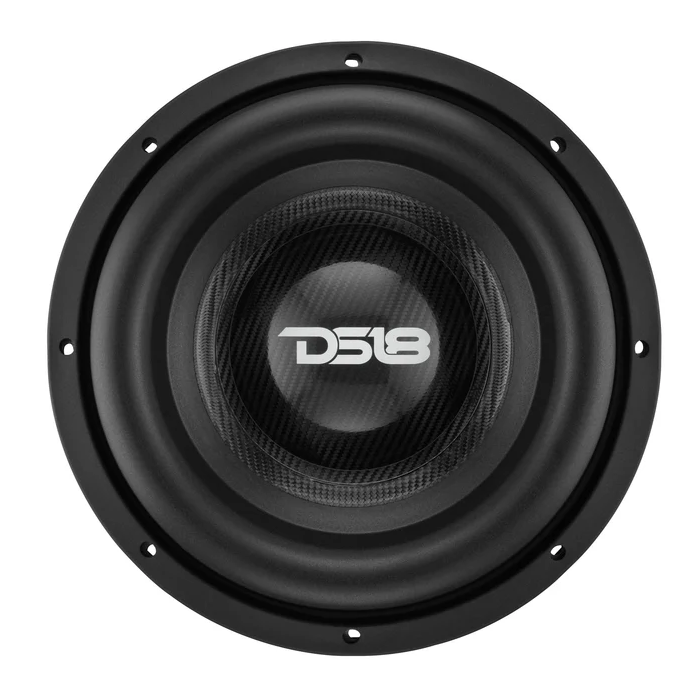

DS18 Carbon12.1D-12" High Excursion Subwoofer with Carbon Fiber Cone | 3500W RMS / 7000W Peak | Dual 1-Ohm Voice Coil

Built for serious low-frequency performance, the DS18 CARBON12.1D 12" High Excursion Subwoofer is engineered to deliver massive bass output for high-powered car audio systems. Rated at 3,500 watts RMS and 7,000 watts maximum power, this high-performance subwoofer combines a high-excursion design with a rigid carbon-fiber cone and dust cap for powerful, controlled bass reproduction. Its dual 1-ohm voice coil configuration provides flexible wiring options, making it an excellent choice for high-powered amplifier systems.

The CARBON12.1D is designed to handle extreme power while maintaining reliable performance under demanding conditions. Its 3.5" aluminum voice coil former with CCAR winding helps provide improved heat dissipation, allowing the subwoofer to handle extended high-power operation. A massive 425 oz ferrite magnet supplies the motor strength needed to produce powerful bass, while the carbon-fiber cone and 6" carbon-fiber dust cap provide a strong, lightweight structure designed for controlled cone movement. The foam surround and aluminum basket further support the subwoofer's high-excursion performance and structural stability.

With 22.5 mm of one-way excursion, an 82 dB sensitivity rating, and a 10–200 Hz frequency response, the CARBON12.1D is built to deliver deep, powerful bass in high-output car audio applications. For maximum performance, it can be installed in either sealed or ported enclosures, with DS18 recommending approximately 1.3 ft³ for sealed applications or 2.0 ft³ for ported applications tuned to 35 Hz.

Key Features

• High-Power 12" Subwoofer – Handles 3,500W RMS and 7,000W maximum power for extreme bass performance
• Dual 1-Ohm Voice Coils – Provides flexible wiring configurations for high-powered amplifier systems
• Carbon-Fiber Cone – Lightweight and rigid construction designed for powerful, controlled bass reproduction
• 6" Carbon-Fiber Dust Cap – Reinforces the cone assembly while maintaining a lightweight, rigid design
• High-Excursion Design – Features 22.5 mm of one-way excursion for substantial cone movement and increased air displacement
• 3.5" Aluminum Voice Coil – Supports high power handling and improved heat dissipation
• CCAR Winding – Designed to support reliable performance during demanding high-power operation
• 425 oz Ferrite Magnet – Provides substantial motor force for high-output bass applications
• Foam Surround – Allows controlled high-excursion cone movement while supporting durability
• Aluminum Basket – Provides a strong, rigid foundation for the motor and moving components
• 4-Gauge Push Terminals – Accommodates heavy-gauge speaker wire for high-powered installations
• Improved Heat Dissipation – Designed to help manage heat during extended high-power operation
• SPL-Oriented Performance – Engineered for high-output systems where powerful bass reproduction is a priority
• Flexible Enclosure Compatibility – Suitable for sealed and ported enclosure applications
• Recommended Ported Enclosure – Approximately 2.0 ft³ internal volume tuned to 35 Hz
• Recommended Sealed Enclosure – Approximately 1.3 ft³ internal volume

Specifications

• Model: CARBON12.1D
• Series: CARBON
• Subwoofer Size: 12"
• Nominal Diameter: 12" / 305 mm
• Voice Coil Configuration: Dual 1-Ohm (1+1 Ohm)
• Power Handling RMS: 3,500 Watts
• Power Handling MAX: 7,000 Watts
• Sensitivity: 82 dB (1W/1m)
• Frequency Response: 10–200 Hz
• Recommended Low-Pass Crossover: 60 Hz
• Cone Material: Carbon Fiber
• Cone Shape: Conic
• Dust Cap Material: Carbon Fiber
• Dust Cap Size: 6" / 150 mm
• Surround Material: Foam
• Voice Coil Diameter: 3.5" / 89 mm
• Voice Coil Former Material: Aluminum
• Voice Coil Winding: CCAR
• Spider Diameter: 9" / 228 mm
• Leads Connection Type: Spider Crossed
• Magnet Material: Ferrite
• Magnet Weight: 425 oz
• Basket Material: Aluminum
• Basket Finish: Aluminum/Black
• Speaker Terminals: 4-Gauge Push Terminals
• Xmax / One-Way Excursion: 22.5 mm
• Free Air Resonance (Fs): 38 Hz
• Equivalent Volume (Vas): 15.8 L / 0.557 ft³
• Moving Mass (Mms): 349.305 g
• BL Factor: 14.3
• Voice Coil Inductance: 0.98 mH
• Diaphragm Area: 471.4 cm²
• DC Resistance: 1+1 Ohms

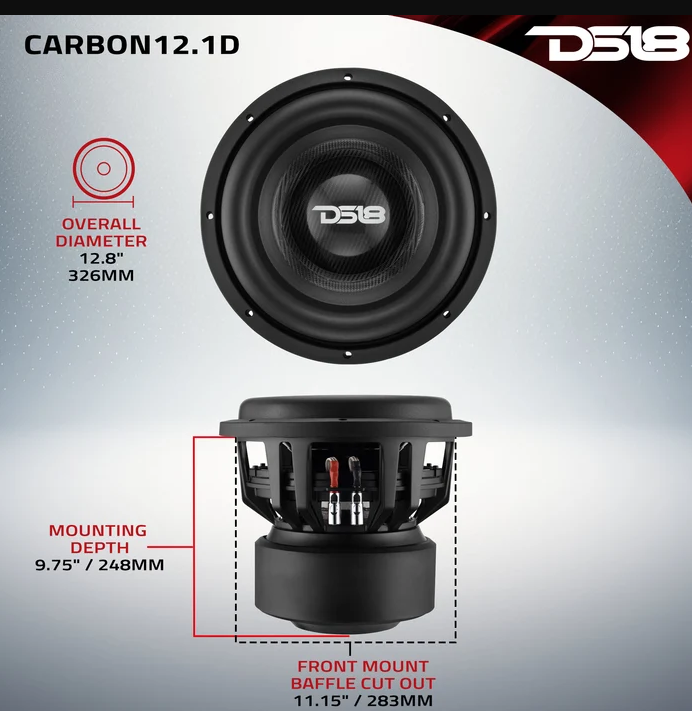

• Overall Diameter: 12.8" / 326 mm
• Overall Depth: 11.65" / 296 mm
• Mounting Depth: 9.75" / 248 mm
• Front Mount Baffle Cutout: 11.15" / 283 mm
• Motor Diameter: 9" / 230 mm

Package Includes

• 1 × DS18 CARBON12.1D 12" Dual 1-Ohm High Excursion Subwoofer
• 1 × Owner's Manual
• Mounting Hardware

SKU: DS-CARBON12.1D
UPC: 810199442372
