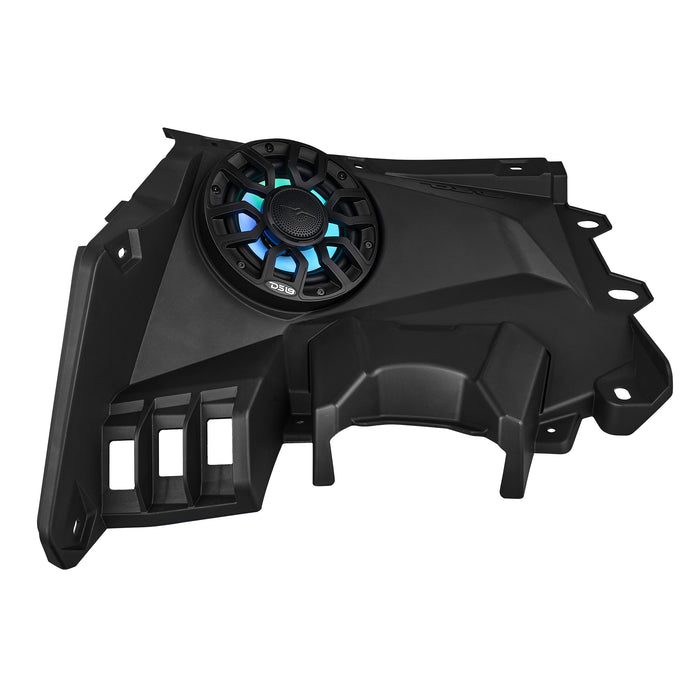

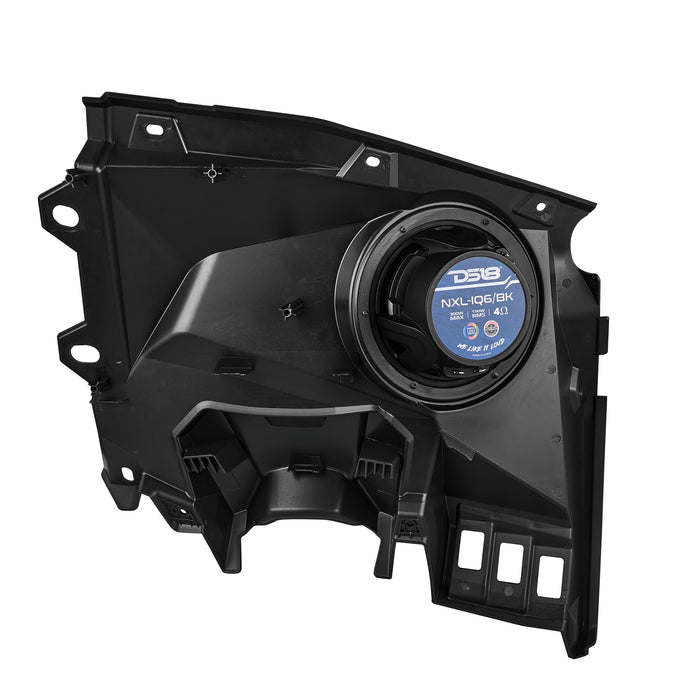

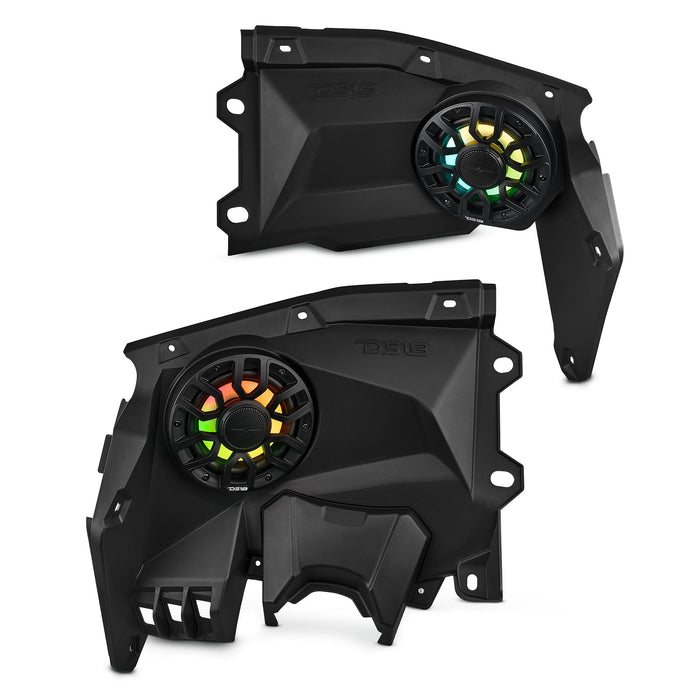

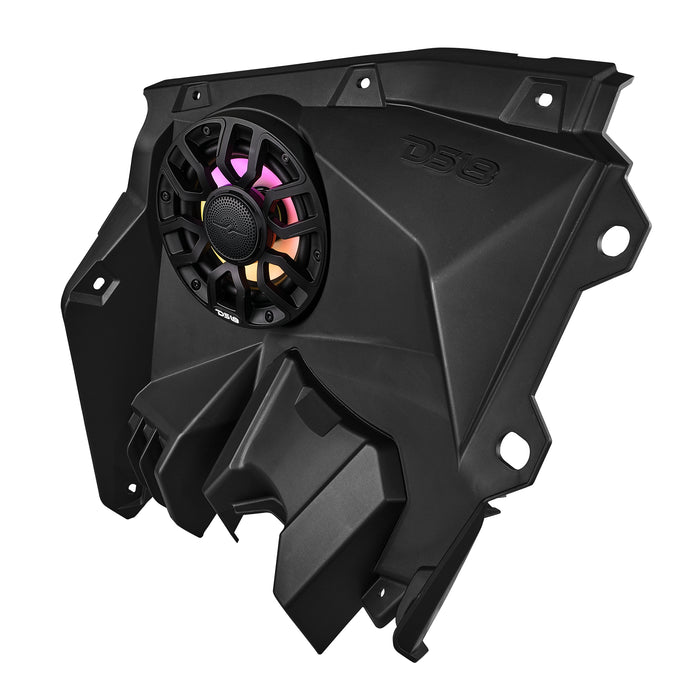

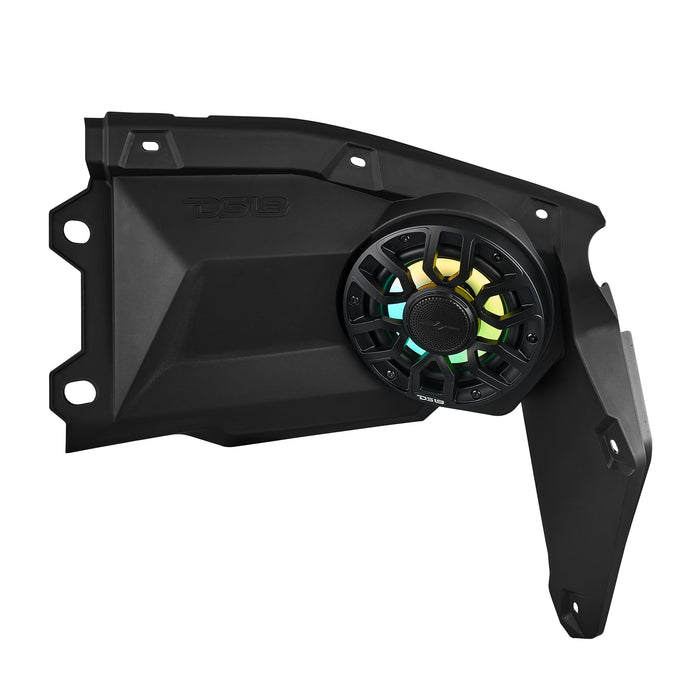

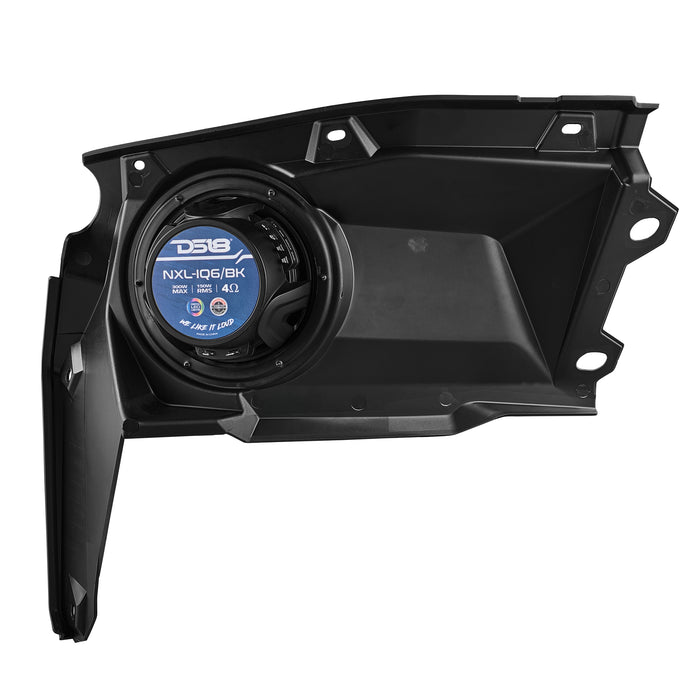

DS18 Can-Am Maverick X3 Dashboard Panel Loaded with 6.5" Speaker and Digital Lights

Only 2 left
SKU: DS-CA-X3DS6LDv2
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $699.95 USD

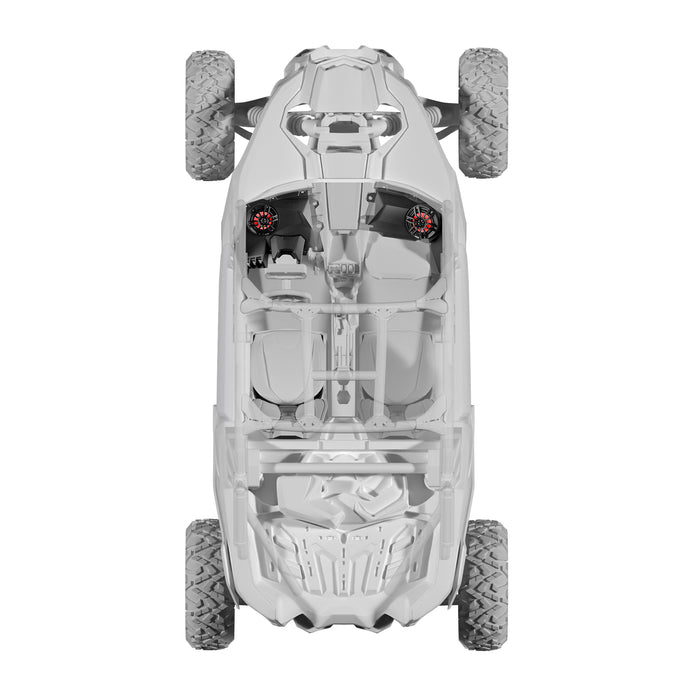

Turn up the trail vibes with DS18’s CA-X3DS6LDV2—custom dashboard panels for 2017–2023 Can-Am X3 models, loaded with waterproof 6.5” NXL-IQ6/BK speakers and digital LED lighting. Built tough with IP65-rated audio, these panels bolt right into factory dash spots with no cutting needed. Add DS18’s LC-DRM controller (sold separately) to unlock full LED control via app. Smart-Lok compatible and ready to ride, this upgrade delivers bold sound and style with a factory-fit look.

Features:

  • OEM Fit CAN-AM X3 (2017-2023)
  • 2 X 6.5" NXL-IQ6/BK Coaxial Speakers
  • Dash Panel Loaded Enclosure - Smart-Lok Compatible
  • Digital LED Lights
  • Pair (R&L)
  • Water Resistant IP65

Specifications:

SKU
CA-X3DS6LDV2
Box Type
Front Bafle
Box Material
Polyethylene (PE)
Finish Material
Black
UV Protection
Yes
Waterproof Rating
IP65
Total Impedance
4+4 Ohms (Left & Right)

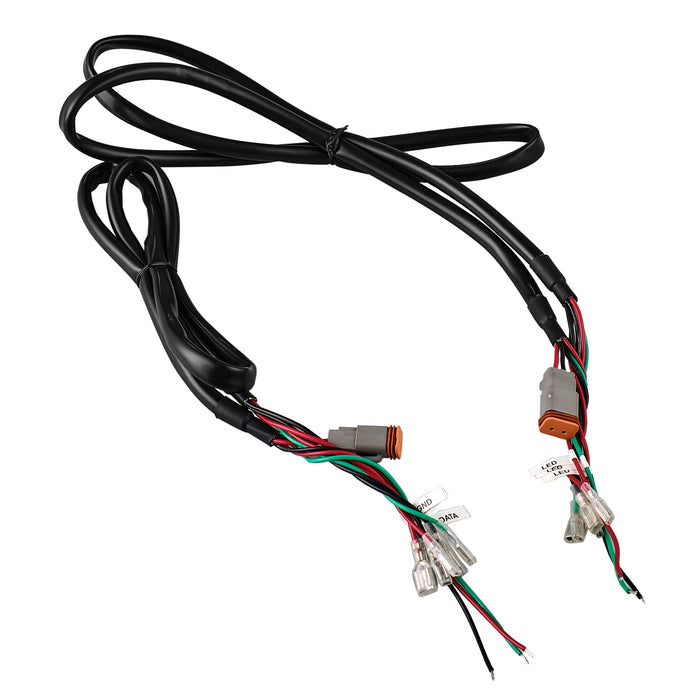

Input Wire (Harness)
2 x 6 Core OFC Tinned (2ft / 0.6m)

Speaker Specs:

Model
NXL-IQ6/BK
Speaker Type / Size
6.5" Waterproof Coaxial with Digital LED
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
95dB
Frequency Response
45Hz-20KHz
Recommended Hi Pass Crossover
60Hz
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Ferrite+Neodymium
Magnet Weight
13 oz + 1.1oz

Tweeter Specs:

Model
NXL-IQ6/BK
Type
Floating Bullet Tweeter
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminium
Bullet Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Neodymium (N35H)
Magnet Weight
0.4 oz

Measurement:

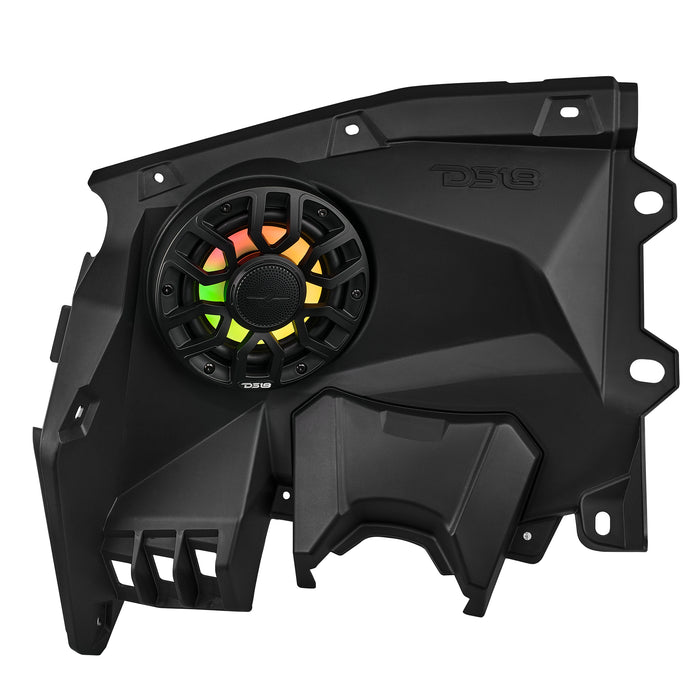

Overall Height (Driver Side)
5.86" / 149mm
Overall Width (Driver Side)
20" / 506mm
Overall Depth (Driver Side)
20.4" / 520mm

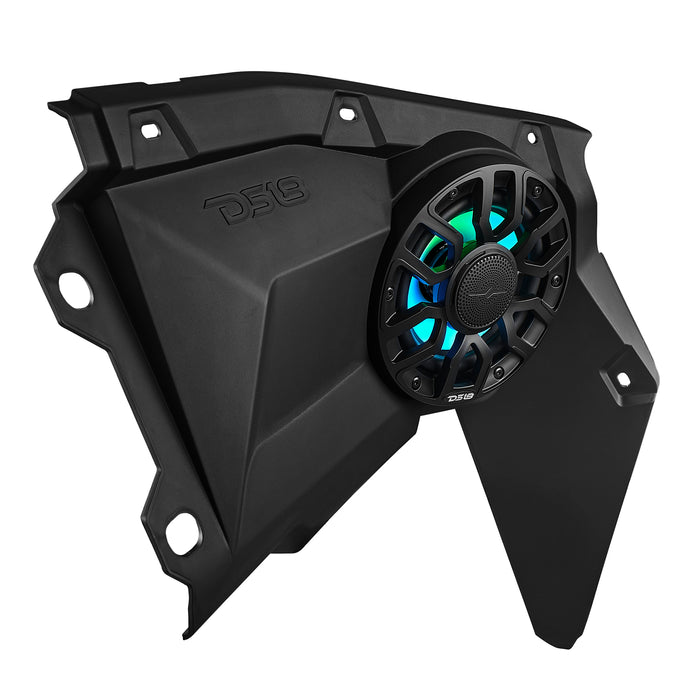

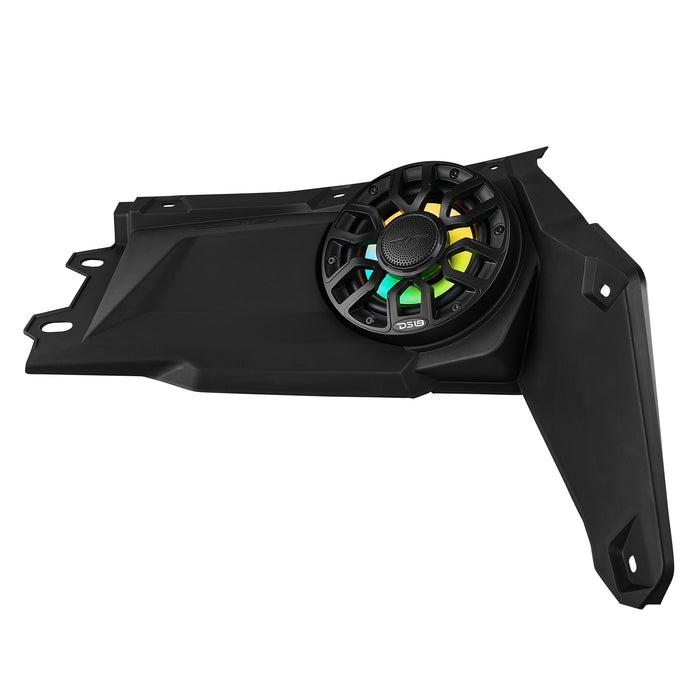

Overall Height (Passenger Side)
6.1" / 155mm
Overall Width (Passenger Side)
20" / 518mm
Overall Depth (Passenger Side)
19.3" / 490mm
Speaker Mounting Hole
5.7" / 145mm
