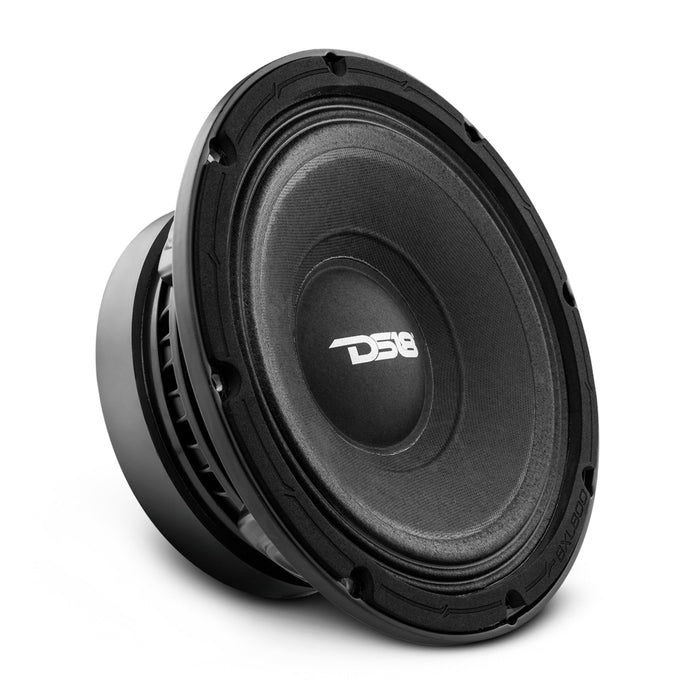

DS18 8XL800-8 XL 8" Mid-Range Loudspeaker 400 Watts Rms 8-Ohm

This 8-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.

With power handling of 400W RMS and 800W MAX these speakers are guaranteed to blow you away. The frequency response of 60Hz-8KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 99 dB guarantees crystal-clear sound reproduction, even in large venues.

Crafted with precision, DS18’s 8XL800-8 features a 2" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at 56 ounces ensures powerful and accurate bass responses that will leave you amazed.

Features:

• 8" Mid-Range
• MAX Power: 800 Watts
• RMS Power: 400 Watts
• Impedance: 8-Ohm
• Ferrite Magnet
• 99dB

Specs:

SKU
8XL800-8
Nominal Diameter
8" / 203mm
Nominal Impedance
8 Ohm
RMS Power Handling
400 watts
MAX Power Handling
800 watts
Sensitivity (1w/1m)
99dB
Frequency Response
60Hz-8KHz
Recommended HI Pass Crossover
90Hz
Sold in Pair or Single
Single
Grill Included
No

Motor:

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-pressed Paper
Dust Cap Material
Paper
Bullet Material
N/A
Bullet Color/Finish
N/A
Surround Material
Cloth
Basket Material
Aluminum
Basket Color/Finish
Satin Black
Magnet Material
Ferrite
Magnet Weight
56 Oz
Displacement Volume
0.85L / 0.03ft3

Thiele & Small Parameters:

Equivalent Volume
14.8L / 0.52ft3
Excursion (one way)
2.3mm
Free Air Resonance
90Hz
Mechanical Factor
5.62
Electrical Factor
0.39
Total Factor
0.36
Mechanical Mass
15.2g
Mechanical Compliance
0.23mm/N
BL Factor
10.7
Voice Coil Inductance
0.05mH
Cone Area
211.24cm²
DC Resistance
5.5 ohm
Mechanical Mass w/o air
17.5

Meaurements:

Overall Diameter
8.2" / 210mm
Overall Depth
3.8" / 96.4mm
Front Mount Baffle Cutout
7.2" / 183mm
Mounting Depth
3.34" / 84.5mm
Motor Diameter
6.14" / 156mm
