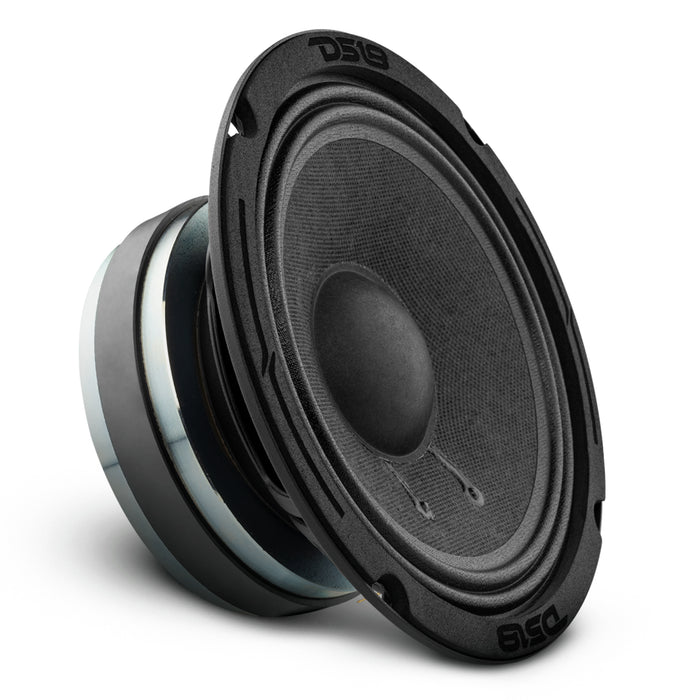

DS18 8PRO300MB-4 8" Mid-Bass Loudspeaker 150 Watts Rms 4-Ohm
Featuring a design that prioritizes powerful and punchy bass responses, the 8PRO300MB-4 is capable of delivering crystal-clear sound without any distortion, making it an ideal choice for anyone who likes their music loud and proud!
One of the standout features of these speakers is their impressive frequency response range, which spans from 80Hz to 6KHz. This means that you can expect a solid mid-bass response from the 8PRO300MB-4, essential for reproducing the lower frequencies of your music with crystal-clear clarity and impactful bass notes that truly resonate.
Boasting a 4 ohm impedance, the 8PRO300MB-4 can be easily integrated into any professional audio system without any hassle. With a 1.5” voice coil that can handle 150W RMS and 300W Max power levels, these speakers provide an impressively manageable power setting for a speaker with an incredibly high 96 dB sensitivity!
Features:
- 8" Mid-Bass
- MAX Power: 300 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 97dB
| Specification | Details |
|---|---|
| Model | DS18 8PRO300MB-4 |
| Speaker Type | 8" Mid-Bass Loudspeaker |
| Impedance | 4 Ohm |
| RMS Power Handling | 150 Watts |
| Max Power Handling | 300 Watts |
| Sensitivity | 97 dB @ 1W/1m |
| Frequency Response | 60Hz – 5KHz |
| Recommended Hi-Pass | 80Hz |
| Voice Coil Diameter | 1.5" (38.1mm) |
| Voice Coil Former | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel (Satin Black) |
| Magnet Type | Ferrite |
| Magnet Weight | 20 oz |
| Displacement Volume | 0.48L / 0.016 ft³ |
| Vas | 16.4L / 0.579 ft³ |
| Xmax | 9.8mm |
| Fs (Free Air Resonance) | 85Hz |
| Qms / Qes / Qts | 1.62 / 0.43 / 0.34 |
| Mms / Cms | 13.78g / 0.25mm/N |
| Bl | 7.82 |
| Le (Inductance) | 0.38mH |
| Sd (Diaphragm Area) | 213.82 cm² |
| Re (DC Resistance) | 3.5 Ohms |
| Overall Diameter | 8.2" / 210mm |
| Cutout Diameter | 7" / 178mm |
| Mounting Depth | 3.6" / 92mm |
| Overall Depth | 3.8" / 98mm |
| Motor Diameter | 4.5" / 115mm |
| Weight (Single Unit) | 5.5 lbs |
| Packaging (Master Carton) | 8 units, 44 lbs |
| Master Carton Dimensions | 18.25" x 18.25" x 9.25" |
| Sold In | Single |
| Grill Included | No |
| UPC | 810005185643 |
