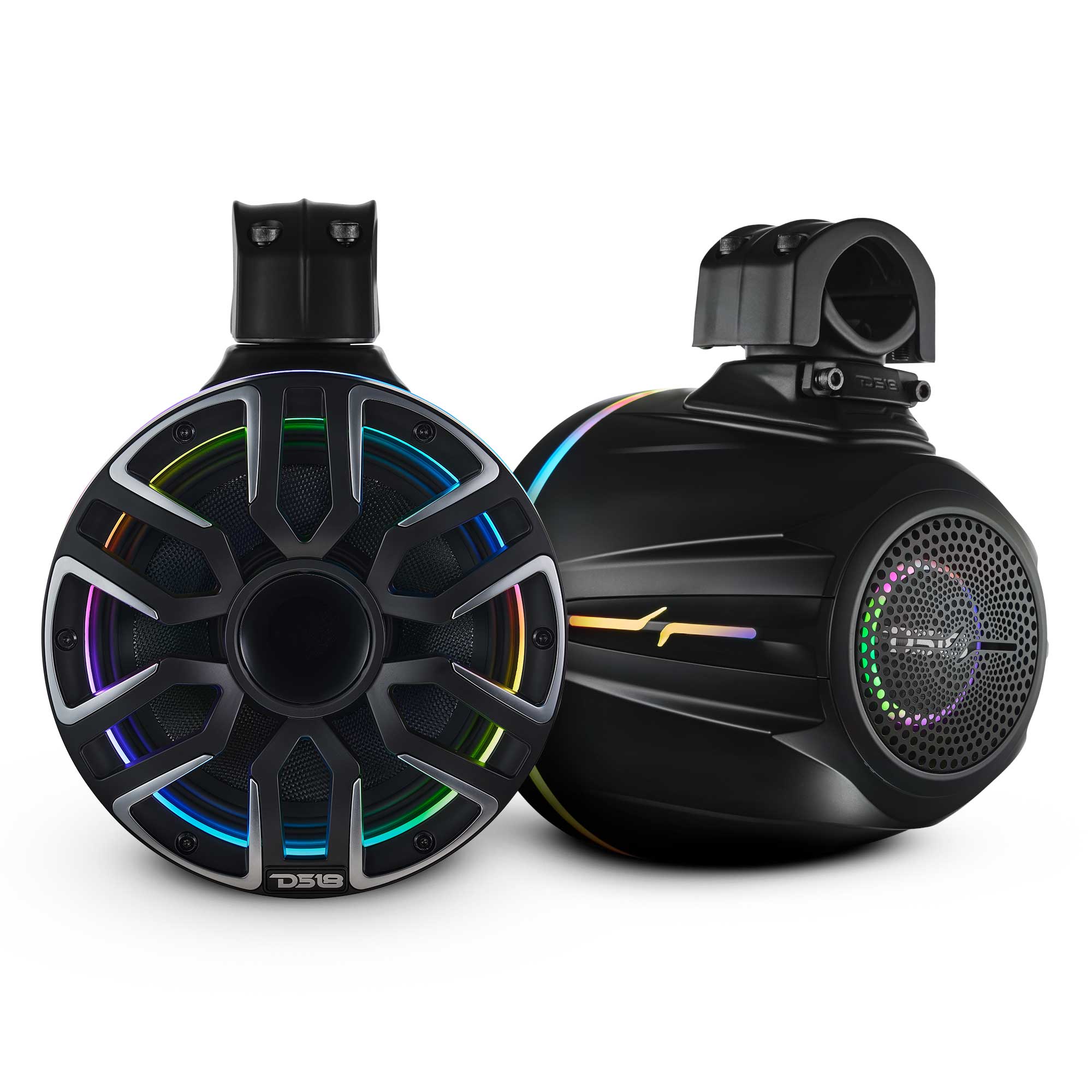

Compact and powerful 8” marine tower speaker with 200W RMS output, Kevlar cone, neodymium magnet, IP65 waterproof rating, and customizable digital LED lighting. Compatible with DS18 LC App and LC-DRM module.

Features:

• Kevlar Cone
• 360-Degree Rotation Mounting
• Compression Horn Driver
• Water-Resistant (IP65 Rated)
• Digital LED Lights

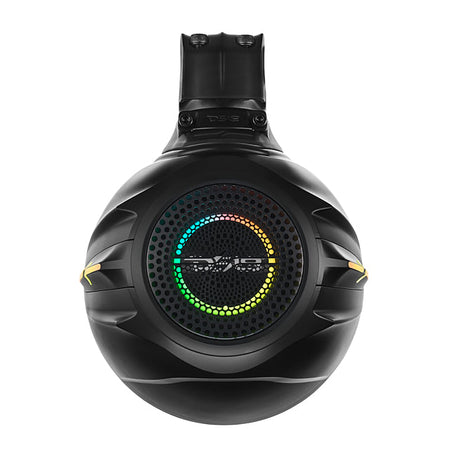

• Integrated Passive Radiator
• Download the DS18 LC APP: Compatible with the DS18 LC-DRM module
• This digital lighting system requires a digital signal from a compatible module to function correctly
• Do not attempt to power with direct current (DC)
• DS18’s BT Digital LED Control Module (LC-DRM) is required (sold separately)

General Specifications:

• Nominal Diameter: 8" / 203mm
• Nominal Impedance: 4 ohms
• RMS Power Handling: 200W
• MAX Power Handling: 400W
• Sensitivity (1w/1m): 99dB
• Frequency Response: 40Hz-20KHz
• Number of Ways: 2-Ways
• Recommended High-Pass Crossover: 60Hz

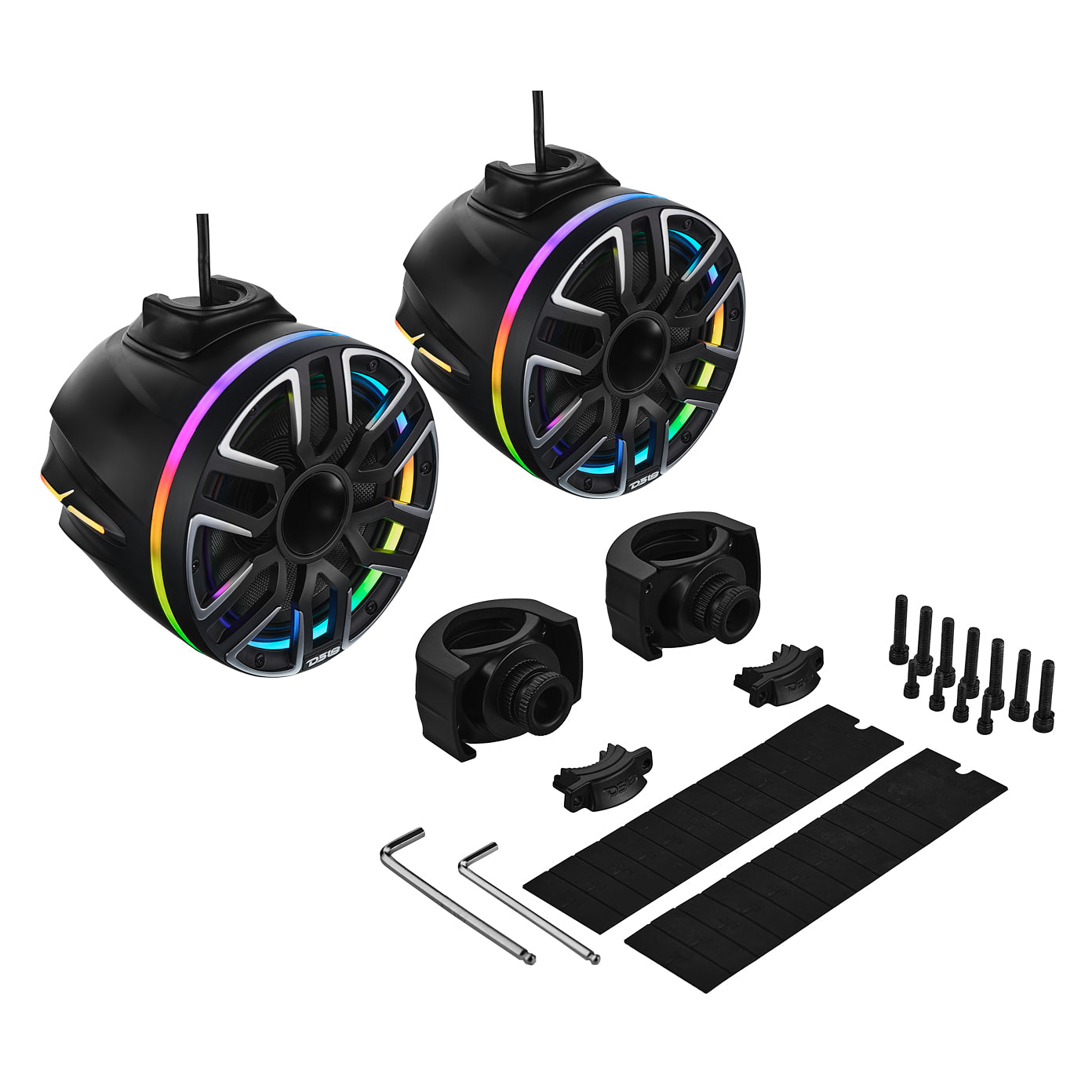

• Sold in Pairs
• UPC: 810097266636

Body/Features:

• Enclosure Material: Injection PC+ABS

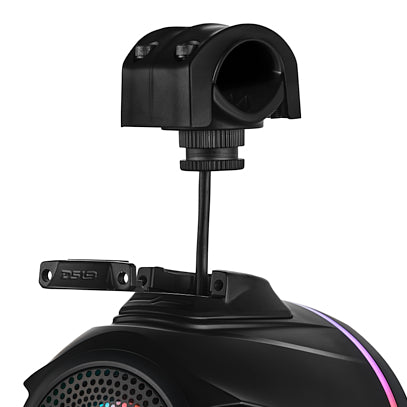

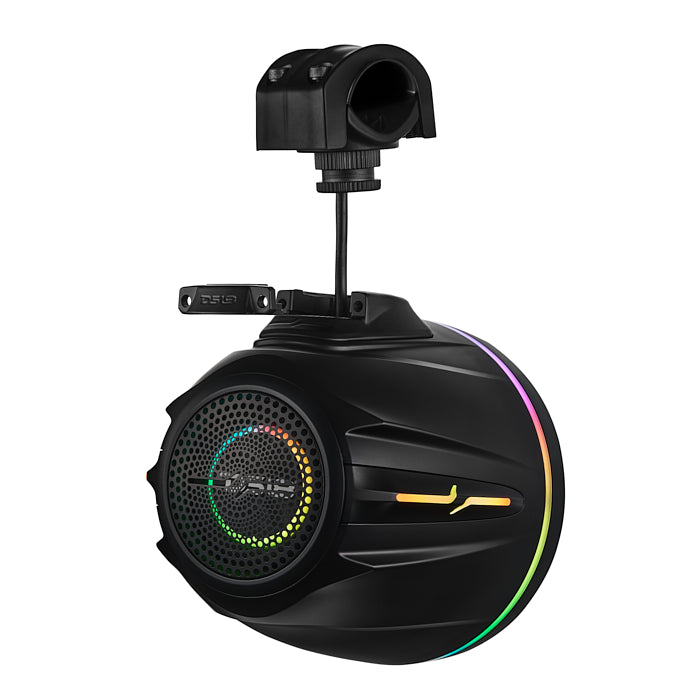

• Clamps Die-Cast Adjustable: (1"~2") 360 Degree Rotation Mounting Buried Wire
• Wiring 5 Core Wires for Lighting and Speaker
• UV Protection: Yes, 100% Stable
• Marine Grade: Type IP65
• Protection Coating: Yes, with PU
• Decorative Strips: Yes Electroplated
• LED Lights: Yes, Digital LED integrated
• Digital LED Connection Type: 12V + Digital input
• Digital LED Chip Type: 1815S
• Grill Type: Injection Molded Composite ASA
• Color / Finish: Matte Black

Woofer Specifications:

• Voice Coil Diameter: 2" / 50.6mm
• Voice Coil Former Material: Glass Fiber
• Winding Material: CCAW
• Cone Material: Kevlar
• Surround Material: Santoprene (Rubber)
• Basket Material: Aluminum Molded with UV Protection
• Magnet Material: Neodymium
• Magnet Weight: 8 Oz
• Passive Radiator: Yes, 4"

Driver Specifications:

• Type: Compression Horn
• Voice Coil Diameter: 1" / 25.4mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: PEN
• Horn Material: Aluminum
• Magnet Material: Neodymium (N38H)
• Magnet Weight: 1.85 Oz

Thiele & Small Parameters:

• Equivalent Volume Vas: 52.36L / 1.849ft3
• Excursion (one way) Xmax: 3.2mm
• Free Air Resonance Fs: 85Hz
• Mechanical Factor Qms: 12.46
• Electrical Factor Qes: 0.653
• Total Factor Qts: 0.621
• Moving Mass Mms: 26.82g
• Compliance Cms 0.165mm/Bl Factor BI: 8.5
• Voice Coil Inductance Le: 0.31mH
• Diaphragm Area Sd: 213.8cm²
• DC Resistance Re: 3.3 Ohms
• Efficiency Bandwidth Product EBP: 130

Speaker Measurement:

• Overall Diameter: 8.6″ / 219mm
• Overall Depth: 8.2″ / 207mm
• Overall Height (with Mast Clamp): 12.4" / 316mm
