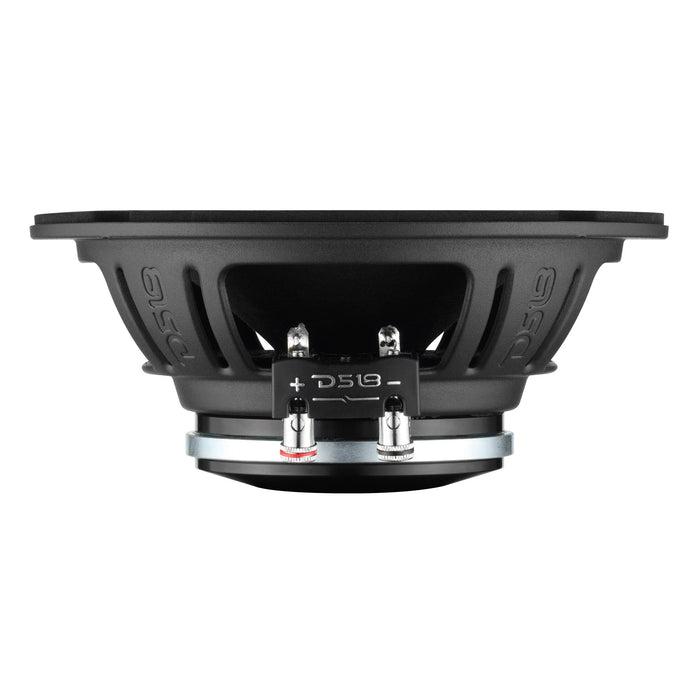

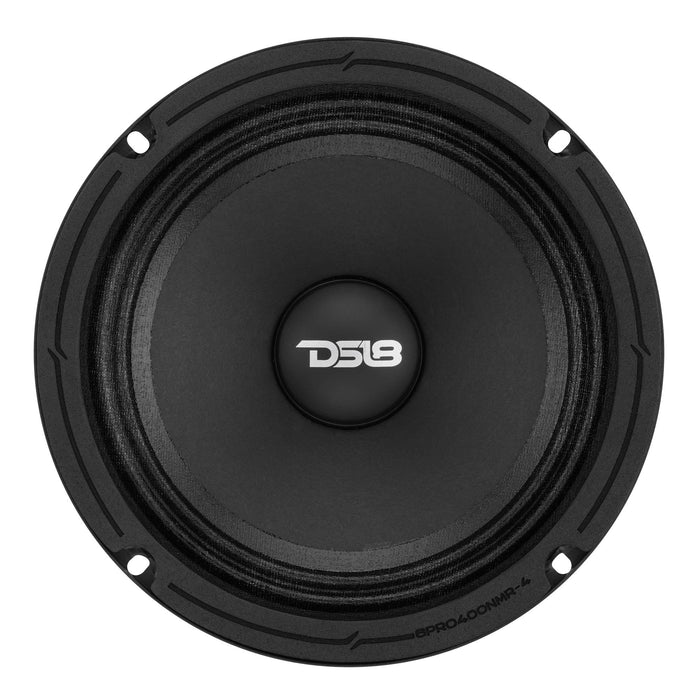

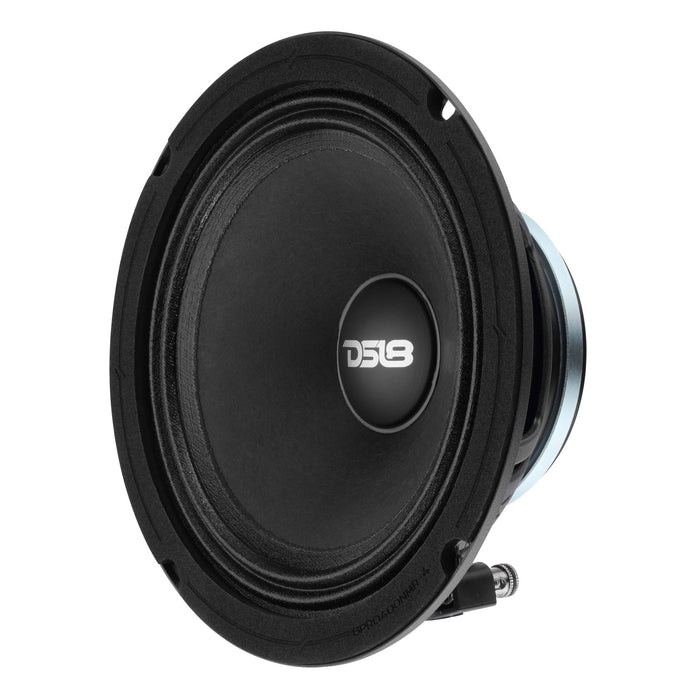

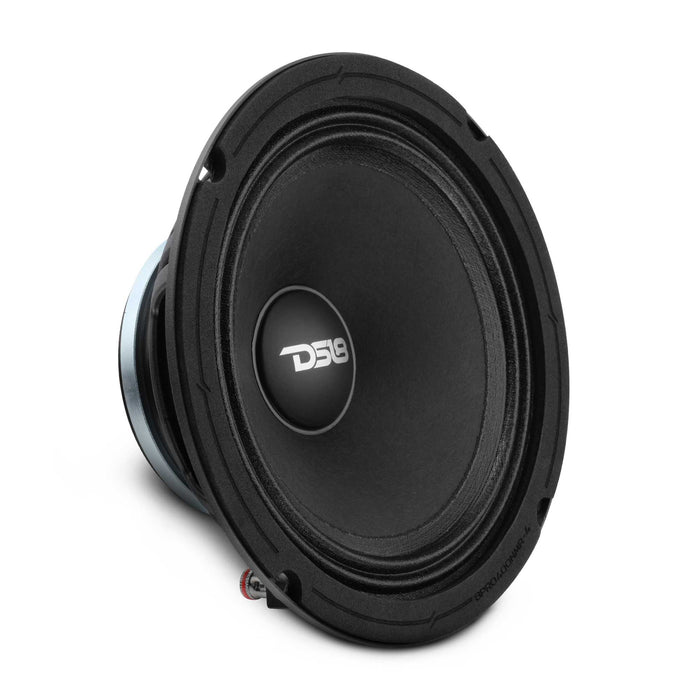

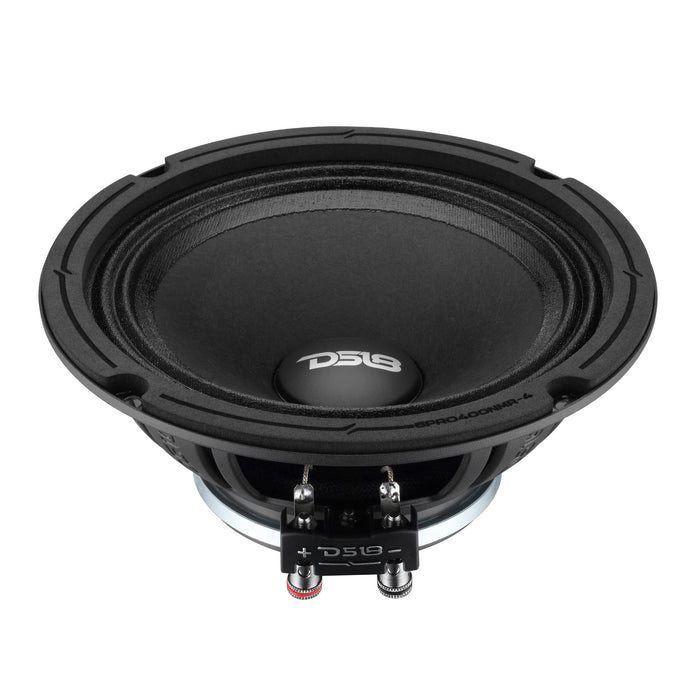

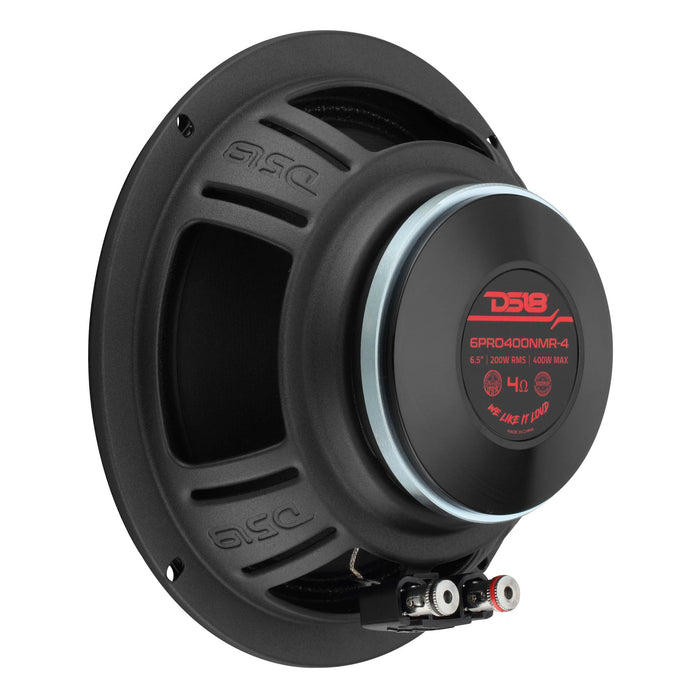

DS18 6PRO400NMR‑4 6.5″ Pro Audio Midrange Speaker | Neodymium Magnet | 200W RMS / 400W Max | 4 Ohm
Massive Power & Clarity
Superior Performance
Advanced Technology
Premium Quality
YOU MIGHT ALSO NEED
- High‑Power 200W RMS / 400W Max midrange performance for loud, clear vocals
- Neodymium magnet motor provides strong output with reduced weight
- 100 dB high sensitivity for efficient, high‑output sound with less power
- Wide 120 Hz–17 kHz frequency range for smooth, detailed midrange reproduction
- Lightweight yet durable paper cone with cloth surround for fast, accurate response
Specifications:
General Specifications
Nominal Diameter: 6.5 in / 165 mm
Nominal Impedance: 4 Ohms
RMS Power Handling: 200 Watts
MAX Power Handling: 400 Watts
Sensitivity (1W/1m): 100 dB
Frequency Response: 120 Hz – 17 kHz
Recommended High‑Pass Crossover: 140 Hz
Sold in Pairs or Single: Single
Demodulating Rings: Copper Ring
Cone Shape: Curvilinear
Speaker Terminals: Push terminals, accepts up to 16 ga cable
Motor / Voice Coil
Voice Coil Diameter: 1.5 in / 38 mm
Voice Coil Former Material: Kapton
Voice Coil Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Leads Connection Type: Spider Crossed
Basket Material: Steel
Basket Color: Black
Magnet Material: Neodymium
Magnet Weight: 8 oz
Thiele & Small Parameters
Vas (Equivalent Volume): 4.97 L / 0.175 ft³
Xmax (Excursion): 1.65 mm
Fs (Free Air Resonance): 145 Hz
Qms (Mechanical Q): 1.88
Qes (Electrical Q): 0.32
Qts (Total Q): 0.28
Mms (Moving Mass): 8.04 g
Cms (Mechanical Compliance): 0.14 mm/N
BL Factor: 5.08
Le (Voice Coil Inductance): 0.35 mH
Sd (Cone Area): 156.15 cm²
Re (DC Resistance): 3.5 Ohms
Measurements
Overall Diameter: 6.85 in / 174 mm
Overall Depth: 2.9 in / 74 mm
Front Mount Baffle Cutout: 5.9 in / 150 mm
Mounting Depth: 2.5 in / 63.5 mm
Motor Diameter: 3.5 in / 90 mm
UPC: 810199441719
