DS18 69XL750NB-4 6x9” Midrange Loudspeaker – Neodymium Rings, Aluminum Bullet Tweeter | 375W RMS 4-Ohm

In stock
SKU: DS-69XL750NB-4
Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last
Regular price $239.95 USD
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping & Easy Returns
Secure Checkout
Massive Power & Clarity
Pro-grade output
Superior Performance
Built to dominate
Advanced Technology
Precision-built
Premium Build Quality
Designed to last

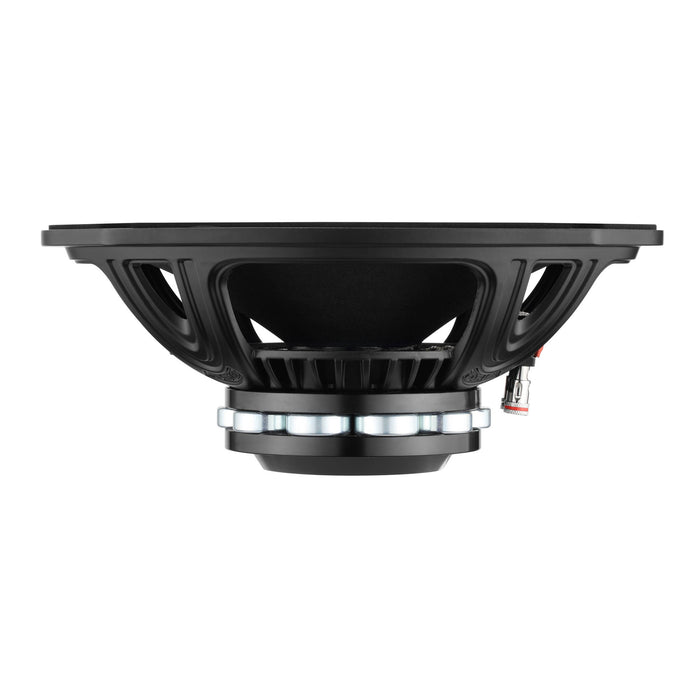

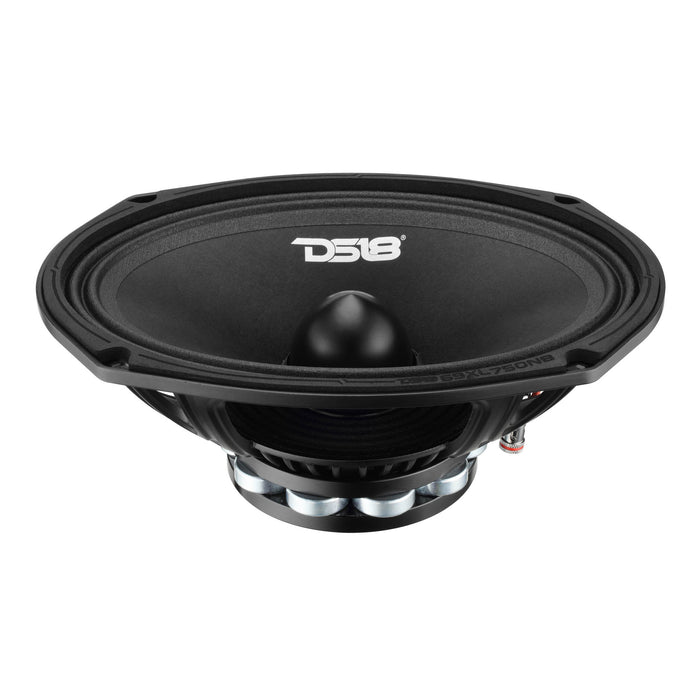

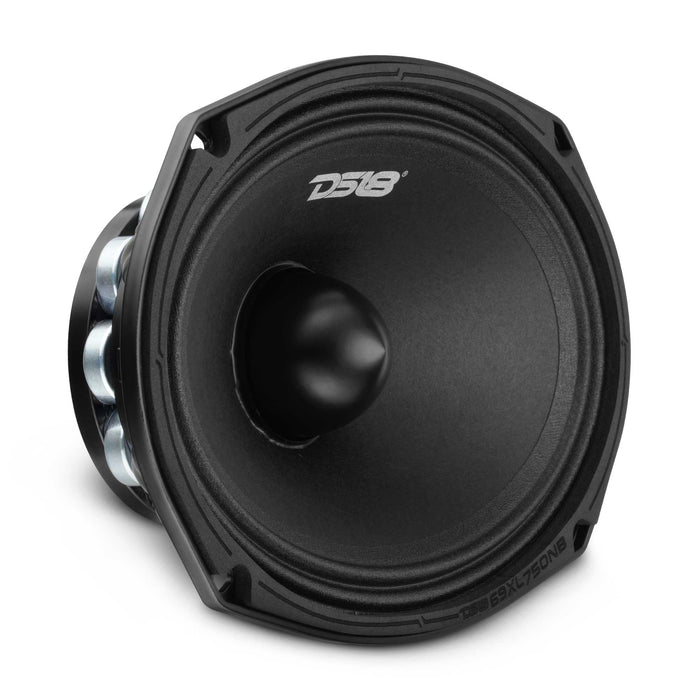

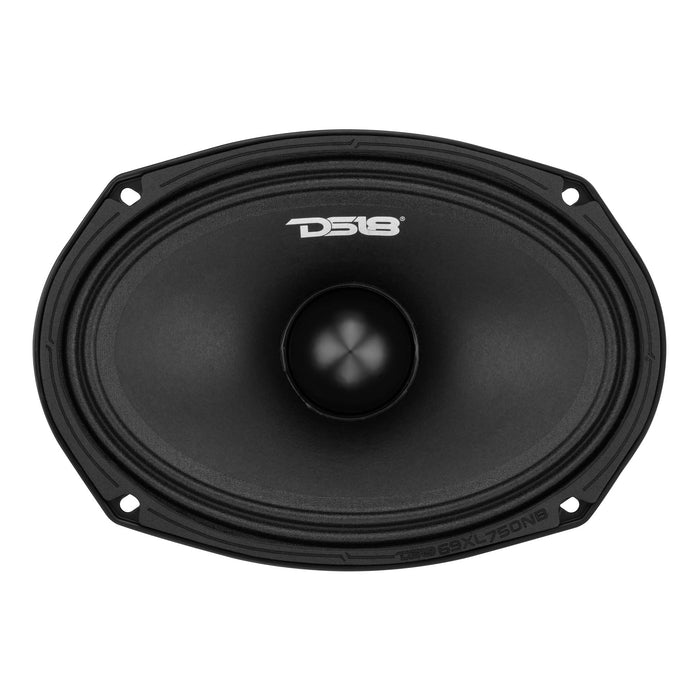

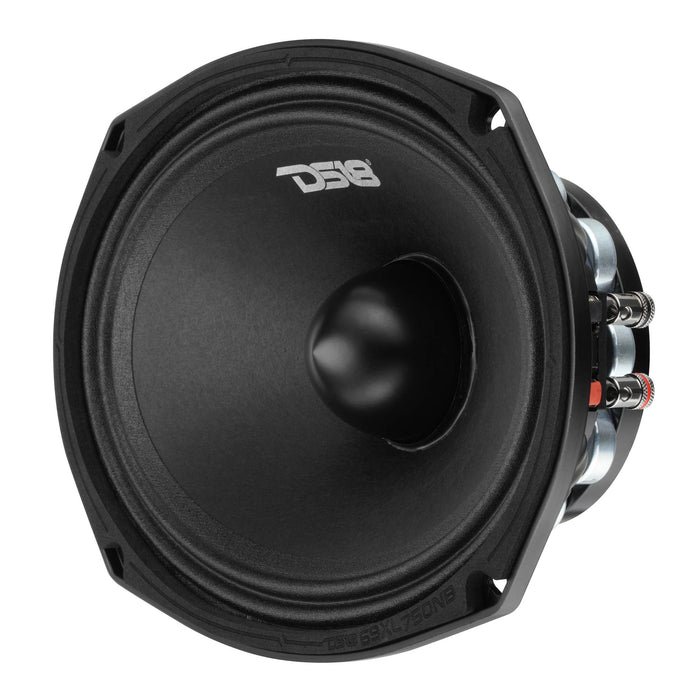

The DS18 69XL750NB-4 is a high-output 6x9” midrange speaker built for extreme loudness and clarity in demanding environments. With 97.5dB sensitivity and 750W max power, it delivers strong, clear vocals and smooth mids from 80Hz to 12.5kHz that cut through road and engine noise. Powered by lightweight neodymium rings for high efficiency and easy installation, it uses a durable paper cone and treated cloth surround for reliable performance under heavy use—perfect for systems that need to play loud, clean, and sharp.

Features:

  • 375W RMS / 750W Max Power / 97.5dB Sensitivity
  • Midrange Coaxial Design
  • Neodymium Ring Motor
  • Conical Paper Cone with Cloth Surround
  • Perfect for Pro Audio and Motorcycle Builds

Specifications:

Nominal Diameter
6x9" / 152 x 228mm
Nominal Impedance
4 ohms
RMS Power Handling
375 Watts
MAX Power Handling
750 Watts
Sensitivity (1w/1m)
97.5 dB
Frequency Response
80Hz-12.5kHz
Recommended High-Pass Crossover
100Hz
Sold in Pair or Single
Single
Grill Included
No


Features

Interleaved Sandwich Voice Coil (ISV)
No
Demodulating Rings
Yes
Improved Heat Dissipation
Yes
Cone Shape
Conical

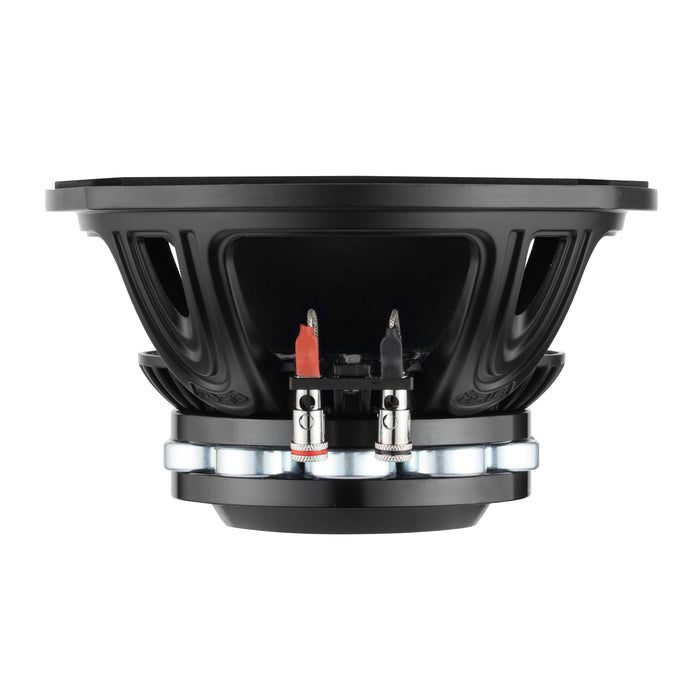

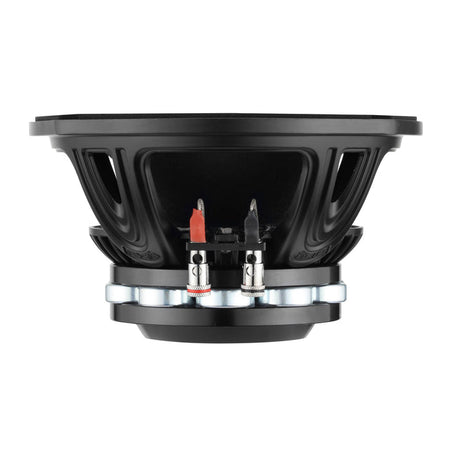

Speaker Terminals
Push 12ga


Motor

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
N/A
Bullet Material
Aluminum
Bullet Color/Finish
Black
Surround Material
Cloth
Leads Type
Spider Crossed
Basket Material
Aluminum
Basket Color/Finish
Satin Black
Magnet Material
Neodymium Rings
Magnet Weight
11.4 Oz
Displacement Volume
0.8L / 0.028ft3


Thiele & Small Parameters

Equivalent Volume
16.3L / 0.57ft3
Excursion (one way)
3.8mm
Free Air Resonance
90Hz
Mechanical Factor
3.907
Electrical Factor
0.221
Total Factor
0.209
Mechanical Mass
12.194g
Mechanical Compliance
0.249mm/N
BL Factor
10.052
Voice Coil Inductance
0.04mH
Cone Area
229.66cm2
DC Resistance
3.2 ohms
Mechanical Mass w/o air
12g


Measurement

Overall Diameter
6.6"x9.48" / 168x241mm
Overall Depth
3.73" / 95mm
Front Mount Baffle Cutout
6"x8.8" / 152.7x224.6mm
Mounting Depth
3.4" / 86.5mm
Motor Diameter
4.13" / 105mm

UPC: 810199440613
