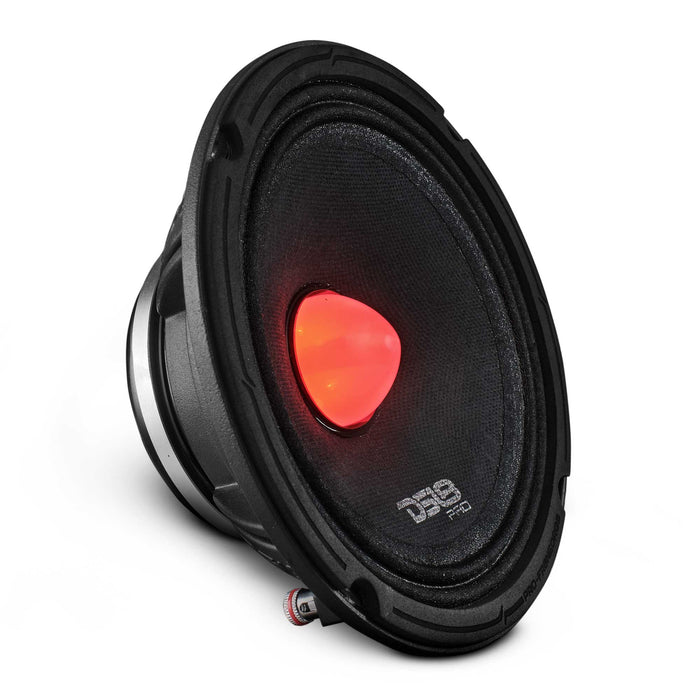

DS18 6.5" Full-Range Loudspeaker With RGB LED Bullet & Neodymium Magnet
6.5" Full-Range Loudspeaker With RGB LED Bullet & Neodymium Magnet
Superior sound comes alive with DS18’s PRO-FR6NEORGB!
This 6.5” high-performance loudspeaker combines powerful sound with vibrant RGB lighting. At its core, this speaker has a robust neodymium magnet, providing lightweight structural integrity that offers both powerful performance and durability. With an impressive RMS power handling of 225W and peak power of 450W, it delivers crystal-clear sound across a broad frequency range of 120Hz to 16kHz.
The stunning translucent ABS bullet material infused with RGB LED lighting, controllable via the DS18 LC app on both Android and iPhone devices. Customize your vehicle's atmosphere with ease using the optional DS18 LC-RGB controller for tailored lighting effects that match your mood or style. Installation is straightforward with options for RGB module connectivity or direct wiring modes.
Features:
- 6.5" Full-Range w/ RGB Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Impedance: 4-Ohm ~ 96dB
- Neodymium Magnet
- With RGB LED Lights
Specifications:
SKU: PRO-FR6NEO
Nominal Diameter: 6.5" / 165mm
Nominal Impedance: 4 Ohms
RMS Power Handling: 225W
MAX Power Handling: 450W
Sensitivity (1w/1m): 96dB
Frequency Response: 200Hz-16KHz
Recommended HI Pass Crossover: 200HZ
Sold in Pair or Single: Single
Grill Included: Yes
Motor:
Voice Coil Diameter: 1.5" / 38.6mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Non-Pressed Paper
Bullet Material: CNC Aluminum
Surround Material: Cloth
Basket Material: Aluminum
Magnet Material: Neodymium
Magnet Weight: 7.67Oz
Displacement Volume: 0.042L / 0.0015ft3
Thiele & Small Parameters:
Equivalent Volume Vas: 2.11L / 0.074ft3
Excursion (one way) Xmax: 0.8mm
Free Air Resonance Fs: 166Hz
Mechanical Factor Qms: 3.173
Electrical Factor Qes: 0.409
Total Factor Qts: 0.362
Mechanical Mass Mms: 11.31g
Mechanical Compliance Cms: 0.08mm/H
BL Factor BL: 9.79
Voice Coil Inductance Le: 0.472mH
Cone Area Sd: 136.85cm2
DC Resistance Re: 3.3 ohm
Measurement:
Overall Diameter: 6.5" / 165 mm
Overall Diameter (With Grill): 7.1" / 181mm
Overall Depth: 2.63" / 67 mm
Overall Depth (With Grill): 3.45" / 88mm
Front Mount Baffle Cutout: 5.7" / 145 mm
Mounting Depth: 2.36" / 60 mm
Motor Diameter: 3.54" / 90mm
| Feature | Specification |
|---|---|
| SKU | PRO‑FR6NEO |
| UPC | 663593063816 |
| Speaker Type | Full-Range Loudspeaker with Bullet |
| Size | 6.5″ (165 mm) |
| Impedance | 4 Ω |
| RMS Power | 225 W |
| Peak Power | 450 W |
| Sensitivity (1 W/1 m) | 96 dB |
| Frequency Response | ~200 Hz – ~16 kHz |
| Voice Coil Diameter | 1.5″ (38.6 mm), Kapton former, CCAW winding |
| Magnet | Neodymium |
| Mounting Depth | ~2.36″ (60 mm) |
| Cut-Out Diameter | ~5.7″ (145 mm) |
| Basket | Aluminum |
| Surround | Cloth Edge |
