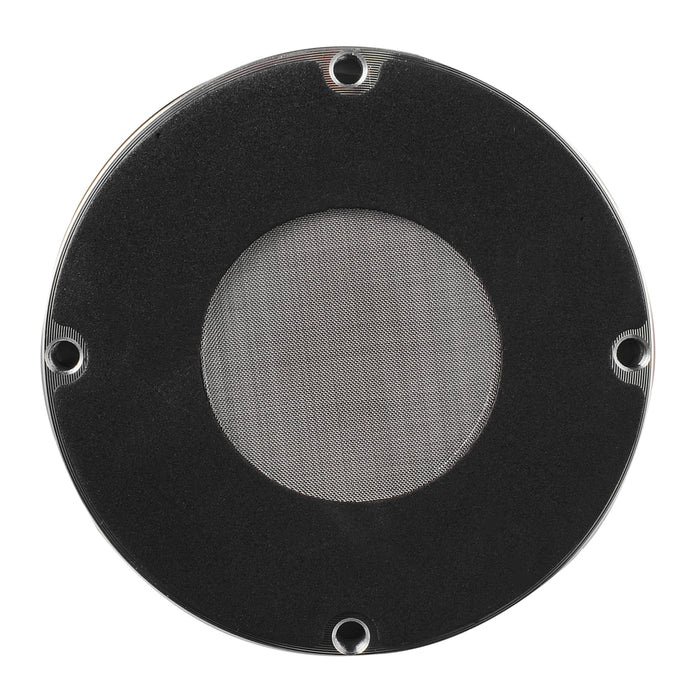

DS18 PRO-DN22TI.8 2" Throat Bolt-On Compression Driver (2" Titanium Voice Coil 8-Ohm)
2” Throat Bolt-On Compression Driver (2” Titanium Voice Coil / 8-Ohm)
Get superior sound with DS18’s PRO-DN22TI.8, an 8-ohm 2" high-power compression driver designed to deliver crystal-clear sound across mid-to-high frequencies, transforming your car’s sound system into an audiophile's dream. Handling an AES power of 200W / Program power of 400W / and a peak power of 800W, the PRO-DN22TI.8 stands as a titan in car audio upgrades, ensuring you experience every note with unparalleled clarity and volume.
The DS18 PRO-DN22TI.8 offers a seamless bolt-on installation, making it a perfect fit for serious automotive sound enhancements. Its professional-grade design features a robust 2" throat diameter and 8-ohm impedance, providing seamless integration into high-performance setups. The lightweight yet powerful neodymium magnet speaker and polyimide voice coil are crafted to sustain the demands of high-output audio systems, ensuring durability without sacrificing performance.
With an impressive frequency response ranging from 630Hz to 20kHz and a high sensitivity of 111 dB, this driver delivers exceptional sound output with minimal power usage. Its compact dimensions—4.4" overall diameter and 2.2" depth—allow for versatile installation, providing you with the flexibility you need to customize their setup without compromise.
Features:
- 2" Compression Driver
- RMS Power: 400 Watts(800 Watts Peak)
- Impedance: 8 Ohm ~ 111dB
- Neodymium Magnet - Titanium Diaphragm
- Bolt On
- Easily Repaired With The PRO-DN22TI.8VC
Specifications:
SKU: PRO-DN22TI.8
Throat Diameter: 2" / 50.8mm
Installation Type: Bolt-On
Nominal Impedance: 8 Ohms
AES Power Handling: 200W
Program Power Handling: 400W
Peak Power Handling: 800W
Sensitivity (1w/1m): 111dB
Frequency Response: 630Hz-20KHz
Recommended Hi Pass Crossover: 800Hz
Sold in Pair or Single: Single
Body / Features:
Filter (Bass Blocker): 10Uf/100V
Body Material: Aluminum
Body Color / Finish: Black / Machined
Motor:
Voice Coil Diameter: 2" / 50.8mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Neodymium
Magnet Material: Titanium
Magnet Weight: 9.9 Oz
Measurement:
Overall Diameter: 4.4" / 112mm
Overall Depth: 2.2" / 56mm
Bolt Pattern/Type: 4xM6 - 4" /102mm
Dimensions / Measurements:
Gross Single Unit Weight: 1.9kgs
Single Unit Box Dimensions W x L x H: 140x140x72mm
Quantity of Units in Master Carton: 8
Gross Master Carton Weight: 16.2kgs
Master Carton Dimensions W x L x H: 292x292x160mm
