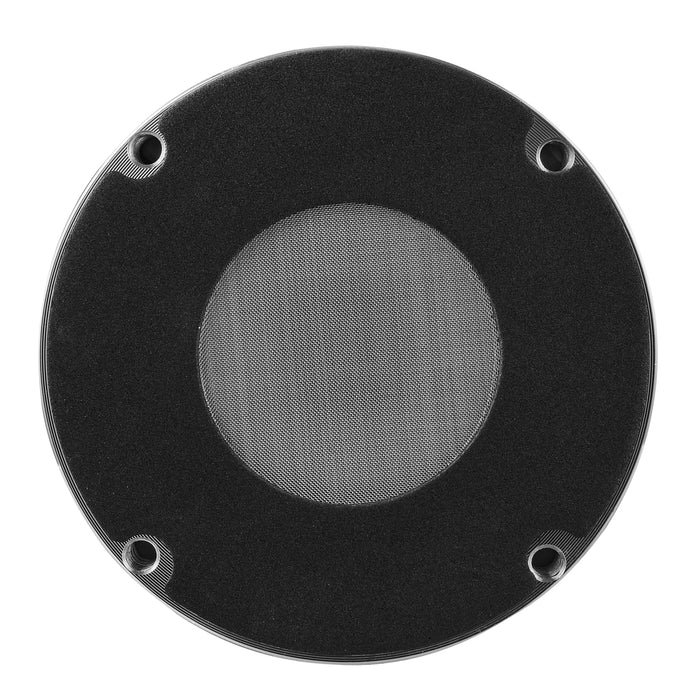

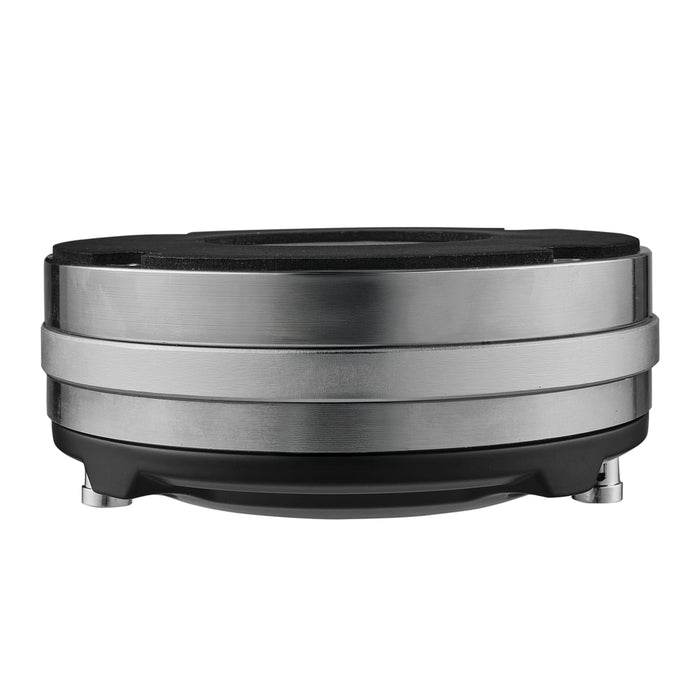

DS18 PRO-DN22PH.8 2” Throat Bolt-On Compression Driver (2” Phenolic Voice Coil / 8-Ohm)
Massive Power & Clarity
Superior Performance
Advanced Technology
Premium Quality
YOU MIGHT ALSO NEED
2” Throat Bolt-On Compression Driver (2” Phenolic Voice Coil / 8-Ohm)
DS18’s PRO-DN22PH.8 offers a seamless bolt-on installation, making it a perfect fit for serious automotive sound enhancements. Its professional-grade design features a robust 2" throat diameter and 8-ohm impedance, providing seamless integration into high-performance setups. The lightweight yet powerful neodymium magnet speaker and phenolic voice coil are crafted to sustain the demands of high-output audio systems, ensuring durability without sacrificing performance.
With an impressive frequency response ranging from 630Hz to 8kHz and a high sensitivity of 111dB, this driver delivers exceptional sound output with minimal power usage. Its compact dimensions—4.4" overall diameter and 2.2" depth—allow for versatile installation, providing you with the flexibility you need to customize their setup without compromise.
DS18’s PRO-DN22PH.8 is tailored to bring you authentic tones in your audio. Upgrade today and experience the #DS18Difference.
Features:
- 2" Compression Driver
- RMS Power: 400 Watts(800 Watts Peak)
- Impedance: 8 Ohm ~ 111dB
- Neodymium Magnet - Phenolic Diaphragm
- Bolt On
- Easily Repaired With The PRO-DN22PH.8VC
Specifications:
SKU: PRO-DN22PH.8
Throat Diameter: 2" / 50.8mm
Installation Type: Bolt-On
Nominal Impedance: 8 Ohms
AES Power Handling: 200W
Program Power Handling: 400W
Peak Power Handling: 800W
Sensitivity (1w/1m): 111dB
Frequency Response: 630Hz-8KHz
Recommended Hi Pass Crossover: 800Hz
Sold in Pair or Single: Single
Body / Features:
Filter (Bass Blocker): 10Uf/100V
Body Material: Aluminum
Body Color / Finish: Black / Machined
Motor:
Voice Coil Diameter: 2" / 50.8mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Phenolic
Magnet Material: Neodymium
Magnet Weight: 9.9 Oz
Measurement / Dimensions:
Overall Diameter: 4.4" / 112mm
Overall Depth: 2.2" / 56mm
Bolt Pattern/Type: 4xM6 - 4" /102mm
Gross Single Unit Weight: 1.9kgs
Single Unit Box Dimensions W x L x H: 140x140x72mm
Quantity of Units in Master Carton: 8
Gross Master Carton Weight: 16.2kgs
Master Carton Dimensions W x L x H: 292x292x160mm
| Category | Specification |
|---|---|
| Model | PRO-DN22PH.8 |
| UPC | 810097266346 |
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-On |
| Nominal Impedance | 8 Ohm |
| AES Power Handling | 200W |
| Program Power | 400W |
| Peak Power | 800W |
| Sensitivity | 111 dB (1w/1m) |
| Frequency Response | 630Hz – 8kHz |
| Recommended Crossover | 800Hz |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Phenolic |
| Magnet Type | Neodymium |
| Magnet Weight | 9.9 oz |
| Filter (Bass Blocker) | 10uF / 100V |
| Body Material | Aluminum (Black/Machined finish) |
| Overall Diameter | 4.4" / 112mm |
| Overall Depth | 2.2" / 56mm |
| Bolt Pattern | 4xM6 - 4" / 102mm |
| Single Unit Weight | 1.9 kg |
| Box Dimensions | 140 × 140 × 72mm |
| Master Carton Qty | 8 Units |
| Master Carton Weight | 16.2 kg |
| Master Carton Dimensions | 292 × 292 × 160mm |
