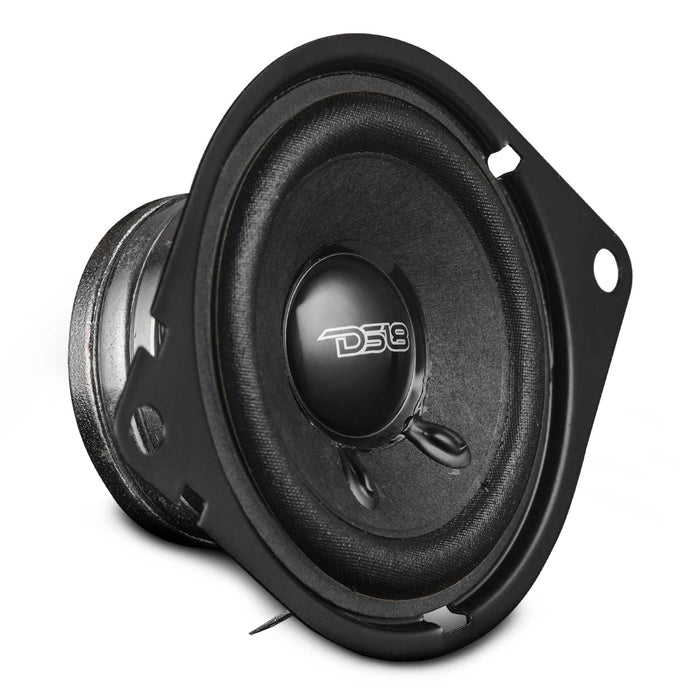

DS18 2.5" OEM Dashboard Loudspeaker 60W RMS 4 Ohm with Neodymium Magnet
DS18’s 25D120NO-4 is engineered for perfect audio experiences. Its durable paper cone and cloth surround enhance sound clarity while ensuring long-lasting durability, even under the most challenging automotive conditions. With a remarkable RMS power handling of 60W and impressive sensitivity of 89dB, this speaker offers high output with minimal power input, delivering dynamic and distortion-free audio.
Covering an extensive frequency range from 200Hz to 20KHz, this wide frequency car speaker promises balanced highs and mids that will transform your driving soundtrack. The KSV former (4-ohm) voice coil with CCAW winding optimizes performance, while the direct-to-cone lead connection ensures efficient energy transmission for superior sound quality.
Features:
- 2.5" Loudspeaker
- O.E.M. Dashboard Location
- RMS Power: 60 Watts(120 W Max)
- 4 Ohm
- Neodymium Magnet ~ 89dB
- Sold As: Pair
Specifications:
Nominal Diameter: 2.5" / 63.5mm
Nominal Impedance: 4 Ohms
RMS Power Handling: 60W
MAX Power Handling: 120W
Sensitivity (1w/1m): 89dB
Frequency Response: 200Hz - 20KHz
Recommended HI Pass Crossover: 250Hz
Sold in Pair or Single: Pair
Grill Included: No
Cone Shape: Curvilinear
Speaker Terminals: Regular Spade
Motor:
Voice Coil Diameter: 0.5" / 13.2mm
Voice Coil Former Material: KSV
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: PPI
Surround Material: Cloth
Spider Diameter: 1.67" / 42.5mm
Leads Connection Type: Direct to Cone
Basket Material: Steel
Basket Color/Finish: Black
Magnet Material: Neodymium
Thiele & Small Parameters
Equivalent Volume: 0.38L / 0.0134ft3
Free Air Resonance: 235Hz
Mechanical Factor: 5.96
Electrical Factor: 3.33
Total Factor: 2.14
Mechanical Mass: 0.71g
Mechanical Compliance: 0.64mm/N
BL Factor: 1.86
Voice Coil Inductance: 0.04mH
Cone Area: 20.43Cm2
DC Resistance: 3.8 Ohms
Mechanical Mass w/o air: 0.6g
Measurement:
Overall Diameter: 2.83" / 72mm
Overall Depth: 1.34" / 33mm
Front Mount Baffle Cutout: 2.6" / 66mm
Mounting Depth: 1.3" / 33mm
Motor Diameter: 1.65" / 42mm
