DS18 Bundle: SS-SSTT265-3 Vinyl Tiddy-Panel + 2x PRO-FR6NEO 6.5" Midrange + 2x PRO-TWN5 Tweeters

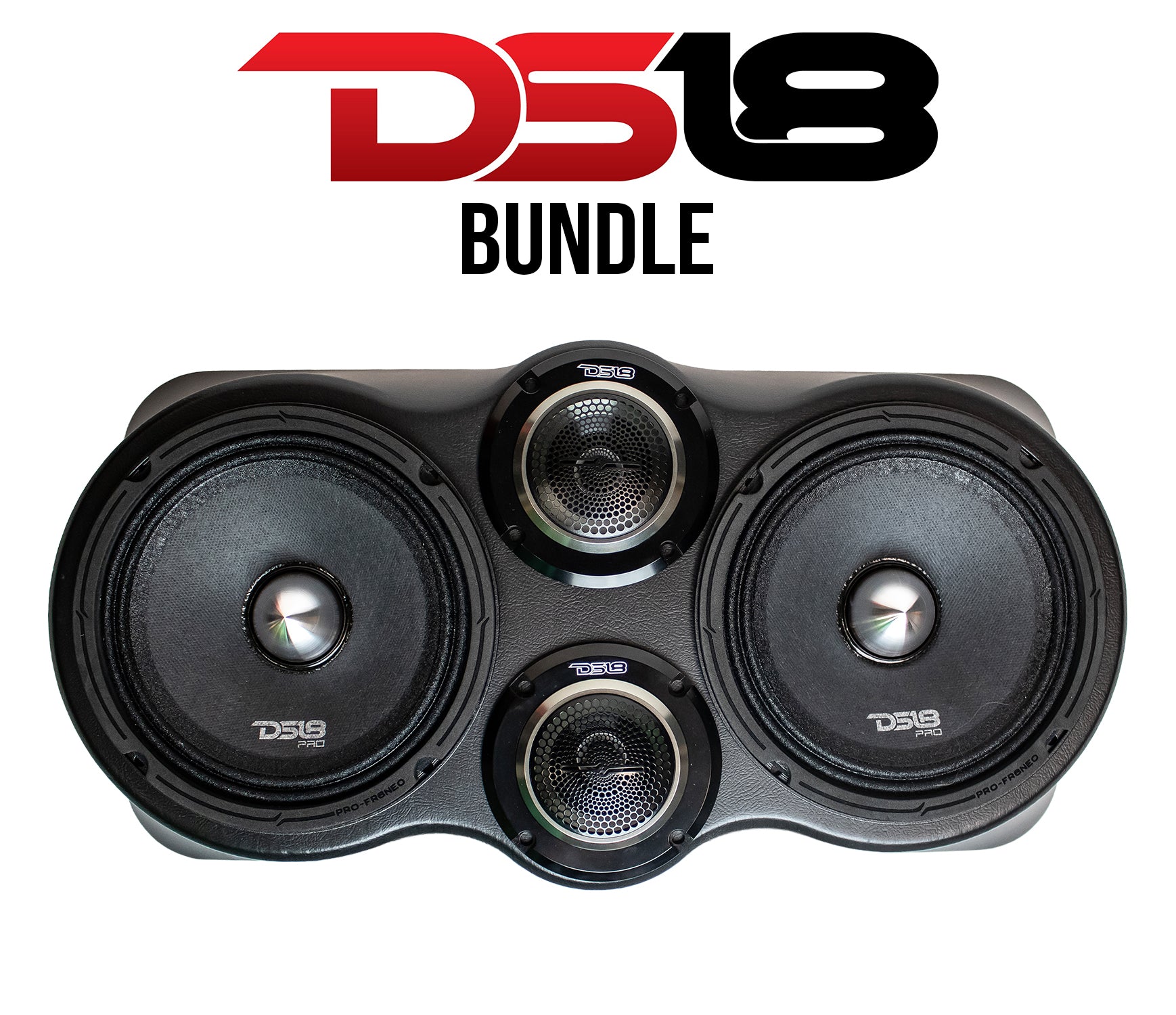

🔊 DS18 Sound Panel Bundle – Universal SS-SSTT265-3 Vinyl Tiddy-Panel with 2× PRO-FR6NEO 6.5" Midrange Speakers & 2× PRO-TWN5 1.5" Neodymium Tweeters

Transform your truck’s audio system with the DS18 Sound Panel Bundle, a premium all-in-one setup that delivers high-efficiency sound performance, clean installation, and a bold look. This complete combo includes the Universal SS-SSTT265-3 Vinyl Tiddy-Panel, two DS18 PRO-FR6NEO 6.5" Neodymium Full-Range Midrange Speakers, and two DS18 PRO-TWN5 1.5" Neodymium Compression Tweeters — designed to deliver unmatched clarity, loudness, and durability in any build.

*To protect product, all items will come packaged separately, not pre installed*

Whether you’re upgrading your daily driver or designing a show vehicle, this bundle gives you everything needed to create a high-performance audio stage right above your head.

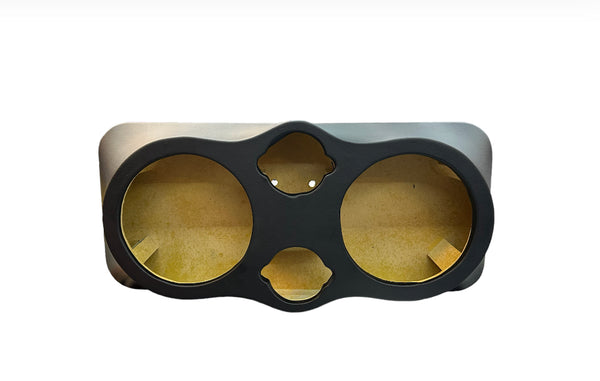

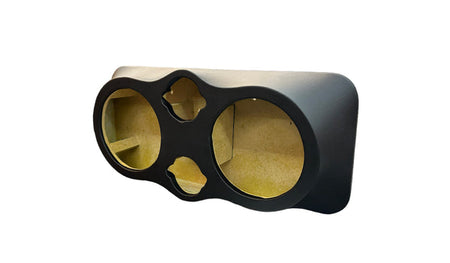

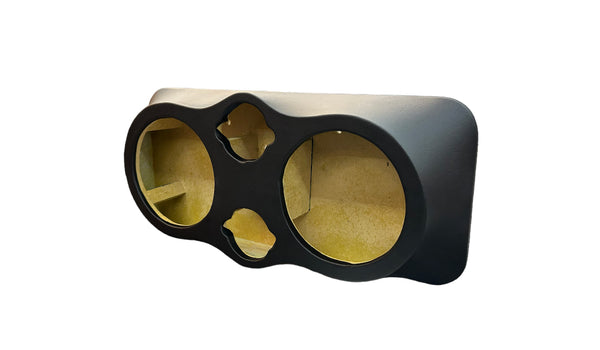

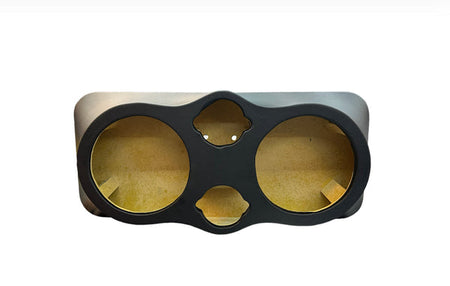

🎵 1) Universal SS-SSTT265-3 Vinyl Tiddy-Panel

Introducing the Tiddy-Panel, the latest universal-fit sound panel innovation — precision-built to fit any standard-cab truck with professional-grade quality and design.
Available in two configurations, the standard version features universal cutouts for 6.5” mids and 3” tweeters, while the “Apocalypse” version offers enlarged cutouts for 6.75” mids and dual 3” tweeters.

Specifications:

• Dimensions: 20" L × 9" W × 4" H

• Cutouts: 2× 6.5" midrange speakers, 2× 3.5" tweeters

• Fitment: Universal – fits most standard cab trucks

• Material: Vinyl finish with durable construction

• Mounting: Easy install with minimal modification

• Made for: Custom builds, clean installs, and loud soundstage setups

Experience a cleaner, louder, and more professional sound setup with this universal sound panel — the perfect foundation for high-performance midrange and tweeter configurations.

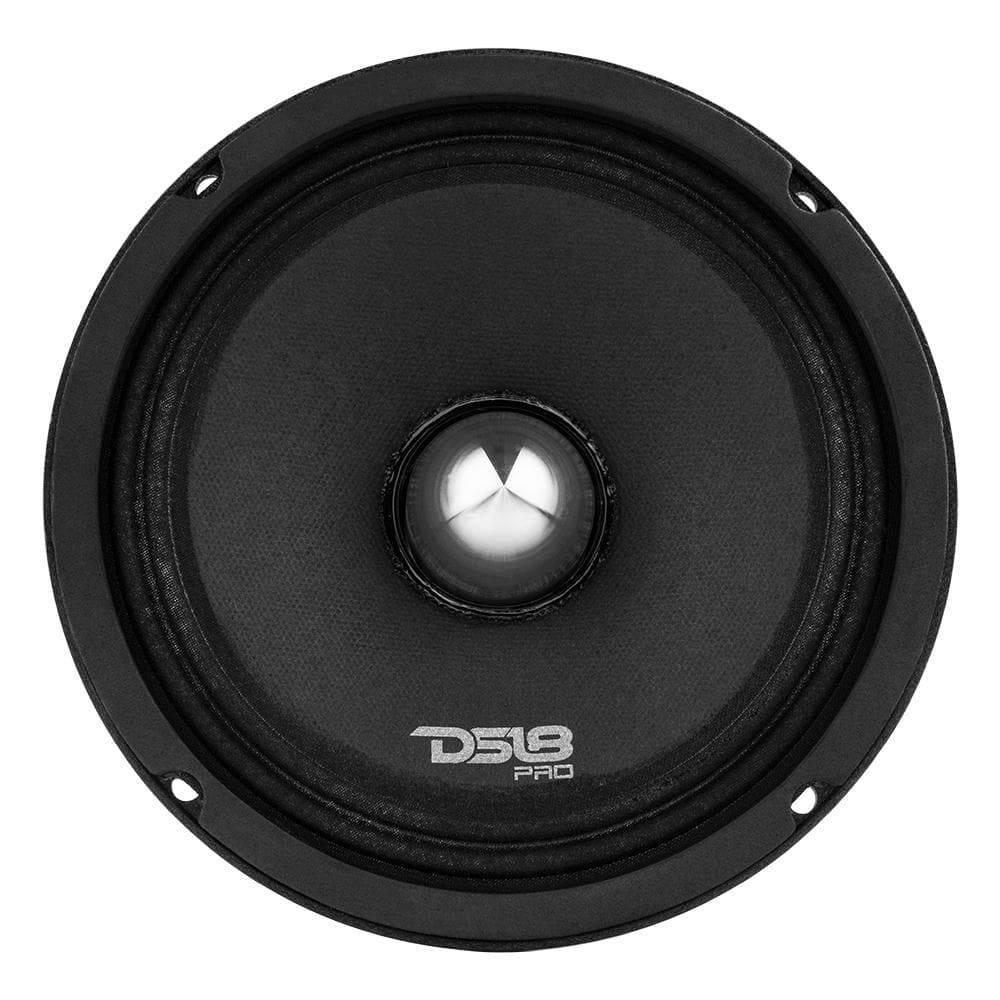

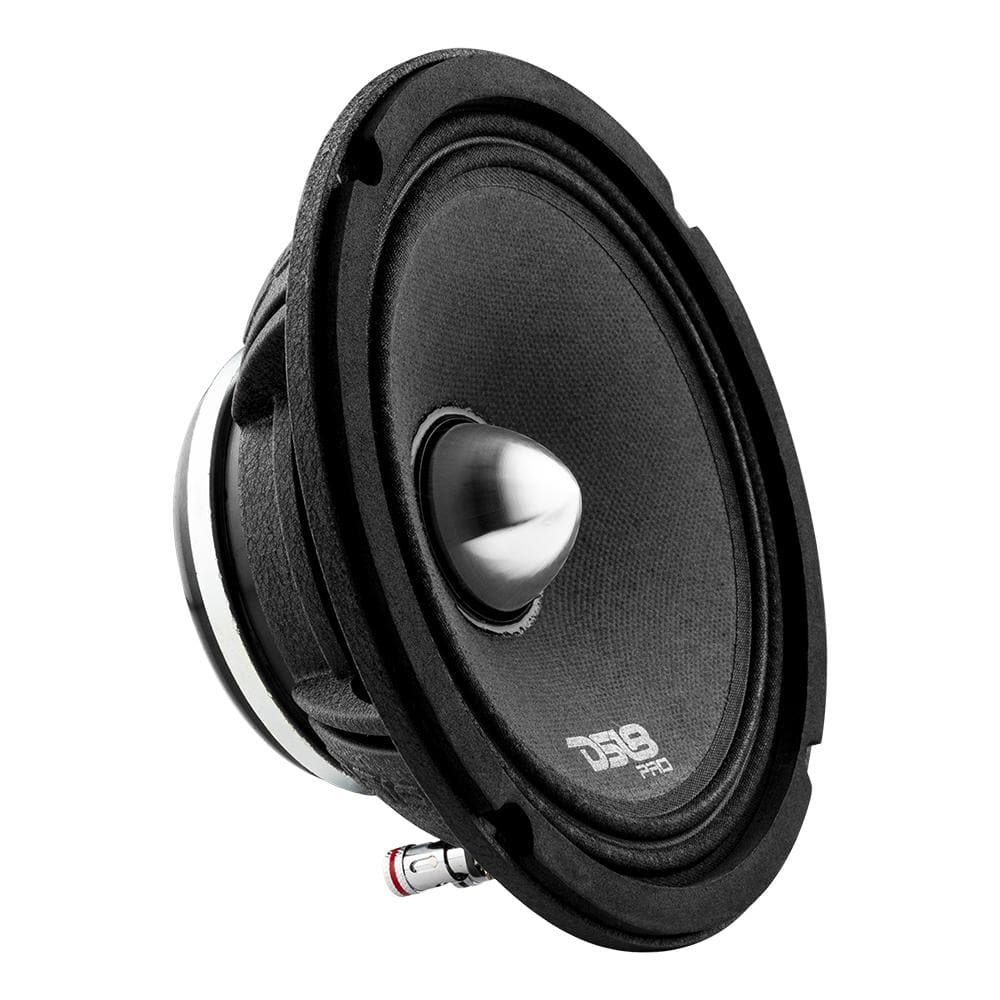

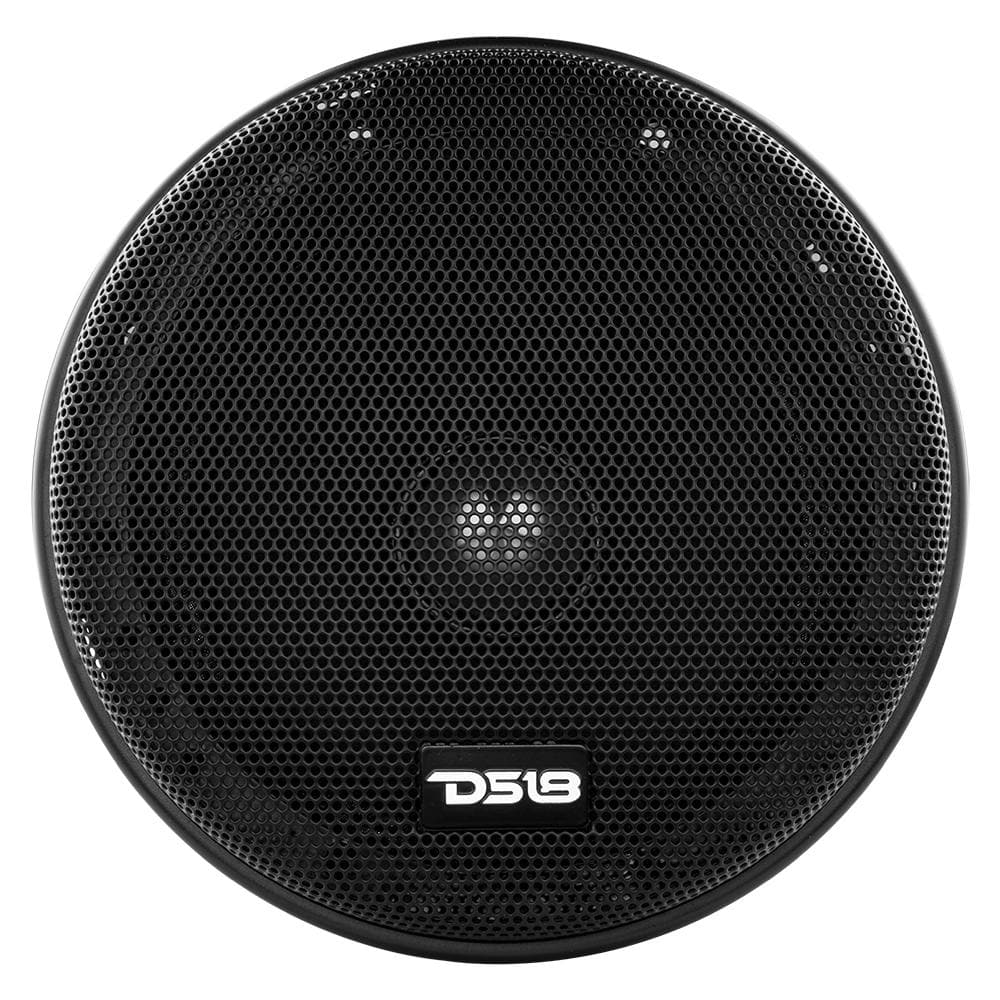

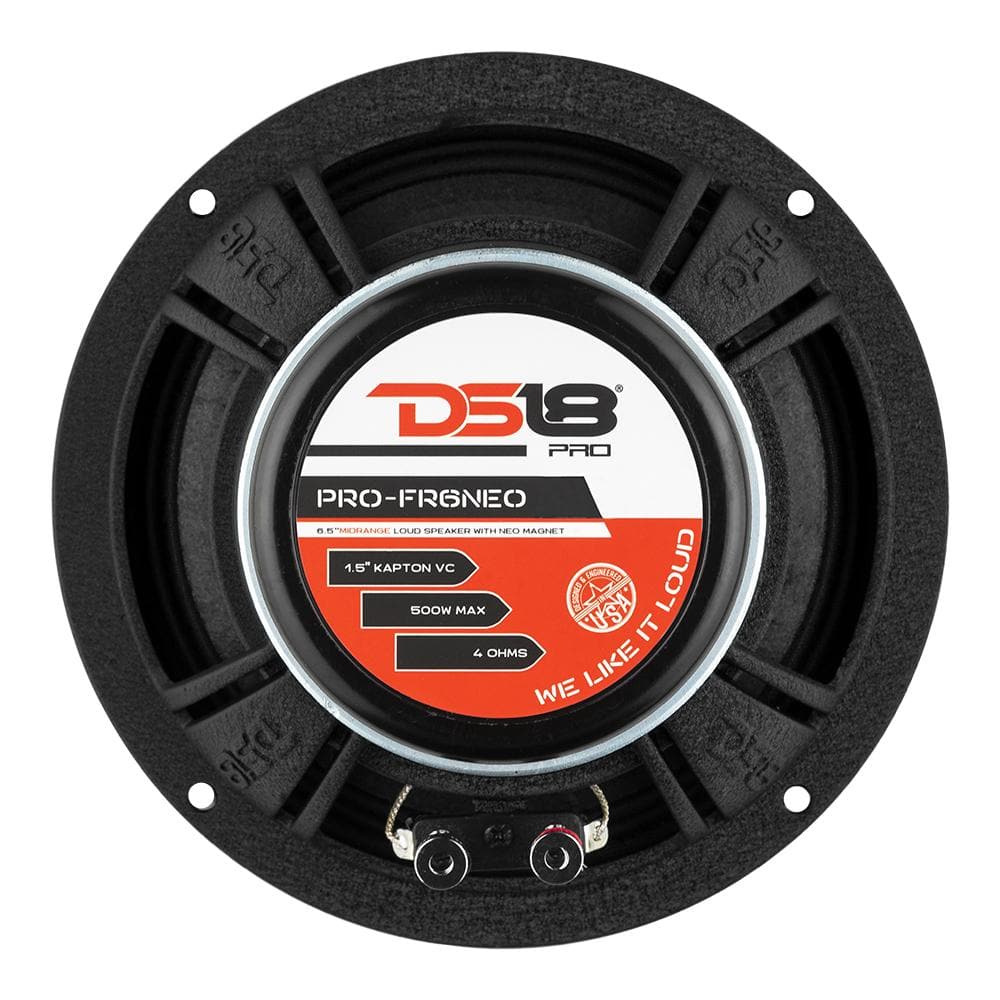

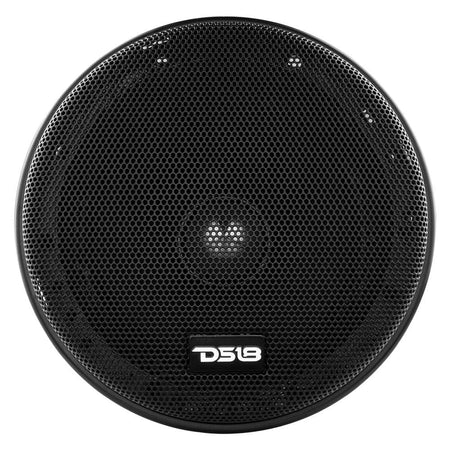

🔊 2) DS18 PRO-FR6NEO – 6.5" Neodymium Full-Range Midrange Speakers (Pair)

DS18’s PRO-FR6NEO is engineered for perfectionists who demand top-tier midrange clarity and punch. Using neodymium magnets — the strongest available — these speakers provide extreme magnetic flux for unmatched efficiency, detail, and output.

With 450W MAX Power (225W RMS) and 96dB sensitivity, these full-range mids deliver crisp, distortion-free sound that cuts through the mix while staying lightweight and efficient.

Specifications:

• Model: PRO-FR6NEO

• Speaker Size: 6.5"

• RMS Power: 225W

• MAX Power: 450W

• Frequency Response: 151Hz – 12.5kHz

• Impedance: 4 Ohm

• Sensitivity: 96dB

• Voice Coil: 1.5” high-temp KCCAW (2-layer)

• Cone: Non-pressed paper cone

• Frame: Aluminum

• Surround: Cloth edge

• Magnet: Neodymium

• Mounting Depth: 2.42”

• Cutout Diameter: 5.7”

• Weight: 3 lbs each

• YouTube Overview: DS18 PRO-FR6NEO Video

These midrange speakers strike the perfect balance between power and precision — making them ideal for open truck cabins, door pods, or roof-mounted sound panels.

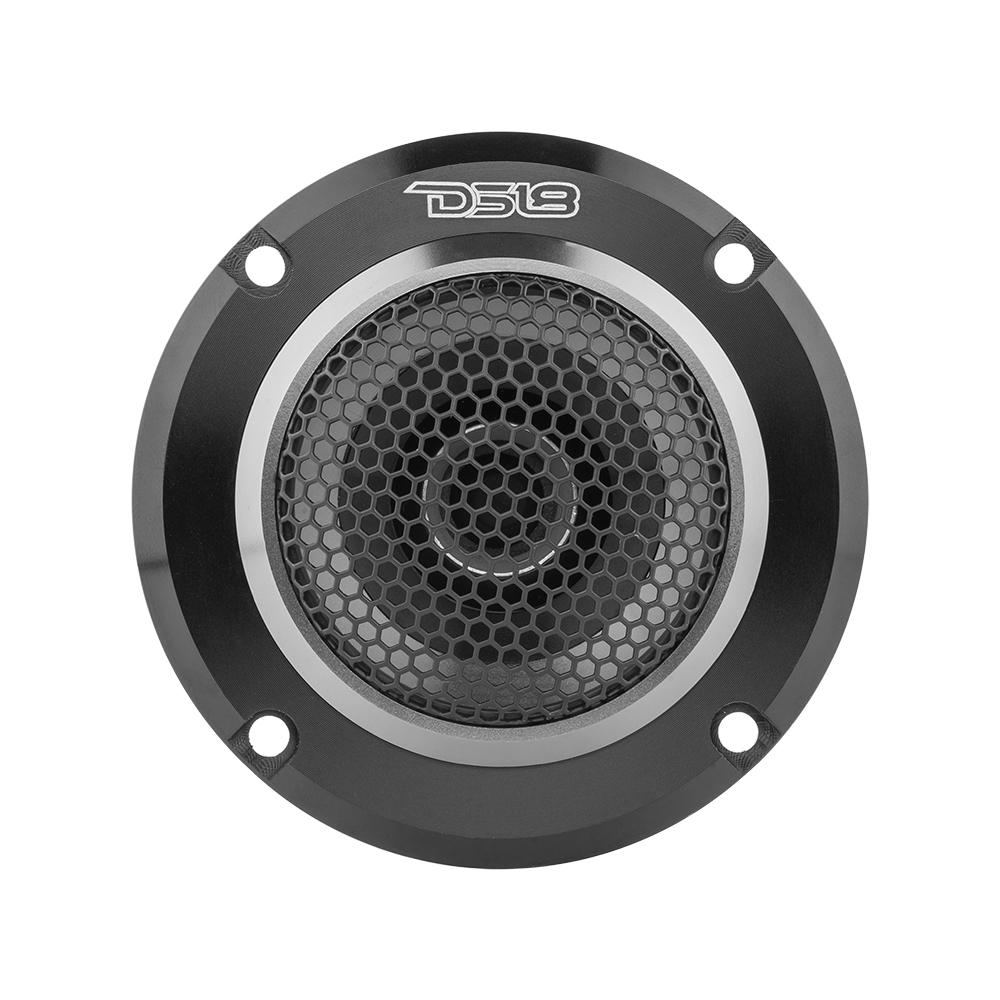

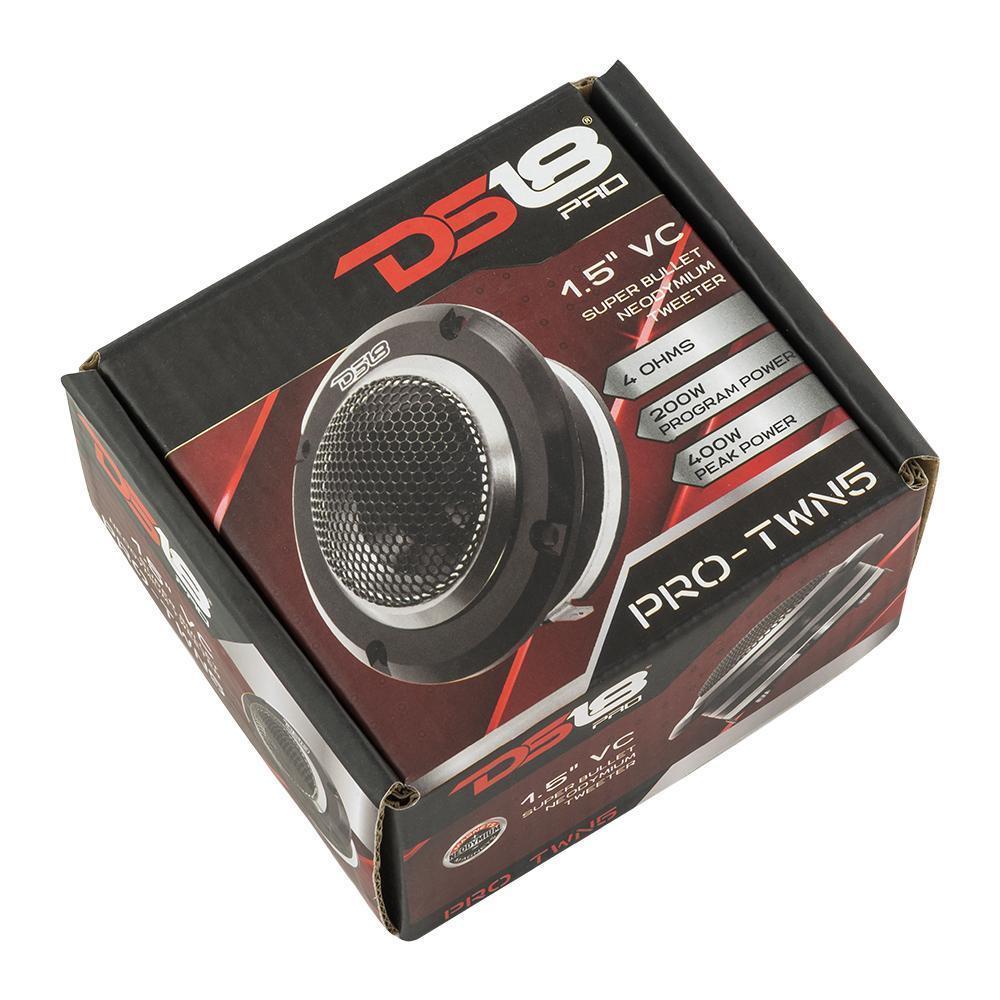

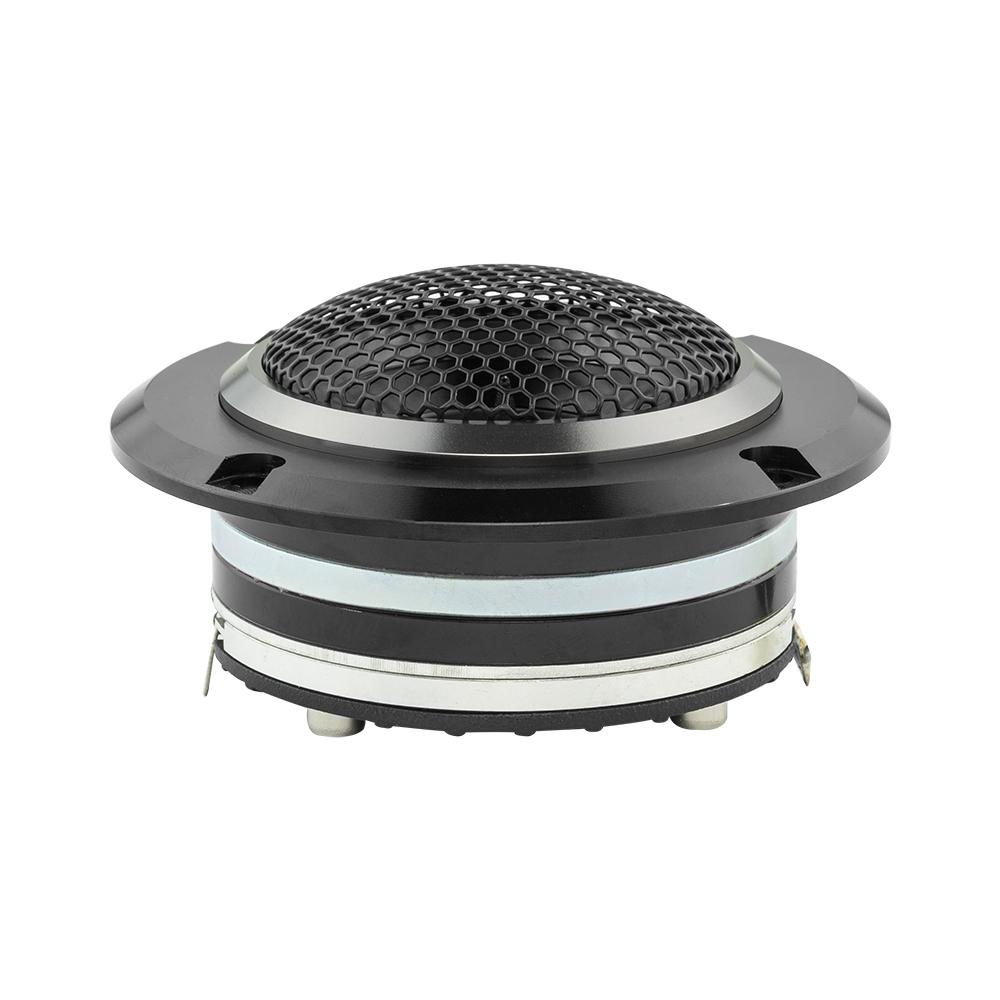

🔈 3) DS18 PRO-TWN5 – 1.5" Neodymium Compression Tweeters (Pair)

Small but mighty, the DS18 PRO-TWN5 delivers an astonishing 107dB sensitivity and 400W peak power handling in a compact, lightweight design. Built with a 1.5” voice coil, neodymium magnet, and polyimide diaphragm, these tweeters project sharp, detailed highs that perfectly complement the FR6NEO mids.

Each tweeter includes a bass blocker capacitor for added protection, ensuring long-lasting performance even under heavy use.

Specifications:

• Model: PRO-TWN5

• Tweeter Size: 1.5" (3.66” overall diameter)

• RMS Power: 200W

• MAX Power: 400W

• Impedance: 4 Ohm

• Sensitivity: 107dB

• Frequency Response: 1.5kHz – 20kHz

• Voice Coil: 1.5” diameter

• Magnet Type: Neodymium

• Diaphragm Material: Composite Polyimide

• Mounting Depth: 1.27”

• Cutout Diameter: 2.75”

• Weight: 1.5 lbs each

• YouTube Overview: DS18 PRO-TWN5 Video

Lightweight, efficient, and powerful — the PRO-TWN5 tweeters bring every note to life, ensuring your system delivers full-spectrum clarity from mids to highs.

⚙️ Bundle Highlights

✅ Complete Setup: Universal panel + 2× 6.5” mids + 2× 1.5” tweeters
✅ High-Efficiency Neo Magnet Drivers: Loud and crisp output with minimal power draw
✅ Compact Design: Perfect fit for standard cab trucks and custom pods
✅ Clean & Professional Look: Sleek vinyl panel finish for OEM-style integration
✅ Built for Durability: Premium components designed for high-volume, long-lasting use
✅ Easy Integration: Compatible with most amplifiers and DSP setups

📦 What’s Included

• (1) Universal SS-SSTT265-3 Vinyl Tiddy-Panel

• (2) DS18 PRO-FR6NEO 6.5” Full-Range Midrange Speakers

• (2) DS18 PRO-TWN5 1.5” Neodymium Compression Tweeters

⚠️ Important Notes

• Professional installation recommended for best performance.

• Ensure proper amplifier matching for optimal sound output.

• Verify dimensions before purchase to ensure correct fitment.

• Speakers include 1-year limited warranty from DS18.
