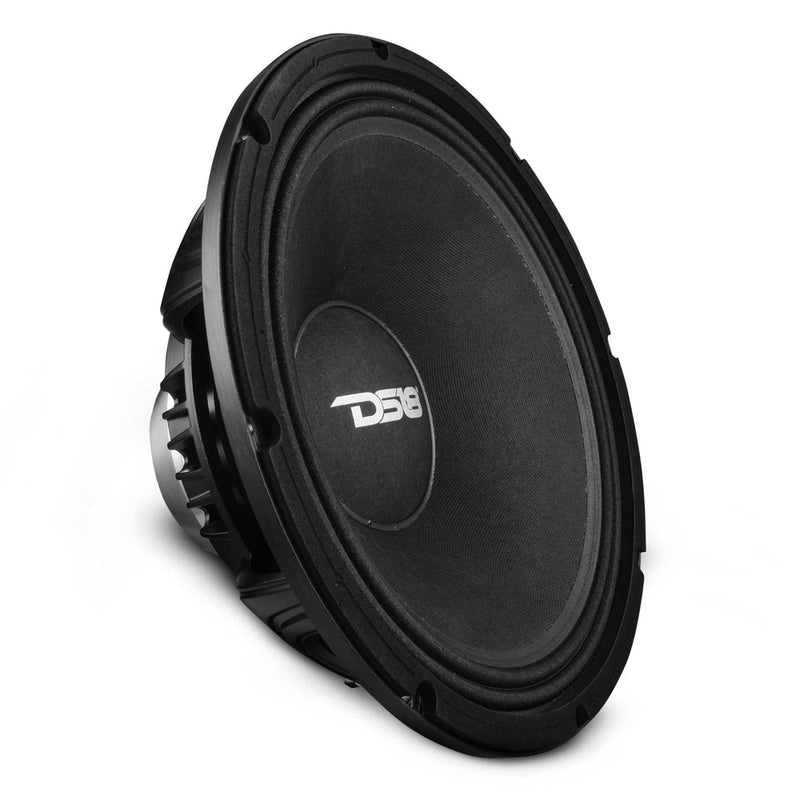

DS18 12XL1000N-8 XL 12" Mid-Range Loudspeaker 8-Ohm with Neodymium Magnet 500 Watts RMS
12” Mid-Range Loudspeaker With Neodymium Magnet
Hear your audio as intended with DS18’s 12XL1000N-8. This 8-ohm 12-inch mid-range utilizes advanced neodymium drivers for an impressive blend of power and sensitivity that sets new standards in high-powered audio.
Crafted for professional sound systems, the 12XL1000N-8 boasts an RMS power handling of 500W and peaks at a commanding 1000W, ensuring clear, distortion-free sound even at high outputs. Its superb sensitivity of 100dB (1w/1m) allows for remarkable loudness with minimal input power, making it a top choice for audiophiles seeking efficient energy use.
The speaker's robust construction features a non-pressed paper cone for lightness and rigidity, paired with a durable Kapton voice coil known for its high heat resistance. Its neodymium magnet, weighing just 11oz, maximizes magnetic efficiency without adding bulk. This is complemented by an innovative heat management system that includes demodulating rings to maintain consistent performance during intense sessions.
With a frequency response spanning from 80Hz to 5KHz, this mid-range loudspeaker delivers rich tones and detailed highs. The satin black aluminum basket not only provides durability but also enhances aesthetic appeal, making it suitable for any professional setup.
Features:
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
Specifications:
SKU: 12XL1000N-8
Nominal Diameter: 12" / 305mm
Nominal Impedance: 8 ohms
RMS Power Handling: 500 watts
MAX Power Handling: 1000 watts
Sensitivity (1w/1m): 100dB
Frequency Response: 80Hz-5KHz
Recommended High-Pass Crossover: 100Hz
Sold in Pair or Single: Single
Grill Included: No
Features:
Interleaved Sandwich Voice coil (ISV): No
Demodulating Rings: Yes
Improved Heat Dissipation: Yes
Cone Shape: Curvilinear
Speaker Terminals: Push 12ga
Motor:
Voice Coil Diameter: 3" / 76.2mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Non-pressed Paper
Dust Cap Material: Paper
Bullet Material: N/A
Bullet Color/Finish: N/A
Surround Material: Cloth
Spider Diameter: 5" / 127mm
Leads Type: Direct to Cone
Basket Material: Aluminum
Basket Color/Finish: Satin Black
Magnet Material: Neodymium
Magnet Weight: 11 Oz
Displacement Volume: 0.07L / 0.00247ft3
Thiele & Small Parameters:
Equivalent Volume Vas: 75.12L / 2.65ft3
Excursion (one way) Xmax: 7mm
Free Air Resonance Fs: 60Hz
Mechanical Factor Qms: 5.8
Electrical Factor Qes: 0.35
Total Factor Qts: 0.33
Mechanical Mass Mms: 44.6g
Mechanical Compliance Cms: 0.19mm/N
BL Factor BL: 18.7
Voice Coil Inductance Le: 0.25mH
Cone Area Sd: 526.85cm2
DC Resistance Re: 5.6 ohm
Mechanical Mass w/o air Mmd: 37g
Measurement:
Overall Diameter: 12.3" / 312mm
Overall Depth: 5.8" / 148mm
Front Mount Baffle Cutout: 10.9" / 278mm
Mounting Depth: 5.3" / 135mm
Motor Diameter: 5.16" / 131mm
