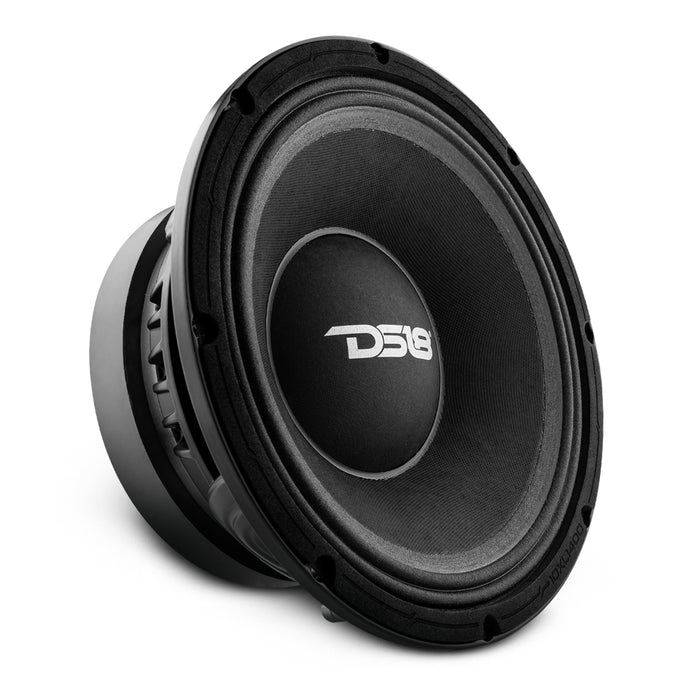

DS18 10XL1400-4 XL 10" Mid-Range Loudspeaker 700 Watts Rms 4-Ohm
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price
$239.95 USD
This 10-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.
With power handling of 700W RMS and 1400W MAX these speakers are guaranteed to blow you away. The frequency response of 60Hz-8KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 98 dB guarantees crystal-clear sound reproduction, even in large venues.
Features:
- 10" Mid-Range
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98dB
| Specification | Details |
|---|---|
| Model | DS18 10XL1400-4 |
| Speaker Type | 10" Mid-Range Loudspeaker |
| Impedance | 4 Ohm (Also available in 8 Ohm) |
| RMS Power Handling | 700 Watts |
| Max Power Handling | 1400 Watts |
| Sensitivity (1W/1m) | 98 dB |
| Frequency Response | 60Hz – 6KHz |
| Recommended Hi-Pass | 80Hz |
| Sold In | Single |
| Grill Included | No |
Motor & Build:
| Component | Details |
|---|---|
| Voice Coil Diameter | 3.5" / 89mm |
| Voice Coil Former | Kapton |
| Winding Material | CCAW (2 Layers IN/OUT) |
| Cone Material | Non-pressed Paper |
| Dust Cap | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 93 oz |
| Displacement Volume | 1.44L / 0.051 ft³ |
Thiele & Small Parameters:
| Parameter | Value |
|---|---|
| Vas | 21L / 0.741 ft³ |
| Xmax | 4mm |
| Fs | 70Hz |
| Qms / Qes / Qts | 3.796 / 0.39 / 0.354 |
| Mms / Cms | 43.4g / 0.11 mm/N |
| Bl | 13.52 |
| Le (Inductance) | 0.12 mH |
| Sd (Cone Area) | 363 cm² |
| Re (DC Resistance) | 3.6 Ohm |
| Mmd | 50g |
Measurements:
| Dimension | Value |
|---|---|
| Overall Diameter | 10.3" / 261.5 mm |
| Cutout Diameter | 9.2" / 233 mm |
| Mounting Depth | 4.4" / 114 mm |
| Overall Depth | 4.93" / 125 mm |
| Motor Diameter | 7.48" / 190 mm |
| UPC | 810097263161 |
