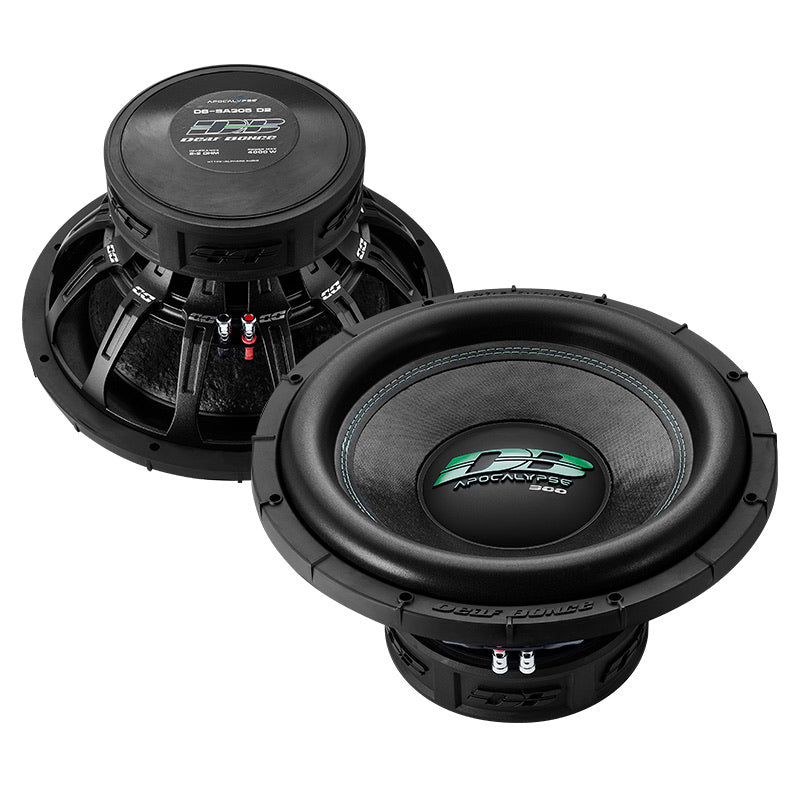

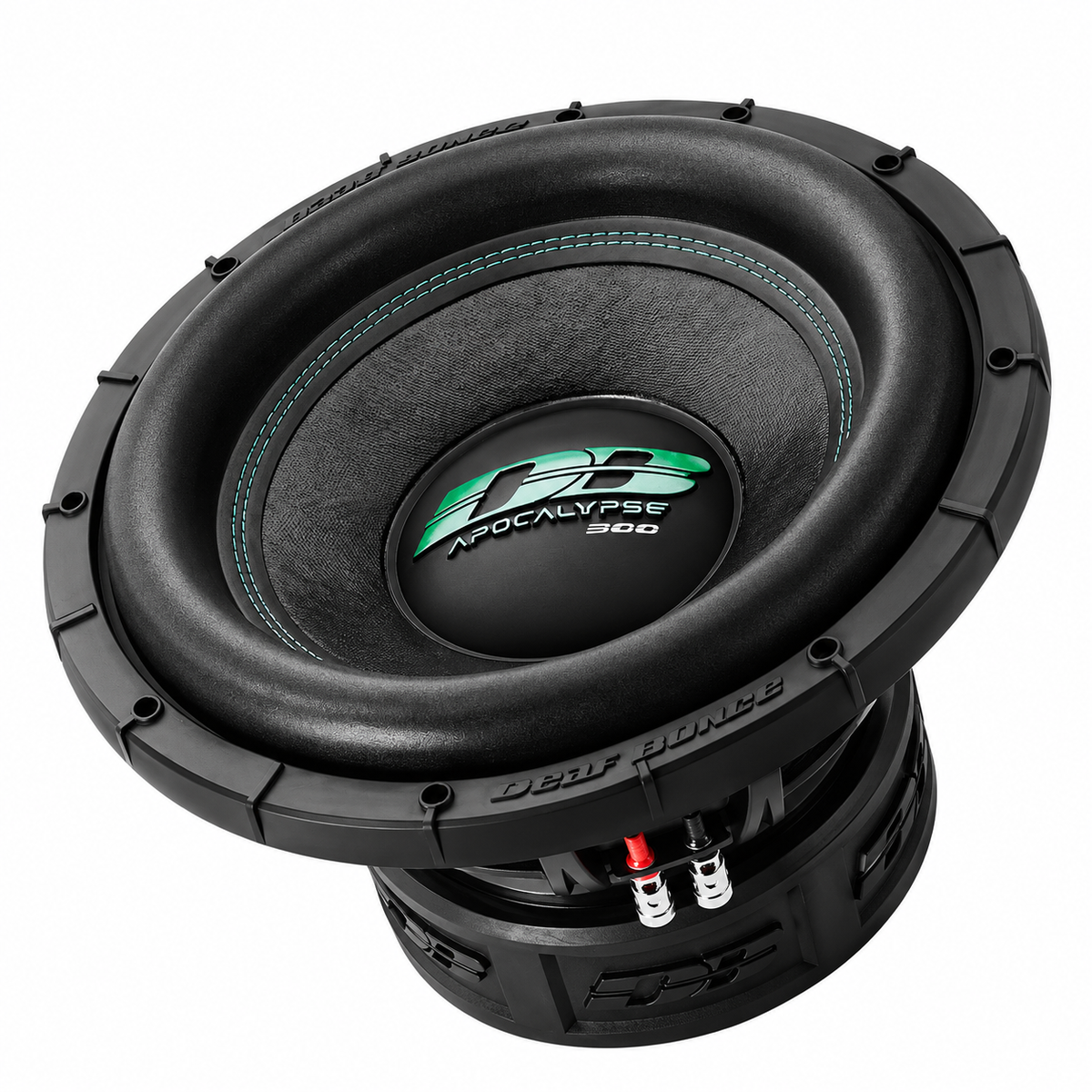

Deaf Bonce Apocalypse DB‑SA305 D1 15″ Subwoofer – 2000W RMS / 4000W Max, Dual 1+1 Ohm Apocalypse Series
The Apocalypse DB-SA305 D1 is a 15" subwoofer with 4-figure wattage capacity and dual 4-ohm voice coils. Its superior SPL output gives it superior sound quality and performance. Its powerful motor structure and advanced engineering ensure reliable, cutting-edge performance.
SPECIFICATIONS:
| Model | DB-SA305D1 |
| UPC | 4650185705625 |
| Type | Subwoofer |
| Size | 15" |
| Voice coil size | 3.00" |
| Cone | Paper |
| Magnet | Ferrite |
| Voice coil wire | CCAW |
| Surround | Foam |
| RMS Power | 2000 W |
| MAX Power | 4000 W |
| Frame | Alu |
| Impedance | 2+2 / 1+1 Ohm |
| SPL | 88.30 / 88.30 dB |
| Fs | 31.70 / 31.70 Hz |
| Qts | 0.40 / 0.40 |
| BL | 18.50 / 18.50 |
| Vas | 61.00 / 61.00 L |
| Xmeh | 1.42" (36.00 mm) |
| Xmax | 0.71" (18.00 mm) |
| Mounting depth | 7.85" (199.5 mm) |
| Cut-out dimension | 14.09" (358.0 mm) |
| Gross weight | 39.02 lb (17.70 kg) |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Address: 13446 Alondra Boulevard, Cerritos ,California 90703, United States
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community

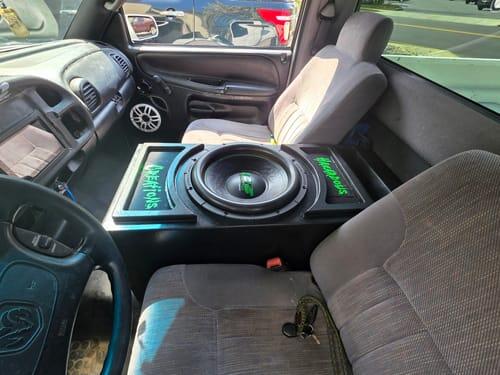

Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
