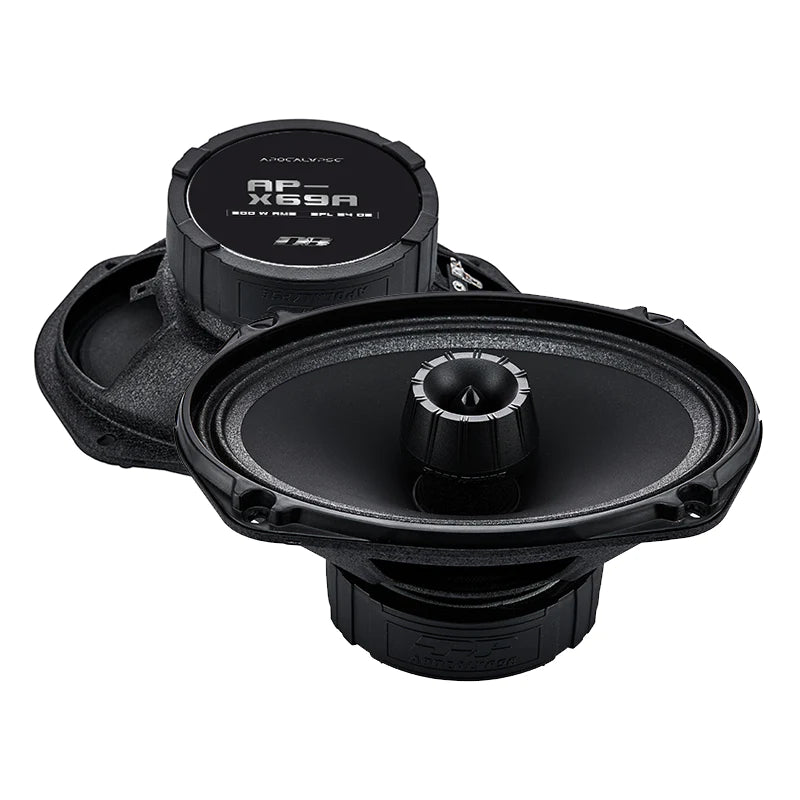

Deaf Bonce Apocalypse AP-X69A 6x9" Coaxial Speakers Pair | High Output Car Audio Full Range
The Apocalypse AP-X69A 6x9" coaxial speakers are built for buyers who want louder, stronger, and more efficient car audio performance. This pair delivers 200W RMS and 400W Max power at 4 ohms, with 94dB sensitivity and an 80Hz to 20kHz frequency response for powerful output, clear vocals, and detailed highs. A 1.5" voice coil, pressed paper cone, treated cloth surround, ferrite magnet, and stamped steel frame provide a durable speaker platform for compatible door or rear-deck installations.
Key Features
-
6x9" Coaxial Speakers: Full-range design for strong vocals, midrange, and high-frequency response.
-
200W RMS / 400W Max: High power handling for upgraded car audio systems.
-
94dB Sensitivity: Produces strong output efficiently.
-
4-Ohm Impedance: Works with a wide range of aftermarket audio systems and amplifiers.
-
1.5" Voice Coil: Designed for reliable high-output performance.
-
Pressed Paper Cone: Supports responsive and natural sound reproduction.
-
Treated Cloth Surround: Provides controlled cone movement and durability.
-
Ferrite Magnet: Delivers dependable magnetic performance.
-
Stamped Steel Frame: Provides a solid mounting structure.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AP-X69A |
| Speaker Type | 6x9" Coaxial |
| Package | Pair |
| Impedance | 4 Ohm |
| RMS Power | 200W |
| Max Power | 400W |
| Sensitivity | 94dB |
| Frequency Response | 80Hz - 20,000Hz |
| Voice Coil | 1.5" |
| Cone Material | Pressed Paper |
| Surround Material | Cloth |
| Voice Coil Wire | CCAW |
| Magnet | Ferrite |
| Frame | Stamped Steel |
| Resonance Frequency (Fs) | 126Hz |
| Total Q Factor (Qts) | 0.63 |
| BL | 7.93 |
| Equivalent Volume (Vas) | 7.71L |
| Mounting Depth | 3.5" / 89mm |
| UPC | 4650185708664 |
Installation
The AP-X69A has a 3.5" (89mm) mounting depth. Confirm the available mounting depth and speaker opening before purchasing to ensure proper installation in your vehicle.
Ideal for: 6x9" factory speaker replacements, aftermarket car audio upgrades, door installations, and rear-deck speaker applications where compatible.
Why Buy the AP-X69A?
With 200W RMS power handling, 94dB sensitivity, 4-ohm impedance, and a durable 6x9" coaxial design, the Apocalypse AP-X69A is a strong choice for upgrading factory speakers or building a higher-output aftermarket car audio system.
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Address: 13446 Alondra Boulevard, Cerritos ,California 90703, United States
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
Specifications
23 specs- MODEL
- AP-X69A
- UPC
- 677478762602
- SIZE
- 6.9"
- FREQUENCY RESPONSE
- 80–20000 Hz
- PACKAGE QUANTITY
- Pair
- VOICE COIL SIZE
- 1.5"
- CONE
- Pressed Paper
- MAGNET
- Ferrite
- VOICE COIL WIRE
- CCAW
- SURROUND
- Cloth
- RMS POWER
- 200 W
- MAX POWER
- 400 W
- FRAME
- Stamped Steel
- IMPEDANCE
- 4 Ohm
- SPL
- 94 dB
- FS
- 126 Hz
- QTS
- 0.63
- BL
- 7.93
- VAS
- 7.71 L
- MOUNTING DEPTH
- 3.5" (89 mm)
- BRAND
- Apocalypse
- VEHICLE TYPE
- Car | Truck | SUV
- WARRANTY
- 1-Year Limited Manufacturer Defect
