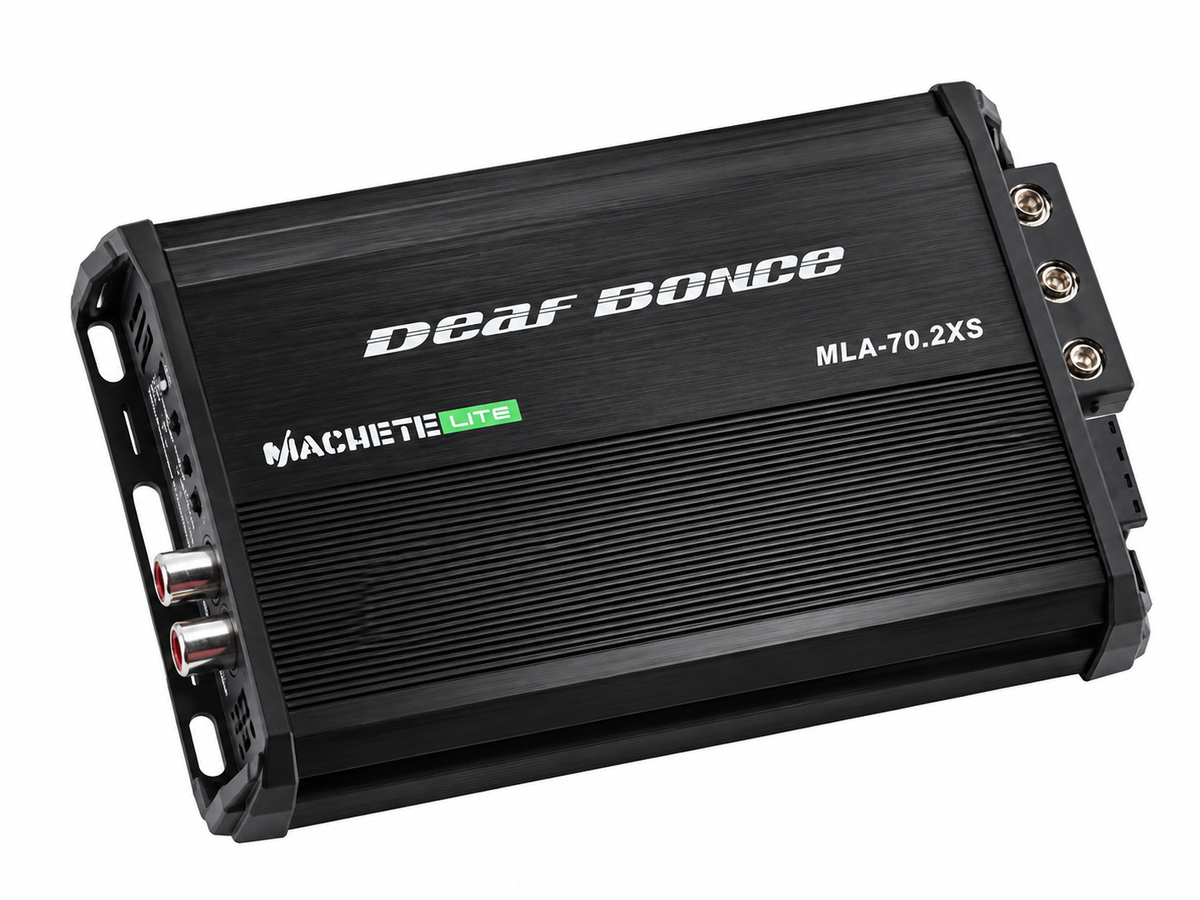

Deaf Bonce Machete 70 Watts 4 ohm RMS 2-Channel Class D Amplifier MLA-70.2 XS
The Deaf Bonce Machete MLA-70.2 XS is a high-performance 2-channel Class D amplifier designed to enhance your car audio system. It delivers 70 watts RMS per channel at 4 ohms and 100 watts RMS per channel at 2 ohms, with a bridged power output of 200 watts at 4 ohms. The amplifier features a wide frequency response range from 20 Hz to 20,000 Hz, ensuring detailed sound reproduction across all frequencies. It includes adjustable high-pass and low-pass filters (40 Hz to 400 Hz) and a true crossover with a 12 dB/octave slope for precise audio control. With a signal-to-noise ratio of 85 dB or higher, the MLA-70.2 XS provides clear and distortion-free sound. Its compact dimensions (5.4 x 3.2 x 1.4 inches) make it easy to install in various locations within your vehicle.
Model | MLA-70.2 XS |
Class | D |
Number of the channels | 2 |
Frequency response | 20-20000 Hz |
2 Ohm RMS Power (14.4 V) | 100 W x 2 |
4 Ohm RMS Power (14.4 V) | 70 W x 2 |
4 Ohm RMS Power (Bridge) | 200 W x 1 |
Minimum permissible load on the channel | 2 Ohm |
Minimum permissible load in a bridge connection | 4 Ohm |
Low pass filter | 40-400 Hz |
High pass filter | 40-400 Hz |
LPF and HPF simultaneous operation | True |
Crossover | 12 dB/Oct |
Input terminal | 4 Ga |
Output terminal | 8 Ga |
Working voltage | 9 - 15V |
Signal-to-noise ratio | ≥ 85 dB |
Size (WxLxH) | 5.4 x 3.2 x 1.4 inch |
