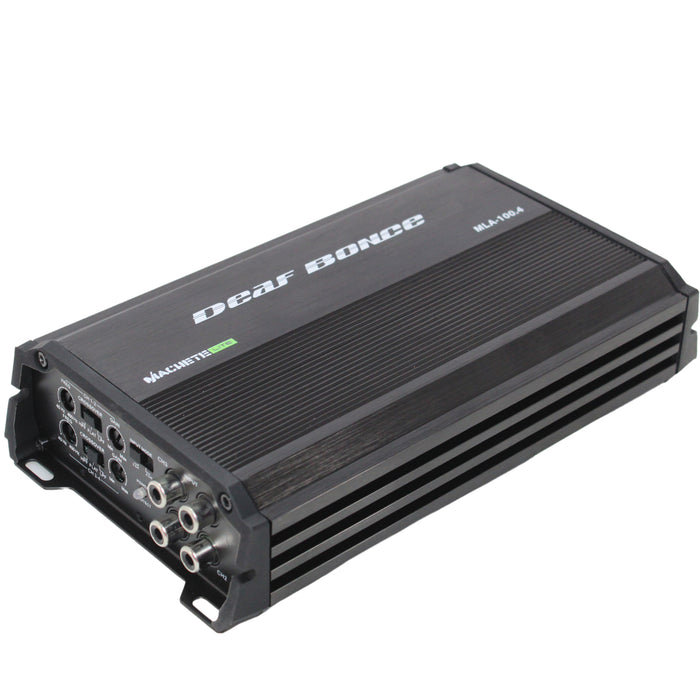

Deaf Bonce Machete 600W 2 ohm RMS Class D 4 Channel Power Amplifier MLA-100.4
The Deaf Bonce Machete MLA-100.4 is a versatile 4-channel Class D amplifier designed for car audio enthusiasts seeking powerful and precise sound. It delivers 100 watts RMS per channel at 4 ohms and 150 watts RMS per channel at 2 ohms, with a bridged power output of 300 watts at 4 ohms. The amplifier features a wide frequency response range from 20 Hz to 20,000 Hz, ensuring dynamic and detailed sound reproduction. It includes adjustable high-pass and low-pass filters (40 Hz to 400 Hz) and a true crossover with a 12 dB/octave slope for optimal audio customization. With a signal-to-noise ratio of 85 dB or higher, the MLA-100.4 provides clear and distortion-free sound. Its compact dimensions (8.7 x 4.3 x 1.7 inches) make it easy to install in various locations within your vehicle.
| Model | MLA-100.4 |
| Class | D |
| Number of the channels | 4 |
| Frequency response | 20-20000 Hz |
| 2 Ohm RMS Power (14.4 V) | 150 W x 4 |
| 4 Ohm RMS Power (14.4 V) | 100 W x 4 |
| 4 Ohm RMS Power (Bridge) | 300 W x 1 |
| Minimum permissible load on the channel | 2 Ohm |
| Minimum permissible load in a bridge connection | 4 Ohm |
| Low pass filter | 40-400 Hz |
| High pass filter | 40-400 Hz |
| LPF and HPF simultaneous operation | True |
| Crossover | 12 dB/Oct |
| Input terminal | 4 Ga |
| Output terminal | 8 Ga |
| Working voltage | 9 - 15V |
| Signal-to-noise ratio | ≥ 85 dB |
| Size (WxLxH) | 8 x 4.3 x 1.7 inch |
