Deaf Bonce Gemini 760DSP Car Stereo Head Unit | Bluetooth 5.3, DSP, 4Ć25W RMS, USB & AUX
Deaf Bonce Gemini 760DSP is a premium car stereo head unit made for drivers who want cleaner sound, stronger control, and a more flexible audio setup. Built as part of the Gemini 700 Series, it combines a powerful built-in amplifier, advanced DSP tuning, Bluetooth 5.3, USB playback, and high-voltage RCA outputs for a complete upgrade over a basic factory radio.
With 4 Ć 25W RMS output, 8 RCA outputs, 28-band equalization, time alignment, and 24 dB/Oct crossover control, the Gemini 760DSP gives you the tools to shape your system with precision. It is ideal for daily sound quality builds, upgraded speaker systems, and expanded setups that need clean signal control for amplifiers and subwoofers.
Features
High-Fidelity Built-In Amplifier
Delivers 4 Ć 25W RMS at 4 ohms, giving factory or aftermarket speakers clean power while keeping the system safe for standard vehicle wiring.

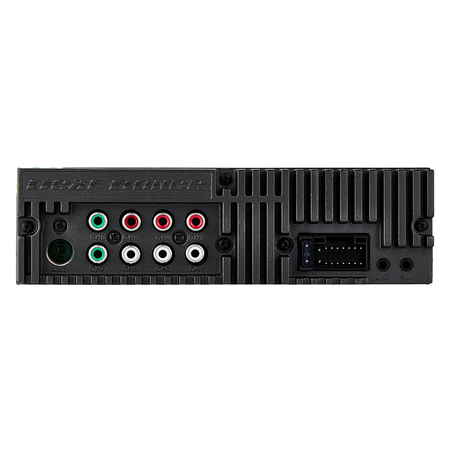

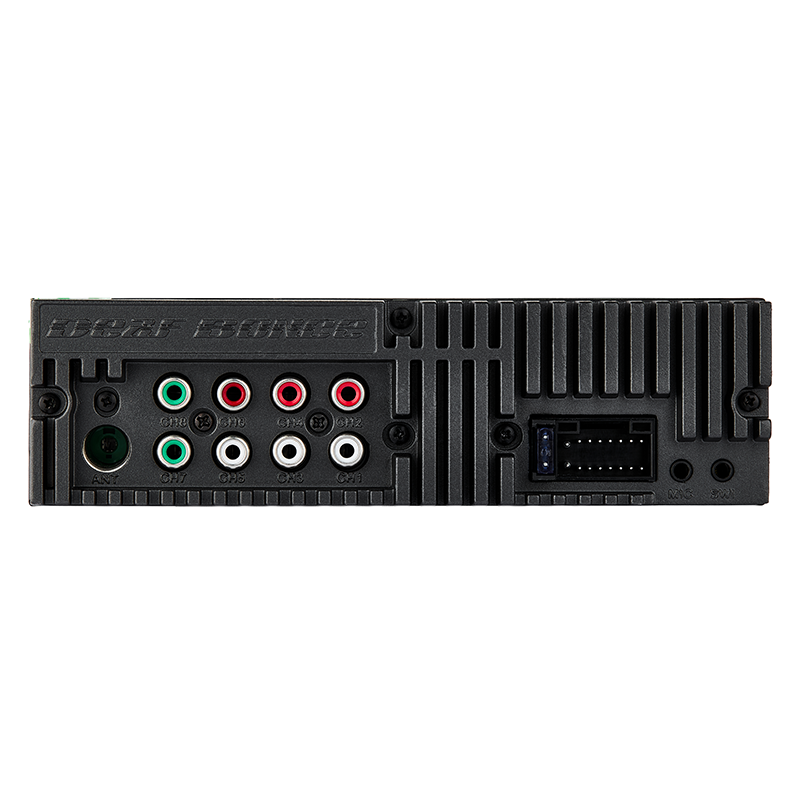

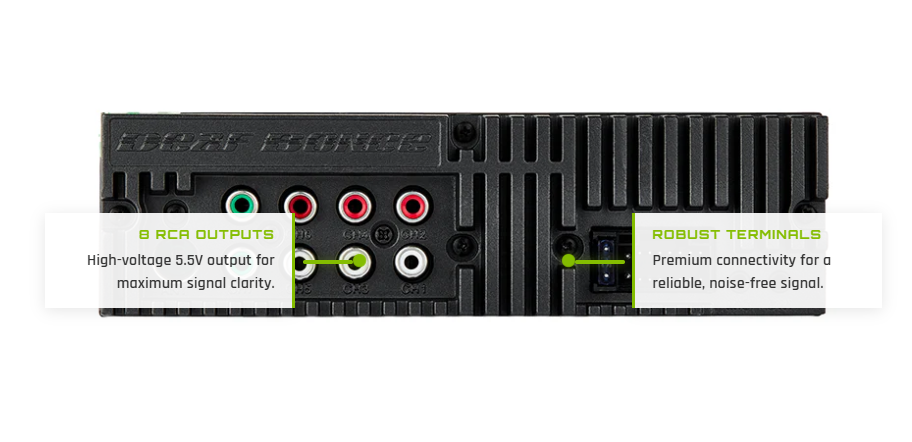

8 RCA Outputs for System Expansion
Includes 6 wideband RCA outputs and 2 subwoofer RCA outputs, making it easy to connect external amplifiers, processors, and subwoofer systems.
Up to 5.5V RCA Output Voltage
Provides a strong, clean preamp signal for better amplifier performance, lower noise, and improved dynamic response.
Advanced Bluetooth 5.3
Offers fast, stable wireless connection for music streaming and hands-free calling with improved signal quality.
Built-In DSP Processor
Includes powerful tuning controls such as time delay adjustment, 28-band EQ, crossover control, and 24 dB/Oct filtering for precise in-car sound staging.

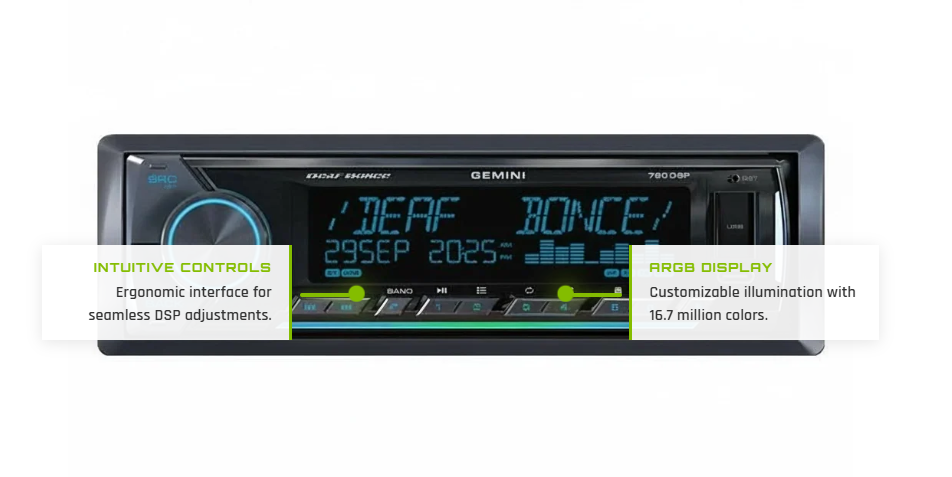

ARGB Illumination
Features 16.7 million color options, allowing the display lighting to match your vehicle interior or personal style.
Wide Audio Format Support
Plays popular high-quality audio formats including MP3, WMA, AAC, FLAC, and WAV through USB input.
Reliable Voltage Operation
Works within a 10ā17V operating range, helping maintain steady performance in demanding car audio systems.
Specifications
| Specification | Details |
|---|---|
| Model | Gemini 760DSP |
| Brand | Deaf Bonce |
| Product Type | Car Stereo Head Unit |
| Power Output RMS at 4 Ohms | 4 Ć 25W |
| Total RCA Outputs | 8 |
| Wideband RCA Outputs | 6 |
| Subwoofer RCA Outputs | 2 |
| RCA Output Voltage | Up to 5.5V |
| USB Input | Yes |
| Charging Port | Yes |
| AUX Output | No |
| Card Reader | No |
| Supported Audio Formats | MP3, WMA, AAC, FLAC, WAV |
| Hands-Free Support | Yes |
| Operating Voltage | 10ā17V |
| Illumination Type | ARGB, 16.7 million colors |
| Amplifier Class | AB |
| Frequency Range | 15ā20,000 Hz |
| Wideband Channel Frequency Range | 15ā20,000 Hz |
| Signal-to-Noise Ratio | ā„ 80 dB |
| Minimum Load per Channel | 4 Ohms |
| DSP Processor | Yes |
| Time Delay Adjustment | 0ā18 ms |
| Time Delay Step | 0.1 ms / 3 cm / 1 inch |
| Dimensions | 130 Ć 188 Ć 57 mm |
| UPC | 4650185711688 |
Why Choose the Deaf Bonce Gemini 760DSP?
The Deaf Bonce Gemini 760DSP is designed for car audio users who want more than basic playback. Its built-in DSP, strong RCA output voltage, flexible channel control, and Bluetooth 5.3 support make it a smart choice for building a cleaner, louder, and more adjustable audio system.
Whether you are upgrading factory speakers, adding amplifiers, or building a complete sound quality setup, the Gemini 760DSP gives you the control needed to fine-tune every part of your car audio system.
